#include <CViewport.h>

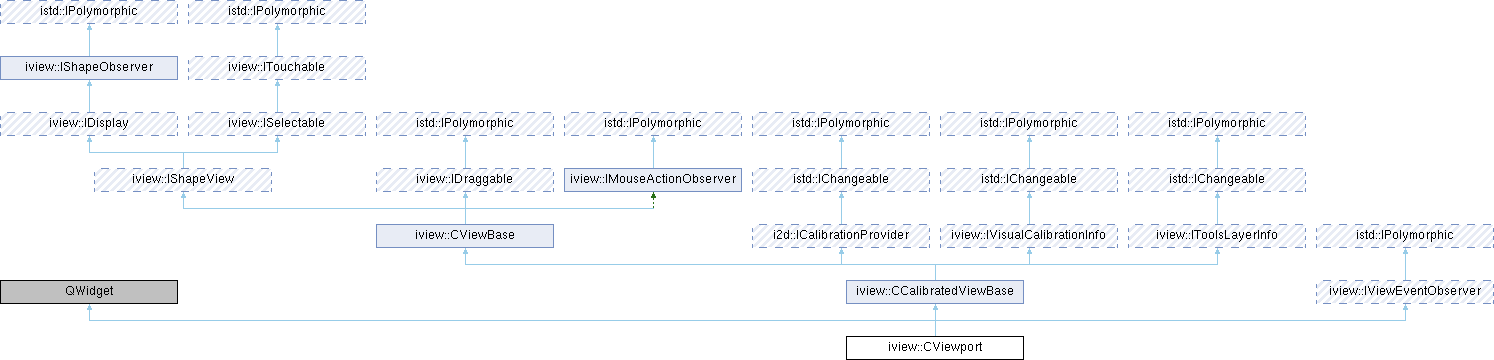

Inheritance diagram for iview::CViewport:

Public Types
typedef CCalibratedViewBase	BaseClass

typedef QWidget	BaseClass2

Public Types inherited from iview::CCalibratedViewBase
typedef CViewBase	BaseClass

Public Types inherited from iview::CViewBase
enum	ZoomMode { ZM_RESET , ZM_ZOOM_IN , ZM_ZOOM_OUT , ZM_FIT , ZM_FIT_COVER , ZM_FIT_UNPROP , ZM_FIT_H , ZM_FIT_V }

Public Types inherited from iview::IShapeView
typedef IShapeObserver	BaseClass

Public Types inherited from iview::IDisplay
enum	ChangeFlags { CF_TRANSFORM = 0x3f67360 , CF_COLORS , CF_SIZE , CF_EDIT_MODE , CF_DISPLAY_MODE , CS_CONSOLE }
	Define possible display change flags. More...

Public Types inherited from iview::ISelectable
enum	MousePointerMode { MPM_NONE , MPM_DEFAULT , MPM_DESELECT , MPM_POINTER , MPM_WAIT , MPM_CROSS , MPM_HAND , MPM_DRAG , MPM_SCREEN_MOVE , MPM_ADD , MPM_LAST }
	Defines possible states of mouse pointer. More...

enum	EditMode { EM_NONE = 0 , EM_MOVE = 1 , EM_ADD = 2 , EM_REMOVE = 3 , EM_LAST = 100 }
	Describes standard edit modes. More...

enum	DisplayMode { DM_DEFAULT = 0 }
	Describes standard display modes. More...

typedef QSet< IInteractiveShape * >	SelectedShapes

Public Types inherited from iview::ITouchable
enum	TouchState { TS_NONE , TS_INACTIVE , TS_TICKER , TS_DRAGGABLE , TS_AREA , TS_OTHER , TS_LAST = TS_OTHER }
	Enumeration for possible shape touch states. More...

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Signals
void	ShapesChanged ()
	Called when some shapes has been changed.

void	BoundingBoxChanged ()

Public Member Functions
	CViewport (CConsoleBase framePtr, QWidget parent=NULL)

virtual	~CViewport ()

CConsoleBase *	GetFramePtr () const

void	UpdateFitTransform ()

bool	MoveViewBy (int dx, int dy)

void	SetShowInfoText (bool on)

void	SetMousePointerCursor (int mode, const QCursor &cursor)

virtual void	SetEditMode (int mode)
	Changes the edit mode.

virtual void	SetFitArea (const i2d::CRectangle &area) override
	Set area used for fitting of the view contents.

virtual i2d::CRect	GetClientRect () const override
	Get bounding box of client area.

virtual void	Update () override
	Updates all invalidates shapes.

virtual bool	OnSelectChange (const iview::IShapeView &view, const istd::CIndex2d &position, const iview::IInteractiveShape &shape, bool state) override
	Event handler for selection changes.

virtual bool	OnViewMouseButton (const iview::IShapeView &view, const istd::CIndex2d &position, Qt::MouseButton buttonType, bool state, const iview::IInteractiveShape *shapePtr) override
	Event handler for mouse button click.

virtual bool	OnViewMouseMove (const iview::IShapeView &view, const istd::CIndex2d &position) override
	Event handler for mouse move event.

virtual bool	OnMouseMove (istd::CIndex2d position) override
	It is called, when mouse is moved.

virtual void	ConnectCalibrationShape (iview::IShape *shapePtr) override
	Connect visualisation shape for calibration object.

Public Member Functions inherited from iview::CCalibratedViewBase
	CCalibratedViewBase ()

void	SetDisplayCalibration (const i2d::ICalibration2d *calibrationPtr)
	Set calibration using to display logical coordinates.

virtual void	SetGridVisible (bool state=true)
	Set grid visibility state.

virtual void	SetDistanceMeasureToolActive (bool state=true)
	Set distance measure tool active.

virtual void	SetPointMeasureToolActive (bool state=true)
	Set point measure tool active.

virtual void	ConnectToolShape (iview::IShape *shapePtr)
	Connect visualisation shape for ruler object.

void	SetMinGridDistance (double gridDistance)
	Set minimal grid size.

void	SetGridInMm (bool state=true)
	Set if grid should be shown in milimeter.

const iview::IViewLayer &	GetCalibrationLayer () const
	Get default calibration layer.

const iview::IViewLayer &	GetToolsLayer () const
	Get default tools layer.

void	SetDefaultColorSchema (const IColorSchema *colorSchemaPtr, bool releaseFlag=false)
	Set default color schema object.

bool	IsBackgroundBufferActive () const

void	SetBackgroundBufferActive (bool state=true)

bool	IsDoubleBufferActive () const

void	SetDoubleBufferActive (bool state=true)

const iview::CDrawBuffer &	GetBackgroundBuffer () const

iview::CDrawBuffer &	GetBackgroundBuffer ()

const iview::CDrawBuffer &	GetDoubleBuffer () const

iview::CDrawBuffer &	GetDoubleBuffer ()

void	CheckResize ()
	Check if size size was changed and invalidation and OnResize() should be done.

virtual const iview::IColorSchema &	GetDefaultColorSchema () const override

virtual void	UpdateAllShapes (const istd::IChangeable::ChangeSet &changeSet) override

virtual void	InsertDefaultLayers () override

virtual int	InsertLayer (iview::IViewLayer *layerPtr, int index=-1, int layerType=IViewLayer::LT_NONE) override
	Insert layer to view.

virtual void	RemoveLayer (int index) override
	Remove layer from view.

virtual bool	IsGridVisible () const override
	Check if grid is visible.

virtual double	GetMinGridDistance () const override
	Get minimal distance between grid lines.

virtual bool	IsGridInMm () const override
	Check if grid should be shown in milimeter.

virtual bool	IsDistanceMeasureToolActive () const override
	Check if the distance measuring is active.

virtual bool	IsPointMeasureToolActive () const override
	Check if the point measuring is active.

virtual const i2d::ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	InvalidateBackground ()
	Invalidate whole background buffer.

Public Member Functions inherited from iview::CViewBase
	CViewBase ()

virtual	~CViewBase ()

void	SetExternalScreenTransform (const istd::TSmartPtr< iview::CScreenTransform > &screenTransformPtr)

void	CenterTo (const iview::IShape &shape)
	Zooms the view to the given shape.

int	GetBackgroundLayerIndex () const
	Get index of default background layer.

int	GetInactiveLayerIndex () const
	Get index of default inactive layer.

int	GetActiveLayerIndex () const
	Get index of default active layer.

virtual void	AddViewEventObserver (iview::IViewEventObserver *listenerPtr) override
	Add/remove external event observers.

virtual void	RemoveViewEventObserver (iview::IViewEventObserver *listenerPtr) override

virtual void	SetZoom (ZoomMode zoom)

virtual void	SetDisplayMode (int mode) override
	Changes the display mode.

virtual void	SetScreenPosition (const i2d::CVector2d &client, istd::CIndex2d screen)

virtual const i2d::CRectangle &	GetFitArea () const

virtual void	SetViewDraggable (bool state=true)

virtual void	SetMultiselectable (bool state=true)

virtual void	SetDraggable (bool state=true)

virtual bool	IsViewDraggable () const override
	Check if is draggable mode.

virtual bool	IsMultiselectable () const override
	Check, if it is possible to select more than one shape.

virtual int	GetLayerIndex (const IViewLayer &layer) const override
	Get index of layer.

virtual int	GetLayerIndex (int layerType) const override
	Get index of layer by type.

virtual int	GetLayersCount () const override
	Get count of layer in this view.

virtual IViewLayer &	GetLayer (int index) const override
	Get layer with the given index.

virtual bool	ConnectShape (IShape *shapePtr) override
	Connect shape object to view.

virtual ISelectableLayer *	GetFocusedLayerPtr () const override
	Get focused layer.

virtual void	OnLayerShapeFocused (IInteractiveShape shapePtr, ISelectableLayer layerPtr) override
	Called when shape in layer get focus.

virtual void	OnLayerShapeDefocused (IInteractiveShape shapePtr, ISelectableLayer layerPtr) override
	Called when shape in layer loose focus.

virtual void	OnLayerInvalidated (const IViewLayer &layer, const i2d::CRect &prevArea, const i2d::CRect &newArea) override
	Inform that layer was invalidated.

virtual int	GetSelectedShapesCount () const override
	Get count of selected shapes.

virtual void	InsertSelectedShapes (SelectedShapes &result) const override
	Get set of selected shapes.

virtual void	DeselectAllShapes () override
	Set all shapes to be deselected.

virtual int	GetKeysState () const override
	Get state of system keys.

virtual int	GetEditMode () const override
	Get actual edit mode.

virtual int	GetDisplayMode () const override
	Get actual display mode.

virtual void	OnShapeFocused (IInteractiveShape *) override
	Called when shape get focus.

virtual void	OnShapeDefocused (IInteractiveShape *) override
	Called when shape loose focus.

virtual TouchState	IsTouched (istd::CIndex2d position) const override
	Check, if any shape is touched.

virtual QString	GetShapeDescriptionAt (istd::CIndex2d position) const override
	Get description to shape at specified position.

virtual QString	GetToolTipAt (istd::CIndex2d) const override
	Get tooltip at specified position.

virtual void	SetTransform (const i2d::CAffine2d &transform) override
	Set a screen transformation.

virtual void	UpdateMousePointer () override
	Update mouse pointer.

virtual bool	OnMouseButton (istd::CIndex2d position, Qt::MouseButton buttonType, bool downFlag) override
	It is called, when mouse button is pushed down or up on this object.

virtual IDisplay *	GetParentDisplayPtr () const override
	Get parent object of this display.

virtual const iview::CScreenTransform &	GetTransform () const override
	Return a screen transformation.

virtual i2d::CRect	GetBoundingBox () const override
	Get bounding box of all object in this display.

virtual const IColorSchema &	GetColorSchema () const override
	Get color schema.

virtual void	OnChangeShape (IShape *shapePtr) override
	Invalidate a shape.

virtual bool	DisconnectShape (IShape *shapePtr) override
	Disconnect shape object from view.

virtual void	OnShapeSelected (IInteractiveShape &shape, bool state=true) override
	It is called after change shape selection state.

virtual bool	IsDraggable () const override
	Check if drag is enabled.

virtual void	BeginDrag (const istd::CIndex2d &reference) override
	Called before dragging is begin.

virtual void	SetDragPosition (const istd::CIndex2d &position) override
	Set new drag position.

virtual void	EndDrag () override
	Called after dragging.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Protected Member Functions
virtual void	SetBackgroundBufferValid (bool state=true)
	Set validate flag of background buffer.

virtual void	OnResize ()
	Called if found that display area was resized.

virtual bool	CanBeMoved () const
	This method is internal used to check, if drag mode is allowed.

virtual void	paintEvent (QPaintEvent *event) override

virtual void	resizeEvent (QResizeEvent *event) override

virtual void	keyPressEvent (QKeyEvent *event) override

virtual void	keyReleaseEvent (QKeyEvent *event) override

virtual void	mousePressEvent (QMouseEvent *event) override

virtual void	mouseReleaseEvent (QMouseEvent *event) override

virtual void	mouseMoveEvent (QMouseEvent *event) override

virtual void	leaveEvent (QEvent *event) override

virtual void	SetMousePointer (MousePointerMode mode) override
	Set mouse pointer.

virtual void	UpdateRectArea (const i2d::CRect &rect) override
	Start updating specified rectangle area.

virtual void	OnBoundingBoxChanged () override
	Called when bounding box has been changed.

virtual void	OnAreaInvalidated (const i2d::CRect &beforeBox, const i2d::CRect &afterBox) override
	Invalidate display area.

int	GetMouseKeysState (const QMouseEvent &event)

Protected Member Functions inherited from iview::CCalibratedViewBase
virtual void	DrawBuffers (QPaintDevice &nativeContext, const i2d::CRect &clipRect)

virtual void	DrawToContext (QPaintDevice &nativeContext, QPainter &context, const i2d::CRect &invalidatedBox)

Protected Member Functions inherited from iview::CViewBase
virtual void	DrawLayers (QPainter &drawContext, int firstLayer, int lastLayer)
	Draw Background layer.

int	GetLastBackgroundLayerIndex () const
	Get last background layer index.

void	SetLastBackgroundLayerIndex (int index)

void	DisconnectAllShapes ()
	Disconnect all shapes from this view.

virtual void	InvalidateBoundingBox ()
	Invalidate bounding box.

bool	EnsureBoundingBoxValid ()
	Calculate bounding box if it was invalid.

virtual i2d::CRect	CalcBoundingBox () const
	Calculate bounding box of all shapes.

virtual MousePointerMode	CalcMousePointer (istd::CIndex2d position) const
	Calc mouse pointer for the given position.

virtual bool	IsBackgroundBufferValid () const
	Check if background buffer is valid.

const i2d::CRect &	GetInvalidatedBox () const
	Get bounding box of all invalidated rectangles.

void	InvalidateBox (const i2d::CRect &rect)
	Invalidate rectangle screen area.

void	ResetInvalidatedBox ()
	Reset invalidated box.

void	SetKeysState (int state)
	Set state of keys.

const Layers &	GetLayers () const

Layers &	GetLayers ()

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes
QCursor	m_mousePointerModes [MPM_LAST]

imath::CFixedPointManip	m_pixelPositionFormatter

imath::CFixedPointManip	m_logicalPositionFormatter

CConsoleBase *	m_framePtr = nullptr

bool	m_showInfoText = false

QString	m_infoText

Protected Attributes inherited from iview::CViewBase
bool	m_isBackgroundBufferValid

istd::TSmartPtr< iview::CScreenTransform >	m_transformPtr

ViewMode	m_viewMode

int	m_editMode

int	m_displayMode

i2d::CVector2d	m_moveReference

bool	m_isMultiselectable

bool	m_isViewDraggable

bool	m_isDraggable

QVector< iview::IViewEventObserver * >	m_viewListeners

ISelectableLayer *	m_focusedLayerPtr

int	m_backgroundLayerIndex

int	m_activeLayerIndex

int	m_inactiveLayerIndex

i2d::CRect	m_invalidatedBox

i2d::CRectangle	m_fitArea

int	m_lastBackgroundLayerIndex

iview::IMouseActionObserver *	m_mouseActionObserverPtr = nullptr

iview::CViewLayer	m_backgroundLayer

iview::CViewLayer	m_inactiveLayer

iview::CInteractiveViewLayer	m_activeLayer

Layers	m_layers

bool	m_isLastMouseButtonDown

int	m_keysState

istd::CIndex2d	m_lastMousePosition

bool	m_isSelectEventActive

i2d::CRect	m_boundingBox

bool	m_isBoundingBoxValid

bool	m_blockBBoxEvent

Friends
class	CConsoleBase

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Types inherited from iview::CViewBase
enum	ViewMode { VM_NONE , VM_DRAG , VM_MOVE }

typedef QVector< IViewLayer * >	Layers

Detailed Description

Definition at line 28 of file CViewport.h.

Member Typedef Documentation

◆ BaseClass

typedef CCalibratedViewBase iview::CViewport::BaseClass

Definition at line 36 of file CViewport.h.

◆ BaseClass2

typedef QWidget iview::CViewport::BaseClass2

Definition at line 37 of file CViewport.h.

Constructor & Destructor Documentation

◆ CViewport()

iview::CViewport::CViewport	(	CConsoleBase *	framePtr,
		QWidget *	parent = `NULL`
	)

◆ ~CViewport()

virtual iview::CViewport::~CViewport ( )

virtual

Member Function Documentation

◆ BoundingBoxChanged

void iview::CViewport::BoundingBoxChanged ( )

signal

◆ CanBeMoved()

virtual bool iview::CViewport::CanBeMoved ( ) const

protectedvirtual

This method is internal used to check, if drag mode is allowed.

Normally it return IsViewDraggable(), but in derived class you can change its implementation to avoid dragging.

Reimplemented from iview::CViewBase.

◆ ConnectCalibrationShape()

virtual void iview::CViewport::ConnectCalibrationShape ( iview::IShape * shapePtr )

overridevirtual

Connect visualisation shape for calibration object.

Reimplemented from iview::CCalibratedViewBase.

◆ GetClientRect()

virtual i2d::CRect iview::CViewport::GetClientRect ( ) const

overridevirtual

Get bounding box of client area.

Implements iview::IDisplay.

◆ GetFramePtr()

CConsoleBase * iview::CViewport::GetFramePtr ( ) const

◆ GetMouseKeysState()

int iview::CViewport::GetMouseKeysState ( const QMouseEvent & event )

protected

◆ keyPressEvent()

virtual void iview::CViewport::keyPressEvent ( QKeyEvent * event )

overrideprotectedvirtual

◆ keyReleaseEvent()

virtual void iview::CViewport::keyReleaseEvent ( QKeyEvent * event )

overrideprotectedvirtual

◆ leaveEvent()

virtual void iview::CViewport::leaveEvent ( QEvent * event )

overrideprotectedvirtual

◆ mouseMoveEvent()

virtual void iview::CViewport::mouseMoveEvent ( QMouseEvent * event )

overrideprotectedvirtual

◆ mousePressEvent()

virtual void iview::CViewport::mousePressEvent ( QMouseEvent * event )

overrideprotectedvirtual

◆ mouseReleaseEvent()

virtual void iview::CViewport::mouseReleaseEvent ( QMouseEvent * event )

overrideprotectedvirtual

◆ MoveViewBy()

bool iview::CViewport::MoveViewBy	(	int	dx,
		int	dy
	)

◆ OnAreaInvalidated()

virtual void iview::CViewport::OnAreaInvalidated	(	const i2d::CRect &	prevArea,
		const i2d::CRect &	newArea
	)

overrideprotectedvirtual

Invalidate display area.

Parameters

prevArea	previous area used to display object.
newArea	new area used to display object.

Reimplemented from iview::CViewBase.

◆ OnBoundingBoxChanged()

virtual void iview::CViewport::OnBoundingBoxChanged ( )

overrideprotectedvirtual

Called when bounding box has been changed.

Reimplemented from iview::CViewBase.

◆ OnMouseMove()

virtual bool iview::CViewport::OnMouseMove ( istd::CIndex2d position )

overridevirtual

It is called, when mouse is moved.

Only objects with focus receive this event.

Parameters

position - position of mouse pointer on client area (picture coords).

Returns: true if this shape should hold focus to catch longer all mouse movements.

Reimplemented from iview::CViewBase.

◆ OnResize()

virtual void iview::CViewport::OnResize ( )

protectedvirtual

Called if found that display area was resized.

Reimplemented from iview::CCalibratedViewBase.

◆ OnSelectChange()

virtual bool iview::CViewport::OnSelectChange	(	const iview::IShapeView &	view,
		const istd::CIndex2d &	position,
		const iview::IInteractiveShape &	shape,
		bool	state
	)

overridevirtual

Event handler for selection changes.

Returns: true, if this event was consumed by this listener and should not be further processed.

Implements iview::IViewEventObserver.

◆ OnViewMouseButton()

virtual bool iview::CViewport::OnViewMouseButton	(	const iview::IShapeView &	view,
		const istd::CIndex2d &	position,
		Qt::MouseButton	buttonType,
		bool	state,
		const iview::IInteractiveShape *	shapePtr
	)

overridevirtual

Event handler for mouse button click.

Returns: true, if this event was consumed by this listener and should not be further processed.

Implements iview::IViewEventObserver.

◆ OnViewMouseMove()

virtual bool iview::CViewport::OnViewMouseMove	(	const iview::IShapeView &	view,
		const istd::CIndex2d &	position
	)

overridevirtual

Event handler for mouse move event.

Returns: true, if this event was consumed by this listener and should not be further processed.

Implements iview::IViewEventObserver.

◆ paintEvent()

virtual void iview::CViewport::paintEvent ( QPaintEvent * event )

overrideprotectedvirtual

◆ resizeEvent()

virtual void iview::CViewport::resizeEvent ( QResizeEvent * event )

overrideprotectedvirtual

◆ SetBackgroundBufferValid()

virtual void iview::CViewport::SetBackgroundBufferValid ( bool state = true )

protectedvirtual

Set validate flag of background buffer.

Reimplemented from iview::CViewBase.

◆ SetEditMode()

virtual void iview::CViewport::SetEditMode ( int mode )

virtual

Changes the edit mode.

Reimplemented from iview::CViewBase.

◆ SetFitArea()

virtual void iview::CViewport::SetFitArea ( const i2d::CRectangle & area )

overridevirtual

Set area used for fitting of the view contents.

Reimplemented from iview::CViewBase.

◆ SetMousePointer()

virtual void iview::CViewport::SetMousePointer ( MousePointerMode mode )

overrideprotectedvirtual

Set mouse pointer.

You have to implement it in your iview::CViewBase implementations.

Implements iview::CViewBase.

◆ SetMousePointerCursor()

void iview::CViewport::SetMousePointerCursor	(	int	mode,
		const QCursor &	cursor
	)

◆ SetShowInfoText()

void iview::CViewport::SetShowInfoText ( bool on )

◆ ShapesChanged

void iview::CViewport::ShapesChanged ( )

signal

Called when some shapes has been changed.

◆ Update()

virtual void iview::CViewport::Update ( )

overridevirtual

Updates all invalidates shapes.

Reimplemented from iview::CViewBase.

◆ UpdateFitTransform()

void iview::CViewport::UpdateFitTransform ( )

◆ UpdateRectArea()

virtual void iview::CViewport::UpdateRectArea ( const i2d::CRect & rect )

overrideprotectedvirtual

Start updating specified rectangle area.

Implements iview::CViewBase.

Friends And Related Symbol Documentation

◆ CConsoleBase

friend class CConsoleBase

friend

Definition at line 125 of file CViewport.h.

Member Data Documentation

◆ m_framePtr

CConsoleBase* iview::CViewport::m_framePtr = nullptr

protected

Definition at line 120 of file CViewport.h.

◆ m_infoText

QString iview::CViewport::m_infoText

protected

Definition at line 123 of file CViewport.h.

◆ m_logicalPositionFormatter

imath::CFixedPointManip iview::CViewport::m_logicalPositionFormatter

protected

Definition at line 119 of file CViewport.h.

◆ m_mousePointerModes

QCursor iview::CViewport::m_mousePointerModes[MPM_LAST]

protected

Definition at line 116 of file CViewport.h.

◆ m_pixelPositionFormatter

imath::CFixedPointManip iview::CViewport::m_pixelPositionFormatter

protected

Definition at line 118 of file CViewport.h.

◆ m_showInfoText

bool iview::CViewport::m_showInfoText = false

protected

Definition at line 122 of file CViewport.h.

The documentation for this class was generated from the following file:

Acf/Include/iview/CViewport.h

Public Types

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ BaseClass2

Constructor & Destructor Documentation

◆ CViewport()

◆ ~CViewport()

Member Function Documentation

◆ BoundingBoxChanged

◆ CanBeMoved()

◆ ConnectCalibrationShape()

◆ GetClientRect()

◆ GetFramePtr()

◆ GetMouseKeysState()

◆ keyPressEvent()

◆ keyReleaseEvent()

◆ leaveEvent()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ MoveViewBy()

◆ OnAreaInvalidated()

◆ OnBoundingBoxChanged()

◆ OnMouseMove()

◆ OnResize()

◆ OnSelectChange()

◆ OnViewMouseButton()

◆ OnViewMouseMove()

◆ paintEvent()

◆ resizeEvent()

◆ SetBackgroundBufferValid()

◆ SetEditMode()

◆ SetFitArea()

◆ SetMousePointer()

◆ SetMousePointerCursor()

◆ SetShowInfoText()

◆ ShapesChanged

◆ Update()

◆ UpdateFitTransform()

◆ UpdateRectArea()

Friends And Related Symbol Documentation

◆ CConsoleBase

Member Data Documentation

◆ m_framePtr

◆ m_infoText

◆ m_logicalPositionFormatter

◆ m_mousePointerModes

◆ m_pixelPositionFormatter

◆ m_showInfoText
