Common interface for a general shape view implementations. More...

#include <IShapeView.h>

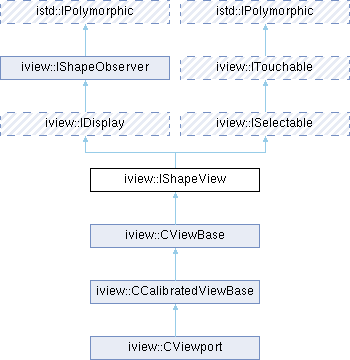

Inheritance diagram for iview::IShapeView:

Public Types
typedef IShapeObserver	BaseClass

Public Types inherited from iview::IDisplay
enum	ChangeFlags { CF_TRANSFORM = 0x3f67360 , CF_COLORS , CF_SIZE , CF_EDIT_MODE , CF_DISPLAY_MODE , CS_CONSOLE }
	Define possible display change flags. More...

Public Types inherited from iview::ISelectable
enum	MousePointerMode { MPM_NONE , MPM_DEFAULT , MPM_DESELECT , MPM_POINTER , MPM_WAIT , MPM_CROSS , MPM_HAND , MPM_DRAG , MPM_SCREEN_MOVE , MPM_ADD , MPM_LAST }
	Defines possible states of mouse pointer. More...

enum	EditMode { EM_NONE = 0 , EM_MOVE = 1 , EM_ADD = 2 , EM_REMOVE = 3 , EM_LAST = 100 }
	Describes standard edit modes. More...

enum	DisplayMode { DM_DEFAULT = 0 }
	Describes standard display modes. More...

typedef QSet< IInteractiveShape * >	SelectedShapes

Public Types inherited from iview::ITouchable
enum	TouchState { TS_NONE , TS_INACTIVE , TS_TICKER , TS_DRAGGABLE , TS_AREA , TS_OTHER , TS_LAST = TS_OTHER }
	Enumeration for possible shape touch states. More...

Public Member Functions
virtual void	AddViewEventObserver (iview::IViewEventObserver *listenerPtr)=0
	Add/remove external event observers.

virtual void	RemoveViewEventObserver (iview::IViewEventObserver *listenerPtr)=0

virtual void	SetFitArea (const i2d::CRectangle &area)=0
	Set area used for fitting of the view contents.

virtual void	SetTransform (const i2d::CAffine2d &transform)=0
	Set a screen transformation.

virtual void	SetEditMode (int mode)=0
	Changes the edit mode.

virtual void	SetDisplayMode (int mode)=0
	Changes the display mode.

virtual bool	IsViewDraggable () const =0
	Check if is draggable mode.

virtual bool	IsMultiselectable () const =0
	Check, if it is possible to select more than one shape.

virtual void	Update ()=0
	Updates all invalidates shapes.

virtual void	UpdateMousePointer ()=0
	Update mouse pointer.

virtual int	InsertLayer (IViewLayer *layerPtr, int index=-1, int layerType=IViewLayer::LT_NONE)=0
	Insert layer to view.

virtual int	GetLayerIndex (const IViewLayer &layer) const =0
	Get index of layer.

virtual int	GetLayerIndex (int layerType) const =0
	Get index of layer by type.

virtual void	RemoveLayer (int index)=0
	Remove layer from view.

virtual int	GetLayersCount () const =0
	Get count of layer in this view.

virtual IViewLayer &	GetLayer (int index) const =0
	Get layer with the given index.

virtual bool	ConnectShape (IShape *shapePtr)=0
	Connect shape object to view.

virtual ISelectableLayer *	GetFocusedLayerPtr () const =0
	Get focused layer.

virtual void	OnLayerShapeFocused (IInteractiveShape shapePtr, ISelectableLayer layerPtr)=0
	Called when shape in layer get focus.

virtual void	OnLayerShapeDefocused (IInteractiveShape shapePtr, ISelectableLayer layerPtr)=0
	Called when shape in layer loose focus.

virtual void	OnLayerInvalidated (const IViewLayer &layer, const i2d::CRect &prevArea, const i2d::CRect &newArea)=0
	Inform that layer was invalidated.

Public Member Functions inherited from iview::IDisplay
virtual IDisplay *	GetParentDisplayPtr () const =0
	Get parent object of this display.

virtual const iview::CScreenTransform &	GetTransform () const =0
	Return a screen transformation.

virtual i2d::CRect	GetBoundingBox () const =0
	Get bounding box of all object in this display.

virtual i2d::CRect	GetClientRect () const =0
	Get bounding box of client area.

virtual const IColorSchema &	GetColorSchema () const =0
	Get color schema.

virtual void	OnAreaInvalidated (const i2d::CRect &prevArea, const i2d::CRect &newArea)=0
	Invalidate display area.

Public Member Functions inherited from iview::IShapeObserver
virtual void	OnChangeShape (IShape *shapePtr)=0
	Invalidate a shape.

virtual bool	DisconnectShape (IShape *shapePtr)=0
	Disconnect shape object from view.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iview::ISelectable
virtual int	GetSelectedShapesCount () const =0
	Get count of selected shapes.

virtual void	InsertSelectedShapes (SelectedShapes &result) const =0
	Get set of selected shapes.

virtual void	DeselectAllShapes ()=0
	Set all shapes to be deselected.

virtual int	GetKeysState () const =0
	Get state of system keys.

virtual int	GetEditMode () const =0
	Get actual edit mode.

virtual int	GetDisplayMode () const =0
	Get actual display mode.

virtual void	OnShapeFocused (IInteractiveShape *shapePtr)=0
	Called when shape get focus.

virtual void	OnShapeDefocused (IInteractiveShape *shapePtr)=0
	Called when shape loose focus.

virtual void	OnShapeSelected (IInteractiveShape &shape, bool state=true)=0
	It is called after change shape selection state.

Public Member Functions inherited from iview::ITouchable
virtual TouchState	IsTouched (istd::CIndex2d position) const =0
	Check, if any shape is touched.

virtual QString	GetShapeDescriptionAt (istd::CIndex2d position) const =0
	Get description to shape at specified position.

virtual QString	GetToolTipAt (istd::CIndex2d position) const =0
	Get tooltip at specified position.

Detailed Description

Common interface for a general shape view implementations.

Definition at line 27 of file IShapeView.h.

Member Typedef Documentation

◆ BaseClass

typedef IShapeObserver iview::IShapeView::BaseClass

Definition at line 32 of file IShapeView.h.

Member Function Documentation

◆ AddViewEventObserver()

virtual void iview::IShapeView::AddViewEventObserver ( iview::IViewEventObserver * listenerPtr )

pure virtual

Add/remove external event observers.

Implemented in iview::CViewBase.

◆ ConnectShape()

virtual bool iview::IShapeView::ConnectShape ( IShape * shapePtr )

pure virtual

Connect shape object to view.

Parameters

shape a shape object.

Returns: true, if it was possible to connect this shape.

Implemented in iview::CViewBase.

Referenced by iqt2d::TViewExtenderCompBase< Base >::AddItemsToScene().

◆ GetFocusedLayerPtr()

virtual ISelectableLayer * iview::IShapeView::GetFocusedLayerPtr ( ) const

pure virtual

Get focused layer.

Implemented in iview::CViewBase.

◆ GetLayer()

virtual IViewLayer & iview::IShapeView::GetLayer ( int index ) const

pure virtual

Get layer with the given index.

Implemented in iview::CViewBase.

◆ GetLayerIndex() [1/2]

virtual int iview::IShapeView::GetLayerIndex ( const IViewLayer & layer ) const

pure virtual

Get index of layer.

Returns: layer index, or -1 if not found.

Implemented in iview::CViewBase.

◆ GetLayerIndex() [2/2]

virtual int iview::IShapeView::GetLayerIndex ( int layerType ) const

pure virtual

Get index of layer by type.

Returns: layer index, or -1 if not found.

Implemented in iview::CViewBase.

◆ GetLayersCount()

virtual int iview::IShapeView::GetLayersCount ( ) const

pure virtual

Get count of layer in this view.

Implemented in iview::CViewBase.

◆ InsertLayer()

virtual int iview::IShapeView::InsertLayer	(	IViewLayer *	layerPtr,
		int	index = `-1`,
		int	layerType = `IViewLayer::LT_NONE`
	)

pure virtual

Insert layer to view.

Parameters

layerPtr	pointer to inserted layer.
index	index of inserted layer. If equals -1, layer will be inserted after last existing layer.
layerType	used to set standard layers.
