Definition of an affine transformation for 2D-spaces. More...

#include <CAffineTransformation2d.h>

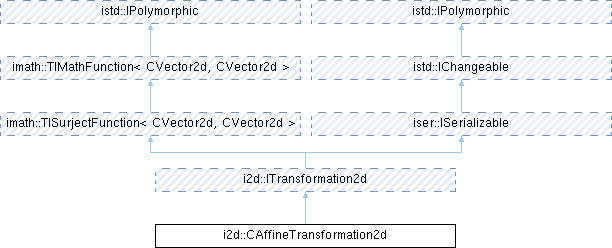

Inheritance diagram for i2d::CAffineTransformation2d:

Public Member Functions
	CAffineTransformation2d ()

	CAffineTransformation2d (const i2d::CAffine2d &transformation)

const i2d::CAffine2d &	GetTransformation () const
	Get used transformation object.

i2d::CAffine2d &	GetTransformationRef ()
	Get reference to internal transformation object.

void	SetTransformation (const i2d::CAffine2d &transformation)
	Set the transformation object.

void	Reset ()
	Set to identity transformation.

void	Reset (const CVector2d &translation)
	Set this transformation to translation.

void	Reset (const CVector2d &translation, double angle, double scale=1.0)
	Set this transformation to translation, rotation and scaling.

void	Reset (const CVector2d &translation, double angle, const CVector2d &scale)
	Set this transformation to translation, rotation and both axis scaling.

virtual int	GetTransformationFlags () const override
	Get flags of describing type of this transformation.

virtual bool	GetDistance (const CVector2d &origPos1, const CVector2d &origPos2, double &result, ExactnessMode mode=EM_NONE) const override
	Compute a shortness distance in transformed coordinations.

virtual bool	GetPositionAt (const CVector2d &origPosition, CVector2d &result, ExactnessMode mode=EM_NONE) const override
	Get position after transformation.

virtual bool	GetInvPositionAt (const CVector2d &transfPosition, CVector2d &result, ExactnessMode mode=EM_NONE) const override
	Get position after transformation.

virtual bool	GetLocalTransform (const CVector2d &origPosition, CAffine2d &result, ExactnessMode mode=EM_NONE) const override
	Get local transformation (from original to transformed coordinate system) at some original position.

virtual bool	GetLocalInvTransform (const CVector2d &transfPosition, CAffine2d &result, ExactnessMode mode=EM_NONE) const override
	Get local transformation (from transformed to original coordinate system) at some transformed position.

virtual bool	GetInvValueAt (const CVector2d &argument, CVector2d &result) const override

virtual CVector2d	GetInvValueAt (const CVector2d &argument) const override

virtual bool	GetValueAt (const CVector2d &argument, CVector2d &result) const override

virtual CVector2d	GetValueAt (const CVector2d &argument) const override

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

Public Member Functions inherited from imath::TISurjectFunction< CVector2d, CVector2d >
virtual bool	GetInvValueAt (const CVector2d &argument, CVector2d &result) const=0
	Get inverted function value.

virtual CVector2d	GetInvValueAt (const CVector2d &argument) const=0
	Get inverted function value.

Public Member Functions inherited from imath::TIMathFunction< Argument, Result >
virtual bool	GetValueAt (const Argument &argument, Result &result) const =0
	Get function value for specified argument value.

virtual Result	GetValueAt (const Argument &argument) const =0
	Get function value for specified argument value.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Protected Attributes
CAffine2d	m_transformation

Additional Inherited Members
Public Types inherited from i2d::ITransformation2d
enum	ExactnessMode { EM_NONE , EM_EXACT , EM_VISUAL , EM_ANY }

enum	TransformationFlags { TF_FORWARD = 1 << 0 , TF_INVERTED = 1 << 1 , TF_INJECTIVE = 1 << 2 , TF_SURJECTIVE = 1 << 3 , TF_PRESERVE_NULL = 1 << 4 , TF_PRESERVE_DISTANCE = 1 << 5 , TF_PRESERVE_ANGLE = 1 << 6 , TF_AFFINE = 1 << 7 , TF_CONTINUES = 1 << 8 }
	Flags indication type of this transformation and supported operations. More...

Public Types inherited from imath::TIMathFunction< Argument, Result >
typedef Argument	ArgumentType

typedef Result	ResultType

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Definition of an affine transformation for 2D-spaces.

Definition at line 17 of file CAffineTransformation2d.h.

Constructor & Destructor Documentation

◆ CAffineTransformation2d() [1/2]

i2d::CAffineTransformation2d::CAffineTransformation2d ( )

◆ CAffineTransformation2d() [2/2]

i2d::CAffineTransformation2d::CAffineTransformation2d ( const i2d::CAffine2d & transformation )

explicit

Member Function Documentation

◆ CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > i2d::CAffineTransformation2d::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from istd::IChangeable.

◆ CopyFrom()

virtual bool i2d::CAffineTransformation2d::CopyFrom	(	const istd::IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Copy this object from another one.

Default implementation in istd::IChangeable does nothing.

Reimplemented from istd::IChangeable.

◆ GetDistance()

virtual bool i2d::CAffineTransformation2d::GetDistance	(	const CVector2d &	origPos1,
		const CVector2d &	origPos2,
		double &	result,
		ExactnessMode	mode = `EM_NONE`
	)		const

overridevirtual

Compute a shortness distance in transformed coordinations.

Parameters

origPos1	first position in original coordinates.
origPos2	second position in original coordinates.
result	object where result distance between positions in transformed coordinates will be stored.
mode	controls needed transformation exactness.

Returns: true, if calculation done correctly.

Implements i2d::ITransformation2d.

◆ GetInvPositionAt()

virtual bool i2d::CAffineTransformation2d::GetInvPositionAt	(	const CVector2d &	transfPosition,
		CVector2d &	result,
		ExactnessMode	mode = `EM_NONE`
	)		const

overridevirtual

Get position after transformation.

Parameters

transfPosition	position in transformed coordination system.
result	result position (original coordination system).
mode	controls needed transformation exactness.

Returns: true, if calculation done correctly.

Implements i2d::ITransformation2d.

◆ GetInvValueAt() [1/2]

virtual CVector2d i2d::CAffineTransformation2d::GetInvValueAt ( const CVector2d & argument ) const

overridevirtual

◆ GetInvValueAt() [2/2]

virtual bool i2d::CAffineTransformation2d::GetInvValueAt	(	const CVector2d &	argument,
		CVector2d &	result
	)		const

overridevirtual

◆ GetLocalInvTransform()

virtual bool i2d::CAffineTransformation2d::GetLocalInvTransform	(	const CVector2d &	transfPosition,
		CAffine2d &	result,
		ExactnessMode	mode = `EM_NONE`
	)		const

overridevirtual

Get local transformation (from transformed to original coordinate system) at some transformed position.

Parameters

transfPosition	position in transformed coordination system.
result	inverse transformation for specified position.
mode	controls needed transformation exactness.

Returns: true, if calculation done correctly.

Implements i2d::ITransformation2d.

◆ GetLocalTransform()

virtual bool i2d::CAffineTransformation2d::GetLocalTransform	(	const CVector2d &	origPosition,
		CAffine2d &	result,
		ExactnessMode	mode = `EM_NONE`
	)		const

overridevirtual

Get local transformation (from original to transformed coordinate system) at some original position.

Parameters

origPosition	position in (original coordination system).
result	transformation for specified position.
mode	controls needed transformation exactness.

Returns: true, if calculation done correctly.

Implements i2d::ITransformation2d.

◆ GetPositionAt()

virtual bool i2d::CAffineTransformation2d::GetPositionAt	(	const CVector2d &	origPosition,
		CVector2d &	result,
		ExactnessMode	mode = `EM_NONE`
	)		const

overridevirtual

Get position after transformation.

Parameters

origPosition	position in (original coordination system).
result	result position (transformed coordination system).
mode	controls needed transformation exactness.

Returns: true, if calculation done correctly.

Implements i2d::ITransformation2d.

◆ GetTransformation()

const i2d::CAffine2d & i2d::CAffineTransformation2d::GetTransformation ( ) const

inline

Get used transformation object.

Definition at line 106 of file CAffineTransformation2d.h.

References m_transformation.

◆ GetTransformationFlags()

virtual int i2d::CAffineTransformation2d::GetTransformationFlags ( ) const

overridevirtual

Get flags of describing type of this transformation.

Implements i2d::ITransformation2d.

◆ GetTransformationRef()

i2d::CAffine2d & i2d::CAffineTransformation2d::GetTransformationRef ( )

inline

Get reference to internal transformation object.

Please don forgot the update notifying.

Definition at line 112 of file CAffineTransformation2d.h.

References m_transformation.

◆ GetValueAt() [1/2]

virtual CVector2d i2d::CAffineTransformation2d::GetValueAt ( const CVector2d & argument ) const

overridevirtual

◆ GetValueAt() [2/2]

virtual bool i2d::CAffineTransformation2d::GetValueAt	(	const CVector2d &	argument,
		CVector2d &	result
	)		const

overridevirtual

◆ Reset() [1/4]

void i2d::CAffineTransformation2d::Reset ( )

Set to identity transformation.

◆ Reset() [2/4]

void i2d::CAffineTransformation2d::Reset ( const CVector2d & translation )

Set this transformation to translation.

◆ Reset() [3/4]

void i2d::CAffineTransformation2d::Reset	(	const CVector2d &	translation,
		double	angle,
		const CVector2d &	scale
	)

Set this transformation to translation, rotation and both axis scaling.

◆ Reset() [4/4]

void i2d::CAffineTransformation2d::Reset	(	const CVector2d &	translation,
		double	angle,
		double	scale = `1.0`
	)

Set this transformation to translation, rotation and scaling.

◆ Serialize()

virtual bool i2d::CAffineTransformation2d::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

◆ SetTransformation()

void i2d::CAffineTransformation2d::SetTransformation ( const i2d::CAffine2d & transformation )

Set the transformation object.

Member Data Documentation

◆ m_transformation

CAffine2d i2d::CAffineTransformation2d::m_transformation

protected

Definition at line 100 of file CAffineTransformation2d.h.

Referenced by GetTransformation(), and GetTransformationRef().

The documentation for this class was generated from the following file:

Acf/Include/i2d/CAffineTransformation2d.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CAffineTransformation2d() [1/2]

◆ CAffineTransformation2d() [2/2]

Member Function Documentation

◆ CloneMe()

◆ CopyFrom()

◆ GetDistance()

◆ GetInvPositionAt()

◆ GetInvValueAt() [1/2]

◆ GetInvValueAt() [2/2]

◆ GetLocalInvTransform()

◆ GetLocalTransform()

◆ GetPositionAt()

◆ GetTransformation()

◆ GetTransformationFlags()

◆ GetTransformationRef()

◆ GetValueAt() [1/2]

◆ GetValueAt() [2/2]

◆ Reset() [1/4]

◆ Reset() [2/4]

◆ Reset() [3/4]

◆ Reset() [4/4]

◆ Serialize()

◆ SetTransformation()

Member Data Documentation

◆ m_transformation
