iprm::ISelectionParam Class Reference

Interface allowing to select single option from list of options. More...

#include <ISelectionParam.h>

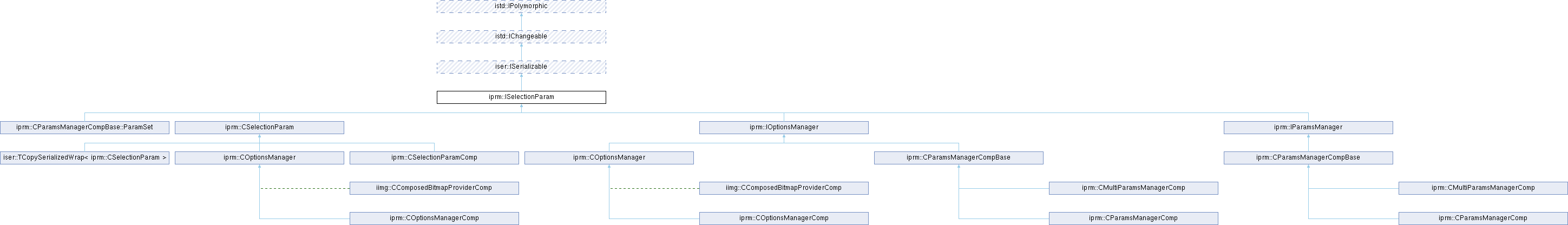

Inheritance diagram for iprm::ISelectionParam:

Public Types
enum	ChangeFlags { CF_SELECTION_CHANGED = 0x67364be }
	Data model change notification flags. More...
enum	{ NO_SELECTION = -1 }
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual const IOptionsList *	GetSelectionConstraints () const =0
	Get constraints of this parameter.
virtual int	GetSelectedOptionIndex () const =0
	Get selected index.
virtual bool	SetSelectedOptionIndex (int index)=0
	Set index of selected option.
virtual ISelectionParam *	GetSubselection (int index) const =0
	Get sub-selection for specified option.
Public Member Functions inherited from iser::ISerializable
virtual bool	Serialize (IArchive &archive)=0
	Load or store state of this object as a archive stream.
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Interface allowing to select single option from list of options.

ISelectionParam provides a mechanism for selecting one option from a list of available choices. It's similar to a combo box or radio button group in UI terms.

The selection is constrained by an IOptionsList that defines available options. Each option can have sub-selections, enabling hierarchical selection structures (e.g., selecting a category, then a sub-category).

Usage Example

#include <iprm/CSelectionParam.h>
#include <iprm/COptionsManager.h>

// Create options manager
iprm::COptionsManager options;
options.InsertOption("Small", "size_small", "Small size");
options.InsertOption("Medium", "size_medium", "Medium size");
options.InsertOption("Large", "size_large", "Large size");

// Create selection parameter
iprm::CSelectionParam selection;
selection.SetSelectionConstraints(&options);

// Set selection by index
selection.SetSelectedOptionIndex(1);  // Select "Medium"

// Get selected index
int index = selection.GetSelectedOptionIndex();  // Returns 1

// Check for no selection
if (index == iprm::ISelectionParam::NO_SELECTION)
{
    qDebug() << "Nothing selected";
}

// Get the constraints to examine options
const iprm::IOptionsList* constraints = selection.GetSelectionConstraints();
QString selectedName = constraints->GetOptionName(index);

Hierarchical Selection Example

// Main selection
iprm::CSelectionParam mainSelection;
mainSelection.SetSelectionConstraints(&mainOptions);

// Sub-selection for first option
iprm::CSelectionParam* subSelection = new iprm::CSelectionParam();
subSelection->SetSelectionConstraints(&subOptions);
mainSelection.SetSubselection(0, subSelection);

// Select main option
mainSelection.SetSelectedOptionIndex(0);

// Access active sub-selection
iprm::ISelectionParam* activeSub = mainSelection.GetSubselection(0);
if (activeSub)
{
    activeSub->SetSelectedOptionIndex(2);
}

Note

Inherits from iser::ISerializable, so selections can be saved/loaded.

Supports change notification via CF_SELECTION_CHANGED flag.

See also

IOptionsList, IOptionsManager, CSelectionParam

Definition at line 91 of file ISelectionParam.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
NO_SELECTION	Indicates no option is currently selected.

Definition at line 106 of file ISelectionParam.h.

ChangeFlags

enum iprm::ISelectionParam::ChangeFlags

Data model change notification flags.

Used with the observer pattern to detect when selection changes.

See also

istd::IChangeable::ChangeSet

Enumerator
CF_SELECTION_CHANGED	Selection index has changed.

Definition at line 101 of file ISelectionParam.h.

Member Function Documentation

GetSelectedOptionIndex()

virtual int iprm::ISelectionParam::GetSelectedOptionIndex ( ) const

pure virtual

Get selected index.

Returns the index of the currently selected option.

Returns

Index of selected option (0-based), or NO_SELECTION (-1) if no option is selected.

int index = selection.GetSelectedOptionIndex();
if (index == iprm::ISelectionParam::NO_SELECTION)
{
    qDebug() << "No selection";
}
else
{
    qDebug() << "Selected index:" << index;
}

See also

SetSelectedOptionIndex, NO_SELECTION

Implemented in iprm::CParamsManagerCompBase, iprm::CParamsManagerCompBase::ParamSet, and iprm::CSelectionParam.

GetSelectionConstraints()

virtual const IOptionsList * iprm::ISelectionParam::GetSelectionConstraints ( ) const

pure virtual

Get constraints of this parameter.

Returns the options list that defines available choices for this selection. Constraints describe allowed parameter ranges and related information.

Returns

Pointer to IOptionsList defining available options, owned by the parameter or external manager. Do not delete.

const iprm::IOptionsList* options = selection.GetSelectionConstraints();
if (options)
{
    int count = options->GetOptionsCount();
    for (int i = 0; i < count; ++i)
    {
        QString name = options->GetOptionName(i);
        qDebug() << "Option" << i << ":" << name;
    }
}

See also

IOptionsList

Implemented in iprm::CParamsManagerCompBase, iprm::CParamsManagerCompBase::ParamSet, and iprm::CSelectionParam.

GetSubselection()

virtual ISelectionParam * iprm::ISelectionParam::GetSubselection ( int  index ) const

pure virtual

Get sub-selection for specified option.

Retrieves the hierarchical sub-selection associated with a specific option. This enables multi-level selection structures (e.g., Category -> Subcategory).

Parameters

index

Index of the option whose sub-selection to retrieve.

Returns

Pointer to sub-selection parameter, or NULL if no sub-selection exists for this option.

Note

The returned pointer belongs to the selection's data model. Do not delete.

Sub-selections are independent selection parameters that can have their own constraints and further sub-selections.

// Get sub-selection for currently selected option
int selectedIndex = selection.GetSelectedOptionIndex();
if (selectedIndex >= 0)
{
    iprm::ISelectionParam* subSelection = selection.GetSubselection(selectedIndex);
    if (subSelection)
    {
        // Work with sub-selection
        subSelection->SetSelectedOptionIndex(0);
    }
}

// Check all options for sub-selections
const iprm::IOptionsList* options = selection.GetSelectionConstraints();
int count = options->GetOptionsCount();
for (int i = 0; i < count; ++i)
{
    iprm::ISelectionParam* sub = selection.GetSubselection(i);
    if (sub)
    {
        qDebug() << "Option" << i << "has a sub-selection";
    }
}

Implemented in iprm::CParamsManagerCompBase, iprm::CParamsManagerCompBase::ParamSet, iprm::CSelectionParam, and iprm::CSelectionParamComp.

SetSelectedOptionIndex()

virtual bool iprm::ISelectionParam::SetSelectedOptionIndex ( int  index )

pure virtual

Set index of selected option.

Changes the selected option to the specified index.

Parameters

index

Index of the option to select (0-based), or NO_SELECTION to clear the selection.

Returns

true if selection change was possible and successful, false otherwise.

Note

Returns false if index is out of range or the option is disabled.

Triggers CF_SELECTION_CHANGED notification on success.

// Select third option
bool success = selection.SetSelectedOptionIndex(2);
if (success)
{
    qDebug() << "Selection changed";
}

// Clear selection
selection.SetSelectedOptionIndex(iprm::ISelectionParam::NO_SELECTION);

See also

GetSelectedOptionIndex, CF_SELECTION_CHANGED

Implemented in iprm::CParamsManagerCompBase, iprm::CParamsManagerCompBase::ParamSet, and iprm::CSelectionParam.

---

The documentation for this class was generated from the following file:

• Acf/Include/iprm/ISelectionParam.h
