#include <CParamsManagerCompBase.h>

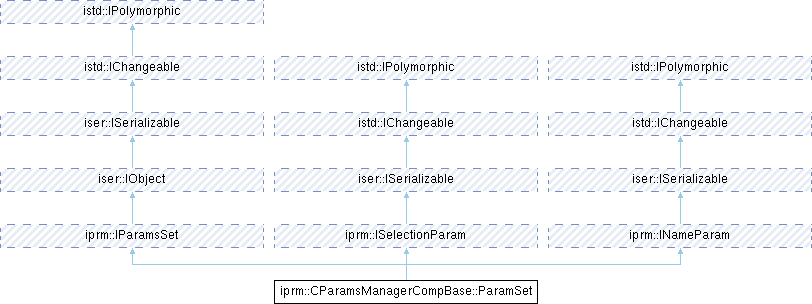

Inheritance diagram for iprm::CParamsManagerCompBase::ParamSet:

Public Member Functions
	ParamSet ()

virtual Ids	GetParamIds (bool editableOnly=false) const override
	Get list of used parameter IDs in the parameter set.

virtual const iser::ISerializable *	GetParameter (const QByteArray &id) const override
	Get any parameter (read-only access).

virtual iser::ISerializable *	GetEditableParameter (const QByteArray &id) override
	Get access to editable parameter (read-write access).

virtual const IParamsInfoProvider *	GetParamsInfoProvider () const override
	Get parameter information provider.

virtual const IOptionsList *	GetSelectionConstraints () const override
	Get constraints of this parameter.

virtual int	GetSelectedOptionIndex () const override
	Get selected index.

virtual bool	SetSelectedOptionIndex (int index) override
	Set index of selected option.

virtual ISelectionParam *	GetSubselection (int index) const override
	Get sub-selection for specified option.

virtual const QString &	GetName () const override
	Get the object name.

virtual void	SetName (const QString &name) override
	Set the object name.

virtual bool	IsNameFixed () const override
	Return true if the name is fixed (non-editable).

virtual QByteArray	GetFactoryId () const override

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual bool	CopyFrom (const istd::IChangeable &object, istd::IChangeable::CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Attributes
iprm::IParamsSetSharedPtr	paramSetPtr

QByteArray	uuid

QString	name

iprm::CNameParam	description

bool	isEnabled

int	userFlags

CParamsManagerCompBase *	parentPtr

UuidParam	uuidParam

imod::CModelUpdateBridge	updateBridge

Additional Inherited Members
Public Types inherited from iprm::IParamsSet
typedef QSet< QByteArray >	Ids

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Types inherited from iprm::ISelectionParam
enum	ChangeFlags { CF_SELECTION_CHANGED = 0x67364be }
	Data model change notification flags. More...

enum	{ NO_SELECTION = -1 }

Public Types inherited from iprm::INameParam
enum	ChangeFlags { CF_RENAME = 0x15345e0 }
	Data model change notification flags. More...

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Definition at line 174 of file CParamsManagerCompBase.h.

Constructor & Destructor Documentation

◆ ParamSet()

iprm::CParamsManagerCompBase::ParamSet::ParamSet ( )

Member Function Documentation

◆ CopyFrom()

virtual bool iprm::CParamsManagerCompBase::ParamSet::CopyFrom	(	const istd::IChangeable &	object,
		istd::IChangeable::CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Copy this object from another one.

Default implementation in istd::IChangeable does nothing.

Reimplemented from istd::IChangeable.

◆ GetEditableParameter()

virtual iser::ISerializable * iprm::CParamsManagerCompBase::ParamSet::GetEditableParameter ( const QByteArray & id )

overridevirtual

Get access to editable parameter (read-write access).

Retrieves a parameter by its ID for modification. This method returns NULL if the parameter does not exist or is not editable.

Parameters

id	ID of parameter. This is an application-specific identifier that uniquely identifies the parameter within this set.

Returns: Pointer to editable parameter instance (as iser::ISerializable*) or NULL if no editable parameter exists with the given ID.

Note: Returns NULL for read-only (calculated) parameters even if they exist.; Use dynamic_cast to determine the actual parameter type before modifying.; The returned pointer is owned by the parameter set. Do not delete it.

iser::ISerializable* param = paramsSet->GetEditableParameter("threshold");
if (param)
{
    // Try casting to expected type
    iprm::ITextParam* textParam = dynamic_cast<iprm::ITextParam*>(param);
    if (textParam)
    {
        textParam->SetText("10.5");
    }
}
else
{
    // Parameter doesn't exist or is read-only
}

See also: GetParameter

Implements iprm::IParamsSet.

◆ GetFactoryId()

virtual QByteArray iprm::CParamsManagerCompBase::ParamSet::GetFactoryId ( ) const

overridevirtual

Reimplemented from iser::IObject.

◆ GetName()

virtual const QString & iprm::CParamsManagerCompBase::ParamSet::GetName ( ) const

overridevirtual

Get the object name.

Returns: Reference to the current name as QString.

const QString& name = nameParam.GetName();

qDebug() << "Name:" << name;

iprm::CParamsManagerCompBase::ParamSet::name

QString name

Definition CParamsManagerCompBase.h:210

See also: SetName

Implements iprm::INameParam.

◆ GetParameter()

virtual const iser::ISerializable * iprm::CParamsManagerCompBase::ParamSet::GetParameter ( const QByteArray & id ) const

overridevirtual

Get any parameter (read-only access).

Retrieves a parameter by its ID for read-only access. This method returns both editable and non-editable parameters.

Parameters

id	ID of parameter. This is an application-specific identifier that uniquely identifies the parameter within this set.

Returns: Pointer to parameter instance (as iser::ISerializable*) or NULL if no parameter exists with the given ID.

Note: Use dynamic_cast to determine the actual parameter type (ITextParam, ISelectionParam, etc.).; The returned pointer is owned by the parameter set. Do not delete it.

const iser::ISerializable* param = paramsSet->GetParameter("myParam");
if (param)
{
    // Try casting to expected type
    const iprm::ITextParam* textParam = dynamic_cast<const iprm::ITextParam*>(param);
    if (textParam)
    {
        QString value = textParam->GetText();
    }
}

See also: GetEditableParameter

Implements iprm::IParamsSet.

◆ GetParamIds()

virtual Ids iprm::CParamsManagerCompBase::ParamSet::GetParamIds ( bool editableOnly = false ) const

overridevirtual

Get list of used parameter IDs in the parameter set.

This method returns the IDs of all parameters contained in this set. Optionally, it can return only editable parameter IDs.

Parameters

editableOnly If true, returns only IDs of editable parameters. If false (default), returns all parameter IDs.

Returns: Set of parameter IDs (QByteArray identifiers).

// Get all parameter IDs
iprm::IParamsSet::Ids allIds = paramsSet->GetParamIds();
qDebug() << "Total parameters:" << allIds.size();

// Get only editable parameter IDs
iprm::IParamsSet::Ids editableIds = paramsSet->GetParamIds(true);
qDebug() << "Editable parameters:" << editableIds.size();

Implements iprm::IParamsSet.

◆ GetParamsInfoProvider()

virtual const IParamsInfoProvider * iprm::CParamsManagerCompBase::ParamSet::GetParamsInfoProvider ( ) const

overridevirtual

Get parameter information provider.

Retrieves the parameter information provider that can be used to obtain metadata (names and descriptions) for parameters in this set.

Returns: Pointer to IParamsInfoProvider instance, or nullptr if parameter information is not available for this parameter set.

Note: Not all parameter sets provide parameter information. Some may return nullptr if they don't support this feature.

const iprm::IParamsInfoProvider* infoProvider = paramsSet->GetParamsInfoProvider();
if (infoProvider != nullptr)
{
    std::unique_ptr<iprm::IParamsInfoProvider::ParamInfo> info =
        infoProvider->GetParamInfo("threshold");
    if (info != nullptr)
    {
        qDebug() << "Parameter:" << info->name << "-" << info->description;
    }
}

See also: IParamsInfoProvider

Implements iprm::IParamsSet.

◆ GetSelectedOptionIndex()

virtual int iprm::CParamsManagerCompBase::ParamSet::GetSelectedOptionIndex ( ) const

overridevirtual

Get selected index.

Returns the index of the currently selected option.

Returns: Index of selected option (0-based), or NO_SELECTION (-1) if no option is selected.

int index = selection.GetSelectedOptionIndex();
if (index == iprm::ISelectionParam::NO_SELECTION)
{
    qDebug() << "No selection";
}
else
{
    qDebug() << "Selected index:" << index;
}

See also: SetSelectedOptionIndex, NO_SELECTION

Implements iprm::ISelectionParam.

◆ GetSelectionConstraints()

virtual const IOptionsList * iprm::CParamsManagerCompBase::ParamSet::GetSelectionConstraints ( ) const

overridevirtual

Get constraints of this parameter.

Returns the options list that defines available choices for this selection. Constraints describe allowed parameter ranges and related information.

Returns: Pointer to IOptionsList defining available options, owned by the parameter or external manager. Do not delete.

const iprm::IOptionsList* options = selection.GetSelectionConstraints();
if (options)
{
    int count = options->GetOptionsCount();
    for (int i = 0; i < count; ++i)
    {
        QString name = options->GetOptionName(i);
        qDebug() << "Option" << i << ":" << name;
    }
}

See also: IOptionsList

Implements iprm::ISelectionParam.

◆ GetSubselection()

virtual ISelectionParam * iprm::CParamsManagerCompBase::ParamSet::GetSubselection ( int index ) const

overridevirtual

Get sub-selection for specified option.

Retrieves the hierarchical sub-selection associated with a specific option. This enables multi-level selection structures (e.g., Category -> Subcategory).

Parameters

index Index of the option whose sub-selection to retrieve.

Returns: Pointer to sub-selection parameter, or NULL if no sub-selection exists for this option.

Note: The returned pointer belongs to the selection's data model. Do not delete.; Sub-selections are independent selection parameters that can have their own constraints and further sub-selections.

// Get sub-selection for currently selected option
int selectedIndex = selection.GetSelectedOptionIndex();
if (selectedIndex >= 0)
{
    iprm::ISelectionParam* subSelection = selection.GetSubselection(selectedIndex);
    if (subSelection)
    {
        // Work with sub-selection
        subSelection->SetSelectedOptionIndex(0);
    }
}

// Check all options for sub-selections
const iprm::IOptionsList* options = selection.GetSelectionConstraints();
int count = options->GetOptionsCount();
for (int i = 0; i < count; ++i)
{
    iprm::ISelectionParam* sub = selection.GetSubselection(i);
    if (sub)
    {
        qDebug() << "Option" << i << "has a sub-selection";
    }
}

Implements iprm::ISelectionParam.

◆ IsNameFixed()

virtual bool iprm::CParamsManagerCompBase::ParamSet::IsNameFixed ( ) const

overridevirtual

Return true if the name is fixed (non-editable).

Indicates whether the name can be changed by users. Fixed names are typically used for system-defined or read-only objects.

Returns: true if name cannot be modified, false if name is editable.

bool canRename = !nameParam.IsNameFixed();
if (canRename)
{
    // Allow user to edit name
    nameParam.SetName(userInput);
}

See also: SetName

Implements iprm::INameParam.

◆ Serialize()

virtual bool iprm::CParamsManagerCompBase::ParamSet::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

◆ SetName()

virtual void iprm::CParamsManagerCompBase::ParamSet::SetName ( const QString & name )

overridevirtual

Set the object name.

Changes the name of this parameter.

Parameters

name	New name value.

Note: If IsNameFixed() returns true, setting the name may be restricted.; Triggers CF_RENAME notification on change.

if (!nameParam.IsNameFixed())
{
    nameParam.SetName("New Name");
}

See also: GetName, IsNameFixed, CF_RENAME

Implements iprm::INameParam.

◆ SetSelectedOptionIndex()

virtual bool iprm::CParamsManagerCompBase::ParamSet::SetSelectedOptionIndex ( int index )

overridevirtual

Set index of selected option.

Changes the selected option to the specified index.

Parameters

index Index of the option to select (0-based), or NO_SELECTION to clear the selection.

Returns: true if selection change was possible and successful, false otherwise.

Note: Returns false if index is out of range or the option is disabled.; Triggers CF_SELECTION_CHANGED notification on success.

// Select third option
bool success = selection.SetSelectedOptionIndex(2);
if (success)
{
    qDebug() << "Selection changed";
}

// Clear selection
selection.SetSelectedOptionIndex(iprm::ISelectionParam::NO_SELECTION);

See also: GetSelectedOptionIndex, CF_SELECTION_CHANGED

Implements iprm::ISelectionParam.

Member Data Documentation

◆ description

iprm::CNameParam iprm::CParamsManagerCompBase::ParamSet::description

Definition at line 211 of file CParamsManagerCompBase.h.

◆ isEnabled

bool iprm::CParamsManagerCompBase::ParamSet::isEnabled

Definition at line 212 of file CParamsManagerCompBase.h.

◆ name

QString iprm::CParamsManagerCompBase::ParamSet::name

Definition at line 210 of file CParamsManagerCompBase.h.

◆ paramSetPtr

iprm::IParamsSetSharedPtr iprm::CParamsManagerCompBase::ParamSet::paramSetPtr

Definition at line 208 of file CParamsManagerCompBase.h.

◆ parentPtr

CParamsManagerCompBase* iprm::CParamsManagerCompBase::ParamSet::parentPtr

Definition at line 214 of file CParamsManagerCompBase.h.

◆ updateBridge

imod::CModelUpdateBridge iprm::CParamsManagerCompBase::ParamSet::updateBridge

Definition at line 216 of file CParamsManagerCompBase.h.

◆ userFlags

int iprm::CParamsManagerCompBase::ParamSet::userFlags

Definition at line 213 of file CParamsManagerCompBase.h.

◆ uuid

QByteArray iprm::CParamsManagerCompBase::ParamSet::uuid

Definition at line 209 of file CParamsManagerCompBase.h.

◆ uuidParam

UuidParam iprm::CParamsManagerCompBase::ParamSet::uuidParam

Definition at line 215 of file CParamsManagerCompBase.h.

The documentation for this class was generated from the following file:

Acf/Include/iprm/CParamsManagerCompBase.h

Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ParamSet()

Member Function Documentation

◆ CopyFrom()

◆ GetEditableParameter()

◆ GetFactoryId()

◆ GetName()

◆ GetParameter()

◆ GetParamIds()

◆ GetParamsInfoProvider()

◆ GetSelectedOptionIndex()

◆ GetSelectionConstraints()

◆ GetSubselection()

◆ IsNameFixed()

◆ Serialize()

◆ SetName()

◆ SetSelectedOptionIndex()

Member Data Documentation

◆ description

◆ isEnabled

◆ name

◆ paramSetPtr

◆ parentPtr

◆ updateBridge

◆ userFlags

◆ uuid

◆ uuidParam
