Implementation of a simple options manager. More...

#include <COptionsManager.h>

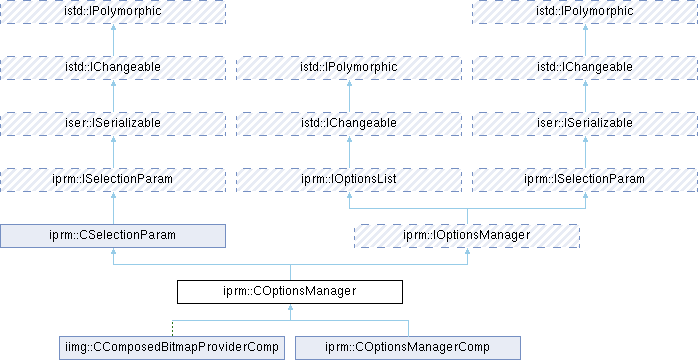

Inheritance diagram for iprm::COptionsManager:

Public Types
typedef CSelectionParam	BaseClass

Public Types inherited from iprm::ISelectionParam
enum	ChangeFlags { CF_SELECTION_CHANGED = 0x67364be }
	Data model change notification flags. More...

enum	{ NO_SELECTION = -1 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Types inherited from iprm::IOptionsManager
enum	ChangeFlags { CF_OPTION_ADDED = 0x26be73a , CF_OPTION_REMOVED }
	Data model change notification flags. More...

enum	OptionOperationFlags { OOF_COUNT_FIXED = 1 , OOF_SUPPORT_RENAME = 2 , OOF_SUPPORT_INSERT = 4 , OOF_SUPPORT_DELETE = 8 , OOF_SUPPORT_SWAP = 16 , OOF_DISABLE_ALLOWED = 32 , OOF_SUPPORT_ENABLING = 64 }
	Bitwise coded flags used to find out supported features. More...

Public Types inherited from iprm::IOptionsList
enum	ChangeFlags { CF_OPTIONS_CHANGED = 0x8263d86 , CF_OPTION_RENAMED }
	Flags for changes related to this interface. More...

enum	OptionsFlags { SCF_NONE = 0 , SCF_SUPPORT_UNIQUE_ID = 256 , SFC_DISABLE_ALLOWED = 32 }
	Flags for controlling constraints behavior. More...

Public Member Functions
	COptionsManager ()

void	SetFixedOptionsList (const iprm::IOptionsList *slaveSelectionConstraintsPtr)
	Set additional fixed list of options.

virtual void	ResetOptions ()
	Removes all options.

int	GetOptionIndexById (const QByteArray &optionId) const
	Get the index for the given option ID.

int	GetOptionIndexByName (const QString &optionName) const
	Get the index for the given option name.

bool	IsSelectionSerialized () const
	Check if selection is serialized.

void	SetSelectionSerialized (bool state)
	Turn on or off selection serializing.

virtual int	GetOptionsFlags () const override
	Get constraints flags.

virtual int	GetOptionsCount () const override
	Get number of managed options.

virtual QString	GetOptionName (int index) const override
	Get name of specified option.

virtual QString	GetOptionDescription (int index) const override
	Get human-readable description for an option.

virtual QByteArray	GetOptionId (int index) const override
	Get option ID.

virtual bool	IsOptionEnabled (int index) const override
	Return true if the option is enabled and can be selected.

virtual int	GetOptionOperationFlags (int index=-1) const override
	Get operation control flags of some option or whole manager.

virtual bool	SetOptionEnabled (int index, bool isEnabled=true) override
	Enables or disables a given option.

virtual bool	RemoveOption (int index) override
	Remove an option at the given index.

virtual bool	InsertOption (const QString &optionName, const QByteArray &optionId, const QString &optionDescription=QString(), int index=-1) override
	Insert an option at some position.

virtual bool	SwapOptions (int index1, int index2) override
	Swap two options.

virtual bool	SetOptionName (int index, const QString &optionName) override
	Set a new name for the option at the given index.

virtual bool	SetOptionDescription (int index, const QString &optionDescription) override
	Set a new description for the option at the given index.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

Public Member Functions inherited from iprm::CSelectionParam
	CSelectionParam ()

void	SetSelectionConstraints (const IOptionsList *constraintsPtr)
	Set selection constraints for this selection object.

void	SetSubselection (int selectionIndex, ISelectionParam *selectionPtr)
	Set sub-selection for a given option index.

bool	SetSelectedOptionById (const QByteArray &selectedOptionId)
	Set selection index according to a given option ID.

int	GetOptionIndexById (const QByteArray &optionId) const
	Get index of an option by ID.

ISelectionParam *	GetActiveSubselection () const
	Get sub-selection for the currently selected option.

virtual const IOptionsList *	GetSelectionConstraints () const override
	Get constraints of this parameter.

virtual int	GetSelectedOptionIndex () const override
	Get selected index.

virtual bool	SetSelectedOptionIndex (int index) override
	Set index of selected option.

virtual ISelectionParam *	GetSubselection (int index) const override
	Get sub-selection for specified option.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from iprm::CSelectionParam
int	CalcIndexFromId (const QByteArray &optionId, int suggestedIndex=NO_SELECTION) const
	Calculate optimal index based on current selected index and ID.

bool	SyncIndexWithId ()
	Synchronize current index to optimal one.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Implementation of a simple options manager.

Definition at line 23 of file COptionsManager.h.

Member Typedef Documentation

◆ BaseClass

typedef CSelectionParam iprm::COptionsManager::BaseClass

Definition at line 28 of file COptionsManager.h.

Constructor & Destructor Documentation

◆ COptionsManager()

iprm::COptionsManager::COptionsManager ( )

Member Function Documentation

◆ CopyFrom()

virtual bool iprm::COptionsManager::CopyFrom	(	const IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

◆ GetOptionDescription()

virtual QString iprm::COptionsManager::GetOptionDescription ( int index ) const

overridevirtual

Get human-readable description for an option.

Returns detailed description or tooltip text for an option.

Parameters

index Option index (0-based).

Returns: Option description as QString, or empty string if no description exists or index is out of range.

QString description = options->GetOptionDescription(2);
if (!description.isEmpty())
{
    qDebug() << "Description:" << description;
}

See also: GetOptionName

Implements iprm::IOptionsList.

◆ GetOptionId()

virtual QByteArray iprm::COptionsManager::GetOptionId ( int index ) const

overridevirtual

Get option ID.

Returns the unique identifier for an option. The ID is stable and doesn't change when options are reordered, making it suitable for persistent references.

Parameters

index Option index (0-based).

Returns: Option ID as QByteArray, or empty array if index is out of range.

Note: The ID must be unique if SCF_SUPPORT_UNIQUE_ID flag is set.; Use FindOptionIndexById() to find an option by its ID.

QByteArray id = options->GetOptionId(1);
qDebug() << "Option ID:" << id;

// Later, find the option by ID
int index = iprm::FindOptionIndexById(id, *options);

See also: OptionsFlags, FindOptionIndexById

Implements iprm::IOptionsList.

◆ GetOptionIndexById()

int iprm::COptionsManager::GetOptionIndexById ( const QByteArray & optionId ) const

Get the index for the given option ID.

Returns: found option index, or a negative value if the option with the requested ID was not found.

◆ GetOptionIndexByName()

int iprm::COptionsManager::GetOptionIndexByName ( const QString & optionName ) const

Get the index for the given option name.

Returns: found option index, or a negative value if the option with the requested name was not found.

Note: If the container contains more options with the same name, the first found option index will be returned.

◆ GetOptionName()

virtual QString iprm::COptionsManager::GetOptionName ( int index ) const

overridevirtual

Get name of specified option.

Returns the display name for an option.

Parameters

index Option index (0-based).

Returns: Option name as QString, or empty string if index is out of range.

QString name = options->GetOptionName(0);

qDebug() << "First option:" << name;

See also: GetOptionDescription, GetOptionId

Implements iprm::IOptionsList.

◆ GetOptionOperationFlags()

virtual int iprm::COptionsManager::GetOptionOperationFlags ( int index = -1 ) const

overridevirtual

Get operation control flags of some option or whole manager.

Returns flags indicating which operations are supported, either for the entire manager (index < 0) or for a specific option.

Parameters

index

Index addressing position in the option list.

Negative value: Returns general manager-level flags.
Zero or positive: Returns flags for specific option at that position.
Value equal to count: Returns flags for potential insert at end.

Returns: Bitwise OR combination of OptionOperationFlags values.

Note: TODO: Consider merging this with IOptionsList::GetOptionsFlags().

// Check general manager capabilities
int flags = manager.GetOptionOperationFlags(-1);
if (flags & iprm::IOptionsManager::OOF_SUPPORT_INSERT)
{
    qDebug() << "Can insert new options";
}

// Check if first option can be renamed
int firstFlags = manager.GetOptionOperationFlags(0);
if (firstFlags & iprm::IOptionsManager::OOF_SUPPORT_RENAME)
{
    manager.SetOptionName(0, "New Name");
}

See also: OptionOperationFlags

Implements iprm::IOptionsManager.

◆ GetOptionsCount()

virtual int iprm::COptionsManager::GetOptionsCount ( ) const

overridevirtual

Get number of managed options.

Returns: Total count of options in the list (including disabled options).

int count = options->GetOptionsCount();
for (int i = 0; i < count; ++i)
{
    // Process each option
}

See also: GetOptionName

Implements iprm::IOptionsList.

◆ GetOptionsFlags()

virtual int iprm::COptionsManager::GetOptionsFlags ( ) const

overridevirtual

Get constraints flags.

Returns flags that describe how the constraints object behaves and what features it supports.

Returns: Bitwise OR combination of OptionsFlags values.

int flags = options->GetOptionsFlags();

if (flags & iprm::IOptionsList::SCF_SUPPORT_UNIQUE_ID)
{
    qDebug() << "Options have unique IDs";
}

if (flags & iprm::IOptionsList::SFC_DISABLE_ALLOWED)
{
    qDebug() << "Options can be disabled";
}

See also: OptionsFlags

Implements iprm::IOptionsList.

◆ GetSupportedOperations()

virtual int iprm::COptionsManager::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from istd::IChangeable.

◆ InsertOption()

virtual bool iprm::COptionsManager::InsertOption	(	const QString &	optionName,
		const QByteArray &	optionId,
		const QString &	optionDescription = `QString()`,
		int	index = `-1`
	)

overridevirtual

Insert an option at some position.

Adds a new option to the list at the specified position.

Parameters

optionName	Name of the option (display text).
optionId	ID of the option. According to data model constraints, this needs to be unique if SCF_SUPPORT_UNIQUE_ID flag is set.
optionDescription	Description/tooltip text for the option (optional).
index	Position where the new option will be inserted. Negative value: Option will be added to the end of the list. Zero or positive: Insert at specified position.

Returns: true if the operation was successful, false otherwise.

Note: Check OOF_SUPPORT_INSERT flag before calling.; Triggers CF_OPTION_ADDED notification on success.

int flags = manager.GetOptionOperationFlags(-1);
if (flags & iprm::IOptionsManager::OOF_SUPPORT_INSERT)
{
    // Add to end
    bool added = manager.InsertOption(
        "New Option",
        "opt_new",
        "Description of new option",
        -1);

    if (added)
    {
        qDebug() << "Option added";
    }

    // Insert at specific position
    manager.InsertOption("First Option", "opt_first", "", 0);
}

See also: RemoveOption, OOF_SUPPORT_INSERT, CF_OPTION_ADDED

Implements iprm::IOptionsManager.

◆ IsOptionEnabled()

virtual bool iprm::COptionsManager::IsOptionEnabled ( int index ) const

overridevirtual

Return true if the option is enabled and can be selected.

Checks whether an option is currently enabled. Disabled options cannot be selected but remain visible in the list.

Parameters

index Option index (0-based).

Returns: true if option is enabled and can be selected, false if disabled or index is out of range.

for (int i = 0; i < options->GetOptionsCount(); ++i)
{
    if (options->IsOptionEnabled(i))
    {
        QString name = options->GetOptionName(i);
        qDebug() << "Enabled option:" << name;
    }
}

See also: SFC_DISABLE_ALLOWED

Implements iprm::IOptionsList.

◆ IsSelectionSerialized()

bool iprm::COptionsManager::IsSelectionSerialized ( ) const

Check if selection is serialized.

◆ RemoveOption()

virtual bool iprm::COptionsManager::RemoveOption ( int index )

overridevirtual

Remove an option at the given index.

Deletes the option at the specified position from the list.

Parameters

index Option index (0-based).

Returns: true if the operation was successful, false otherwise.

Note: Check OOF_SUPPORT_DELETE flag before calling.; If the removed option was selected, selection may be cleared or moved.; Triggers CF_OPTION_REMOVED notification on success.

int flags = manager.GetOptionOperationFlags(-1);
if (flags & iprm::IOptionsManager::OOF_SUPPORT_DELETE)
{
    bool removed = manager.RemoveOption(2);
    if (removed)
    {
        qDebug() << "Option removed successfully";
    }
}

See also: InsertOption, OOF_SUPPORT_DELETE, CF_OPTION_REMOVED

Implements iprm::IOptionsManager.

◆ ResetOptions()

virtual void iprm::COptionsManager::ResetOptions ( )

virtual

Removes all options.

◆ Serialize()

virtual bool iprm::COptionsManager::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Reimplemented from iprm::CSelectionParam.

◆ SetFixedOptionsList()

void iprm::COptionsManager::SetFixedOptionsList ( const iprm::IOptionsList * slaveSelectionConstraintsPtr )

Set additional fixed list of options.

◆ SetOptionDescription()

virtual bool iprm::COptionsManager::SetOptionDescription	(	int	optionIndex,
		const QString &	optionDescription
	)

overridevirtual

Set a new description for the option at the given index.

Changes the description/tooltip text of an option.

Parameters

optionIndex	Option index (0-based).
optionDescription	New description for the option.

Returns: true if operation succeeded, false otherwise.

bool success = manager.SetOptionDescription(0, "Updated description text");
if (success)
{
    qDebug() << "Description updated";
}

See also: GetOptionDescription

Implements iprm::IOptionsManager.

◆ SetOptionEnabled()

virtual bool iprm::COptionsManager::SetOptionEnabled	(	int	index,
		bool	isEnabled = `true`
	)

overridevirtual

Enables or disables a given option.

Changes the enabled state of an option. Only enabled options can be selected.

Parameters

index	Option index (0-based).
isEnabled	true to enable, false to disable.

Returns: true if operation succeeded, false otherwise.

Note: Check OOF_SUPPORT_ENABLING flag before calling.; Triggers change notification on success.

// Disable second option
bool success = manager.SetOptionEnabled(1, false);
if (success)
{
    qDebug() << "Option disabled";
}

// Re-enable it
manager.SetOptionEnabled(1, true);

See also: IsOptionEnabled, OOF_SUPPORT_ENABLING

Implements iprm::IOptionsManager.

◆ SetOptionName()

virtual bool iprm::COptionsManager::SetOptionName	(	int	optionIndex,
		const QString &	optionName
	)

overridevirtual

Set a new name for the option at the given index.

Changes the display name of an option.

Parameters

optionIndex	Option index (0-based).
optionName	New name for the option.

Returns: true if rename succeeded, false otherwise.

Note: Check OOF_SUPPORT_RENAME flag before calling.; Triggers CF_OPTION_RENAMED notification on success.

int flags = manager.GetOptionOperationFlags(0);
if (flags & iprm::IOptionsManager::OOF_SUPPORT_RENAME)
{
    bool renamed = manager.SetOptionName(0, "Updated Name");
    if (renamed)
    {
        qDebug() << "Option renamed";
    }
}

See also: GetOptionName, OOF_SUPPORT_RENAME, CF_OPTION_RENAMED

Implements iprm::IOptionsManager.

◆ SetSelectionSerialized()

void iprm::COptionsManager::SetSelectionSerialized ( bool state )

Turn on or off selection serializing.

◆ SwapOptions()

virtual bool iprm::COptionsManager::SwapOptions	(	int	index1,
		int	index2
	)

overridevirtual

Swap two options.

Exchanges the positions of two options in the list.

Parameters

index1	Index of first option.
index2	Index of second option.

Returns: true if swap succeeded, false otherwise.

Note: Check OOF_SUPPORT_SWAP flag before calling.; Option IDs remain stable; only list positions change.

// Swap first and third options
int flags = manager.GetOptionOperationFlags(-1);
if (flags & iprm::IOptionsManager::OOF_SUPPORT_SWAP)
{
    bool swapped = manager.SwapOptions(0, 2);
    if (swapped)
    {
        qDebug() << "Options swapped";
    }
}

See also: OOF_SUPPORT_SWAP

Implements iprm::IOptionsManager.

The documentation for this class was generated from the following file:

Acf/Include/iprm/COptionsManager.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

Constructor & Destructor Documentation

◆ COptionsManager()

Member Function Documentation

◆ CopyFrom()

◆ GetOptionDescription()

◆ GetOptionId()

◆ GetOptionIndexById()

◆ GetOptionIndexByName()

◆ GetOptionName()

◆ GetOptionOperationFlags()

◆ GetOptionsCount()

◆ GetOptionsFlags()

◆ GetSupportedOperations()

◆ InsertOption()

◆ IsOptionEnabled()

◆ IsSelectionSerialized()

◆ RemoveOption()

◆ ResetOptions()

◆ Serialize()

◆ SetFixedOptionsList()

◆ SetOptionDescription()

◆ SetOptionEnabled()

◆ SetOptionName()

◆ SetSelectionSerialized()

◆ SwapOptions()
