Implementation of parameter manager. More...

#include <CParamsManagerCompBase.h>

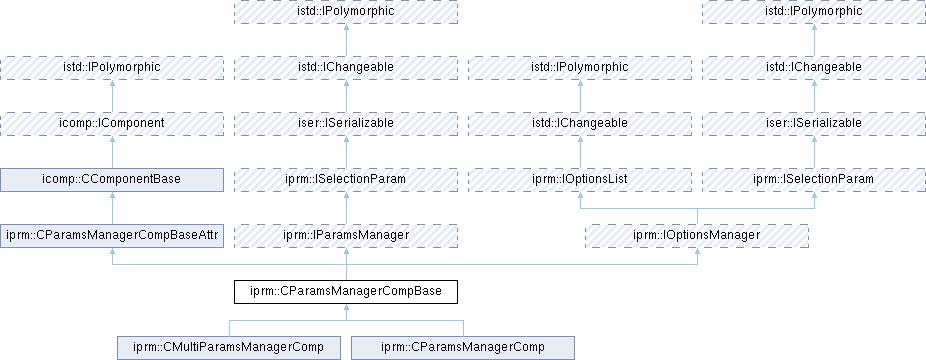

Inheritance diagram for iprm::CParamsManagerCompBase:

Classes
class	ParamSet

class	SelectedParams

class	UuidParam

Public Types
typedef CParamsManagerCompBaseAttr	BaseClass

Public Types inherited from iprm::CParamsManagerCompBaseAttr
typedef icomp::CComponentBase	BaseClass

Public Types inherited from iprm::IParamsManager
enum	ParamsOperationFlags { MF_COUNT_FIXED = 1 , MF_SUPPORT_RENAME = 2 , MF_SUPPORT_INSERT = 4 , MF_SUPPORT_DELETE = 8 , MF_SUPPORT_SWAP = 16 , MF_DISABLE_ALLOWED = 32 , MF_SUPPORT_EDIT = 64 , MF_INACTIVE = 128 }
	Bitwise coded flags used to find out supported features. More...

enum	ChangeFlags { CF_SET_INSERTED = 0x5af60 , CF_SET_REMOVED , CF_SET_NAME_CHANGED , CF_SET_ENABLE_CHANGED }
	Possible changes of the manager's data model. More...

typedef QSet< QByteArray >	TypeIds

Public Types inherited from iprm::ISelectionParam
enum	ChangeFlags { CF_SELECTION_CHANGED = 0x67364be }
	Data model change notification flags. More...

enum	{ NO_SELECTION = -1 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Types inherited from iprm::IOptionsManager
enum	ChangeFlags { CF_OPTION_ADDED = 0x26be73a , CF_OPTION_REMOVED }
	Data model change notification flags. More...

enum	OptionOperationFlags { OOF_COUNT_FIXED = 1 , OOF_SUPPORT_RENAME = 2 , OOF_SUPPORT_INSERT = 4 , OOF_SUPPORT_DELETE = 8 , OOF_SUPPORT_SWAP = 16 , OOF_DISABLE_ALLOWED = 32 , OOF_SUPPORT_ENABLING = 64 }
	Bitwise coded flags used to find out supported features. More...

Public Types inherited from iprm::IOptionsList
enum	ChangeFlags { CF_OPTIONS_CHANGED = 0x8263d86 , CF_OPTION_RENAMED }
	Flags for changes related to this interface. More...

enum	OptionsFlags { SCF_NONE = 0 , SCF_SUPPORT_UNIQUE_ID = 256 , SFC_DISABLE_ALLOWED = 32 }
	Flags for controlling constraints behavior. More...

Public Member Functions
	CParamsManagerCompBase ()

bool	IsNameUnique (const QString &name) const

virtual int	InsertParamsSet (int typeIndex=-1, int index=-1) override
	Insert new parameter set at selected position.

virtual bool	RemoveParamsSet (int index) override
	Remove parameter set at selected position.

virtual bool	SwapParamsSet (int index1, int index2) override
	Swap two parameter sets.

virtual IParamsSet *	GetParamsSet (int index) const override
	Get selected parameter set.

virtual iprm::IParamsSetUniquePtr	CreateParameterSet (int typeIndex=-1, int index=-1) const override
	Create a new parameter set instance.

virtual int	GetIndexOperationFlags (int index=-1) const override
	Get operation control flags of some parameter set or whole manager.

virtual bool	SetIndexOperationFlags (int index, int flags) override
	Set operation control flags of some parameter-set.

virtual int	GetParamsSetsCount () const override
	Get number of managed parameter sets.

virtual QString	GetParamsSetName (int index) const override
	Get name of specified parameter set.

virtual bool	SetParamsSetName (int index, const QString &name) override
	Set name of specified parameter set.

virtual QString	GetParamsSetDescription (int index) const override
	Get the description of the specified parameter set.

virtual void	SetParamsSetDescription (int index, const QString &description) override
	Set the description of the specified parameter set.

virtual const IOptionsList *	GetSelectionConstraints () const override
	Get constraints of this parameter.

virtual int	GetSelectedOptionIndex () const override
	Get selected index.

virtual bool	SetSelectedOptionIndex (int index) override
	Set index of selected option.

virtual ISelectionParam *	GetSubselection (int index) const override
	Get sub-selection for specified option.

virtual int	GetOptionsFlags () const override
	Get constraints flags.

virtual int	GetOptionsCount () const override
	Get number of managed options.

virtual QString	GetOptionName (int index) const override
	Get name of specified option.

virtual QString	GetOptionDescription (int index) const override
	Get human-readable description for an option.

virtual QByteArray	GetOptionId (int index) const override
	Get option ID.

virtual bool	IsOptionEnabled (int index) const override
	Return true if the option is enabled and can be selected.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iprm::IParamsManager
virtual const IOptionsList *	GetParamsTypeConstraints () const =0
	Get selection constraints describing each supported type.

Public Member Functions inherited from iser::ISerializable
virtual bool	Serialize (IArchive &archive)=0
	Load or store state of this object as a archive stream.

virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from iprm::IOptionsManager
virtual int	GetOptionOperationFlags (int index=-1) const =0
	Get operation control flags of some option or whole manager.

virtual bool	SetOptionEnabled (int index, bool isEnabled=true)=0
	Enables or disables a given option.

virtual bool	RemoveOption (int index)=0
	Remove an option at the given index.

virtual bool	InsertOption (const QString &optionName, const QByteArray &optionId, const QString &optionDescription=QString(), int index=-1)=0
	Insert an option at some position.

virtual bool	SwapOptions (int index1, int index2)=0
	Swap two options.

virtual bool	SetOptionName (int optionIndex, const QString &optionName)=0
	Set a new name for the option at the given index.

virtual bool	SetOptionDescription (int optionIndex, const QString &optionDescription)=0
	Set a new description for the option at the given index.

Protected Types
typedef std::unique_ptr< ParamSet >	ParamSetPtr

typedef std::vector< ParamSetPtr >	ParamSets

Protected Member Functions
void	EnsureParamsSetModelDetached (iprm::IParamsSet *paramsSetPtr) const

int	FindParamSetIndex (const QString &name) const

int	FindFixedParamSetIndex (const QString &name) const

virtual QString	CalculateNewDefaultName (int typeIndex=-1) const

virtual bool	IsParameterCreationSupported () const =0
	Return `true` if creation of parameter sets is supported by the implementation.

virtual int	GetCreatedParamsSetsCount () const =0
	Get the number of parameter sets created at the run time.

virtual iprm::IParamsSetUniquePtr	CreateParamsSetInstance (int typeIndex=-1) const =0
	Create a new instance of the parameter set.

virtual void	OnComponentCreated () override

Protected Member Functions inherited from iprm::CParamsManagerCompBaseAttr
	I_MULTITEXTATTR (m_fixedSetNamesAttrPtr)

	I_MULTITEXTATTR (m_fixedSetDescriptionsAttrPtr)

	I_TEXTATTR (m_defaultSetNameAttrPtr)

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes
int	m_selectedIndex

ParamSets	m_paramSets

imod::CModelUpdateBridge	m_updateBridge

QMap< int, int >	m_fixedParamsSetFlagsMap

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Implementation of parameter manager.

Definition at line 67 of file CParamsManagerCompBase.h.

Member Typedef Documentation

◆ BaseClass

typedef CParamsManagerCompBaseAttr iprm::CParamsManagerCompBase::BaseClass

Definition at line 73 of file CParamsManagerCompBase.h.

◆ ParamSetPtr

typedef std::unique_ptr<ParamSet> iprm::CParamsManagerCompBase::ParamSetPtr

protected

Definition at line 239 of file CParamsManagerCompBase.h.

◆ ParamSets

typedef std::vector<ParamSetPtr> iprm::CParamsManagerCompBase::ParamSets

protected

Definition at line 241 of file CParamsManagerCompBase.h.

Constructor & Destructor Documentation

◆ CParamsManagerCompBase()

iprm::CParamsManagerCompBase::CParamsManagerCompBase ( )

Member Function Documentation

◆ CalculateNewDefaultName()

virtual QString iprm::CParamsManagerCompBase::CalculateNewDefaultName ( int typeIndex = -1 ) const

protectedvirtual

Reimplemented in iprm::CMultiParamsManagerComp.

◆ CreateParameterSet()

virtual iprm::IParamsSetUniquePtr iprm::CParamsManagerCompBase::CreateParameterSet	(	int	typeIndex = `-1`,
		int	index = `-1`
	)		const

overridevirtual

Create a new parameter set instance.

Creates a new, independent parameter set instance. Optionally, data from an existing parameter set can be copied to the new instance.

Parameters

typeIndex	Index of parameter type from GetParamsTypeConstraints(). Negative value: Type will be automatically selected (default). Zero or positive: Use specified type index.
index	If non-negative, the parameter set data at the given position will be copied to the created instance.

Returns: Unique pointer to the newly created parameter set.

Note: The caller is responsible for the memory management of the created parameter set.; The returned parameter set is independent and not managed by this manager.

// Create a new empty parameter set
iprm::IParamsSetUniquePtr newSet = manager->CreateParameterSet();

// Create a copy of existing parameter set
iprm::IParamsSetUniquePtr copy = manager->CreateParameterSet(-1, 0);

// Create a new parameter set of specific type
const iprm::IOptionsList* types = manager->GetParamsTypeConstraints();
if (types && types->GetOptionsCount() > 1)
{
    iprm::IParamsSetUniquePtr typedSet = manager->CreateParameterSet(1);
}

See also: GetParamsTypeConstraints

Implements iprm::IParamsManager.

◆ CreateParamsSetInstance()

virtual iprm::IParamsSetUniquePtr iprm::CParamsManagerCompBase::CreateParamsSetInstance ( int typeIndex = -1 ) const

protectedpure virtual

Create a new instance of the parameter set.

Implemented in iprm::CMultiParamsManagerComp, and iprm::CParamsManagerComp.

◆ EnsureParamsSetModelDetached()

void iprm::CParamsManagerCompBase::EnsureParamsSetModelDetached ( iprm::IParamsSet * paramsSetPtr ) const

protected

◆ FindFixedParamSetIndex()

int iprm::CParamsManagerCompBase::FindFixedParamSetIndex ( const QString & name ) const

protected

◆ FindParamSetIndex()

int iprm::CParamsManagerCompBase::FindParamSetIndex ( const QString & name ) const

protected

◆ GetCreatedParamsSetsCount()

virtual int iprm::CParamsManagerCompBase::GetCreatedParamsSetsCount ( ) const

protectedpure virtual

Get the number of parameter sets created at the run time.

Implemented in iprm::CMultiParamsManagerComp, and iprm::CParamsManagerComp.

◆ GetIndexOperationFlags()

virtual int iprm::CParamsManagerCompBase::GetIndexOperationFlags ( int index = -1 ) const

overridevirtual

Get operation control flags of some parameter set or whole manager.

This method returns flags indicating which operations are supported, either for the entire manager (index < 0) or for a specific parameter set.

Parameters

index

Index addressing position in parameter set list.

Negative value: Returns general manager-level flags.
Zero or positive: Returns flags for specific parameter set at that position.
Value equal to count: Returns flags for potential insert at end position.

Returns: Bitwise OR combination of ParamsOperationFlags values.

// Check general manager capabilities
int managerFlags = manager->GetIndexOperationFlags(-1);
if (managerFlags & iprm::IParamsManager::MF_SUPPORT_INSERT)
{
    qDebug() << "Can insert new parameter sets";
}

// Check if first parameter set can be renamed
int firstSetFlags = manager->GetIndexOperationFlags(0);
if (firstSetFlags & iprm::IParamsManager::MF_SUPPORT_RENAME)
{
    manager->SetParamsSetName(0, "New Name");
}

// Check if we can insert at the end
int count = manager->GetParamsSetsCount();
int insertFlags = manager->GetIndexOperationFlags(count);
if (insertFlags & iprm::IParamsManager::MF_SUPPORT_INSERT)
{
    manager->InsertParamsSet(-1, count);
}

See also: ParamsOperationFlags, SetIndexOperationFlags

Implements iprm::IParamsManager.

◆ GetOptionDescription()

virtual QString iprm::CParamsManagerCompBase::GetOptionDescription ( int index ) const

overridevirtual

Get human-readable description for an option.

Returns detailed description or tooltip text for an option.

Parameters

index Option index (0-based).

Returns: Option description as QString, or empty string if no description exists or index is out of range.

QString description = options->GetOptionDescription(2);
if (!description.isEmpty())
{
    qDebug() << "Description:" << description;
}

See also: GetOptionName

Implements iprm::IOptionsList.

◆ GetOptionId()

virtual QByteArray iprm::CParamsManagerCompBase::GetOptionId ( int index ) const

overridevirtual

Get option ID.

Returns the unique identifier for an option. The ID is stable and doesn't change when options are reordered, making it suitable for persistent references.

Parameters

index Option index (0-based).

Returns: Option ID as QByteArray, or empty array if index is out of range.

Note: The ID must be unique if SCF_SUPPORT_UNIQUE_ID flag is set.; Use FindOptionIndexById() to find an option by its ID.

QByteArray id = options->GetOptionId(1);
qDebug() << "Option ID:" << id;

// Later, find the option by ID
int index = iprm::FindOptionIndexById(id, *options);

See also: OptionsFlags, FindOptionIndexById

Implements iprm::IOptionsList.

◆ GetOptionName()

virtual QString iprm::CParamsManagerCompBase::GetOptionName ( int index ) const

overridevirtual

Get name of specified option.

Returns the display name for an option.

Parameters

index Option index (0-based).

Returns: Option name as QString, or empty string if index is out of range.

QString name = options->GetOptionName(0);

qDebug() << "First option:" << name;

See also: GetOptionDescription, GetOptionId

Implements iprm::IOptionsList.

◆ GetOptionsCount()

virtual int iprm::CParamsManagerCompBase::GetOptionsCount ( ) const

overridevirtual

Get number of managed options.

Returns: Total count of options in the list (including disabled options).

int count = options->GetOptionsCount();
for (int i = 0; i < count; ++i)
{
    // Process each option
}

See also: GetOptionName

Implements iprm::IOptionsList.

◆ GetOptionsFlags()

virtual int iprm::CParamsManagerCompBase::GetOptionsFlags ( ) const

overridevirtual

Get constraints flags.

Returns flags that describe how the constraints object behaves and what features it supports.

Returns: Bitwise OR combination of OptionsFlags values.

int flags = options->GetOptionsFlags();

if (flags & iprm::IOptionsList::SCF_SUPPORT_UNIQUE_ID)
{
    qDebug() << "Options have unique IDs";
}

if (flags & iprm::IOptionsList::SFC_DISABLE_ALLOWED)
{
    qDebug() << "Options can be disabled";
}

See also: OptionsFlags

Implements iprm::IOptionsList.

◆ GetParamsSet()

virtual IParamsSet * iprm::CParamsManagerCompBase::GetParamsSet ( int index ) const

overridevirtual

Get selected parameter set.

Retrieves the parameter set at the specified index.

Parameters

index Index of the parameter set (0-based).

Returns: Pointer to the parameter set, or NULL if index is out of range.

Note: The returned pointer is owned by the manager. Do not delete it.

int count = manager->GetParamsSetsCount();
for (int i = 0; i < count; ++i)
{
    iprm::IParamsSet* paramSet = manager->GetParamsSet(i);
    if (paramSet)
    {
        // Access parameters in the set
        iprm::IParamsSet::Ids ids = paramSet->GetParamIds();
        for (const QByteArray& id : ids)
        {
            const iser::ISerializable* param = paramSet->GetParameter(id);
            // Process parameter...
        }
    }
}

See also: GetParamsSetsCount, IParamsSet

Implements iprm::IParamsManager.

◆ GetParamsSetDescription()

virtual QString iprm::CParamsManagerCompBase::GetParamsSetDescription ( int index ) const

overridevirtual

Get the description of the specified parameter set.

Parameters

index Index of the parameter set (0-based).

Returns: Description of the parameter set as QString.

QString description = manager->GetParamsSetDescription(0);

qDebug() << "Description:" << description;

See also: SetParamsSetDescription

Implements iprm::IParamsManager.

◆ GetParamsSetName()

virtual QString iprm::CParamsManagerCompBase::GetParamsSetName ( int index ) const

overridevirtual

Get name of specified parameter set.

Parameters

index Index of the parameter set (0-based).

Returns: Name of the parameter set as QString.

int count = manager->GetParamsSetsCount();
for (int i = 0; i < count; ++i)
{
    QString name = manager->GetParamsSetName(i);
    qDebug() << "Set" << i << ":" << name;
}

See also: SetParamsSetName

Implements iprm::IParamsManager.

◆ GetParamsSetsCount()

virtual int iprm::CParamsManagerCompBase::GetParamsSetsCount ( ) const

overridevirtual

Get number of managed parameter sets.

Returns: The count of parameter sets currently managed by this manager.

int count = manager->GetParamsSetsCount();

qDebug() << "Managing" << count << "parameter sets";

Implements iprm::IParamsManager.

◆ GetSelectedOptionIndex()

virtual int iprm::CParamsManagerCompBase::GetSelectedOptionIndex ( ) const

overridevirtual

Get selected index.

Returns the index of the currently selected option.

Returns: Index of selected option (0-based), or NO_SELECTION (-1) if no option is selected.

int index = selection.GetSelectedOptionIndex();
if (index == iprm::ISelectionParam::NO_SELECTION)
{
    qDebug() << "No selection";
}
else
{
    qDebug() << "Selected index:" << index;
}

See also: SetSelectedOptionIndex, NO_SELECTION

Implements iprm::ISelectionParam.

◆ GetSelectionConstraints()

virtual const IOptionsList * iprm::CParamsManagerCompBase::GetSelectionConstraints ( ) const

overridevirtual

Get constraints of this parameter.

Returns the options list that defines available choices for this selection. Constraints describe allowed parameter ranges and related information.

Returns: Pointer to IOptionsList defining available options, owned by the parameter or external manager. Do not delete.

const iprm::IOptionsList* options = selection.GetSelectionConstraints();
if (options)
{
    int count = options->GetOptionsCount();
    for (int i = 0; i < count; ++i)
    {
        QString name = options->GetOptionName(i);
        qDebug() << "Option" << i << ":" << name;
    }
}

See also: IOptionsList

Implements iprm::ISelectionParam.

◆ GetSubselection()

virtual ISelectionParam * iprm::CParamsManagerCompBase::GetSubselection ( int index ) const

overridevirtual

Get sub-selection for specified option.

Retrieves the hierarchical sub-selection associated with a specific option. This enables multi-level selection structures (e.g., Category -> Subcategory).

Parameters

index Index of the option whose sub-selection to retrieve.

Returns: Pointer to sub-selection parameter, or NULL if no sub-selection exists for this option.

Note: The returned pointer belongs to the selection's data model. Do not delete.; Sub-selections are independent selection parameters that can have their own constraints and further sub-selections.

// Get sub-selection for currently selected option
int selectedIndex = selection.GetSelectedOptionIndex();
if (selectedIndex >= 0)
{
    iprm::ISelectionParam* subSelection = selection.GetSubselection(selectedIndex);
    if (subSelection)
    {
        // Work with sub-selection
        subSelection->SetSelectedOptionIndex(0);
    }
}

// Check all options for sub-selections
const iprm::IOptionsList* options = selection.GetSelectionConstraints();
int count = options->GetOptionsCount();
for (int i = 0; i < count; ++i)
{
    iprm::ISelectionParam* sub = selection.GetSubselection(i);
    if (sub)
    {
        qDebug() << "Option" << i << "has a sub-selection";
    }
}

Implements iprm::ISelectionParam.

◆ InsertParamsSet()

virtual int iprm::CParamsManagerCompBase::InsertParamsSet	(	int	typeIndex = `-1`,
		int	index = `-1`
	)

overridevirtual

Insert new parameter set at selected position.

Creates and inserts a new parameter set into the manager. The type and position can be specified, or automatic selection can be used.

Parameters

typeIndex	Index of parameter type from GetParamsTypeConstraints(). Negative value: Type will be automatically selected (default). Zero or positive: Use specified type index.
index	Position in list where parameter set should be inserted. Negative value: Use default position (typically at end). Zero or positive: Insert at specified position.

Returns: Position of the newly inserted parameter set, or negative value if insertion was not possible.

Note: For specified index positions (non-negative index), returns the same index on success or negative value on failure.; Check MF_SUPPORT_INSERT flag before calling.

// Insert at default position with automatic type selection
int newIndex = manager->InsertParamsSet();
if (newIndex >= 0)
{
    qDebug() << "Inserted at index" << newIndex;
    manager->SetParamsSetName(newIndex, "New Set");
}

// Insert at specific position with specific type
const iprm::IOptionsList* types = manager->GetParamsTypeConstraints();
if (types && types->GetOptionsCount() > 1)
{
    int typeIdx = 1;
    int position = 2;
    int inserted = manager->InsertParamsSet(typeIdx, position);
}

See also: GetParamsTypeConstraints, RemoveParamsSet, MF_SUPPORT_INSERT

Implements iprm::IParamsManager.

◆ IsNameUnique()

bool iprm::CParamsManagerCompBase::IsNameUnique ( const QString & name ) const

◆ IsOptionEnabled()

virtual bool iprm::CParamsManagerCompBase::IsOptionEnabled ( int index ) const

overridevirtual

Return true if the option is enabled and can be selected.

Checks whether an option is currently enabled. Disabled options cannot be selected but remain visible in the list.

Parameters

index Option index (0-based).

Returns: true if option is enabled and can be selected, false if disabled or index is out of range.

for (int i = 0; i < options->GetOptionsCount(); ++i)
{
    if (options->IsOptionEnabled(i))
    {
        QString name = options->GetOptionName(i);
        qDebug() << "Enabled option:" << name;
    }
}

See also: SFC_DISABLE_ALLOWED

Implements iprm::IOptionsList.

◆ IsParameterCreationSupported()

virtual bool iprm::CParamsManagerCompBase::IsParameterCreationSupported ( ) const

protectedpure virtual

Return true if creation of parameter sets is supported by the implementation.

Implemented in iprm::CMultiParamsManagerComp, and iprm::CParamsManagerComp.

◆ OnComponentCreated()

virtual void iprm::CParamsManagerCompBase::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

Reimplemented in iprm::CMultiParamsManagerComp, and iprm::CParamsManagerComp.

◆ RemoveParamsSet()

virtual bool iprm::CParamsManagerCompBase::RemoveParamsSet ( int index )

overridevirtual

Remove parameter set at selected position.

Deletes the parameter set at the specified index.

Parameters

index Position of the parameter set to remove (0-based).

Returns: true if removal succeeded, false otherwise.

Note: Check MF_SUPPORT_DELETE flag before calling.

int flags = manager->GetIndexOperationFlags(-1);
if (flags & iprm::IParamsManager::MF_SUPPORT_DELETE)
{
    bool removed = manager->RemoveParamsSet(2);
    if (removed)
    {
        qDebug() << "Parameter set removed successfully";
    }
}

See also: InsertParamsSet, MF_SUPPORT_DELETE

Implements iprm::IParamsManager.

◆ SetIndexOperationFlags()

virtual bool iprm::CParamsManagerCompBase::SetIndexOperationFlags	(	int	index,
		int	flags
	)

overridevirtual

Set operation control flags of some parameter-set.

Sets operation flags for a specific parameter set. Only flags related to a single parameter set can be modified (not manager-level flags).

Parameters

flags	Operation flags to be used (combination of ParamsOperationFlags).
index	Index addressing position in parameter set list.

Returns: true if the operation succeeded, false otherwise.

Note: This method can only set per-set flags, not manager-level flags.

// Try to make a parameter set editable
bool success = manager->SetIndexOperationFlags(0,
    iprm::IParamsManager::MF_SUPPORT_EDIT);

See also: ParamsOperationFlags, GetIndexOperationFlags

Implements iprm::IParamsManager.

◆ SetParamsSetDescription()

virtual void iprm::CParamsManagerCompBase::SetParamsSetDescription	(	int	index,
		const QString &	description
	)

overridevirtual

Set the description of the specified parameter set.

Changes the description/tooltip text for a parameter set.

Parameters

index	Index of the parameter set (0-based).
description	New description text for the parameter set.

manager->SetParamsSetDescription(0, "This set contains advanced options");

See also: GetParamsSetDescription

Implements iprm::IParamsManager.

◆ SetParamsSetName()

virtual bool iprm::CParamsManagerCompBase::SetParamsSetName	(	int	index,
		const QString &	name
	)

overridevirtual

Set name of specified parameter set.

Changes the display name of a parameter set.

Parameters

index	Index of the parameter set (0-based).
name	New name for the parameter set.

Returns: true if name was changed successfully, false otherwise.

Note: Check MF_SUPPORT_RENAME flag before calling.

int flags = manager->GetIndexOperationFlags(0);
if (flags & iprm::IParamsManager::MF_SUPPORT_RENAME)
{
    bool renamed = manager->SetParamsSetName(0, "Updated Name");
    if (renamed)
    {
        qDebug() << "Name changed successfully";
    }
}

See also: GetParamsSetName, MF_SUPPORT_RENAME

Implements iprm::IParamsManager.

◆ SetSelectedOptionIndex()

virtual bool iprm::CParamsManagerCompBase::SetSelectedOptionIndex ( int index )

overridevirtual

Set index of selected option.

Changes the selected option to the specified index.

Parameters

index Index of the option to select (0-based), or NO_SELECTION to clear the selection.

Returns: true if selection change was possible and successful, false otherwise.

Note: Returns false if index is out of range or the option is disabled.; Triggers CF_SELECTION_CHANGED notification on success.

// Select third option
bool success = selection.SetSelectedOptionIndex(2);
if (success)
{
    qDebug() << "Selection changed";
}

// Clear selection
selection.SetSelectedOptionIndex(iprm::ISelectionParam::NO_SELECTION);

See also: GetSelectedOptionIndex, CF_SELECTION_CHANGED

Implements iprm::ISelectionParam.

◆ SwapParamsSet()

virtual bool iprm::CParamsManagerCompBase::SwapParamsSet	(	int	index1,
		int	index2
	)

overridevirtual

Swap two parameter sets.

Exchanges the positions of two parameter sets in the manager's list.

Parameters

index1	Index of first parameter set.
index2	Index of second parameter set.

Returns: true if swap succeeded, false otherwise.

Note: Check MF_SUPPORT_SWAP flag before calling.

// Swap first and third parameter sets
int flags = manager->GetIndexOperationFlags(-1);
if (flags & iprm::IParamsManager::MF_SUPPORT_SWAP)
{
    bool swapped = manager->SwapParamsSet(0, 2);
    if (swapped)
    {
        qDebug() << "Parameter sets swapped";
    }
}

See also: MF_SUPPORT_SWAP

Implements iprm::IParamsManager.

Member Data Documentation

◆ m_fixedParamsSetFlagsMap

QMap<int, int> iprm::CParamsManagerCompBase::m_fixedParamsSetFlagsMap

protected

Definition at line 248 of file CParamsManagerCompBase.h.

◆ m_paramSets

ParamSets iprm::CParamsManagerCompBase::m_paramSets

protected

Definition at line 244 of file CParamsManagerCompBase.h.

◆ m_selectedIndex

int iprm::CParamsManagerCompBase::m_selectedIndex

protected

Definition at line 152 of file CParamsManagerCompBase.h.

◆ m_updateBridge

imod::CModelUpdateBridge iprm::CParamsManagerCompBase::m_updateBridge

protected

Definition at line 246 of file CParamsManagerCompBase.h.

The documentation for this class was generated from the following file:

Acf/Include/iprm/CParamsManagerCompBase.h

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ ParamSetPtr

◆ ParamSets

Constructor & Destructor Documentation

◆ CParamsManagerCompBase()

Member Function Documentation

◆ CalculateNewDefaultName()

◆ CreateParameterSet()

◆ CreateParamsSetInstance()

◆ EnsureParamsSetModelDetached()

◆ FindFixedParamSetIndex()

◆ FindParamSetIndex()

◆ GetCreatedParamsSetsCount()

◆ GetIndexOperationFlags()

◆ GetOptionDescription()

◆ GetOptionId()

◆ GetOptionName()

◆ GetOptionsCount()

◆ GetOptionsFlags()

◆ GetParamsSet()

◆ GetParamsSetDescription()

◆ GetParamsSetName()

◆ GetParamsSetsCount()

◆ GetSelectedOptionIndex()

◆ GetSelectionConstraints()

◆ GetSubselection()

◆ InsertParamsSet()

◆ IsNameUnique()

◆ IsOptionEnabled()

◆ IsParameterCreationSupported()

◆ OnComponentCreated()

◆ RemoveParamsSet()

◆ SetIndexOperationFlags()

◆ SetParamsSetDescription()

◆ SetParamsSetName()

◆ SetSelectedOptionIndex()

◆ SwapParamsSet()

Member Data Documentation

◆ m_fixedParamsSetFlagsMap

◆ m_paramSets

◆ m_selectedIndex

◆ m_updateBridge
