iprm::INameParam Class Reference

Interface for an object containing a name. More...

#include <INameParam.h>

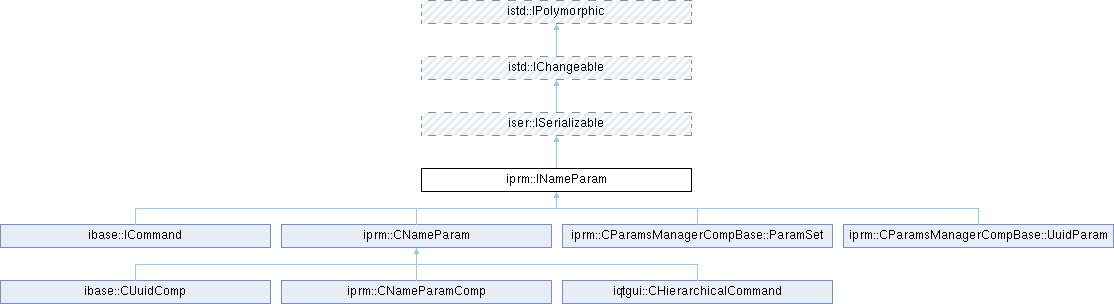

Inheritance diagram for iprm::INameParam:

Public Types
enum	ChangeFlags { CF_RENAME = 0x15345e0 }
	Data model change notification flags. More...
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual const QString &	GetName () const =0
	Get the object name.
virtual void	SetName (const QString &name)=0
	Set the object name.
virtual bool	IsNameFixed () const =0
	Return true if the name is fixed (non-editable).
Public Member Functions inherited from iser::ISerializable
virtual bool	Serialize (IArchive &archive)=0
	Load or store state of this object as a archive stream.
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Interface for an object containing a name.

INameParam stores a human-readable name as a QString. It supports fixed (read-only) and editable names, making it suitable for both system-defined and user-defined naming scenarios.

Usage Example

#include <iprm/CNameParam.h>

// Create a name parameter
iprm::CNameParam nameParam;

// Set name
nameParam.SetName("My Configuration");

// Get name
QString name = nameParam.GetName();
qDebug() << "Name:" << name;

// Check if name is fixed (read-only)
bool isFixed = nameParam.IsNameFixed();
if (!isFixed)
{
    nameParam.SetName("Updated Configuration");
}

Change Notification Example

// Monitoring name changes through change notification
// (Requires observer implementation)

// When name changes, CF_RENAME flag will be set in the change set
if (changeSet.Contains(iprm::INameParam::CF_RENAME))
{
    QString newName = nameParam.GetName();
    qDebug() << "Name changed to:" << newName;
}

Note

The documentation mentions this interface should be renamed to ITextParam, but currently serves as a named object interface.

Inherits from iser::ISerializable for persistence support.

See also

CNameParam, ITextParam, IIdParam

Definition at line 66 of file INameParam.h.

Member Enumeration Documentation

ChangeFlags

enum iprm::INameParam::ChangeFlags

Data model change notification flags.

Used with the observer pattern to detect when the name changes.

See also

istd::IChangeable::ChangeSet

Enumerator
CF_RENAME	Name has been changed.

Definition at line 76 of file INameParam.h.

Member Function Documentation

GetName()

virtual const QString & iprm::INameParam::GetName ( ) const

pure virtual

Get the object name.

Returns

Reference to the current name as QString.

const QString& name = nameParam.GetName();
qDebug() << "Name:" << name;

See also

SetName

Implemented in iprm::CNameParam, iprm::CParamsManagerCompBase::UuidParam, and iprm::CParamsManagerCompBase::ParamSet.

IsNameFixed()

virtual bool iprm::INameParam::IsNameFixed ( ) const

pure virtual

Return true if the name is fixed (non-editable).

Indicates whether the name can be changed by users. Fixed names are typically used for system-defined or read-only objects.

Returns

true if name cannot be modified, false if name is editable.

bool canRename = !nameParam.IsNameFixed();
if (canRename)
{
    // Allow user to edit name
    nameParam.SetName(userInput);
}

See also

SetName

Implemented in iprm::CNameParam, iprm::CNameParamComp, iprm::CParamsManagerCompBase::UuidParam, and iprm::CParamsManagerCompBase::ParamSet.

SetName()

virtual void iprm::INameParam::SetName ( const QString &  name )

pure virtual

Set the object name.

Changes the name of this parameter.

Parameters

name	New name value.

Note

If IsNameFixed() returns true, setting the name may be restricted.

Triggers CF_RENAME notification on change.

if (!nameParam.IsNameFixed())
{
    nameParam.SetName("New Name");
}

See also

GetName, IsNameFixed, CF_RENAME

Implemented in iprm::CNameParam, iprm::CNameParamComp, iprm::CParamsManagerCompBase::UuidParam, iprm::CParamsManagerCompBase::ParamSet, and iqtgui::CHierarchicalCommand.

---

The documentation for this class was generated from the following file:

• Acf/Include/iprm/INameParam.h
