Manager of parameter sets. More...

#include <IParamsManager.h>

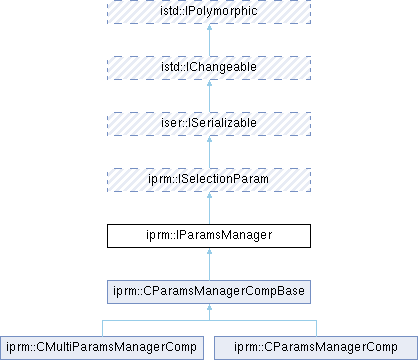

Inheritance diagram for iprm::IParamsManager:

Public Types
enum	ParamsOperationFlags { MF_COUNT_FIXED = 1 , MF_SUPPORT_RENAME = 2 , MF_SUPPORT_INSERT = 4 , MF_SUPPORT_DELETE = 8 , MF_SUPPORT_SWAP = 16 , MF_DISABLE_ALLOWED = 32 , MF_SUPPORT_EDIT = 64 , MF_INACTIVE = 128 }
	Bitwise coded flags used to find out supported features. More...

enum	ChangeFlags { CF_SET_INSERTED = 0x5af60 , CF_SET_REMOVED , CF_SET_NAME_CHANGED , CF_SET_ENABLE_CHANGED }
	Possible changes of the manager's data model. More...

typedef QSet< QByteArray >	TypeIds

Public Types inherited from iprm::ISelectionParam
enum	ChangeFlags { CF_SELECTION_CHANGED = 0x67364be }
	Data model change notification flags. More...

enum	{ NO_SELECTION = -1 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual int	GetIndexOperationFlags (int index=-1) const =0
	Get operation control flags of some parameter set or whole manager.

virtual bool	SetIndexOperationFlags (int index, int flags)=0
	Set operation control flags of some parameter-set.

virtual int	GetParamsSetsCount () const =0
	Get number of managed parameter sets.

virtual const IOptionsList *	GetParamsTypeConstraints () const =0
	Get selection constraints describing each supported type.

virtual int	InsertParamsSet (int typeIndex=-1, int index=-1)=0
	Insert new parameter set at selected position.

virtual bool	RemoveParamsSet (int index)=0
	Remove parameter set at selected position.

virtual bool	SwapParamsSet (int index1, int index2)=0
	Swap two parameter sets.

virtual IParamsSet *	GetParamsSet (int index) const =0
	Get selected parameter set.

virtual iprm::IParamsSetUniquePtr	CreateParameterSet (int typeIndex=-1, int index=-1) const =0
	Create a new parameter set instance.

virtual QString	GetParamsSetName (int index) const =0
	Get name of specified parameter set.

virtual bool	SetParamsSetName (int index, const QString &name)=0
	Set name of specified parameter set.

virtual QString	GetParamsSetDescription (int index) const =0
	Get the description of the specified parameter set.

virtual void	SetParamsSetDescription (int index, const QString &description)=0
	Set the description of the specified parameter set.

Public Member Functions inherited from iprm::ISelectionParam
virtual const IOptionsList *	GetSelectionConstraints () const =0
	Get constraints of this parameter.

virtual int	GetSelectedOptionIndex () const =0
	Get selected index.

virtual bool	SetSelectedOptionIndex (int index)=0
	Set index of selected option.

virtual ISelectionParam *	GetSubselection (int index) const =0
	Get sub-selection for specified option.

Public Member Functions inherited from iser::ISerializable
virtual bool	Serialize (IArchive &archive)=0
	Load or store state of this object as a archive stream.

virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Manager of parameter sets.

IParamsManager manages a collection of parameter sets (IParamsSet instances). It provides operations for creating, deleting, renaming, and organizing multiple parameter sets. The manager also acts as a selection parameter, allowing selection of the active parameter set.

The manager supports various operation modes controlled by flags:

Fixed or dynamic number of parameter sets
Renameable parameter sets
Insertable/deletable parameter sets
Swappable parameter sets
Enable/disable parameter sets

Usage Example

// Assuming manager is obtained from a component
iprm::IParamsManager* manager = component->GetInterface<iprm::IParamsManager>("ParamsManager");

// Check capabilities
int flags = manager->GetIndexOperationFlags(-1);
bool canInsert = (flags & iprm::IParamsManager::MF_SUPPORT_INSERT) != 0;
bool canDelete = (flags & iprm::IParamsManager::MF_SUPPORT_DELETE) != 0;
bool canRename = (flags & iprm::IParamsManager::MF_SUPPORT_RENAME) != 0;
bool canSwap = (flags & iprm::IParamsManager::MF_SUPPORT_SWAP) != 0;

// Get current number of parameter sets
int count = manager->GetParamsSetsCount();
qDebug() << "Parameter sets:" << count;

// Insert a new parameter set
if (canInsert)
{
    int newIndex = manager->InsertParamsSet();
    if (newIndex >= 0)
    {
        manager->SetParamsSetName(newIndex, "New Configuration");
        manager->SetParamsSetDescription(newIndex, "Custom settings");
    }
}

// Iterate through all parameter sets
for (int i = 0; i < count; ++i)
{
    QString name = manager->GetParamsSetName(i);
    iprm::IParamsSet* paramsSet = manager->GetParamsSet(i);

    // Work with the parameter set
    iprm::IParamsSet::Ids ids = paramsSet->GetParamIds();
    // ...
}

// Select active parameter set
manager->SetSelectedOptionIndex(0);
int activeIndex = manager->GetSelectedOptionIndex();

// Remove a parameter set
if (canDelete)
{
    manager->RemoveParamsSet(2);
}

// Swap two parameter sets
if (canSwap)
{
    manager->SwapParamsSet(0, 1);
}

Note: The manager inherits from ISelectionParam, allowing selection of active parameter set.; Always check operation flags before attempting modifications.

See also: IParamsSet, ISelectionParam, IOptionsList

Definition at line 95 of file IParamsManager.h.

Member Typedef Documentation

◆ TypeIds

typedef QSet<QByteArray> iprm::IParamsManager::TypeIds

Definition at line 98 of file IParamsManager.h.

Member Enumeration Documentation

◆ ChangeFlags

enum iprm::IParamsManager::ChangeFlags

Possible changes of the manager's data model.

These change flags are used with the change notification system to indicate what type of modification occurred in the parameter manager.

See also: istd::IChangeable::ChangeSet

Enumerator
CF_SET_INSERTED	A parameter set was inserted.
CF_SET_REMOVED	A parameter set was removed.
CF_SET_NAME_CHANGED	A parameter set name was changed.
CF_SET_ENABLE_CHANGED	A parameter set enable state was changed.

Definition at line 167 of file IParamsManager.h.

◆ ParamsOperationFlags

enum iprm::IParamsManager::ParamsOperationFlags

Bitwise coded flags used to find out supported features.

These flags indicate what operations are supported by the parameter manager or individual parameter sets. Use GetIndexOperationFlags() to retrieve these flags.

See also: GetIndexOperationFlags, SetIndexOperationFlags

Enumerator
MF_COUNT_FIXED	Active if number of parameters is fixed. When set, insert and delete operations are not allowed.
MF_SUPPORT_RENAME	Active if rename of parameters is supported. When set, SetParamsSetName() can be used to rename parameter sets.
MF_SUPPORT_INSERT	Active if insert of parameters is possible. When set, InsertParamsSet() can add new parameter sets.
MF_SUPPORT_DELETE	Active if delete of parameters is possible. When set, RemoveParamsSet() can delete parameter sets.
MF_SUPPORT_SWAP	Active if swap of parameters with the other one is possible. When set, SwapParamsSet() can reorder parameter sets.
MF_DISABLE_ALLOWED	Active if it is possible to get the disabled option. When set, parameter sets can be in disabled state.
MF_SUPPORT_EDIT	Active if it is possible to edit parameter values. When set, parameters within the set can be modified.
MF_INACTIVE	Option is inactive (i.e., cannot be activated or selected). When set, the parameter set cannot be selected as active.

Definition at line 108 of file IParamsManager.h.

Member Function Documentation

◆ CreateParameterSet()

virtual iprm::IParamsSetUniquePtr iprm::IParamsManager::CreateParameterSet	(	int	typeIndex = `-1`,
		int	index = `-1`
	)		const

pure virtual

Create a new parameter set instance.

Creates a new, independent parameter set instance. Optionally, data from an existing parameter set can be copied to the new instance.

Parameters

typeIndex	Index of parameter type from GetParamsTypeConstraints(). Negative value: Type will be automatically selected (default). Zero or positive: Use specified type index.
index	If non-negative, the parameter set data at the given position will be copied to the created instance.

Returns: Unique pointer to the newly created parameter set.

Note: The caller is responsible for the memory management of the created parameter set.; The returned parameter set is independent and not managed by this manager.

// Create a new empty parameter set
iprm::IParamsSetUniquePtr newSet = manager->CreateParameterSet();

// Create a copy of existing parameter set
iprm::IParamsSetUniquePtr copy = manager->CreateParameterSet(-1, 0);

// Create a new parameter set of specific type
const iprm::IOptionsList* types = manager->GetParamsTypeConstraints();
if (types && types->GetOptionsCount() > 1)
{
    iprm::IParamsSetUniquePtr typedSet = manager->CreateParameterSet(1);
}

See also: GetParamsTypeConstraints

Implemented in iprm::CParamsManagerCompBase.

◆ GetIndexOperationFlags()

virtual int iprm::IParamsManager::GetIndexOperationFlags ( int index = -1 ) const

pure virtual

Get operation control flags of some parameter set or whole manager.

This method returns flags indicating which operations are supported, either for the entire manager (index < 0) or for a specific parameter set.

Parameters

index

Index addressing position in parameter set list.

Negative value: Returns general manager-level flags.
Zero or positive: Returns flags for specific parameter set at that position.
Value equal to count: Returns flags for potential insert at end position.

Returns: Bitwise OR combination of ParamsOperationFlags values.

// Check general manager capabilities
int managerFlags = manager->GetIndexOperationFlags(-1);
if (managerFlags & iprm::IParamsManager::MF_SUPPORT_INSERT)
{
    qDebug() << "Can insert new parameter sets";
}

// Check if first parameter set can be renamed
int firstSetFlags = manager->GetIndexOperationFlags(0);
if (firstSetFlags & iprm::IParamsManager::MF_SUPPORT_RENAME)
{
    manager->SetParamsSetName(0, "New Name");
}

// Check if we can insert at the end
int count = manager->GetParamsSetsCount();
int insertFlags = manager->GetIndexOperationFlags(count);
if (insertFlags & iprm::IParamsManager::MF_SUPPORT_INSERT)
{
    manager->InsertParamsSet(-1, count);
}

See also: ParamsOperationFlags, SetIndexOperationFlags

Implemented in iprm::CParamsManagerCompBase.

◆ GetParamsSet()

virtual IParamsSet * iprm::IParamsManager::GetParamsSet ( int index ) const

pure virtual

Get selected parameter set.

Retrieves the parameter set at the specified index.

Parameters

index Index of the parameter set (0-based).

Returns: Pointer to the parameter set, or NULL if index is out of range.

Note: The returned pointer is owned by the manager. Do not delete it.

int count = manager->GetParamsSetsCount();
for (int i = 0; i < count; ++i)
{
    iprm::IParamsSet* paramSet = manager->GetParamsSet(i);
    if (paramSet)
    {
        // Access parameters in the set
        iprm::IParamsSet::Ids ids = paramSet->GetParamIds();
        for (const QByteArray& id : ids)
        {
            const iser::ISerializable* param = paramSet->GetParameter(id);
            // Process parameter...
        }
    }
}

See also: GetParamsSetsCount, IParamsSet

Implemented in iprm::CParamsManagerCompBase.

◆ GetParamsSetDescription()

virtual QString iprm::IParamsManager::GetParamsSetDescription ( int index ) const

pure virtual

Get the description of the specified parameter set.

Parameters

index Index of the parameter set (0-based).

Returns: Description of the parameter set as QString.

QString description = manager->GetParamsSetDescription(0);

qDebug() << "Description:" << description;

See also: SetParamsSetDescription

Implemented in iprm::CParamsManagerCompBase.

◆ GetParamsSetName()

virtual QString iprm::IParamsManager::GetParamsSetName ( int index ) const

pure virtual

Get name of specified parameter set.

Parameters

index Index of the parameter set (0-based).

Returns: Name of the parameter set as QString.

int count = manager->GetParamsSetsCount();
for (int i = 0; i < count; ++i)
{
    QString name = manager->GetParamsSetName(i);
    qDebug() << "Set" << i << ":" << name;
}

See also: SetParamsSetName

Implemented in iprm::CParamsManagerCompBase.

◆ GetParamsSetsCount()

virtual int iprm::IParamsManager::GetParamsSetsCount ( ) const

pure virtual

Get number of managed parameter sets.

Returns: The count of parameter sets currently managed by this manager.

int count = manager->GetParamsSetsCount();

qDebug() << "Managing" << count << "parameter sets";

Implemented in iprm::CParamsManagerCompBase.

◆ GetParamsTypeConstraints()

virtual const IOptionsList * iprm::IParamsManager::GetParamsTypeConstraints ( ) const

pure virtual

Get selection constraints describing each supported type.

Returns an options list that describes the different types of parameter sets that can be created. This is used when inserting new parameter sets to determine available types.

Returns: Pointer to IOptionsList describing available types, or NULL if only one anonymous type is supported.

const iprm::IOptionsList* types = manager->GetParamsTypeConstraints();
if (types)
{
    int typeCount = types->GetOptionsCount();
    for (int i = 0; i < typeCount; ++i)
    {
        QString typeName = types->GetOptionName(i);
        QByteArray typeId = types->GetOptionId(i);
        qDebug() << "Type" << i << ":" << typeName;
    }
}

See also: InsertParamsSet

Implemented in iprm::CMultiParamsManagerComp, and iprm::CParamsManagerComp.

◆ InsertParamsSet()

virtual int iprm::IParamsManager::InsertParamsSet	(	int	typeIndex = `-1`,
		int	index = `-1`
	)

pure virtual

Insert new parameter set at selected position.

Creates and inserts a new parameter set into the manager. The type and position can be specified, or automatic selection can be used.

Parameters

typeIndex	Index of parameter type from GetParamsTypeConstraints(). Negative value: Type will be automatically selected (default). Zero or positive: Use specified type index.
index	Position in list where parameter set should be inserted. Negative value: Use default position (typically at end). Zero or positive: Insert at specified position.

Returns: Position of the newly inserted parameter set, or negative value if insertion was not possible.

Note: For specified index positions (non-negative index), returns the same index on success or negative value on failure.; Check MF_SUPPORT_INSERT flag before calling.

// Insert at default position with automatic type selection
int newIndex = manager->InsertParamsSet();
if (newIndex >= 0)
{
    qDebug() << "Inserted at index" << newIndex;
    manager->SetParamsSetName(newIndex, "New Set");
}

// Insert at specific position with specific type
const iprm::IOptionsList* types = manager->GetParamsTypeConstraints();
if (types && types->GetOptionsCount() > 1)
{
    int typeIdx = 1;
    int position = 2;
    int inserted = manager->InsertParamsSet(typeIdx, position);
}

See also: GetParamsTypeConstraints, RemoveParamsSet, MF_SUPPORT_INSERT

Implemented in iprm::CParamsManagerCompBase.

◆ RemoveParamsSet()

virtual bool iprm::IParamsManager::RemoveParamsSet ( int index )

pure virtual

Remove parameter set at selected position.

Deletes the parameter set at the specified index.

Parameters

index Position of the parameter set to remove (0-based).

Returns: true if removal succeeded, false otherwise.

Note: Check MF_SUPPORT_DELETE flag before calling.

int flags = manager->GetIndexOperationFlags(-1);
if (flags & iprm::IParamsManager::MF_SUPPORT_DELETE)
{
    bool removed = manager->RemoveParamsSet(2);
    if (removed)
    {
        qDebug() << "Parameter set removed successfully";
    }
}

See also: InsertParamsSet, MF_SUPPORT_DELETE

Implemented in iprm::CParamsManagerCompBase.

◆ SetIndexOperationFlags()

virtual bool iprm::IParamsManager::SetIndexOperationFlags	(	int	index,
		int	flags
	)

pure virtual

Set operation control flags of some parameter-set.

Sets operation flags for a specific parameter set. Only flags related to a single parameter set can be modified (not manager-level flags).

Parameters

flags	Operation flags to be used (combination of ParamsOperationFlags).
index	Index addressing position in parameter set list.

Returns: true if the operation succeeded, false otherwise.

Note: This method can only set per-set flags, not manager-level flags.

// Try to make a parameter set editable
bool success = manager->SetIndexOperationFlags(0,
    iprm::IParamsManager::MF_SUPPORT_EDIT);

See also: ParamsOperationFlags, GetIndexOperationFlags

Implemented in iprm::CParamsManagerCompBase.

◆ SetParamsSetDescription()

virtual void iprm::IParamsManager::SetParamsSetDescription	(	int	index,
		const QString &	description
	)

pure virtual

Set the description of the specified parameter set.

Changes the description/tooltip text for a parameter set.

Parameters

index	Index of the parameter set (0-based).
description	New description text for the parameter set.

manager->SetParamsSetDescription(0, "This set contains advanced options");

See also: GetParamsSetDescription

Implemented in iprm::CParamsManagerCompBase.

◆ SetParamsSetName()

virtual bool iprm::IParamsManager::SetParamsSetName	(	int	index,
		const QString &	name
	)

pure virtual

Set name of specified parameter set.

Changes the display name of a parameter set.

Parameters

index	Index of the parameter set (0-based).
name	New name for the parameter set.

Returns: true if name was changed successfully, false otherwise.

Note: Check MF_SUPPORT_RENAME flag before calling.

int flags = manager->GetIndexOperationFlags(0);
if (flags & iprm::IParamsManager::MF_SUPPORT_RENAME)
{
    bool renamed = manager->SetParamsSetName(0, "Updated Name");
    if (renamed)
    {
        qDebug() << "Name changed successfully";
    }
}

See also: GetParamsSetName, MF_SUPPORT_RENAME

Implemented in iprm::CParamsManagerCompBase.

◆ SwapParamsSet()

virtual bool iprm::IParamsManager::SwapParamsSet	(	int	index1,
		int	index2
	)

pure virtual

Swap two parameter sets.

Exchanges the positions of two parameter sets in the manager's list.

Parameters

index1	Index of first parameter set.
index2	Index of second parameter set.

Returns: true if swap succeeded, false otherwise.

Note: Check MF_SUPPORT_SWAP flag before calling.

// Swap first and third parameter sets
int flags = manager->GetIndexOperationFlags(-1);
if (flags & iprm::IParamsManager::MF_SUPPORT_SWAP)
{
    bool swapped = manager->SwapParamsSet(0, 2);
    if (swapped)
    {
        qDebug() << "Parameter sets swapped";
    }
}

See also: MF_SUPPORT_SWAP

Implemented in iprm::CParamsManagerCompBase.

The documentation for this class was generated from the following file:

Acf/Include/iprm/IParamsManager.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Usage Example

Member Typedef Documentation

◆ TypeIds

Member Enumeration Documentation

◆ ChangeFlags

◆ ParamsOperationFlags

Member Function Documentation

◆ CreateParameterSet()

◆ GetIndexOperationFlags()

◆ GetParamsSet()

◆ GetParamsSetDescription()

◆ GetParamsSetName()

◆ GetParamsSetsCount()

◆ GetParamsTypeConstraints()

◆ InsertParamsSet()

◆ RemoveParamsSet()

◆ SetIndexOperationFlags()

◆ SetParamsSetDescription()

◆ SetParamsSetName()

◆ SwapParamsSet()
