Delegates calls of IChangeable methods to the given slave. More...

#include <CChangeDelegator.h>

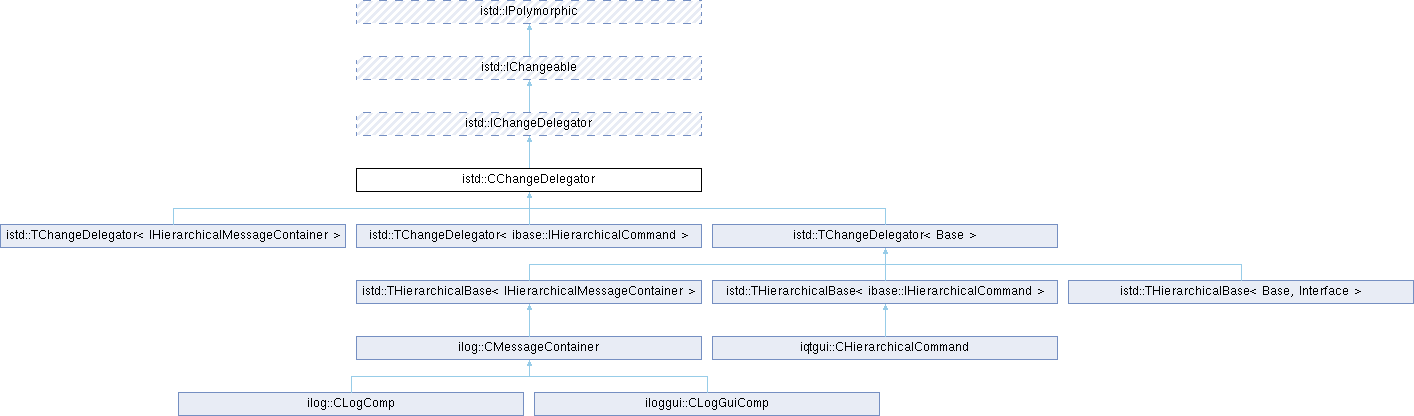

Inheritance diagram for istd::CChangeDelegator:

Public Types
typedef istd::IChangeable	BaseClass

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CChangeDelegator ()

	CChangeDelegator (istd::IChangeable *slavePtr)

virtual void	SetSlavePtr (istd::IChangeable *slavePtr) override
	Sets the slave object pointer for change delegation.

virtual istd::IChangeable *	GetSlavePtr () const override
	Gets the slave object pointer.

virtual void	OnBeginChanges () override
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet) override
	Callback function for end change event.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Detailed Description

Delegates calls of IChangeable methods to the given slave.

Definition at line 18 of file CChangeDelegator.h.

Member Typedef Documentation

◆ BaseClass

typedef istd::IChangeable istd::CChangeDelegator::BaseClass

Definition at line 21 of file CChangeDelegator.h.

Constructor & Destructor Documentation

◆ CChangeDelegator() [1/2]

istd::CChangeDelegator::CChangeDelegator ( )

◆ CChangeDelegator() [2/2]

istd::CChangeDelegator::CChangeDelegator ( istd::IChangeable * slavePtr )

explicit

Member Function Documentation

◆ GetSlavePtr()

istd::IChangeable * istd::CChangeDelegator::GetSlavePtr ( ) const

inlineoverridevirtual

Gets the slave object pointer.

The slave object will receive change notifications when this object's state changes. If no slave is set, returns nullptr.

Returns: Pointer to the slave IChangeable object, or nullptr if not set.

Implements istd::IChangeDelegator.

Definition at line 47 of file CChangeDelegator.h.

◆ OnBeginChanges()

virtual void istd::CChangeDelegator::OnBeginChanges ( )

overridevirtual

Callback function for begin change event.

Please note, that in some cases no following OnEndChanges can be called.

Reimplemented from istd::IChangeable.

Reimplemented in istd::TChangeDelegator< Base >, istd::TChangeDelegator< ibase::IHierarchicalCommand >, and istd::TChangeDelegator< IHierarchicalMessageContainer >.

◆ OnEndChanges()

virtual void istd::CChangeDelegator::OnEndChanges ( const ChangeSet & changeSet )

overridevirtual

Callback function for end change event.

Reimplemented from istd::IChangeable.

Reimplemented in istd::TChangeDelegator< Base >, istd::TChangeDelegator< ibase::IHierarchicalCommand >, and istd::TChangeDelegator< IHierarchicalMessageContainer >.

◆ SetSlavePtr()

void istd::CChangeDelegator::SetSlavePtr ( istd::IChangeable * slavePtr )

inlineoverridevirtual

Sets the slave object pointer for change delegation.

When a slave is set, all change notifications (BeginChanges and EndChanges) from this object will be automatically forwarded to the slave. This enables hierarchical change notification where child objects notify their parents of changes.

Parameters

slavePtr Pointer to the IChangeable object that should receive delegated change notifications. Pass nullptr to disable delegation.

Note: The slave object is not owned by this delegator. The caller is responsible for ensuring the slave object remains valid during the delegation lifetime.

See also: GetSlavePtr()
