Definition of a multi-page bitmap document. More...

#include <CMultiPageBitmapBase.h>

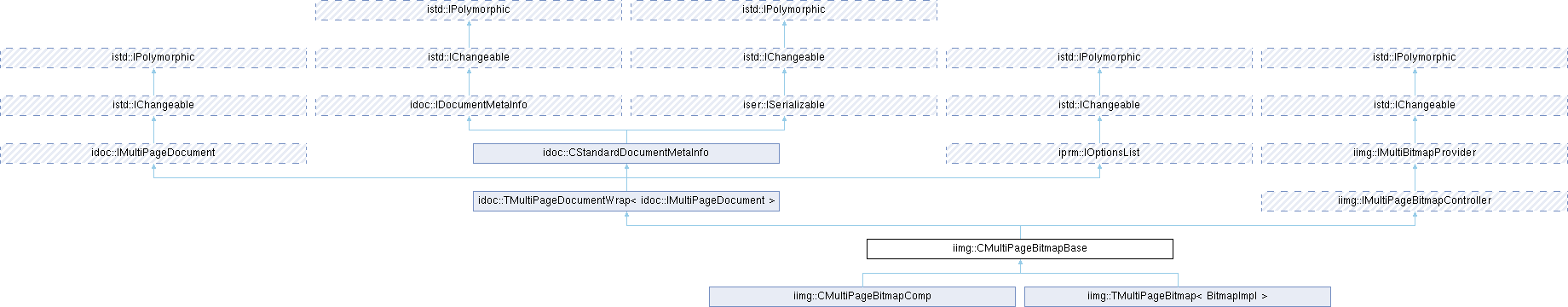

Inheritance diagram for iimg::CMultiPageBitmapBase:

Public Types
typedef idoc::CMultiPageDocumentBase	BaseClass

Public Types inherited from idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >
typedef idoc::IMultiPageDocument	BaseClass

typedef CStandardDocumentMetaInfo	BaseClass2

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Types inherited from idoc::IDocumentMetaInfo
enum	ChangeFlags { CF_METAINFO = 0xd83067d }
	Data model change notification flags. More...

enum	MetaInfoType { MIT_TITLE , MIT_AUTHOR , MIT_CREATOR , MIT_DESCRIPTION , MIT_CREATION_TIME , MIT_MODIFICATION_TIME , MIT_CREATOR_VERSION , MIT_DOCUMENT_VERSION , MIT_CONTENT_CHECKSUM , MIT_USER = 1024 }
	Type of the meta information. More...

typedef QSet< int >	MetaInfoTypes

Public Types inherited from iprm::IOptionsList
enum	ChangeFlags { CF_OPTIONS_CHANGED = 0x8263d86 , CF_OPTION_RENAMED }
	Flags for changes related to this interface. More...

enum	OptionsFlags { SCF_NONE = 0 , SCF_SUPPORT_UNIQUE_ID = 256 , SFC_DISABLE_ALLOWED = 32 }
	Flags for controlling constraints behavior. More...

Public Member Functions
virtual istd::IChangeable *	InsertPage (const idoc::IDocumentMetaInfo pageMetaInfoPtr=NULL, const iprm::IParamsSet pageParameterPtr=NULL, int position=-1) override
	Insert a new document page at the given position.

virtual const iprm::IOptionsList *	GetBitmapListInfo () const override
	Get optional information about bitmaps in form of section constraints.

virtual int	GetBitmapsCount () const override
	Get number of produced bitmaps.

virtual const iimg::IBitmap *	GetBitmap (int bitmapIndex) const override
	Get access to produced bitmap object.

virtual iimg::IBitmap *	InsertBitmap (iimg::IBitmap::PixelFormat pixelFormat, const istd::CIndex2d &size, const idoc::IDocumentMetaInfo *metaInfoPtr=NULL) override
	Inserts a new bitmap.

virtual iimg::IBitmap *	InsertBitmap (iimg::IBitmap::PixelFormat pixelFormat, const istd::CIndex2d &size, void dataPtr, bool releaseFlag, int linesDifference=0, const idoc::IDocumentMetaInfo metaInfoPtr=NULL) override
	Inserts a new bitmap.

virtual void	RemoveBitmap (int index) override
	Removes the bitmap at the given index.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >
virtual int	GetPagesCount () const override

virtual const istd::IChangeable &	GetDocumentPage (int pageIndex) const override

virtual const idoc::IDocumentMetaInfo *	GetPageMetaInfo (int pageIndex) const override

virtual void	ResetPages () override

virtual bool	RemovePage (int pageIndex) override

virtual const IDocumentMetaInfo &	GetDocumentMetaInfo () const override

virtual int	GetOptionsFlags () const override
	Get constraints flags.

virtual int	GetOptionsCount () const override
	Get number of managed options.

virtual QString	GetOptionName (int index) const override
	Get name of specified option.

virtual QString	GetOptionDescription (int index) const override
	Get human-readable description for an option.

virtual QByteArray	GetOptionId (int index) const override
	Get option ID.

virtual bool	IsOptionEnabled (int index) const override
	Return true if the option is enabled and can be selected.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from idoc::CStandardDocumentMetaInfo
virtual MetaInfoTypes	GetMetaInfoTypes (bool allowReadOnly=true) const override
	Get list of contained meta info types.

virtual QVariant	GetMetaInfo (int metaInfoType) const override
	Get document's meta info.

virtual bool	SetMetaInfo (int metaInfoType, const QVariant &metaInfo) override
	Set new document's meta information for a given meta type.

virtual void	RemoveMetaInfo (int metaInfoType) override
	Remove document's meta information for a given meta type.

virtual QByteArray	GetMetaInfoId (int metaInfoType) const override
	Get an unique ID of the meta information.

virtual QString	GetMetaInfoName (int metaInfoType) const override
	Get a human readable name for a given meta information type.

virtual QString	GetMetaInfoDescription (int metaInfoType) const override
	Get a human readable description for a given meta information type.

virtual bool	IsMetaInfoWritable (int metaInfoType) const override
	Check if meta information can be changed.

virtual bool	IsEqual (const IChangeable &object) const override

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Protected Member Functions
virtual IBitmapUniquePtr	CreateBitmap () const =0

Protected Member Functions inherited from idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >
virtual bool	SerializePage (iser::IArchive &archive, Page &pageItem)
	Serialize a single page item into or from the archive.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Static Public Member Functions inherited from idoc::IDocumentMetaInfo
template<class T >
static std::optional< T >	GetMetaInfoT (const idoc::IDocumentMetaInfo &metaInfo, int key)
	Type-safe retrieval of metadata values.

Protected Types inherited from idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >
typedef QList< Page >	Pages

Protected Attributes inherited from idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >
Pages	m_documentPages

Detailed Description

Definition of a multi-page bitmap document.

Definition at line 22 of file CMultiPageBitmapBase.h.

Member Typedef Documentation

◆ BaseClass

typedef idoc::CMultiPageDocumentBase iimg::CMultiPageBitmapBase::BaseClass

Definition at line 27 of file CMultiPageBitmapBase.h.

Member Function Documentation

◆ CopyFrom()

virtual bool iimg::CMultiPageBitmapBase::CopyFrom	(	const istd::IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Copy this object from another one.

Default implementation in istd::IChangeable does nothing.

Reimplemented from idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >.

◆ CreateBitmap()

virtual IBitmapUniquePtr iimg::CMultiPageBitmapBase::CreateBitmap ( ) const

protectedpure virtual

Implemented in iimg::CMultiPageBitmapComp, and iimg::TMultiPageBitmap< BitmapImpl >.

◆ GetBitmap()

virtual const iimg::IBitmap * iimg::CMultiPageBitmapBase::GetBitmap ( int bitmapIndex ) const

overridevirtual

Get access to produced bitmap object.

Returns: pointer to bitmap instance if this bitmap is accessible, or NULL.

Implements iimg::IMultiBitmapProvider.

◆ GetBitmapListInfo()

virtual const iprm::IOptionsList * iimg::CMultiPageBitmapBase::GetBitmapListInfo ( ) const

overridevirtual

Get optional information about bitmaps in form of section constraints.

It allows to get name and description of each bitmap channel.

Implements iimg::IMultiBitmapProvider.

◆ GetBitmapsCount()

virtual int iimg::CMultiPageBitmapBase::GetBitmapsCount ( ) const

overridevirtual

Get number of produced bitmaps.

Implements iimg::IMultiBitmapProvider.

◆ InsertBitmap() [1/2]

virtual iimg::IBitmap * iimg::CMultiPageBitmapBase::InsertBitmap	(	iimg::IBitmap::PixelFormat	pixelFormat,
		const istd::CIndex2d &	size,
		const idoc::IDocumentMetaInfo *	metaInfoPtr = `NULL`
	)

overridevirtual

Inserts a new bitmap.

Parameters

pixelFormat	The pixel format.
size	Size of the page bitmap.

Returns: null if it fails, else a pointer to the inserted bitmap.

Implements iimg::IMultiPageBitmapController.

◆ InsertBitmap() [2/2]

virtual iimg::IBitmap * iimg::CMultiPageBitmapBase::InsertBitmap	(	iimg::IBitmap::PixelFormat	pixelFormat,
		const istd::CIndex2d &	size,
		void *	dataPtr,
		bool	releaseFlag,
		int	linesDifference = `0`,
		const idoc::IDocumentMetaInfo *	metaInfoPtr = `NULL`
	)

overridevirtual

Inserts a new bitmap.

Parameters

	pixelFormat	The pixel format.
	size	The size of the page bitmap.
[in,out]	dataPtr	If non-null, the bitmap data pointer.
	releaseFlag	Memory controlling flag.
	linesDifference	(Optional) The distance between adjacent lines in bytes.

Returns: null if it fails, else a pointer to the inserted bitmap.

Implements iimg::IMultiPageBitmapController.

◆ InsertPage()

virtual istd::IChangeable * iimg::CMultiPageBitmapBase::InsertPage	(	const idoc::IDocumentMetaInfo *	pageMetaInfoPtr = `NULL`,
		const iprm::IParamsSet *	pageParameterPtr = `NULL`,
		int	position = `-1`
	)

overridevirtual

Insert a new document page at the given position.

Parameters

pageMetaInfoPtr	Optional meta-information for the new page.
pageParameterPtr	Optional parameters for page creation.
position	Insertion position in the page container. If negative, the new page will be inserted after the last page.

Returns: Pointer to the object representing the contents of the new page.

Example: // Add page at the end

istd::IChangeable* newPage = mpDoc->InsertPage(nullptr, nullptr, -1);

// Insert page at the beginning

istd::IChangeable* firstPage = mpDoc->InsertPage(nullptr, nullptr, 0);

istd::IChangeable
Common interface for data model objects, which can be changed.
Definition IChangeable.h:28

Implements idoc::IMultiPageDocument.

◆ RemoveBitmap()

virtual void iimg::CMultiPageBitmapBase::RemoveBitmap ( int index )

overridevirtual

Removes the bitmap at the given index.

Parameters

index Index of the bitmap page.

Implements iimg::IMultiPageBitmapController.

◆ ResetData()

virtual bool iimg::CMultiPageBitmapBase::ResetData ( CompatibilityMode mode = CM_WITHOUT_REFS )

overridevirtual

Reset data to its default state.

Default implementation in istd::IChangeable does nothing.

Returns: true if the operation was successful, and false otherwise.

Reimplemented from idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >.

The documentation for this class was generated from the following file:

Acf/Include/iimg/CMultiPageBitmapBase.h

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

Member Function Documentation

◆ CopyFrom()

◆ CreateBitmap()

◆ GetBitmap()

◆ GetBitmapListInfo()

◆ GetBitmapsCount()

◆ InsertBitmap() [1/2]

◆ InsertBitmap() [2/2]

◆ InsertPage()

◆ RemoveBitmap()

◆ ResetData()
