idoc::IMultiPageDocument Class Reference

Simple interface for a structured document. More...

#include <IMultiPageDocument.h>

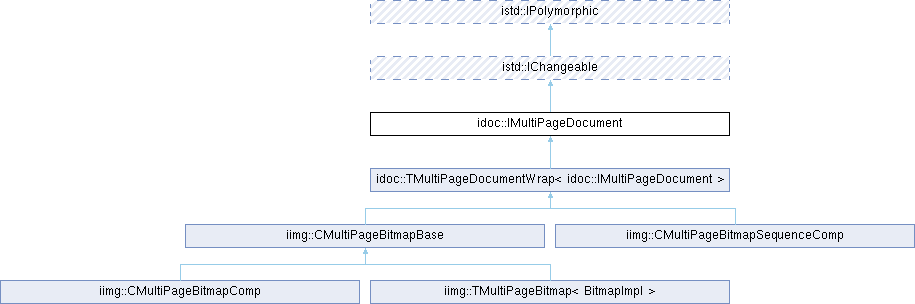

Inheritance diagram for idoc::IMultiPageDocument:

Public Member Functions
virtual int	GetPagesCount () const =0
	Get number of pages in the document.
virtual const istd::IChangeable &	GetDocumentPage (int pageIndex) const =0
	Get the document page.
virtual const idoc::IDocumentMetaInfo *	GetPageMetaInfo (int pageIndex) const =0
	Get meta info of the given page if exists.
virtual void	ResetPages ()=0
	Remove all pages and their content from the document.
virtual istd::IChangeable *	InsertPage (const idoc::IDocumentMetaInfo *pageMetaInfoPtr=NULL, const iprm::IParamsSet *pageParameterPtr=NULL, int position=-1)=0
	Insert a new document page at the given position.
virtual bool	RemovePage (int pageIndex)=0
	Remove the page at the given index.
virtual const IDocumentMetaInfo &	GetDocumentMetaInfo () const =0
	Get meta information about the document.
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Simple interface for a structured document.

A multi-page document is a container that manages a collection of pages, where each page owns its content. This interface is useful for documents that have a natural page-based structure, such as:

• PDF documents
• Word processing documents
• Presentations
• Multi-sheet spreadsheets
• Multi-layer image documents

Each page can have its own meta-information and content. The document itself also maintains document-level meta-information.

Usage Example

// Get or create a multi-page document
idoc::IMultiPageDocument* mpDoc = GetMultiPageDocument();

// Add a new page
istd::IChangeable* page1 = mpDoc->InsertPage(nullptr, nullptr, -1);
// Configure page1 content...

// Add another page at the beginning
istd::IChangeable* page0 = mpDoc->InsertPage(nullptr, nullptr, 0);

// Iterate through all pages
for (int i = 0; i < mpDoc->GetPagesCount(); ++i) {
       const istd::IChangeable& page = mpDoc->GetDocumentPage(i);
       const idoc::IDocumentMetaInfo* metaInfo = mpDoc->GetPageMetaInfo(i);
       if (metaInfo) {
              QString title = metaInfo->GetMetaInfo(
                     idoc::IDocumentMetaInfo::MIT_TITLE).toString();
              qDebug() << "Page" << i << ":" << title;
       }
}

// Remove a specific page
mpDoc->RemovePage(1);

// Clear all pages
mpDoc->ResetPages();

// Access document-level metadata
const idoc::IDocumentMetaInfo& docMeta = mpDoc->GetDocumentMetaInfo();
QString docTitle = docMeta.GetMetaInfo(
       idoc::IDocumentMetaInfo::MIT_TITLE).toString();

See also

IMultiPageDocumentProvider, IDocumentMetaInfo, CMultiPageDocumentFilePersistenceComp

Definition at line 79 of file IMultiPageDocument.h.

Member Function Documentation

GetDocumentMetaInfo()

virtual const IDocumentMetaInfo & idoc::IMultiPageDocument::GetDocumentMetaInfo ( ) const

pure virtual

Get meta information about the document.

Returns

Reference to document-level meta-information.

This is different from page meta-information - it describes the document as a whole.

Implemented in idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >.

GetDocumentPage()

virtual const istd::IChangeable & idoc::IMultiPageDocument::GetDocumentPage ( int  pageIndex ) const

pure virtual

Get the document page.

Parameters

pageIndex

Zero-based index of the page (0 to GetPagesCount()-1).

Returns

Reference to the page object containing the page content.

Implemented in idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >.

Referenced by idoc::TMultiPageDocumentWrap< Base >::CopyFrom().

GetPageMetaInfo()

virtual const idoc::IDocumentMetaInfo * idoc::IMultiPageDocument::GetPageMetaInfo ( int  pageIndex ) const

pure virtual

Get meta info of the given page if exists.

Parameters

pageIndex

Zero-based index of the page.

Returns

Pointer to page meta-information, or NULL if page has no meta-info.

Implemented in idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >.

Referenced by idoc::TMultiPageDocumentWrap< Base >::CopyFrom().

GetPagesCount()

virtual int idoc::IMultiPageDocument::GetPagesCount ( ) const

pure virtual

Get number of pages in the document.

Returns

Total count of pages.

Implemented in idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >.

Referenced by idoc::TMultiPageDocumentWrap< Base >::CopyFrom().

InsertPage()

virtual istd::IChangeable * idoc::IMultiPageDocument::InsertPage ( const idoc::IDocumentMetaInfo *  pageMetaInfoPtr = NULL, const iprm::IParamsSet *  pageParameterPtr = NULL, int  position = -1  )

pure virtual

Insert a new document page at the given position.

Parameters

pageMetaInfoPtr	Optional meta-information for the new page.
pageParameterPtr	Optional parameters for page creation.
position	Insertion position in the page container. If negative, the new page will be inserted after the last page.

Returns

Pointer to the object representing the contents of the new page.

Example

// Add page at the end
istd::IChangeable* newPage = mpDoc->InsertPage(nullptr, nullptr, -1);

// Insert page at the beginning
istd::IChangeable* firstPage = mpDoc->InsertPage(nullptr, nullptr, 0);

Implemented in iimg::CMultiPageBitmapBase, and iimg::CMultiPageBitmapSequenceComp.

RemovePage()

virtual bool idoc::IMultiPageDocument::RemovePage ( int  pageIndex )

pure virtual

Remove the page at the given index.

Parameters

pageIndex

Zero-based index of the page to remove.

Returns

True if the page was successfully removed, false otherwise.

Implemented in idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >.

ResetPages()

virtual void idoc::IMultiPageDocument::ResetPages ( )

pure virtual

Remove all pages and their content from the document.

This operation clears the entire document, removing all pages.

Implemented in idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >.

---

The documentation for this class was generated from the following file:

• Acf/Include/idoc/IMultiPageDocument.h
