idoc::CStandardDocumentMetaInfo Class Reference

Implementation of the basic document's meta information. More...

#include <CStandardDocumentMetaInfo.h>

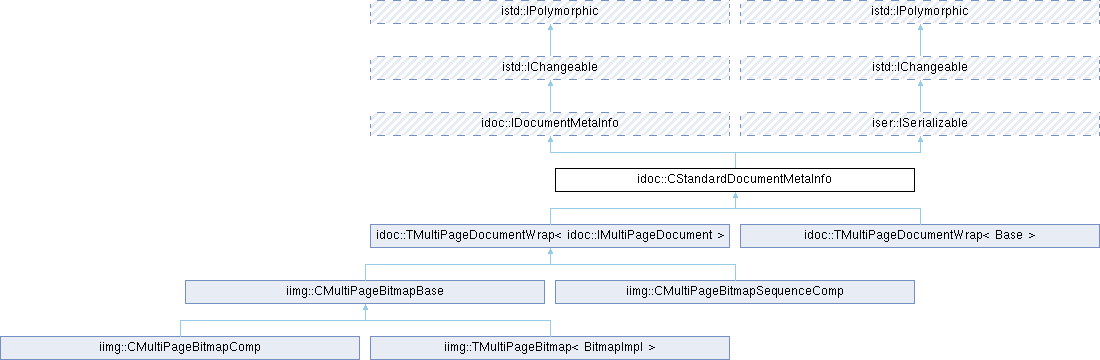

Inheritance diagram for idoc::CStandardDocumentMetaInfo:

Public Member Functions
virtual MetaInfoTypes	GetMetaInfoTypes (bool allowReadOnly=true) const override
	Get list of contained meta info types.
virtual QVariant	GetMetaInfo (int metaInfoType) const override
	Get document's meta info.
virtual bool	SetMetaInfo (int metaInfoType, const QVariant &metaInfo) override
	Set new document's meta information for a given meta type.
virtual void	RemoveMetaInfo (int metaInfoType) override
	Remove document's meta information for a given meta type.
virtual QByteArray	GetMetaInfoId (int metaInfoType) const override
	Get an unique ID of the meta information.
virtual QString	GetMetaInfoName (int metaInfoType) const override
	Get a human readable name for a given meta information type.
virtual QString	GetMetaInfoDescription (int metaInfoType) const override
	Get a human readable description for a given meta information type.
virtual bool	IsMetaInfoWritable (int metaInfoType) const override
	Check if meta information can be changed.
virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.
virtual bool	IsEqual (const IChangeable &object) const override
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Additional Inherited Members
Public Types inherited from idoc::IDocumentMetaInfo
enum	ChangeFlags { CF_METAINFO = 0xd83067d }
	Data model change notification flags. More...
enum	MetaInfoType {   MIT_TITLE , MIT_AUTHOR , MIT_CREATOR , MIT_DESCRIPTION ,   MIT_CREATION_TIME , MIT_MODIFICATION_TIME , MIT_CREATOR_VERSION , MIT_DOCUMENT_VERSION ,   MIT_CONTENT_CHECKSUM , MIT_USER = 1024 }
	Type of the meta information. More...
typedef QSet< int >	MetaInfoTypes
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap
Static Public Member Functions inherited from idoc::IDocumentMetaInfo
template<class T >
static std::optional< T >	GetMetaInfoT (const idoc::IDocumentMetaInfo &metaInfo, int key)
	Type-safe retrieval of metadata values.
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Implementation of the basic document's meta information.

Provides a standard implementation of IDocumentMetaInfo that stores metadata in a map structure. Supports all standard metadata types defined in IDocumentMetaInfo::MetaInfoType and custom user-defined types.

The implementation is serializable, allowing metadata to be saved and loaded along with document content.

Supported Standard Metadata

• MIT_TITLE - Document title
• MIT_AUTHOR - Document author name
• MIT_CREATOR - Tool used to create the document
• MIT_DESCRIPTION - Document description
• MIT_CREATION_TIME - When document was created (QDateTime)
• MIT_MODIFICATION_TIME - When document was last modified (QDateTime)
• MIT_CREATOR_VERSION - Version of creation tool
• MIT_DOCUMENT_VERSION - Document format version
• MIT_CONTENT_CHECKSUM - Checksum of document data

Usage Example

// Create meta info instance
CStandardDocumentMetaInfo metaInfo;

// Set standard metadata
metaInfo.SetMetaInfo(idoc::IDocumentMetaInfo::MIT_TITLE, "My Document");
metaInfo.SetMetaInfo(idoc::IDocumentMetaInfo::MIT_AUTHOR, "John Doe");
metaInfo.SetMetaInfo(idoc::IDocumentMetaInfo::MIT_CREATION_TIME,
       QDateTime::currentDateTime());

// Add custom metadata
const int MIT_PROJECT = idoc::IDocumentMetaInfo::MIT_USER + 1;
metaInfo.SetMetaInfo(MIT_PROJECT, "PROJECT-123");

// Read metadata
QString title = metaInfo.GetMetaInfo(
       idoc::IDocumentMetaInfo::MIT_TITLE).toString();

// List all metadata
idoc::IDocumentMetaInfo::MetaInfoTypes types = metaInfo.GetMetaInfoTypes();
for (int type : types) {
       QString name = metaInfo.GetMetaInfoName(type);
       QVariant value = metaInfo.GetMetaInfo(type);
       qDebug() << name << "=" << value;
}

// Serialize metadata
iser::CXmlArchive archive;
if (archive.OpenForWrite("metadata.xml")) {
       metaInfo.Serialize(archive);
       archive.Close();
}

See also

IDocumentMetaInfo, IMultiPageDocument

Definition at line 76 of file CStandardDocumentMetaInfo.h.

Member Function Documentation

CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > idoc::CStandardDocumentMetaInfo::CloneMe ( CompatibilityMode  mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns

new instance or NULL, if this operation is not supported.

Reimplemented from istd::IChangeable.

Reimplemented in iimg::TMultiPageBitmap< BitmapImpl >.

CopyFrom()

virtual bool idoc::CStandardDocumentMetaInfo::CopyFrom ( const IChangeable &  object, CompatibilityMode  mode = CM_WITHOUT_REFS  )

overridevirtual

GetMetaInfo()

virtual QVariant idoc::CStandardDocumentMetaInfo::GetMetaInfo ( int  metaInfoType ) const

overridevirtual

Get document's meta info.

Implements idoc::IDocumentMetaInfo.

GetMetaInfoDescription()

virtual QString idoc::CStandardDocumentMetaInfo::GetMetaInfoDescription ( int  metaInfoType ) const

overridevirtual

Get a human readable description for a given meta information type.

Implements idoc::IDocumentMetaInfo.

GetMetaInfoId()

virtual QByteArray idoc::CStandardDocumentMetaInfo::GetMetaInfoId ( int  metaInfoType ) const

overridevirtual

Get an unique ID of the meta information.

Implements idoc::IDocumentMetaInfo.

GetMetaInfoName()

virtual QString idoc::CStandardDocumentMetaInfo::GetMetaInfoName ( int  metaInfoType ) const

overridevirtual

Get a human readable name for a given meta information type.

Implements idoc::IDocumentMetaInfo.

GetMetaInfoTypes()

virtual MetaInfoTypes idoc::CStandardDocumentMetaInfo::GetMetaInfoTypes ( bool  allowReadOnly = true ) const

overridevirtual

Get list of contained meta info types.

Parameters

allowReadOnly

if enabled, read only types will be also listed out, if this flag is false only the writable types will be returned.

See also

IsMetaInfoWritable.

Implements idoc::IDocumentMetaInfo.

IsEqual()

virtual bool idoc::CStandardDocumentMetaInfo::IsEqual ( const IChangeable &  object ) const

overridevirtual

IsMetaInfoWritable()

virtual bool idoc::CStandardDocumentMetaInfo::IsMetaInfoWritable ( int  metaInfoType ) const

overridevirtual

Check if meta information can be changed.

Implements idoc::IDocumentMetaInfo.

RemoveMetaInfo()

virtual void idoc::CStandardDocumentMetaInfo::RemoveMetaInfo ( int  metaInfoType )

overridevirtual

Remove document's meta information for a given meta type.

Implements idoc::IDocumentMetaInfo.

ResetData()

virtual bool idoc::CStandardDocumentMetaInfo::ResetData ( CompatibilityMode  mode = CM_WITHOUT_REFS )

overridevirtual

Reset data to its default state.

Default implementation in istd::IChangeable does nothing.

Returns

true if the operation was successful, and false otherwise.

Reimplemented from istd::IChangeable.

Reimplemented in idoc::TMultiPageDocumentWrap< Base >, idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >, and iimg::CMultiPageBitmapBase.

Serialize()

virtual bool idoc::CStandardDocumentMetaInfo::Serialize ( iser::IArchive &  archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also

iser::IArchive

Implements iser::ISerializable.

Reimplemented in idoc::TMultiPageDocumentWrap< Base >, and idoc::TMultiPageDocumentWrap< idoc::IMultiPageDocument >.

Referenced by idoc::TMultiPageDocumentWrap< Base >::SerializePage().

SetMetaInfo()

virtual bool idoc::CStandardDocumentMetaInfo::SetMetaInfo ( int  metaInfoType, const QVariant &  metaInfo  )

overridevirtual

Set new document's meta information for a given meta type.

Implements idoc::IDocumentMetaInfo.

---

The documentation for this class was generated from the following file:

• Acf/Include/idoc/CStandardDocumentMetaInfo.h
