idoc::IDocumentTypesInfo Class Reference

Provide information about different document types. More...

#include <IDocumentTypesInfo.h>

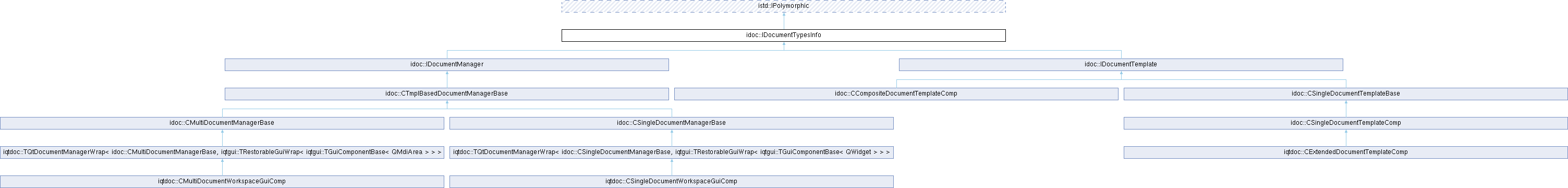

Inheritance diagram for idoc::IDocumentTypesInfo:

Public Types
enum	SupportedFeatures { SF_NEW_DOCUMENT = 0x0001 , SF_EDIT_DOCUMENT = 0x0010 , SF_DEFAULT = 0xffff }
	Enumeration for supported types of operations with documents. More...
typedef QVector< QByteArray >	Ids
	Type definition for document type ID collections.

Public Member Functions
virtual bool	IsFeatureSupported (int featureFlags, const QByteArray &documentTypeId) const =0
	Return true, if the feature(s) is supported by this document template.
virtual Ids	GetDocumentTypeIds () const =0
	Get list of supported document type IDs.
virtual QString	GetDocumentTypeName (const QByteArray &documentTypeId) const =0
	Get human readable name of some document type ID.
virtual ifile::IFileTypeInfo *	GetDocumentFileTypeInfo (const QByteArray &documentTypeId) const =0
	Get file type information object for some selected document type.
virtual Ids	GetDocumentTypeIdsForFile (const QString &filePath) const =0
	Get list of supported document IDs that can handle the specified file.
virtual QString	GetDefaultDirectory (const QString &sugestedDir="", const QByteArray *documentTypeIdPtr=NULL) const =0
	Return default directory for specified document type.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Provide information about different document types.

This interface provides metadata about document types supported by a template or manager. It includes information about document type IDs, names, supported features, file types, and default directories.

Document types define what kinds of documents can be created or opened by the application. Each type has a unique ID and associated metadata that describes its capabilities.

Usage Example

idoc::IDocumentTypesInfo* typesInfo = GetDocumentTypesInfo();

// Get all supported document types
idoc::IDocumentTypesInfo::Ids typeIds = typesInfo->GetDocumentTypeIds();
for (const QByteArray& typeId : typeIds) {
       QString name = typesInfo->GetDocumentTypeName(typeId);
       qDebug() << "Type:" << name << "ID:" << typeId;

       // Check supported features
       bool canCreate = typesInfo->IsFeatureSupported(
              idoc::IDocumentTypesInfo::SF_NEW_DOCUMENT, typeId);
       bool canEdit = typesInfo->IsFeatureSupported(
              idoc::IDocumentTypesInfo::SF_EDIT_DOCUMENT, typeId);

       qDebug() << "  Can create:" << canCreate << "Can edit:" << canEdit;

       // Get file type info
       ifile::IFileTypeInfo* fileInfo = typesInfo->GetDocumentFileTypeInfo(typeId);
       if (fileInfo) {
              QString filter = fileInfo->GetFileDialogFilter();
              qDebug() << "  File filter:" << filter;
       }
}

// Get document types for a specific file
QString filePath = "/path/to/document.txt";
idoc::IDocumentTypesInfo::Ids compatibleTypes =
       typesInfo->GetDocumentTypeIdsForFile(filePath);
for (const QByteArray& typeId : compatibleTypes) {
       qDebug() << "File compatible with:" << typesInfo->GetDocumentTypeName(typeId);
}

// Get default directory for a document type
QString defaultDir = typesInfo->GetDefaultDirectory("", &typeIds[0]);

See also

IDocumentTemplate, IDocumentManager

Definition at line 68 of file IDocumentTypesInfo.h.

Member Typedef Documentation

Ids

typedef QVector<QByteArray> idoc::IDocumentTypesInfo::Ids

Type definition for document type ID collections.

Definition at line 74 of file IDocumentTypesInfo.h.

Member Enumeration Documentation

SupportedFeatures

enum idoc::IDocumentTypesInfo::SupportedFeatures

Enumeration for supported types of operations with documents.

Enumerator
SF_NEW_DOCUMENT	A new document can be created (File > New).
SF_EDIT_DOCUMENT	A document is editable (content can be modified).
SF_DEFAULT	All features are supported.

Definition at line 79 of file IDocumentTypesInfo.h.

Member Function Documentation

GetDefaultDirectory()

virtual QString idoc::IDocumentTypesInfo::GetDefaultDirectory ( const QString &  sugestedDir = "", const QByteArray *  documentTypeIdPtr = NULL  ) const

pure virtual

Return default directory for specified document type.

Parameters

suggestedDir	Template directory suggested by user or application.
documentTypeIdPtr	Optional pointer to ID of document type.

Returns

Resolved default directory path to use for file dialogs.

If suggestedDir is provided and valid, it may be used. Otherwise, the type-specific default directory is returned.

Implemented in idoc::CCompositeDocumentTemplateComp, idoc::CSingleDocumentTemplateBase, and idoc::CTmplBasedDocumentManagerBase.

GetDocumentFileTypeInfo()

virtual ifile::IFileTypeInfo * idoc::IDocumentTypesInfo::GetDocumentFileTypeInfo ( const QByteArray &  documentTypeId ) const

pure virtual

Get file type information object for some selected document type.

Parameters

documentTypeId

ID of document type as returned by GetDocumentTypeIds().

Returns

Pointer to file type info providing file extensions, filters, etc., or NULL if not available.

Implemented in idoc::CCompositeDocumentTemplateComp, idoc::CSingleDocumentTemplateBase, and idoc::CTmplBasedDocumentManagerBase.

GetDocumentTypeIds()

virtual Ids idoc::IDocumentTypesInfo::GetDocumentTypeIds ( ) const

pure virtual

Get list of supported document type IDs.

Returns

Vector of document type IDs supported by this template/manager.

Implemented in idoc::CCompositeDocumentTemplateComp, idoc::CSingleDocumentTemplateBase, and idoc::CTmplBasedDocumentManagerBase.

GetDocumentTypeIdsForFile()

virtual Ids idoc::IDocumentTypesInfo::GetDocumentTypeIdsForFile ( const QString &  filePath ) const

pure virtual

Get list of supported document IDs that can handle the specified file.

Parameters

filePath

Full path to file to check.

Returns

Vector of document type IDs that can open/handle this file.

This method determines which document types are compatible with a given file based on file extension, content analysis, or other criteria.

Implemented in idoc::CCompositeDocumentTemplateComp, idoc::CSingleDocumentTemplateBase, idoc::CTmplBasedDocumentManagerBase, and iqtdoc::CExtendedDocumentTemplateComp.

GetDocumentTypeName()

virtual QString idoc::IDocumentTypesInfo::GetDocumentTypeName ( const QByteArray &  documentTypeId ) const

pure virtual

Get human readable name of some document type ID.

Parameters

documentTypeId

ID of document type as returned by GetDocumentTypeIds().

Returns

Localized, user-friendly name of the document type (e.g., "Text Document", "Image File").

Implemented in idoc::CCompositeDocumentTemplateComp, idoc::CSingleDocumentTemplateBase, and idoc::CTmplBasedDocumentManagerBase.

IsFeatureSupported()

virtual bool idoc::IDocumentTypesInfo::IsFeatureSupported ( int  featureFlags, const QByteArray &  documentTypeId  ) const

pure virtual

Return true, if the feature(s) is supported by this document template.

Parameters

featureFlags	Bitwise OR of SupportedFeatures flags to check.
documentTypeId	ID of document type to check.

Returns

True if all specified features are supported for this document type.

Implemented in idoc::CCompositeDocumentTemplateComp, idoc::CSingleDocumentTemplateBase, and idoc::CTmplBasedDocumentManagerBase.

---

The documentation for this class was generated from the following file:

• Acf/Include/idoc/IDocumentTypesInfo.h
