Complex document template consists of more simple templates. More...

#include <CCompositeDocumentTemplateComp.h>

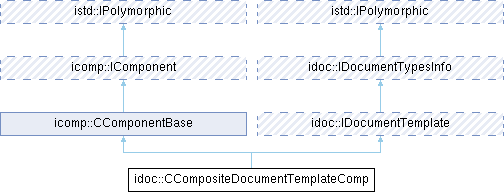

Inheritance diagram for idoc::CCompositeDocumentTemplateComp:

Public Types
typedef icomp::CComponentBase	BaseClass

Public Types inherited from idoc::IDocumentTemplate
typedef istd::TUniqueInterfacePtr< istd::IPolymorphic >	ViewUniquePtr
	Type definitions for view smart pointers.

typedef istd::TSharedInterfacePtr< istd::IPolymorphic >	ViewSharedPtr

Public Types inherited from idoc::IDocumentTypesInfo
enum	SupportedFeatures { SF_NEW_DOCUMENT = 0x0001 , SF_EDIT_DOCUMENT = 0x0010 , SF_DEFAULT = 0xffff }
	Enumeration for supported types of operations with documents. More...

typedef QVector< QByteArray >	Ids
	Type definition for document type ID collections.

Public Member Functions
virtual bool	IsFeatureSupported (int featureFlags, const QByteArray &documentTypeId) const override
	Return `true`, if the feature(s) is supported by this document template.

virtual Ids	GetDocumentTypeIds () const override
	Get list of supported document type IDs.

virtual QString	GetDocumentTypeName (const QByteArray &documentTypeId) const override
	Get human readable name of some document type ID.

virtual ifile::IFileTypeInfo *	GetDocumentFileTypeInfo (const QByteArray &documentTypeId) const override
	Get file type information object for some selected document type.

virtual Ids	GetDocumentTypeIdsForFile (const QString &filePath) const override
	Get list of supported document IDs that can handle the specified file.

virtual QString	GetDefaultDirectory (const QString &sugestedDir="", const QByteArray *documentTypeIdPtr=NULL) const override
	Return default directory for specified document type.

virtual Ids	GetViewTypeIds (const QByteArray &documentTypeId) const override
	Return supported view type IDs for specified document type.

virtual QString	GetViewTypeName (const QByteArray &documentTypeId, const QByteArray &viewTypeId) const override
	Get human readable name of some view type ID.

virtual ifile::IFilePersistence *	GetFileLoader (const QByteArray &documentTypeId) const override
	Get file loader/saver for specified document ID.

virtual istd::IChangeableUniquePtr	CreateDocument (QByteArray &documentTypeId, bool initialize=true, bool beQuiet=false, bool *ignoredFlagPtr=NULL) const override
	Creates a document instance for document type `documentTypeId`.

virtual ViewUniquePtr	CreateView (const QByteArray &documentTypeId, istd::IChangeable *documentPtr, const QByteArray &viewTypeId=QByteArray()) const override
	Creates a view instance for document `document` of type `viewTypeId`.

virtual idoc::IUndoManagerUniquePtr	CreateUndoManager (const QByteArray &documentTypeId, istd::IChangeable *documentPtr) const override
	Creates an undo manager for a given document `documentPtr`.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnComponentCreated () override

virtual void	OnComponentDestroyed () override

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Additional Inherited Members
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Complex document template consists of more simple templates.

Definition at line 17 of file CCompositeDocumentTemplateComp.h.

Member Typedef Documentation

◆ BaseClass

typedef icomp::CComponentBase idoc::CCompositeDocumentTemplateComp::BaseClass

Definition at line 22 of file CCompositeDocumentTemplateComp.h.

Member Function Documentation

◆ CreateDocument()

virtual istd::IChangeableUniquePtr idoc::CCompositeDocumentTemplateComp::CreateDocument	(	QByteArray &	documentTypeId,
		bool	initialize = `true`,
		bool	beQuiet = `false`,
		bool *	ignoredFlagPtr = `NULL`
	)		const

overridevirtual

Creates a document instance for document type documentTypeId.

Parameters

documentTypeId	ID of document type, can be empty for default document. If document type is undefined (empty), this field will be used to return ID of used type.
initialize	If true, document should be filled with initial data (operation new), otherwise initialization is not needed (e.g., for document loading - filling of data will be done by loader).
beQuiet	If true, no user interaction dialogs will be shown.
ignoredFlagPtr	Optional output flag indicating that the user canceled this operation.

Returns: Unique pointer to the created document, or nullptr if creation failed.

Example: QByteArray docType = "TextDocument";

istd::IChangeableUniquePtr doc = tmpl->CreateDocument(docType, true);

if (doc) {

// Document created successfully

}

istd::TUniqueInterfacePtr< istd::IChangeable >

Implements idoc::IDocumentTemplate.

◆ CreateUndoManager()

virtual idoc::IUndoManagerUniquePtr idoc::CCompositeDocumentTemplateComp::CreateUndoManager	(	const QByteArray &	documentTypeId,
		istd::IChangeable *	documentPtr
	)		const

overridevirtual

Creates an undo manager for a given document documentPtr.

Parameters

documentTypeId	ID of document type.
documentPtr	Pointer to document object that will use this undo manager.

Returns: Unique pointer to created instance of undo manager, or nullptr if creating of undo manager was impossible.

The undo manager tracks changes to the document and allows them to be undone/redone. Not all document types support undo functionality.

Implements idoc::IDocumentTemplate.

◆ CreateView()

virtual ViewUniquePtr idoc::CCompositeDocumentTemplateComp::CreateView	(	const QByteArray &	documentTypeId,
		istd::IChangeable *	documentPtr,
		const QByteArray &	viewTypeId = `QByteArray()`
	)		const

overridevirtual

Creates a view instance for document document of type viewTypeId.

Parameters

documentTypeId	ID of document type.
documentPtr	Pointer to document object that this view will display.
viewTypeId	Optional ID specifying view type if more view types are supported. If empty or not provided, the first/default view type for this document type is used. Use GetViewTypeIds() to discover available view types for a document type.

Returns: Unique pointer to the created view, or nullptr if creation failed.

The view is responsible for displaying the document's content to the user. Some document types support multiple view types (e.g., text view, hex view, preview).

Example: // Create default view

istd::IPolymorphic* view = tmpl->CreateView(docTypeId, doc.Get()).Release();

// Create specific view type

QByteArray viewType = "HexView";

istd::IPolymorphic* hexView = tmpl->CreateView(docTypeId, doc.Get(), viewType).Release();

istd::IPolymorphic
Base interface for all used interfaces and implementations.
Definition IPolymorphic.h:18

Implements idoc::IDocumentTemplate.

◆ GetDefaultDirectory()

virtual QString idoc::CCompositeDocumentTemplateComp::GetDefaultDirectory	(	const QString &	sugestedDir = `""`,
		const QByteArray *	documentTypeIdPtr = `NULL`
	)		const

overridevirtual

Return default directory for specified document type.

Parameters

suggestedDir	Template directory suggested by user or application.
documentTypeIdPtr	Optional pointer to ID of document type.

Returns: Resolved default directory path to use for file dialogs.

If suggestedDir is provided and valid, it may be used. Otherwise, the type-specific default directory is returned.

Implements idoc::IDocumentTypesInfo.

◆ GetDocumentFileTypeInfo()

virtual ifile::IFileTypeInfo * idoc::CCompositeDocumentTemplateComp::GetDocumentFileTypeInfo ( const QByteArray & documentTypeId ) const

overridevirtual

Get file type information object for some selected document type.

Parameters

documentTypeId ID of document type as returned by GetDocumentTypeIds().

Returns: Pointer to file type info providing file extensions, filters, etc., or NULL if not available.

Implements idoc::IDocumentTypesInfo.

◆ GetDocumentTypeIds()

virtual Ids idoc::CCompositeDocumentTemplateComp::GetDocumentTypeIds ( ) const

overridevirtual

Get list of supported document type IDs.

Returns: Vector of document type IDs supported by this template/manager.

Implements idoc::IDocumentTypesInfo.

◆ GetDocumentTypeIdsForFile()

virtual Ids idoc::CCompositeDocumentTemplateComp::GetDocumentTypeIdsForFile ( const QString & filePath ) const

overridevirtual

Get list of supported document IDs that can handle the specified file.

Parameters

filePath Full path to file to check.

Returns: Vector of document type IDs that can open/handle this file.

This method determines which document types are compatible with a given file based on file extension, content analysis, or other criteria.

Implements idoc::IDocumentTypesInfo.

◆ GetDocumentTypeName()

virtual QString idoc::CCompositeDocumentTemplateComp::GetDocumentTypeName ( const QByteArray & documentTypeId ) const

overridevirtual

Get human readable name of some document type ID.

Parameters

documentTypeId ID of document type as returned by GetDocumentTypeIds().

Returns: Localized, user-friendly name of the document type (e.g., "Text Document", "Image File").

Implements idoc::IDocumentTypesInfo.

◆ GetFileLoader()

virtual ifile::IFilePersistence * idoc::CCompositeDocumentTemplateComp::GetFileLoader ( const QByteArray & documentTypeId ) const

overridevirtual

Get file loader/saver for specified document ID.

Parameters

documentTypeId Type ID of document that will be loaded/saved.

Returns: Pointer to file persistence object that handles I/O operations, or NULL if not supported.

The file persistence object handles reading and writing documents to/from files.

Implements idoc::IDocumentTemplate.

◆ GetViewTypeIds()

virtual Ids idoc::CCompositeDocumentTemplateComp::GetViewTypeIds ( const QByteArray & documentTypeId ) const

overridevirtual

Return supported view type IDs for specified document type.

Parameters

documentTypeId ID of document type.

Returns: Vector of view type IDs that can display this document type.

A single document type may support multiple view types (e.g., text view, hex view, preview).

Implements idoc::IDocumentTemplate.

◆ GetViewTypeName()

virtual QString idoc::CCompositeDocumentTemplateComp::GetViewTypeName	(	const QByteArray &	documentTypeId,
		const QByteArray &	viewTypeId
	)		const

overridevirtual

Get human readable name of some view type ID.

Parameters

documentTypeId	ID of document type.
viewTypeId	ID of view type.

Returns: Localized human-readable name for the view type (e.g., "Text View", "Hex View").

Implements idoc::IDocumentTemplate.

◆ IsFeatureSupported()

virtual bool idoc::CCompositeDocumentTemplateComp::IsFeatureSupported	(	int	featureFlags,
		const QByteArray &	documentTypeId
	)		const

overridevirtual

Return true, if the feature(s) is supported by this document template.

Parameters

featureFlags	Bitwise OR of SupportedFeatures flags to check.
documentTypeId	ID of document type to check.

Returns: True if all specified features are supported for this document type.

Implements idoc::IDocumentTypesInfo.

◆ OnComponentCreated()

virtual void idoc::CCompositeDocumentTemplateComp::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

◆ OnComponentDestroyed()

virtual void idoc::CCompositeDocumentTemplateComp::OnComponentDestroyed ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

The documentation for this class was generated from the following file:

Acf/Include/idoc/CCompositeDocumentTemplateComp.h
