Extension of idoc::CSingleDocumentTemplateComp providing additional Qt-specified functionality. More...

#include <CExtendedDocumentTemplateComp.h>

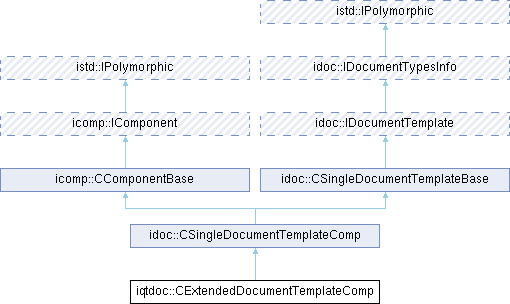

Inheritance diagram for iqtdoc::CExtendedDocumentTemplateComp:

Public Types
typedef idoc::CSingleDocumentTemplateComp	BaseClass

Public Types inherited from idoc::CSingleDocumentTemplateComp
typedef icomp::CComponentBase	BaseClass

typedef CSingleDocumentTemplateBase	BaseClass2

Public Types inherited from idoc::IDocumentTemplate
typedef istd::TUniqueInterfacePtr< istd::IPolymorphic >	ViewUniquePtr
	Type definitions for view smart pointers.

typedef istd::TSharedInterfacePtr< istd::IPolymorphic >	ViewSharedPtr

Public Types inherited from idoc::IDocumentTypesInfo
enum	SupportedFeatures { SF_NEW_DOCUMENT = 0x0001 , SF_EDIT_DOCUMENT = 0x0010 , SF_DEFAULT = 0xffff }
	Enumeration for supported types of operations with documents. More...

typedef QVector< QByteArray >	Ids
	Type definition for document type ID collections.

Public Member Functions
virtual Ids	GetDocumentTypeIdsForFile (const QString &filePath) const override
	Get list of supported document IDs that can handle the specified file.

Public Member Functions inherited from idoc::CSingleDocumentTemplateComp
virtual ifile::IFilePersistence *	GetFileLoader (const QByteArray &documentTypeId) const override
	Get file loader/saver for specified document ID.

virtual istd::IChangeableUniquePtr	CreateDocument (QByteArray &documentTypeId, bool initialize=true, bool beQuiet=false, bool *ignoredFlagPtr=NULL) const override
	Creates a document instance for document type `documentTypeId`.

virtual ViewUniquePtr	CreateView (const QByteArray &documentTypeId, istd::IChangeable *documentPtr, const QByteArray &viewTypeId=QByteArray()) const override
	Creates a view instance for document `document` of type `viewTypeId`.

virtual idoc::IUndoManagerUniquePtr	CreateUndoManager (const QByteArray &documentTypeId, istd::IChangeable *documentPtr) const override
	Creates an undo manager for a given document `documentPtr`.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from idoc::CSingleDocumentTemplateBase
	CSingleDocumentTemplateBase ()

const QByteArray &	GetDocumentTypeId () const

virtual void	SetSupportedFeatures (int featureFlags)

virtual void	SetDocumentTypeId (const QByteArray &id)

virtual void	SetDocumentTypeName (const QString &name)

virtual void	SetViewTypeId (const QByteArray &id)

virtual void	SetViewTypeName (const QString &name)

virtual void	SetDefaultDirectory (const QString &defaultDirectory)

virtual bool	IsFeatureSupported (int featureFlags, const QByteArray &documentTypeId) const override
	Return `true`, if the feature(s) is supported by this document template.

virtual Ids	GetDocumentTypeIds () const override
	Get list of supported document type IDs.

virtual QString	GetDocumentTypeName (const QByteArray &documentTypeId) const override
	Get human readable name of some document type ID.

virtual ifile::IFileTypeInfo *	GetDocumentFileTypeInfo (const QByteArray &documentTypeId) const override
	Get file type information object for some selected document type.

virtual QString	GetDefaultDirectory (const QString &sugestedDir="", const QByteArray *documentTypeIdPtr=NULL) const override
	Return default directory for specified document type.

virtual Ids	GetViewTypeIds (const QByteArray &documentTypeId) const override
	Return supported view type IDs for specified document type.

virtual QString	GetViewTypeName (const QByteArray &documentTypeId, const QByteArray &viewTypeId) const override
	Get human readable name of some view type ID.

Protected Member Functions
virtual idoc::IDocumentTemplate::ViewUniquePtr	ExtractViewInterface (icomp::IComponentUniquePtr &componentPtr) const override
	Extract pointer of view interface from factorisied view component.

Protected Member Functions inherited from idoc::CSingleDocumentTemplateComp
virtual void	OnComponentCreated () override

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Protected Member Functions inherited from idoc::CSingleDocumentTemplateBase
bool	IsDocumentTypeSupported (const QByteArray &documentTypeId) const

bool	IsViewTypeSupported (const QByteArray &viewTypeId) const

Additional Inherited Members
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Extension of idoc::CSingleDocumentTemplateComp providing additional Qt-specified functionality.

Definition at line 17 of file CExtendedDocumentTemplateComp.h.

Member Typedef Documentation

◆ BaseClass

typedef idoc::CSingleDocumentTemplateComp iqtdoc::CExtendedDocumentTemplateComp::BaseClass

Definition at line 20 of file CExtendedDocumentTemplateComp.h.

Member Function Documentation

◆ ExtractViewInterface()

virtual idoc::IDocumentTemplate::ViewUniquePtr iqtdoc::CExtendedDocumentTemplateComp::ExtractViewInterface ( icomp::IComponentUniquePtr & componentPtr ) const

overrideprotectedvirtual

Extract pointer of view interface from factorisied view component.

This functionality is provided to allow derrived classes to extract implementation-specific GUI interfaces from created composited instances. Default is instance of interface imod::IObserver extracted, but for composite components it can be inaccurate for some cases.

Reimplemented from idoc::CSingleDocumentTemplateComp.

◆ GetDocumentTypeIdsForFile()

virtual Ids iqtdoc::CExtendedDocumentTemplateComp::GetDocumentTypeIdsForFile ( const QString & filePath ) const

overridevirtual

Get list of supported document IDs that can handle the specified file.

Parameters

filePath Full path to file to check.

Returns: Vector of document type IDs that can open/handle this file.

This method determines which document types are compatible with a given file based on file extension, content analysis, or other criteria.

Reimplemented from idoc::CSingleDocumentTemplateBase.

The documentation for this class was generated from the following file:

Acf/Include/iqtdoc/CExtendedDocumentTemplateComp.h
