Common interface for a document template. More...

#include <IDocumentTemplate.h>

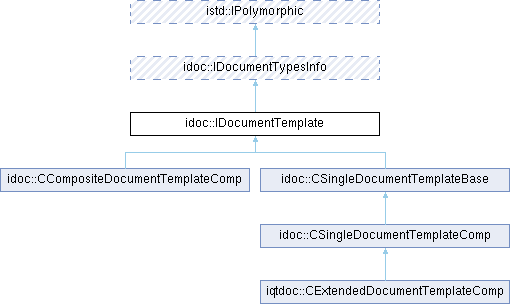

Inheritance diagram for idoc::IDocumentTemplate:

Public Types
typedef istd::TUniqueInterfacePtr< istd::IPolymorphic >	ViewUniquePtr
	Type definitions for view smart pointers.

typedef istd::TSharedInterfacePtr< istd::IPolymorphic >	ViewSharedPtr

Public Types inherited from idoc::IDocumentTypesInfo
enum	SupportedFeatures { SF_NEW_DOCUMENT = 0x0001 , SF_EDIT_DOCUMENT = 0x0010 , SF_DEFAULT = 0xffff }
	Enumeration for supported types of operations with documents. More...

typedef QVector< QByteArray >	Ids
	Type definition for document type ID collections.

Public Member Functions
virtual Ids	GetViewTypeIds (const QByteArray &documentTypeId) const =0
	Return supported view type IDs for specified document type.

virtual QString	GetViewTypeName (const QByteArray &documentTypeId, const QByteArray &viewTypeId) const =0
	Get human readable name of some view type ID.

virtual ifile::IFilePersistence *	GetFileLoader (const QByteArray &documentTypeId) const =0
	Get file loader/saver for specified document ID.

virtual istd::IChangeableUniquePtr	CreateDocument (QByteArray &documentTypeId, bool initialize=true, bool beQuiet=false, bool *ignoredFlagPtr=NULL) const =0
	Creates a document instance for document type `documentTypeId`.

virtual ViewUniquePtr	CreateView (const QByteArray &documentTypeId, istd::IChangeable *documentPtr, const QByteArray &viewTypeId=QByteArray()) const =0
	Creates a view instance for document `document` of type `viewTypeId`.

virtual idoc::IUndoManagerUniquePtr	CreateUndoManager (const QByteArray &documentTypeId, istd::IChangeable *documentPtr) const =0
	Creates an undo manager for a given document `documentPtr`.

Public Member Functions inherited from idoc::IDocumentTypesInfo
virtual bool	IsFeatureSupported (int featureFlags, const QByteArray &documentTypeId) const =0
	Return `true`, if the feature(s) is supported by this document template.

virtual Ids	GetDocumentTypeIds () const =0
	Get list of supported document type IDs.

virtual QString	GetDocumentTypeName (const QByteArray &documentTypeId) const =0
	Get human readable name of some document type ID.

virtual ifile::IFileTypeInfo *	GetDocumentFileTypeInfo (const QByteArray &documentTypeId) const =0
	Get file type information object for some selected document type.

virtual Ids	GetDocumentTypeIdsForFile (const QString &filePath) const =0
	Get list of supported document IDs that can handle the specified file.

virtual QString	GetDefaultDirectory (const QString &sugestedDir="", const QByteArray *documentTypeIdPtr=NULL) const =0
	Return default directory for specified document type.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Common interface for a document template.

Document template provides all necessary functionality for creating and controlling the data model of a document, its persistence, and its representation (view). A template acts as a factory for documents and views, and defines the relationship between document types, their file formats, and their visual representations.

The template is responsible for:

Creating document instances of specific types
Creating view instances to display documents
Providing file persistence (loading/saving)
Creating undo managers for documents
Managing document type metadata

Templates can be single-type (supporting one document type) or composite (supporting multiple document types).

Usage Example: // Get a document template

idoc::IDocumentTemplate* tmpl = GetDocumentTemplate();

// Get available document types

idoc::IDocumentTemplate::Ids docTypes = tmpl->GetDocumentTypeIds();

for (const QByteArray& typeId : docTypes) {

QString typeName = tmpl->GetDocumentTypeName(typeId);

qDebug() << "Available type:" << typeName << "(" << typeId << ")";

}

// Create a new document

QByteArray docTypeId = "TextDocument";

istd::IChangeableUniquePtr docPtr = tmpl->CreateDocument(docTypeId, true);

// Create a view for the document

istd::IPolymorphic* view = tmpl->CreateView(docTypeId, docPtr.Get()).Release();

// Get file loader for persistence

ifile::IFilePersistence* loader = tmpl->GetFileLoader(docTypeId);

if (loader) {

// Use loader to save/load the document

loader->SaveToFile(docPtr.Get(), "/path/to/file.txt");

}

idoc::IDocumentTemplate
Common interface for a document template.
Definition IDocumentTemplate.h:70

idoc::IDocumentTemplate::CreateView
virtual ViewUniquePtr CreateView(const QByteArray &documentTypeId, istd::IChangeable *documentPtr, const QByteArray &viewTypeId=QByteArray()) const =0
Creates a view instance for document document of type viewTypeId.

idoc::IDocumentTemplate::CreateDocument
virtual istd::IChangeableUniquePtr CreateDocument(QByteArray &documentTypeId, bool initialize=true, bool beQuiet=false, bool *ignoredFlagPtr=NULL) const =0
Creates a document instance for document type documentTypeId.

idoc::IDocumentTemplate::GetFileLoader
virtual ifile::IFilePersistence * GetFileLoader(const QByteArray &documentTypeId) const =0
Get file loader/saver for specified document ID.

idoc::IDocumentTypesInfo::GetDocumentTypeIds
virtual Ids GetDocumentTypeIds() const =0
Get list of supported document type IDs.

idoc::IDocumentTypesInfo::GetDocumentTypeName
virtual QString GetDocumentTypeName(const QByteArray &documentTypeId) const =0
Get human readable name of some document type ID.

idoc::IDocumentTypesInfo::Ids
QVector< QByteArray > Ids
Type definition for document type ID collections.
Definition IDocumentTypesInfo.h:74

ifile::IFilePersistence
Interface providing loading and saving of data objects.
Definition IFilePersistence.h:29

ifile::IFilePersistence::SaveToFile
virtual OperationState SaveToFile(const istd::IChangeable &data, const QString &filePath=QString(), ibase::IProgressManager *progressManagerPtr=NULL) const =0
This function saves data data to file filePath.

istd::IPolymorphic
Base interface for all used interfaces and implementations.
Definition IPolymorphic.h:18

istd::TUniqueInterfacePtr< istd::IChangeable >

See also: IDocumentManager, CSingleDocumentTemplateComp, CCompositeDocumentTemplateComp

Definition at line 69 of file IDocumentTemplate.h.

Member Typedef Documentation

◆ ViewSharedPtr

typedef istd::TSharedInterfacePtr<istd::IPolymorphic> idoc::IDocumentTemplate::ViewSharedPtr

Definition at line 76 of file IDocumentTemplate.h.

◆ ViewUniquePtr

typedef istd::TUniqueInterfacePtr<istd::IPolymorphic> idoc::IDocumentTemplate::ViewUniquePtr

Type definitions for view smart pointers.

Definition at line 75 of file IDocumentTemplate.h.

Member Function Documentation

◆ CreateDocument()

virtual istd::IChangeableUniquePtr idoc::IDocumentTemplate::CreateDocument	(	QByteArray &	documentTypeId,
		bool	initialize = `true`,
		bool	beQuiet = `false`,
		bool *	ignoredFlagPtr = `NULL`
	)		const

pure virtual

Creates a document instance for document type documentTypeId.

Parameters

documentTypeId	ID of document type, can be empty for default document. If document type is undefined (empty), this field will be used to return ID of used type.
initialize	If true, document should be filled with initial data (operation new), otherwise initialization is not needed (e.g., for document loading - filling of data will be done by loader).
beQuiet	If true, no user interaction dialogs will be shown.
ignoredFlagPtr	Optional output flag indicating that the user canceled this operation.

Returns: Unique pointer to the created document, or nullptr if creation failed.

Example: QByteArray docType = "TextDocument";

istd::IChangeableUniquePtr doc = tmpl->CreateDocument(docType, true);

if (doc) {

// Document created successfully

}

Implemented in idoc::CCompositeDocumentTemplateComp, and idoc::CSingleDocumentTemplateComp.

◆ CreateUndoManager()

virtual idoc::IUndoManagerUniquePtr idoc::IDocumentTemplate::CreateUndoManager	(	const QByteArray &	documentTypeId,
		istd::IChangeable *	documentPtr
	)		const

pure virtual

Creates an undo manager for a given document documentPtr.

Parameters

documentTypeId	ID of document type.
documentPtr	Pointer to document object that will use this undo manager.

Returns: Unique pointer to created instance of undo manager, or nullptr if creating of undo manager was impossible.

The undo manager tracks changes to the document and allows them to be undone/redone. Not all document types support undo functionality.

Implemented in idoc::CCompositeDocumentTemplateComp, and idoc::CSingleDocumentTemplateComp.

◆ CreateView()

virtual ViewUniquePtr idoc::IDocumentTemplate::CreateView	(	const QByteArray &	documentTypeId,
		istd::IChangeable *	documentPtr,
		const QByteArray &	viewTypeId = `QByteArray()`
	)		const

pure virtual

Creates a view instance for document document of type viewTypeId.

Parameters

documentTypeId	ID of document type.
documentPtr	Pointer to document object that this view will display.
viewTypeId	Optional ID specifying view type if more view types are supported. If empty or not provided, the first/default view type for this document type is used. Use GetViewTypeIds() to discover available view types for a document type.

Returns: Unique pointer to the created view, or nullptr if creation failed.

The view is responsible for displaying the document's content to the user. Some document types support multiple view types (e.g., text view, hex view, preview).

Example: // Create default view

istd::IPolymorphic* view = tmpl->CreateView(docTypeId, doc.Get()).Release();

// Create specific view type

QByteArray viewType = "HexView";

istd::IPolymorphic* hexView = tmpl->CreateView(docTypeId, doc.Get(), viewType).Release();

Implemented in idoc::CCompositeDocumentTemplateComp, and idoc::CSingleDocumentTemplateComp.

◆ GetFileLoader()

virtual ifile::IFilePersistence * idoc::IDocumentTemplate::GetFileLoader ( const QByteArray & documentTypeId ) const

pure virtual

Get file loader/saver for specified document ID.

Parameters

documentTypeId Type ID of document that will be loaded/saved.

Returns: Pointer to file persistence object that handles I/O operations, or NULL if not supported.

The file persistence object handles reading and writing documents to/from files.

Implemented in idoc::CCompositeDocumentTemplateComp, and idoc::CSingleDocumentTemplateComp.

◆ GetViewTypeIds()

virtual Ids idoc::IDocumentTemplate::GetViewTypeIds ( const QByteArray & documentTypeId ) const

pure virtual

Return supported view type IDs for specified document type.

Parameters

documentTypeId ID of document type.

Returns: Vector of view type IDs that can display this document type.

A single document type may support multiple view types (e.g., text view, hex view, preview).

Implemented in idoc::CCompositeDocumentTemplateComp, and idoc::CSingleDocumentTemplateBase.

◆ GetViewTypeName()

virtual QString idoc::IDocumentTemplate::GetViewTypeName	(	const QByteArray &	documentTypeId,
		const QByteArray &	viewTypeId
	)		const

pure virtual

Get human readable name of some view type ID.

Parameters

documentTypeId	ID of document type.
viewTypeId	ID of view type.

Returns: Localized human-readable name for the view type (e.g., "Text View", "Hex View").

Implemented in idoc::CCompositeDocumentTemplateComp, and idoc::CSingleDocumentTemplateBase.

The documentation for this class was generated from the following file:

Acf/Include/idoc/IDocumentTemplate.h
