Document template component supporting only one type of the provided document. More...

#include <CSingleDocumentTemplateComp.h>

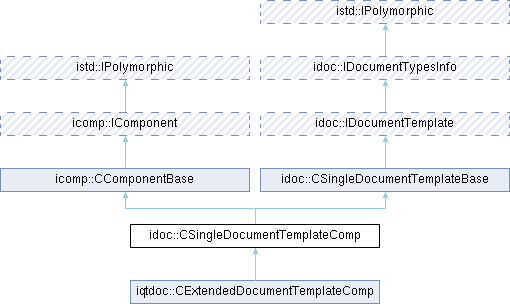

Inheritance diagram for idoc::CSingleDocumentTemplateComp:

Public Types
typedef icomp::CComponentBase	BaseClass

typedef CSingleDocumentTemplateBase	BaseClass2

Public Types inherited from idoc::IDocumentTemplate
typedef istd::TUniqueInterfacePtr< istd::IPolymorphic >	ViewUniquePtr
	Type definitions for view smart pointers.

typedef istd::TSharedInterfacePtr< istd::IPolymorphic >	ViewSharedPtr

Public Types inherited from idoc::IDocumentTypesInfo
enum	SupportedFeatures { SF_NEW_DOCUMENT = 0x0001 , SF_EDIT_DOCUMENT = 0x0010 , SF_DEFAULT = 0xffff }
	Enumeration for supported types of operations with documents. More...

typedef QVector< QByteArray >	Ids
	Type definition for document type ID collections.

Public Member Functions
virtual ifile::IFilePersistence *	GetFileLoader (const QByteArray &documentTypeId) const override
	Get file loader/saver for specified document ID.

virtual istd::IChangeableUniquePtr	CreateDocument (QByteArray &documentTypeId, bool initialize=true, bool beQuiet=false, bool *ignoredFlagPtr=NULL) const override
	Creates a document instance for document type `documentTypeId`.

virtual ViewUniquePtr	CreateView (const QByteArray &documentTypeId, istd::IChangeable *documentPtr, const QByteArray &viewTypeId=QByteArray()) const override
	Creates a view instance for document `document` of type `viewTypeId`.

virtual idoc::IUndoManagerUniquePtr	CreateUndoManager (const QByteArray &documentTypeId, istd::IChangeable *documentPtr) const override
	Creates an undo manager for a given document `documentPtr`.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from idoc::CSingleDocumentTemplateBase
	CSingleDocumentTemplateBase ()

const QByteArray &	GetDocumentTypeId () const

virtual void	SetSupportedFeatures (int featureFlags)

virtual void	SetDocumentTypeId (const QByteArray &id)

virtual void	SetDocumentTypeName (const QString &name)

virtual void	SetViewTypeId (const QByteArray &id)

virtual void	SetViewTypeName (const QString &name)

virtual void	SetDefaultDirectory (const QString &defaultDirectory)

virtual bool	IsFeatureSupported (int featureFlags, const QByteArray &documentTypeId) const override
	Return `true`, if the feature(s) is supported by this document template.

virtual Ids	GetDocumentTypeIds () const override
	Get list of supported document type IDs.

virtual QString	GetDocumentTypeName (const QByteArray &documentTypeId) const override
	Get human readable name of some document type ID.

virtual ifile::IFileTypeInfo *	GetDocumentFileTypeInfo (const QByteArray &documentTypeId) const override
	Get file type information object for some selected document type.

virtual Ids	GetDocumentTypeIdsForFile (const QString &filePath) const override
	Get list of supported document IDs that can handle the specified file.

virtual QString	GetDefaultDirectory (const QString &sugestedDir="", const QByteArray *documentTypeIdPtr=NULL) const override
	Return default directory for specified document type.

virtual Ids	GetViewTypeIds (const QByteArray &documentTypeId) const override
	Return supported view type IDs for specified document type.

virtual QString	GetViewTypeName (const QByteArray &documentTypeId, const QByteArray &viewTypeId) const override
	Get human readable name of some view type ID.

Protected Member Functions
virtual ViewUniquePtr	ExtractViewInterface (icomp::IComponentUniquePtr &componentPtr) const
	Extract pointer of view interface from factorisied view component.

virtual void	OnComponentCreated () override

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Protected Member Functions inherited from idoc::CSingleDocumentTemplateBase
bool	IsDocumentTypeSupported (const QByteArray &documentTypeId) const

bool	IsViewTypeSupported (const QByteArray &viewTypeId) const

Additional Inherited Members
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Document template component supporting only one type of the provided document.

This is the standard template implementation for applications that work with a single document type. It integrates a document factory, view factory, file loader, and optional undo manager into a cohesive template.

Component Attributes

DocumentTypeId - Unique identifier for this document type (default: "Default")
DocumentTypeName - Human-readable name shown in UI
DefaultDirectory - Default directory for file operations (default: ".")
IsNewSupported - Whether "File > New" is supported (default: false)
IsEditSupported - Whether document is editable (default: false)

Component References

DocumentFactory - Factory for creating document instances (required)
ViewFactory - Factory for creating view instances (required)
DocumentLoader - Component handling file I/O (required)
UndoManager - Optional undo manager factory

Configuration Example: CSingleDocumentTemplateComp {

DocumentTypeId = "TextDocument"

DocumentTypeName = "Text Document"

DefaultDirectory = "~/Documents"

IsNewSupported = true

IsEditSupported = true

DocumentFactory = CTextDocumentComp {

DefaultText = "Type here..."

}

ViewFactory = CTextEditorGuiComp

DocumentLoader = CTextFileLoaderComp {

FileExtensions = ["txt", "text"]

TypeDescriptions = ["Text File", "Plain Text"]

}

UndoManager = CSerializedUndoManagerComp {

MaxBufferSize = 50

}

}

idoc::CSingleDocumentTemplateComp
Document template component supporting only one type of the provided document.
Definition CSingleDocumentTemplateComp.h:91

idoc::CTextDocumentComp
Simple implementation of a text document model.
Definition CTextDocumentComp.h:54

idoc::CTextFileLoaderComp
Persistence component for files containing plain text.
Definition CTextFileLoaderComp.h:63

Usage in Single Document Application: // Define in application configuration

CSingleDocumentManagerBase {

Template = MyDocumentTemplate

}

MyDocumentTemplate = CSingleDocumentTemplateComp {

DocumentTypeId = "MyDoc"

DocumentTypeName = "My Document"

IsNewSupported = true

IsEditSupported = true

DocumentFactory = MyDocumentComp

ViewFactory = MyViewComp

DocumentLoader = MyLoaderComp

}

idoc::CSingleDocumentManagerBase
Basic implementation of a template-based single document manager.
Definition CSingleDocumentManagerBase.h:27

The template handles:

Creating new document instances
Creating views for documents
Providing file persistence operations
Creating undo managers
Reporting document type capabilities

See also: IDocumentTemplate, CSingleDocumentManagerBase, CCompositeDocumentTemplateComp

Definition at line 90 of file CSingleDocumentTemplateComp.h.

Member Typedef Documentation

◆ BaseClass

typedef icomp::CComponentBase idoc::CSingleDocumentTemplateComp::BaseClass

Definition at line 93 of file CSingleDocumentTemplateComp.h.

◆ BaseClass2

typedef CSingleDocumentTemplateBase idoc::CSingleDocumentTemplateComp::BaseClass2

Definition at line 94 of file CSingleDocumentTemplateComp.h.

Member Function Documentation

◆ CreateDocument()

virtual istd::IChangeableUniquePtr idoc::CSingleDocumentTemplateComp::CreateDocument	(	QByteArray &	documentTypeId,
		bool	initialize = `true`,
		bool	beQuiet = `false`,
		bool *	ignoredFlagPtr = `NULL`
	)		const

overridevirtual

Creates a document instance for document type documentTypeId.

Parameters

documentTypeId	ID of document type, can be empty for default document. If document type is undefined (empty), this field will be used to return ID of used type.
initialize	If true, document should be filled with initial data (operation new), otherwise initialization is not needed (e.g., for document loading - filling of data will be done by loader).
beQuiet	If true, no user interaction dialogs will be shown.
ignoredFlagPtr	Optional output flag indicating that the user canceled this operation.

Returns: Unique pointer to the created document, or nullptr if creation failed.

Example: QByteArray docType = "TextDocument";

istd::IChangeableUniquePtr doc = tmpl->CreateDocument(docType, true);

if (doc) {

// Document created successfully

}

istd::TUniqueInterfacePtr< istd::IChangeable >

Implements idoc::IDocumentTemplate.

◆ CreateUndoManager()

virtual idoc::IUndoManagerUniquePtr idoc::CSingleDocumentTemplateComp::CreateUndoManager	(	const QByteArray &	documentTypeId,
		istd::IChangeable *	documentPtr
	)		const

overridevirtual

Creates an undo manager for a given document documentPtr.

Parameters

documentTypeId	ID of document type.
documentPtr	Pointer to document object that will use this undo manager.

Returns: Unique pointer to created instance of undo manager, or nullptr if creating of undo manager was impossible.

The undo manager tracks changes to the document and allows them to be undone/redone. Not all document types support undo functionality.

Implements idoc::IDocumentTemplate.

◆ CreateView()

virtual ViewUniquePtr idoc::CSingleDocumentTemplateComp::CreateView	(	const QByteArray &	documentTypeId,
		istd::IChangeable *	documentPtr,
		const QByteArray &	viewTypeId = `QByteArray()`
	)		const

overridevirtual

Creates a view instance for document document of type viewTypeId.

Parameters

documentTypeId	ID of document type.
documentPtr	Pointer to document object that this view will display.
viewTypeId	Optional ID specifying view type if more view types are supported. If empty or not provided, the first/default view type for this document type is used. Use GetViewTypeIds() to discover available view types for a document type.

Returns: Unique pointer to the created view, or nullptr if creation failed.

The view is responsible for displaying the document's content to the user. Some document types support multiple view types (e.g., text view, hex view, preview).

Example: // Create default view

istd::IPolymorphic* view = tmpl->CreateView(docTypeId, doc.Get()).Release();

// Create specific view type

QByteArray viewType = "HexView";

istd::IPolymorphic* hexView = tmpl->CreateView(docTypeId, doc.Get(), viewType).Release();

istd::IPolymorphic
Base interface for all used interfaces and implementations.
Definition IPolymorphic.h:18

Implements idoc::IDocumentTemplate.

◆ ExtractViewInterface()

virtual ViewUniquePtr idoc::CSingleDocumentTemplateComp::ExtractViewInterface ( icomp::IComponentUniquePtr & componentPtr ) const

protectedvirtual

Extract pointer of view interface from factorisied view component.

This functionality is provided to allow derrived classes to extract implementation-specific GUI interfaces from created composited instances. Default is instance of interface imod::IObserver extracted, but for composite components it can be inaccurate for some cases.

Reimplemented in iqtdoc::CExtendedDocumentTemplateComp.

◆ GetFileLoader()

virtual ifile::IFilePersistence * idoc::CSingleDocumentTemplateComp::GetFileLoader ( const QByteArray & documentTypeId ) const

overridevirtual

Get file loader/saver for specified document ID.

Parameters

documentTypeId Type ID of document that will be loaded/saved.

Returns: Pointer to file persistence object that handles I/O operations, or NULL if not supported.

The file persistence object handles reading and writing documents to/from files.

Implements idoc::IDocumentTemplate.

◆ OnComponentCreated()

virtual void idoc::CSingleDocumentTemplateComp::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

The documentation for this class was generated from the following file:

Acf/Include/idoc/CSingleDocumentTemplateComp.h
