Persistence component for files containing plain text. More...

#include <CTextFileLoaderComp.h>

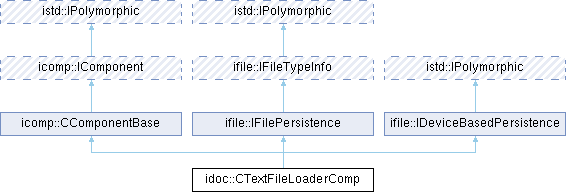

Inheritance diagram for idoc::CTextFileLoaderComp:

Public Types
typedef icomp::CComponentBase	BaseClass

Public Types inherited from ifile::IFilePersistence
enum	OperationState { OS_OK , OS_CANCELED , OS_FAILED }
	Result of operation. More...

enum	ErrorType { ET_NO_WRITE_PERMISSIONS , ET_NO_READ_PERMISSIONS , ET_FILE_NOT_EXIST }
	Possible file I/O errors. More...

enum	MessageId { MI_BAD_OBJECT_TYPE = 0xabf0 , MI_CANNOT_LOAD , MI_CANNOT_SAVE , MI_BAD_EXTENSION , MI_FILE_NOT_EXIST , MI_UNSUPPORTED_VERSION }
	List of possible message IDs used in context of this interface. More...

Public Types inherited from ifile::IFileTypeInfo
enum	QueryFlags { QF_LOAD = 1 << 0 , QF_SAVE = 1 << 1 , QF_FILE = 1 << 2 , QF_DIRECTORY = 1 << 3 , QF_ANONYMOUS = 1 << 4 }
	Describe detailed options of query. More...

Public Types inherited from ifile::IDeviceBasedPersistence
enum	OperationState { Successful , Canceled , Failed }
	Result of device-related operation. More...

enum	DeviceOperation { ReadOperation = 1 , WriteOperation = 2 }

enum	ErrorType { NoWritePermissions , NoReadPermissions , NoDeviceAccess , ReadOperationFailed , WriteOperationFailed , UnsupportedArchiveVersion }
	Possible operation errors. More...

Public Member Functions
virtual bool	IsOperationSupported (const istd::IChangeable dataObjectPtr, const QString filePathPtr=NULL, int flags=-1, bool beQuiet=true) const override
	Returns `true` if object `dataObject` can be loaded/saved.

virtual ifile::IFilePersistence::OperationState	LoadFromFile (istd::IChangeable &data, const QString &filePath=QString(), ibase::IProgressManager *progressManagerPtr=NULL) const override
	This function loads data `data` from file `filePath`.

virtual ifile::IFilePersistence::OperationState	SaveToFile (const istd::IChangeable &data, const QString &filePath=QString(), ibase::IProgressManager *progressManagerPtr=NULL) const override
	This function saves data `data` to file `filePath`.

virtual bool	IsDeviceOperationSupported (const istd::IChangeable &dataObject, const QIODevice &device, int deviceOperation) const override
	Returns `true` if object `dataObject` can be processed via defined I/O-device.

virtual ifile::IDeviceBasedPersistence::OperationState	ReadFromDevice (istd::IChangeable &data, QIODevice &device, ibase::IProgressManager *progressManagerPtr=nullptr) const override
	This function loads data `data` from the given I/O-device `device`.

virtual ifile::IDeviceBasedPersistence::OperationState	WriteToDevice (const istd::IChangeable &data, QIODevice &device, ibase::IProgressManager *progressManagerPtr=nullptr) const override
	This function writes data `data` to the given I/O-device `device`.

virtual bool	GetFileExtensions (QStringList &result, const istd::IChangeable *dataObjectPtr=NULL, int flags=-1, bool doAppend=false) const override
	Get file extensions supported by this loader.

virtual QString	GetTypeDescription (const QString *extensionPtr=NULL) const override
	Get description of object type associated with single extension.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentCreated ()

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Persistence component for files containing plain text.

This component handles loading and saving of plain text files. It implements the IFilePersistence interface to integrate with the ACF file I/O framework and IFileTypeInfo to provide file type metadata.

The loader supports multiple file extensions and can provide different type descriptions for each extension.

Component Attributes

FileExtensions - List of supported file extensions (default: "txt")
TypeDescriptions - List of human-readable descriptions for each extension (default: "Text file")

Registered Interfaces

ifile::IFileTypeInfo - Provides file type metadata
ifile::IFilePersistence - Handles file loading/saving operations

Configuration Example: CTextFileLoaderComp {

FileExtensions = ["txt", "log", "md"]

TypeDescriptions = ["Text file", "Log file", "Markdown file"]

}

idoc::CTextFileLoaderComp
Persistence component for files containing plain text.
Definition CTextFileLoaderComp.h:63

Usage with Document Template: CSingleDocumentTemplateComp {

DocumentTypeId = "TextDocument"

DocumentFactory = CTextDocumentComp

DocumentLoader = CTextFileLoaderComp {

FileExtensions = ["txt", "text"]

TypeDescriptions = ["Text Document", "Plain Text"]

}

}

idoc::CSingleDocumentTemplateComp
Document template component supporting only one type of the provided document.
Definition CSingleDocumentTemplateComp.h:91

idoc::CTextDocumentComp
Simple implementation of a text document model.
Definition CTextDocumentComp.h:54

The component automatically handles:

Reading text files with various encodings
Writing text files
File type validation
File dialog filters

See also: CTextDocumentComp, ITextDocument

Definition at line 62 of file CTextFileLoaderComp.h.

Member Typedef Documentation

◆ BaseClass

typedef icomp::CComponentBase idoc::CTextFileLoaderComp::BaseClass

Definition at line 65 of file CTextFileLoaderComp.h.

Member Function Documentation

◆ GetFileExtensions()

virtual bool idoc::CTextFileLoaderComp::GetFileExtensions	(	QStringList &	result,
		const istd::IChangeable *	dataObjectPtr = `NULL`,
		int	flags = `-1`,
		bool	doAppend = `false`
	)		const

overridevirtual

Get file extensions supported by this loader.

Parameters

result	list of extensions, e.g. {"txt", "doc"}.
dataObjectPtr	optional pointer to data object for which all possible extensions are requested. It can be NULL if any object is meant.
flags	set of flags

See also: QueryFlags.

Parameters

doAppend if true, list of extensions should be appended to existing list.

Implements ifile::IFileTypeInfo.

◆ GetTypeDescription()

virtual QString idoc::CTextFileLoaderComp::GetTypeDescription ( const QString * extensionPtr = NULL ) const

overridevirtual

Get description of object type associated with single extension.

Implements ifile::IFileTypeInfo.

◆ IsDeviceOperationSupported()

virtual bool idoc::CTextFileLoaderComp::IsDeviceOperationSupported	(	const istd::IChangeable &	dataObject,
		const QIODevice &	device,
		int	deviceOperation
	)		const

overridevirtual

Returns true if object dataObject can be processed via defined I/O-device.

Parameters

dataObject data object should be red/written.

Implements ifile::IDeviceBasedPersistence.

◆ IsOperationSupported()

virtual bool idoc::CTextFileLoaderComp::IsOperationSupported	(	const istd::IChangeable *	dataObjectPtr,
		const QString *	filePathPtr = `NULL`,
		int	flags = `-1`,
		bool	beQuiet = `true`
	)		const

overridevirtual

Returns true if object dataObject can be loaded/saved.

Parameters

dataObjectPtr	optional pointer to data object should be loaded/stored. It can be NULL if any object is meant.
filePathPtr	optional pointer to file should be loaded/stored. It can be NULL if any file is meant. If it points at empty string, anonymous loading is mean.
flags	combination of flags defined in `QueryFlags` and `ifile::IFileTypeInfo::QueryFlags`.
beQuiet	if true, no user message output is allowed.

Implements ifile::IFilePersistence.

◆ LoadFromFile()

virtual ifile::IFilePersistence::OperationState idoc::CTextFileLoaderComp::LoadFromFile	(	istd::IChangeable &	data,
		const QString &	filePath = `QString()`,
		ibase::IProgressManager *	progressManagerPtr = `NULL`
	)		const

overridevirtual

This function loads data data from file filePath.

Returns: File loading state.

See also: OperationState

Implements ifile::IFilePersistence.

◆ ReadFromDevice()

virtual ifile::IDeviceBasedPersistence::OperationState idoc::CTextFileLoaderComp::ReadFromDevice	(	istd::IChangeable &	data,
		QIODevice &	device,
		ibase::IProgressManager *	progressManagerPtr = `nullptr`
	)		const

overridevirtual

This function loads data data from the given I/O-device device.

Returns: State of the reading operation.

See also: OperationState

Implements ifile::IDeviceBasedPersistence.

◆ SaveToFile()

virtual ifile::IFilePersistence::OperationState idoc::CTextFileLoaderComp::SaveToFile	(	const istd::IChangeable &	data,
		const QString &	filePath = `QString()`,
		ibase::IProgressManager *	progressManagerPtr = `NULL`
	)		const

overridevirtual

This function saves data data to file filePath.

Returns: File saving state.

See also: OperationState

Implements ifile::IFilePersistence.

◆ WriteToDevice()

virtual ifile::IDeviceBasedPersistence::OperationState idoc::CTextFileLoaderComp::WriteToDevice	(	const istd::IChangeable &	data,
		QIODevice &	device,
		ibase::IProgressManager *	progressManagerPtr = `nullptr`
	)		const

overridevirtual

This function writes data data to the given I/O-device device.

Returns: State of the writing operation.

See also: OperationState

Implements ifile::IDeviceBasedPersistence.

The documentation for this class was generated from the following file:

Acf/Include/idoc/CTextFileLoaderComp.h
