This is an archive implementation which provides bitwise write of data. More...

#include <CBitMemoryWriteArchive.h>

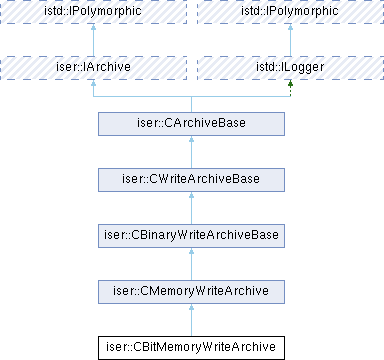

Inheritance diagram for iser::CBitMemoryWriteArchive:

Public Types
typedef CMemoryWriteArchive	BaseClass

Public Types inherited from iser::CMemoryWriteArchive
typedef CBinaryWriteArchiveBase	BaseClass

Public Types inherited from iser::CBinaryWriteArchiveBase
typedef CWriteArchiveBase	BaseClass

Public Types inherited from iser::IArchive
enum	MessageId { MI_TAG_ERROR = 0x3f320a0 , MI_TAG_SKIPPED }

Public Member Functions
	CBitMemoryWriteArchive (const IVersionInfo *versionInfoPtr=NULL, bool serializeHeader=true, int initialBufferSize=-1)

void	WriteValue (quint32 inputValue, int bits)
	Pushes a value of the `word` bounding by N `bits` into the stream.

virtual bool	ProcessData (void *data, int size) override
	Process binary data block.

virtual bool	ProcessBits (void *data, int bitsCount, int bytesCount) override
	Process binary data block.

Public Member Functions inherited from iser::CMemoryWriteArchive
	CMemoryWriteArchive (const IVersionInfo *versionInfoPtr=NULL, bool serializeHeader=true)

const void *	GetBuffer () const

int	GetBufferSize () const

void	Reset ()
	Reset internal buffer.

bool	operator== (const CMemoryWriteArchive &archive) const

bool	operator!= (const CMemoryWriteArchive &archive) const

Public Member Functions inherited from iser::CBinaryWriteArchiveBase
virtual bool	BeginTag (const CArchiveTag &tag) override
	Begins a tagged section in the archive.

virtual bool	EndTag (const CArchiveTag &tag) override
	Ends a tagged section in the archive.

virtual bool	Process (bool &value) override
	Processes (reads or writes) a boolean value.

virtual bool	Process (char &value) override
	Process primitive type.

virtual bool	Process (quint8 &value) override
	Process primitive type.

virtual bool	Process (qint8 &value) override
	Process primitive type.

virtual bool	Process (quint16 &value) override
	Process primitive type.

virtual bool	Process (qint16 &value) override
	Process primitive type.

virtual bool	Process (quint32 &value) override
	Process primitive type.

virtual bool	Process (qint32 &value) override
	Process primitive type.

virtual bool	Process (quint64 &value) override
	Process primitive type.

virtual bool	Process (qint64 &value) override
	Process primitive type.

virtual bool	Process (float &value) override
	Process primitive type.

virtual bool	Process (double &value) override
	Process primitive type.

virtual bool	Process (QByteArray &value) override
	Process primitive type.

virtual bool	Process (QString &value) override
	Process primitive type.

Public Member Functions inherited from iser::CWriteArchiveBase
virtual bool	IsStoring () const override
	Checks if this archive is in storing (writing) or loading (reading) mode.

virtual const IVersionInfo &	GetVersionInfo () const override
	Gets version information for the archived stream.

Public Member Functions inherited from iser::CArchiveBase
virtual bool	IsTagSkippingSupported () const override
	Checks if skipping to the end of a tag on EndTag() is supported.

virtual bool	BeginMultiTag (const CArchiveTag &tag, const CArchiveTag &subTag, int &count) override
	Begins a tagged section containing multiple elements of the same type.

Public Member Functions inherited from iser::IArchive
template<typename Primitive >
bool	TagAndProcess (const CArchiveTag &tag, Primitive &value)

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Attributes
int	m_bitPosition

Protected Attributes inherited from iser::CMemoryWriteArchive
DataBuffer	m_dataBuffer

bool	m_serializeHeader

Additional Inherited Members
Static Public Member Functions inherited from iser::CArchiveBase
static const CArchiveTag &	GetAcfRootTag ()

Protected Types inherited from iser::CMemoryWriteArchive
typedef QByteArray	DataBuffer

Protected Member Functions inherited from iser::CBinaryWriteArchiveBase
	CBinaryWriteArchiveBase (const IVersionInfo *versionInfoPtr)

Protected Member Functions inherited from iser::CWriteArchiveBase
	CWriteArchiveBase (const IVersionInfo *versionInfoPtr)
	Constructor.

bool	SerializeAcfHeader ()
	Serialize standard header.

Protected Member Functions inherited from iser::CArchiveBase
	CArchiveBase ()

Protected Member Functions inherited from istd::ILogger
virtual void	DecorateMessage (IInformationProvider::InformationCategory category, int id, int flags, QString &message, QString &messageSource) const
	Decorate message parts before outputting.

virtual bool	IsLogConsumed (const IInformationProvider::InformationCategory categoryPtr=NULL, const int flagsPtr=NULL) const
	Check if any log message is consumed.

virtual bool	SendLogMessage (IInformationProvider::InformationCategory category, int id, const QString &message, const QString &messageSource, int flags=0) const
	Send any message to log.

Static Protected Attributes inherited from iser::CArchiveBase
static CArchiveTag	s_acfRootTag

Detailed Description

This is an archive implementation which provides bitwise write of data.

Definition at line 18 of file CBitMemoryWriteArchive.h.

Member Typedef Documentation

◆ BaseClass

typedef CMemoryWriteArchive iser::CBitMemoryWriteArchive::BaseClass

Definition at line 21 of file CBitMemoryWriteArchive.h.

Constructor & Destructor Documentation

◆ CBitMemoryWriteArchive()

iser::CBitMemoryWriteArchive::CBitMemoryWriteArchive	(	const IVersionInfo *	versionInfoPtr = `NULL`,
		bool	serializeHeader = `true`,
		int	initialBufferSize = `-1`
	)

Member Function Documentation

◆ ProcessBits()

virtual bool iser::CBitMemoryWriteArchive::ProcessBits	(	void *	dataPtr,
		int	bitsCount,
		int	bytesCount
	)

overridevirtual

Process binary data block.

Parameters

dataPtr	pointer to memory block.
bitsCount	number of bits.
bytesCount	size of memory block in bytes.

Reimplemented from iser::CWriteArchiveBase.

◆ ProcessData()

virtual bool iser::CBitMemoryWriteArchive::ProcessData	(	void *	dataPtr,
		int	size
	)

overridevirtual

Process binary data block.

Parameters

dataPtr	pointer to memory block.
size	size of memory block in bytes.

Reimplemented from iser::CMemoryWriteArchive.

◆ WriteValue()

void iser::CBitMemoryWriteArchive::WriteValue	(	quint32	inputValue,
		int	bits
	)

Pushes a value of the word bounding by N bits into the stream.

Member Data Documentation

◆ m_bitPosition

int iser::CBitMemoryWriteArchive::m_bitPosition

protected

Definition at line 35 of file CBitMemoryWriteArchive.h.

The documentation for this class was generated from the following file:

Acf/Include/iser/CBitMemoryWriteArchive.h
