iser::CArchiveBase Class Reference

Base implementation of iser::IArchive interface. More...

#include <CArchiveBase.h>

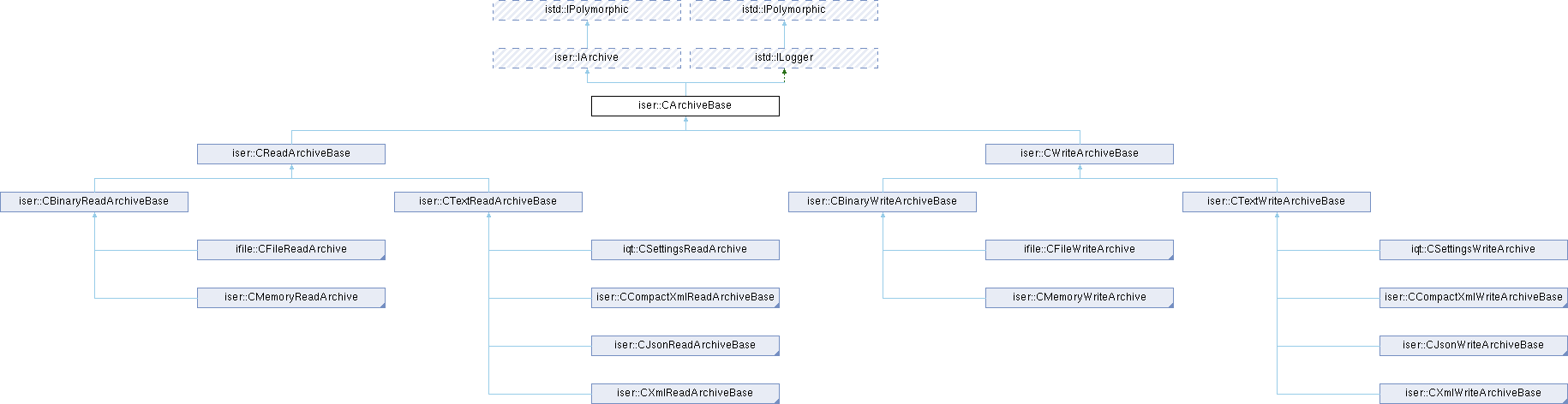

Inheritance diagram for iser::CArchiveBase:

Public Member Functions
virtual bool	IsTagSkippingSupported () const override
	Checks if skipping to the end of a tag on EndTag() is supported.
virtual bool	BeginMultiTag (const CArchiveTag &tag, const CArchiveTag &subTag, int &count) override
	Begins a tagged section containing multiple elements of the same type.
Public Member Functions inherited from iser::IArchive
virtual bool	IsStoring () const =0
	Checks if this archive is in storing (writing) or loading (reading) mode.
virtual const IVersionInfo &	GetVersionInfo () const =0
	Gets version information for the archived stream.
virtual bool	BeginTag (const CArchiveTag &tag)=0
	Begins a tagged section in the archive.
virtual bool	EndTag (const CArchiveTag &tag)=0
	Ends a tagged section in the archive.
virtual bool	Process (bool &value)=0
	Processes (reads or writes) a boolean value.
virtual bool	Process (char &value)=0
	Process primitive type.
virtual bool	Process (quint8 &value)=0
	Process primitive type.
virtual bool	Process (qint8 &value)=0
	Process primitive type.
virtual bool	Process (quint16 &value)=0
	Process primitive type.
virtual bool	Process (qint16 &value)=0
	Process primitive type.
virtual bool	Process (quint32 &value)=0
	Process primitive type.
virtual bool	Process (qint32 &value)=0
	Process primitive type.
virtual bool	Process (quint64 &value)=0
	Process primitive type.
virtual bool	Process (qint64 &value)=0
	Process primitive type.
virtual bool	Process (float &value)=0
	Process primitive type.
virtual bool	Process (double &value)=0
	Process primitive type.
virtual bool	Process (QByteArray &value)=0
	Process primitive type.
virtual bool	Process (QString &value)=0
	Process primitive type.
template<typename Primitive >
bool	TagAndProcess (const CArchiveTag &tag, Primitive &value)
virtual bool	ProcessData (void *dataPtr, int size)=0
	Process binary data block.
virtual bool	ProcessBits (void *dataPtr, int bitsCount, int bytesCount)=0
	Process binary data block.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Static Public Member Functions
static const CArchiveTag &	GetAcfRootTag ()

Protected Member Functions
	CArchiveBase ()
Protected Member Functions inherited from istd::ILogger
virtual void	DecorateMessage (IInformationProvider::InformationCategory category, int id, int flags, QString &message, QString &messageSource) const
	Decorate message parts before outputting.
virtual bool	IsLogConsumed (const IInformationProvider::InformationCategory *categoryPtr=NULL, const int *flagsPtr=NULL) const
	Check if any log message is consumed.
virtual bool	SendLogMessage (IInformationProvider::InformationCategory category, int id, const QString &message, const QString &messageSource, int flags=0) const
	Send any message to log.

Static Protected Attributes
static CArchiveTag	s_acfRootTag

Additional Inherited Members
Public Types inherited from iser::IArchive
enum	MessageId { MI_TAG_ERROR = 0x3f320a0 , MI_TAG_SKIPPED }

Detailed Description

Base implementation of iser::IArchive interface.

It provides standard implementation of some methods and standard tags.

Definition at line 20 of file CArchiveBase.h.

Constructor & Destructor Documentation

CArchiveBase()

iser::CArchiveBase::CArchiveBase ( )

inlineprotected

Definition at line 32 of file CArchiveBase.h.

Member Function Documentation

BeginMultiTag()

virtual bool iser::CArchiveBase::BeginMultiTag ( const CArchiveTag &  tag, const CArchiveTag &  subTag, int &  count  )

overridevirtual

Begins a tagged section containing multiple elements of the same type.

BeginMultiTag is used for serializing collections, arrays, or lists where you have multiple items of the same structure. The count parameter works differently for reading vs. writing:

• Writing: Pass the number of elements you will serialize
• Reading: The archive sets count to the number of elements stored

Parameters

tag	Main container tag for the entire collection
subTag	Tag type for each individual element in the collection
count	[in/out] For writing: number of elements to serialize For reading: set by archive to number of stored elements

Returns

true if successful, false on error

// Writing a list
if (archive.IsStoring()) {
       int count = m_items.count();
       archive.BeginMultiTag(listTag, itemTag, count);
       for (const Item& item : m_items) {
              archive.BeginTag(itemTag);
              item.Serialize(archive);
              archive.EndTag(itemTag);
       }
       archive.EndTag(listTag);
}
// Reading a list
else {
       int count;
       archive.BeginMultiTag(listTag, itemTag, count);
       m_items.clear();
       for (int i = 0; i < count; ++i) {
              archive.BeginTag(itemTag);
              Item item;
              item.Serialize(archive);
              m_items.append(item);
              archive.EndTag(itemTag);
       }
       archive.EndTag(listTag);
}

See also

BeginTag(), EndTag()

Implements iser::IArchive.

Reimplemented in iser::CXmlReadArchiveBase, iser::CXmlWriteArchiveBase, iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CCompactXmlReadArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonReadArchiveBase, and iser::CJsonWriteArchiveBase.

GetAcfRootTag()

static const CArchiveTag & iser::CArchiveBase::GetAcfRootTag ( )

static

IsTagSkippingSupported()

virtual bool iser::CArchiveBase::IsTagSkippingSupported ( ) const

overridevirtual

Checks if skipping to the end of a tag on EndTag() is supported.

Some archive types (like XML) support skipping unread content within a tag, allowing forward compatibility. When reading an archive created by a newer version that added fields, this feature lets you skip unknown data.

Returns

true if the archive supports tag skipping, false otherwise

Note

Binary archives typically don't support skipping, requiring all data to be read sequentially.

XML and JSON archives usually support skipping.

if (archive.IsTagSkippingSupported()) {
       // Can safely skip new fields added in future versions
} else {
       // Must read all data in exact order
}

See also

EndTag()

Implements iser::IArchive.

Reimplemented in ifile::CFileReadArchive, ifile::CFileWriteArchive, iser::CCompactXmlReadArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

Member Data Documentation

s_acfRootTag

CArchiveTag iser::CArchiveBase::s_acfRootTag

staticprotected

Definition at line 35 of file CArchiveBase.h.

---

The documentation for this class was generated from the following file:

• Acf/Include/iser/CArchiveBase.h
