Implementation of an ACF Archive serializing to JSON string. More...

#include <CJsonWriteArchiveBase.h>

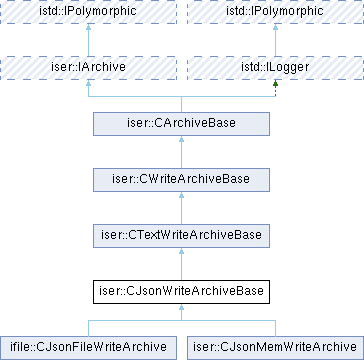

Inheritance diagram for iser::CJsonWriteArchiveBase:

Classes
struct	TagsStackItem

Public Types
typedef iser::CTextWriteArchiveBase	BaseClass

Public Types inherited from iser::CTextWriteArchiveBase
typedef CWriteArchiveBase	BaseClass

Public Types inherited from iser::IArchive
enum	MessageId { MI_TAG_ERROR = 0x3f320a0 , MI_TAG_SKIPPED }

Public Member Functions
	~CJsonWriteArchiveBase ()

void	SetFormat (QJsonDocument::JsonFormat jsonFormat)

virtual bool	IsTagSkippingSupported () const override
	Checks if skipping to the end of a tag on EndTag() is supported.

virtual bool	BeginTag (const iser::CArchiveTag &tag) override
	Begins a tagged section in the archive.

virtual bool	BeginMultiTag (const iser::CArchiveTag &tag, const iser::CArchiveTag &subTag, int &count) override
	Begins a tagged section containing multiple elements of the same type.

virtual bool	EndTag (const iser::CArchiveTag &tag) override
	Ends a tagged section in the archive.

virtual bool	Process (QString &value) override
	Process primitive type.

virtual bool	Process (QByteArray &value) override
	Process primitive type.

virtual bool	ProcessData (void *dataPtr, int size) override
	Process binary data block.

virtual bool	Process (bool &value) override
	Processes (reads or writes) a boolean value.

virtual bool	Process (char &value) override
	Process primitive type.

virtual bool	Process (quint8 &value) override
	Process primitive type.

virtual bool	Process (qint8 &value) override
	Process primitive type.

virtual bool	Process (quint16 &value) override
	Process primitive type.

virtual bool	Process (qint16 &value) override
	Process primitive type.

virtual bool	Process (quint32 &value) override
	Process primitive type.

virtual bool	Process (qint32 &value) override
	Process primitive type.

virtual bool	Process (quint64 &value) override
	Process primitive type.

virtual bool	Process (qint64 &value) override
	Process primitive type.

virtual bool	Process (float &value) override
	Process primitive type.

virtual bool	Process (double &value) override
	Process primitive type.

virtual bool	Process (QByteArray &value) override
	Process primitive type.

Public Member Functions inherited from iser::CWriteArchiveBase
virtual bool	IsStoring () const override
	Checks if this archive is in storing (writing) or loading (reading) mode.

virtual const IVersionInfo &	GetVersionInfo () const override
	Gets version information for the archived stream.

virtual bool	ProcessBits (void *dataPtr, int bitsCount, int bytesCount) override
	Process binary data block.

Public Member Functions inherited from iser::IArchive
template<typename Primitive >
bool	TagAndProcess (const CArchiveTag &tag, Primitive &value)

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
	CJsonWriteArchiveBase (const iser::IVersionInfo *versionInfoPtr, bool serializeHeader, const iser::CArchiveTag &rootTag)

bool	InitStream (bool serializeHeader)

bool	InitArchive (QIODevice *devicePtr)

bool	InitArchive (QByteArray &inputString)

bool	WriteTag (const iser::CArchiveTag &tag, QString separator)

bool	WriteJsonHeader ()

bool	Flush ()

virtual bool	WriteTextNode (const QByteArray &text) override
	Write single unformatted text node.

Protected Member Functions inherited from iser::CTextWriteArchiveBase
	CTextWriteArchiveBase (const IVersionInfo *versionInfoPtr)

Protected Member Functions inherited from iser::CWriteArchiveBase
	CWriteArchiveBase (const IVersionInfo *versionInfoPtr)
	Constructor.

bool	SerializeAcfHeader ()
	Serialize standard header.

Protected Member Functions inherited from iser::CArchiveBase
	CArchiveBase ()

Protected Member Functions inherited from istd::ILogger
virtual void	DecorateMessage (IInformationProvider::InformationCategory category, int id, int flags, QString &message, QString &messageSource) const
	Decorate message parts before outputting.

virtual bool	IsLogConsumed (const IInformationProvider::InformationCategory categoryPtr=NULL, const int flagsPtr=NULL) const
	Check if any log message is consumed.

virtual bool	SendLogMessage (IInformationProvider::InformationCategory category, int id, const QString &message, const QString &messageSource, int flags=0) const
	Send any message to log.

Protected Attributes
QTextStream	m_stream

QBuffer	m_buffer

bool	m_firstTag

QJsonDocument::JsonFormat	m_jsonFormat

bool	m_serializeHeader

iser::CArchiveTag	m_rootTag

bool	m_isSeparatorNeeded

bool	m_allowAttribute

bool	m_quotationMarksRequired = false

QList< TagsStackItem >	m_tagsStack

Additional Inherited Members
Static Public Member Functions inherited from iser::CArchiveBase
static const CArchiveTag &	GetAcfRootTag ()

Static Protected Attributes inherited from iser::CArchiveBase
static CArchiveTag	s_acfRootTag

Detailed Description

Implementation of an ACF Archive serializing to JSON string.

Definition at line 25 of file CJsonWriteArchiveBase.h.

Member Typedef Documentation

◆ BaseClass

typedef iser::CTextWriteArchiveBase iser::CJsonWriteArchiveBase::BaseClass

Definition at line 28 of file CJsonWriteArchiveBase.h.

Constructor & Destructor Documentation

◆ ~CJsonWriteArchiveBase()

iser::CJsonWriteArchiveBase::~CJsonWriteArchiveBase ( )

◆ CJsonWriteArchiveBase()

iser::CJsonWriteArchiveBase::CJsonWriteArchiveBase	(	const iser::IVersionInfo *	versionInfoPtr,
		bool	serializeHeader,
		const iser::CArchiveTag &	rootTag
	)

protected

Member Function Documentation

◆ BeginMultiTag()

virtual bool iser::CJsonWriteArchiveBase::BeginMultiTag	(	const iser::CArchiveTag &	tag,
		const iser::CArchiveTag &	subTag,
		int &	count
	)

overridevirtual

Begins a tagged section containing multiple elements of the same type.

BeginMultiTag is used for serializing collections, arrays, or lists where you have multiple items of the same structure. The count parameter works differently for reading vs. writing:

Writing: Pass the number of elements you will serialize
Reading: The archive sets count to the number of elements stored

Parameters

tag	Main container tag for the entire collection
subTag	Tag type for each individual element in the collection
count	[in/out] For writing: number of elements to serialize For reading: set by archive to number of stored elements

Returns: true if successful, false on error

// Writing a list
if (archive.IsStoring()) {
       int count = m_items.count();
       archive.BeginMultiTag(listTag, itemTag, count);
       for (const Item& item : m_items) {
              archive.BeginTag(itemTag);
              item.Serialize(archive);
              archive.EndTag(itemTag);
       }
       archive.EndTag(listTag);
}
// Reading a list
else {
       int count;
       archive.BeginMultiTag(listTag, itemTag, count);
       m_items.clear();
       for (int i = 0; i < count; ++i) {
              archive.BeginTag(itemTag);
              Item item;
              item.Serialize(archive);
              m_items.append(item);
              archive.EndTag(itemTag);
       }
       archive.EndTag(listTag);
}

See also: BeginTag(), EndTag()

Reimplemented from iser::CArchiveBase.

◆ BeginTag()

virtual bool iser::CJsonWriteArchiveBase::BeginTag ( const iser::CArchiveTag & tag )

overridevirtual

Begins a tagged section in the archive.

Tags organize data into logical units with names and descriptions. Every BeginTag() must be matched with an EndTag() call. Tags can be nested to create hierarchical data structures.

Parameters

tag	The tag object describing this section. Use static CArchiveTag instances to avoid repeated construction overhead.

Returns: true if the tag was successfully opened, false on error

Note: Always match BeginTag() with EndTag(); Check the return value and propagate errors; For collections, use BeginMultiTag() instead

static iser::CArchiveTag personTag("Person", "Person data");
if (archive.BeginTag(personTag)) {
       archive.Process(name);
       archive.Process(age);
       archive.EndTag(personTag);
}

See also: EndTag(), BeginMultiTag(), CArchiveTag

Implements iser::IArchive.

◆ EndTag()

virtual bool iser::CJsonWriteArchiveBase::EndTag ( const iser::CArchiveTag & tag )

overridevirtual

Ends a tagged section in the archive.

Must be called after BeginTag() or BeginMultiTag() to close the section. If tag skipping is supported and not all data was read, this will skip to the end of the tag section, enabling forward compatibility.

Parameters

tag	The same tag object passed to BeginTag() or BeginMultiTag()

Returns: true if successful, false on error

Note: Always call EndTag() even if errors occurred within the tag; The tag parameter must match the one used in BeginTag(); If IsTagSkippingSupported() returns false, you must read all data before calling EndTag()

static iser::CArchiveTag dataTag("Data", "My data");
if (archive.BeginTag(dataTag)) {
       bool success = archive.Process(myData);
       archive.EndTag(dataTag);  // Always call, even if Process failed
       if (!success) return false;
}

See also: BeginTag(), BeginMultiTag(), IsTagSkippingSupported()

Implements iser::IArchive.

◆ Flush()

bool iser::CJsonWriteArchiveBase::Flush ( )

protected

◆ InitArchive() [1/2]

bool iser::CJsonWriteArchiveBase::InitArchive ( QByteArray & inputString )

protected

◆ InitArchive() [2/2]

bool iser::CJsonWriteArchiveBase::InitArchive ( QIODevice * devicePtr )

protected

◆ InitStream()

bool iser::CJsonWriteArchiveBase::InitStream ( bool serializeHeader )

protected

◆ IsTagSkippingSupported()

virtual bool iser::CJsonWriteArchiveBase::IsTagSkippingSupported ( ) const

overridevirtual

Checks if skipping to the end of a tag on EndTag() is supported.

Some archive types (like XML) support skipping unread content within a tag, allowing forward compatibility. When reading an archive created by a newer version that added fields, this feature lets you skip unknown data.

Returns: true if the archive supports tag skipping, false otherwise

Note: Binary archives typically don't support skipping, requiring all data to be read sequentially.; XML and JSON archives usually support skipping.

if (archive.IsTagSkippingSupported()) {
       // Can safely skip new fields added in future versions
} else {
       // Must read all data in exact order
}

See also: EndTag()

Reimplemented from iser::CArchiveBase.

◆ Process() [1/15]

virtual bool iser::CTextWriteArchiveBase::Process ( bool & value )

overridevirtual

Processes (reads or writes) a boolean value.

Parameters

value [in/out] For writing: the value to store For reading: receives the loaded value

Returns: true if successful, false on error

See also: IsStoring(), Process() overloads for other types

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [2/15]

virtual bool iser::CTextWriteArchiveBase::Process ( char & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [3/15]

virtual bool iser::CTextWriteArchiveBase::Process ( double & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [4/15]

virtual bool iser::CTextWriteArchiveBase::Process ( float & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [5/15]

virtual bool iser::CJsonWriteArchiveBase::Process ( QByteArray & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [6/15]

virtual bool iser::CTextWriteArchiveBase::Process ( QByteArray & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [7/15]

virtual bool iser::CTextWriteArchiveBase::Process ( qint16 & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [8/15]

virtual bool iser::CTextWriteArchiveBase::Process ( qint32 & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [9/15]

virtual bool iser::CTextWriteArchiveBase::Process ( qint64 & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [10/15]

virtual bool iser::CTextWriteArchiveBase::Process ( qint8 & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [11/15]

virtual bool iser::CJsonWriteArchiveBase::Process ( QString & value )

overridevirtual

Process primitive type.

Implements iser::IArchive.

◆ Process() [12/15]

virtual bool iser::CTextWriteArchiveBase::Process ( quint16 & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [13/15]

virtual bool iser::CTextWriteArchiveBase::Process ( quint32 & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [14/15]

virtual bool iser::CTextWriteArchiveBase::Process ( quint64 & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ Process() [15/15]

virtual bool iser::CTextWriteArchiveBase::Process ( quint8 & value )

overridevirtual

Process primitive type.

Reimplemented from iser::CTextWriteArchiveBase.

◆ ProcessData()

virtual bool iser::CJsonWriteArchiveBase::ProcessData	(	void *	dataPtr,
		int	size
	)

overridevirtual

Process binary data block.

Parameters

dataPtr	pointer to memory block.
size	size of memory block in bytes.

Reimplemented from iser::CTextWriteArchiveBase.

◆ SetFormat()

void iser::CJsonWriteArchiveBase::SetFormat ( QJsonDocument::JsonFormat jsonFormat )

◆ WriteJsonHeader()

bool iser::CJsonWriteArchiveBase::WriteJsonHeader ( )

protected

◆ WriteTag()

bool iser::CJsonWriteArchiveBase::WriteTag	(	const iser::CArchiveTag &	tag,
		QString	separator
	)

protected

◆ WriteTextNode()

virtual bool iser::CJsonWriteArchiveBase::WriteTextNode ( const QByteArray & text )

overrideprotectedvirtual

Write single unformatted text node.

Implements iser::CTextWriteArchiveBase.

Member Data Documentation

◆ m_allowAttribute

bool iser::CJsonWriteArchiveBase::m_allowAttribute

protected

Definition at line 70 of file CJsonWriteArchiveBase.h.

◆ m_buffer

QBuffer iser::CJsonWriteArchiveBase::m_buffer

protected

Definition at line 63 of file CJsonWriteArchiveBase.h.

◆ m_firstTag

bool iser::CJsonWriteArchiveBase::m_firstTag

protected

Definition at line 64 of file CJsonWriteArchiveBase.h.

◆ m_isSeparatorNeeded

bool iser::CJsonWriteArchiveBase::m_isSeparatorNeeded

protected

Definition at line 69 of file CJsonWriteArchiveBase.h.

◆ m_jsonFormat

QJsonDocument::JsonFormat iser::CJsonWriteArchiveBase::m_jsonFormat

protected

Definition at line 65 of file CJsonWriteArchiveBase.h.

◆ m_quotationMarksRequired

bool iser::CJsonWriteArchiveBase::m_quotationMarksRequired = false

protected

Definition at line 78 of file CJsonWriteArchiveBase.h.

◆ m_rootTag

iser::CArchiveTag iser::CJsonWriteArchiveBase::m_rootTag

protected

Definition at line 67 of file CJsonWriteArchiveBase.h.

◆ m_serializeHeader

bool iser::CJsonWriteArchiveBase::m_serializeHeader

protected

Definition at line 66 of file CJsonWriteArchiveBase.h.

◆ m_stream

QTextStream iser::CJsonWriteArchiveBase::m_stream

protected

Definition at line 62 of file CJsonWriteArchiveBase.h.

◆ m_tagsStack

QList<TagsStackItem> iser::CJsonWriteArchiveBase::m_tagsStack

protected

Definition at line 80 of file CJsonWriteArchiveBase.h.

The documentation for this class was generated from the following file:

Acf/Include/iser/CJsonWriteArchiveBase.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

Constructor & Destructor Documentation

◆ ~CJsonWriteArchiveBase()

◆ CJsonWriteArchiveBase()

Member Function Documentation

◆ BeginMultiTag()

◆ BeginTag()

◆ EndTag()

◆ Flush()

◆ InitArchive() [1/2]

◆ InitArchive() [2/2]

◆ InitStream()

◆ IsTagSkippingSupported()

◆ Process() [1/15]

◆ Process() [2/15]

◆ Process() [3/15]

◆ Process() [4/15]

◆ Process() [5/15]

◆ Process() [6/15]

◆ Process() [7/15]

◆ Process() [8/15]

◆ Process() [9/15]

◆ Process() [10/15]

◆ Process() [11/15]

◆ Process() [12/15]

◆ Process() [13/15]

◆ Process() [14/15]

◆ Process() [15/15]

◆ ProcessData()

◆ SetFormat()

◆ WriteJsonHeader()

◆ WriteTag()

◆ WriteTextNode()

Member Data Documentation

◆ m_allowAttribute

◆ m_buffer

◆ m_firstTag

◆ m_isSeparatorNeeded

◆ m_jsonFormat

◆ m_quotationMarksRequired

◆ m_rootTag

◆ m_serializeHeader

◆ m_stream

◆ m_tagsStack
