Simple parameter manager editor using single paramer element editor. More...

#include <CParamsManagerGuiComp.h>

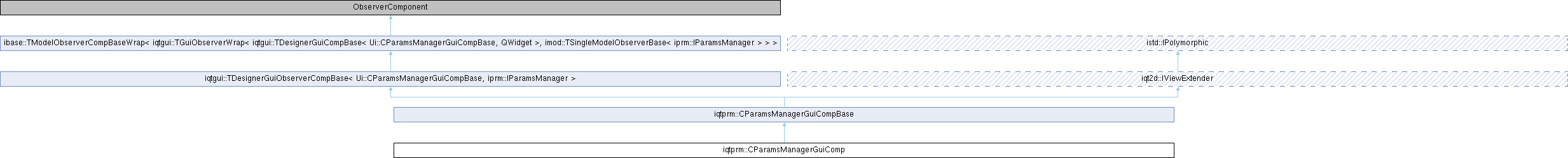

Inheritance diagram for iqtprm::CParamsManagerGuiComp:

Public Types
typedef CParamsManagerGuiCompBase	BaseClass

Public Types inherited from iqtprm::CParamsManagerGuiCompBase
typedef iqtgui::TDesignerGuiObserverCompBase< Ui::CParamsManagerGuiCompBase, iprm::IParamsManager >	BaseClass

Public Types inherited from ibase::TModelObserverCompBaseWrap< ObserverComponent >
typedef ObserverComponent	BaseClass

Public Types inherited from iqt2d::IViewExtender
enum	SceneFlags { SF_BACKGROUND = 1 , SF_DIRECT = 2 }
	Standard flags for items . More...

Protected Member Functions
virtual imod::IObserver *	GetObserverPtr (const iprm::IParamsSet *paramsSetPtr) const override
	Get the observer for a given parameter set.

virtual iqtgui::IGuiObject *	GetEditorGuiPtr (const iprm::IParamsSet *paramsSetPtr) const override
	Get the editor GUI for a given parameter set.

virtual void	OnGuiCreated () override

virtual void	OnGuiDestroyed () override

Protected Member Functions inherited from iqtprm::CParamsManagerGuiCompBase
int	GetIndexByName (const QString &itemName) const

virtual iqt2d::IViewExtender *	GetCurrentViewExtenderPtr () const
	Get the currently active view extender.

virtual void	OnParameterSelectionChanged ()
	Callback for parameter selection.

virtual void	OnTreeItemAdded (iprm::IParamsManager managerPtr, const int paramSetIndex, const iprm::IParamsSet paramsSetPtr, QTreeWidgetItem *paramsSetItemPtr)
	Callback for item decoration.

virtual void	CopyParamsSet (const int index)
	Copy ParamsSet (index) to Clipboard.

virtual void	PasteParamsSet (const int index=-1)
	Paste ParamsSet from Clipboard When reimplemented in MultiParamsManager, the paramsSetType should be retrieved.

void	UpdateActions ()

void	UpdateTree ()

void	UpdateComboBox ()

virtual void	UpdateParamsView (int selectedIndex)

int	GetSelectedIndex () const

void	EnsureParamsGuiDetached ()

QByteArray	GetSelectedParamsSetTypeId () const

void	InsertNewParamsSet (int typeIndex=-1)

bool	CopyParamsSetToClipboard (iser::ISerializable objectPtr, const char type) const

bool	PasteParamsSetFromClipboard (iser::ISerializable objectPtr, const char type)

virtual void	OnGuiModelAttached () override

virtual void	OnGuiModelDetached () override

virtual void	UpdateGui (const istd::IChangeable::ChangeSet &changeSet) override

virtual void	OnDesignSchemaChanged (const QByteArray &themeId) override

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override

Protected Member Functions inherited from ibase::TModelObserverCompBaseWrap< ObserverComponent >
virtual void	OnComponentCreated () override

virtual void	OnComponentDestroyed () override

Additional Inherited Members
Public Member Functions inherited from iqtprm::CParamsManagerGuiCompBase
	CParamsManagerGuiCompBase ()

virtual void	AddItemsToScene (iqt2d::IViewProvider *providerPtr, int flags) override
	Called when items should be added to specified scene.

virtual void	RemoveItemsFromScene (iqt2d::IViewProvider *providerPtr) override
	Called when items should be removed from specified scene.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Slots inherited from iqtprm::CParamsManagerGuiCompBase
void	on_AddButton_clicked ()

void	on_RemoveButton_clicked ()

void	on_UpButton_clicked ()

void	on_DownButton_clicked ()

void	on_CopyButton_clicked ()

void	on_PasteButton_clicked ()

void	on_ParamsTree_itemSelectionChanged ()

void	on_ParamsTree_itemChanged (QTreeWidgetItem *item, int column)

void	on_ParamsComboBox_currentIndexChanged (int index)

void	on_ParamsComboBox_editTextChanged (const QString &text)

void	on_LoadParamsButton_clicked ()

void	on_SaveParamsButton_clicked ()

void	OnAddMenuOptionClicked (QAction *action)

void	HideInfoLabel ()

Detailed Description

Simple parameter manager editor using single paramer element editor.

Due of single editor instance only one kind of elements is supported.

Definition at line 17 of file CParamsManagerGuiComp.h.

Member Typedef Documentation

◆ BaseClass

typedef CParamsManagerGuiCompBase iqtprm::CParamsManagerGuiComp::BaseClass

Definition at line 20 of file CParamsManagerGuiComp.h.

Member Function Documentation

◆ GetEditorGuiPtr()

virtual iqtgui::IGuiObject * iqtprm::CParamsManagerGuiComp::GetEditorGuiPtr ( const iprm::IParamsSet * paramsSetPtr ) const

overrideprotectedvirtual

Get the editor GUI for a given parameter set.

Implements iqtprm::CParamsManagerGuiCompBase.

◆ GetObserverPtr()

virtual imod::IObserver * iqtprm::CParamsManagerGuiComp::GetObserverPtr ( const iprm::IParamsSet * paramsSetPtr ) const

overrideprotectedvirtual

Get the observer for a given parameter set.

Implements iqtprm::CParamsManagerGuiCompBase.

◆ OnGuiCreated()

virtual void iqtprm::CParamsManagerGuiComp::OnGuiCreated ( )

overrideprotectedvirtual

Reimplemented from iqtprm::CParamsManagerGuiCompBase.

◆ OnGuiDestroyed()

virtual void iqtprm::CParamsManagerGuiComp::OnGuiDestroyed ( )

overrideprotectedvirtual

The documentation for this class was generated from the following file:

Acf/Include/iqtprm/CParamsManagerGuiComp.h
