iqt2d::IViewExtender Class Reference

Interface for GUI objects presenting its results using extern view objects. More...

#include <IViewExtender.h>

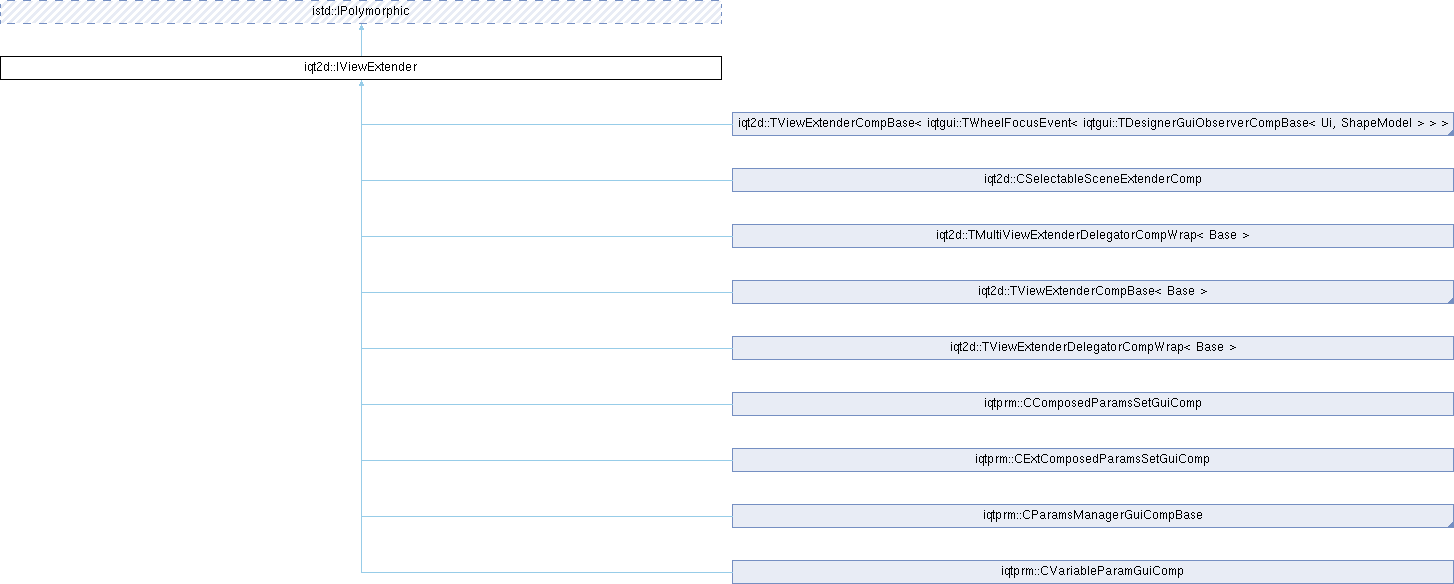

Inheritance diagram for iqt2d::IViewExtender:

Public Types
enum	SceneFlags { SF_BACKGROUND = 1 , SF_DIRECT = 2 }
	Standard flags for items . More...

Public Member Functions
virtual void	AddItemsToScene (IViewProvider *providerPtr, int flags)=0
	Called when items should be added to specified scene.
virtual void	RemoveItemsFromScene (IViewProvider *providerPtr)=0
	Called when items should be removed from specified scene.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Interface for GUI objects presenting its results using extern view objects.

Definition at line 19 of file IViewExtender.h.

Member Enumeration Documentation

SceneFlags

enum iqt2d::IViewExtender::SceneFlags

Standard flags for items .

Enumerator
SF_BACKGROUND	This flag is active if only shown elements will be used as background for other elements.
SF_DIRECT	This flag is set if this objects are added in direct call and will be reseted by delegation call to slave GUI's.

Definition at line 25 of file IViewExtender.h.

Member Function Documentation

AddItemsToScene()

virtual void iqt2d::IViewExtender::AddItemsToScene ( IViewProvider *  providerPtr, int  flags  )

pure virtual

Called when items should be added to specified scene.

Implemented in iqt2d::CSelectableSceneExtenderComp, iqt2d::TMultiViewExtenderDelegatorCompWrap< Base >, iqt2d::TViewExtenderDelegatorCompWrap< Base >, iqtprm::CComposedParamsSetGuiComp, iqtprm::CExtComposedParamsSetGuiComp, iqtprm::CParamsManagerGuiCompBase, iqtprm::CVariableParamGuiComp, and iqt2d::TViewExtenderCompBase< Base >.

RemoveItemsFromScene()

virtual void iqt2d::IViewExtender::RemoveItemsFromScene ( IViewProvider *  providerPtr )

pure virtual

Called when items should be removed from specified scene.

Implemented in iqt2d::CSelectableSceneExtenderComp, iqt2d::TMultiViewExtenderDelegatorCompWrap< Base >, iqt2d::TViewExtenderDelegatorCompWrap< Base >, iqtprm::CComposedParamsSetGuiComp, iqtprm::CExtComposedParamsSetGuiComp, iqtprm::CParamsManagerGuiCompBase, iqtprm::CVariableParamGuiComp, and iqt2d::TViewExtenderCompBase< Base >.

---

The documentation for this class was generated from the following file:

• Acf/Include/iqt2d/IViewExtender.h
