#include <CSelectableSceneExtenderComp.h>

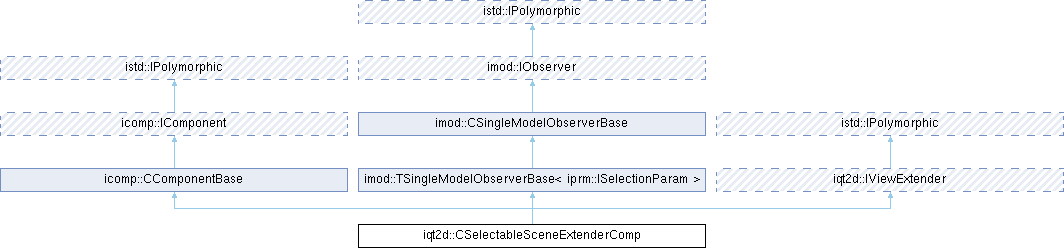

Inheritance diagram for iqt2d::CSelectableSceneExtenderComp:

Public Types
typedef icomp::CComponentBase	BaseClass

typedef imod::TSingleModelObserverBase< iprm::ISelectionParam >	BaseClass2

Public Types inherited from imod::TSingleModelObserverBase< iprm::ISelectionParam >
typedef CSingleModelObserverBase	BaseClass

typedef iprm::ISelectionParam	ModelType

Public Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType

Public Types inherited from iqt2d::IViewExtender
enum	SceneFlags { SF_BACKGROUND = 1 , SF_DIRECT = 2 }
	Standard flags for items . More...

Public Member Functions
	CSelectableSceneExtenderComp ()

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.

virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.

virtual void	AddItemsToScene (iqt2d::IViewProvider *providerPtr, int flags) override
	Called when items should be added to specified scene.

virtual void	RemoveItemsFromScene (iqt2d::IViewProvider *providerPtr) override
	Called when items should be removed from specified scene.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from imod::TSingleModelObserverBase< iprm::ISelectionParam >
	TSingleModelObserverBase ()

iprm::ISelectionParam *	GetObservedObject () const
	Get instance of observed object.

iprm::ISelectionParam *	GetObjectPtr () const
	Get instance of observed object.

bool	AttachOrSetObject (iprm::ISelectionParam *objectPtr)
	Attach to model of object or set object pointer, if no connection is possible.

Public Member Functions inherited from imod::CSingleModelObserverBase
	CSingleModelObserverBase ()

virtual	~CSingleModelObserverBase ()

imod::IModel *	GetObservedModel () const
	Get access to observed model.

imod::IModel *	GetModelPtr () const
	Get access to observed model.

void	EnsureModelDetached ()
	Make sure this observer is detached.

void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.

virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.

Protected Member Functions
void	AttachCurrent ()

void	DetachCurrent ()

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentCreated ()

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Protected Member Functions inherited from imod::TSingleModelObserverBase< iprm::ISelectionParam >
virtual iprm::ISelectionParam *	CastFromModel (imod::IModel *modelPtr) const

Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.

virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet)
	Called on update of observed model.

Additional Inherited Members
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Definition at line 16 of file CSelectableSceneExtenderComp.h.

Member Typedef Documentation

◆ BaseClass

typedef icomp::CComponentBase iqt2d::CSelectableSceneExtenderComp::BaseClass

Definition at line 22 of file CSelectableSceneExtenderComp.h.

◆ BaseClass2

typedef imod::TSingleModelObserverBase<iprm::ISelectionParam> iqt2d::CSelectableSceneExtenderComp::BaseClass2

Definition at line 23 of file CSelectableSceneExtenderComp.h.

Constructor & Destructor Documentation

◆ CSelectableSceneExtenderComp()

iqt2d::CSelectableSceneExtenderComp::CSelectableSceneExtenderComp ( )

Member Function Documentation

◆ AddItemsToScene()

virtual void iqt2d::CSelectableSceneExtenderComp::AddItemsToScene	(	iqt2d::IViewProvider *	providerPtr,
		int	flags
	)

overridevirtual

Called when items should be added to specified scene.

Implements iqt2d::IViewExtender.

◆ AfterUpdate()

virtual void iqt2d::CSelectableSceneExtenderComp::AfterUpdate	(	imod::IModel *	modelPtr,
		const istd::IChangeable::ChangeSet &	changeSet
	)

overrideprotectedvirtual

Callback invoked after an update of the observer's content occurs.

This is the primary notification method where observers react to model changes. It's called after the model has finished updating its state. The implementation should examine the changeSet to determine what changed and update accordingly.

Parameters

modelPtr	Pointer to the model that has changed
changeSet	Contains information about what changed in the model. Use changeSet.Contains(changeId) to check for specific changes. The changeSet respects the mask specified in OnModelAttached().

Note: This is typically where you update your GUI, recalculate derived values, or trigger other dependent operations.; Keep this method fast - it's called frequently and may block the UI thread.; Use the changeSet to perform incremental updates rather than refreshing everything.

virtual void AfterUpdate(IModel* modelPtr,
                        const istd::IChangeable::ChangeSet& changeSet)
{
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return;

       // Selective update based on what changed
       if (changeSet.Contains(CMyModel::CF_NAME_CHANGED)) {
              m_nameLabel->setText(model->GetName());
       }
       if (changeSet.Contains(CMyModel::CF_VALUE_CHANGED)) {
              m_valueSpinBox->setValue(model->GetValue());
              RecalculateDependentValues();
       }

       // Re-enable signals if blocked in BeforeUpdate
       if (m_widget) {
              m_widget->blockSignals(false);
       }
}

See also: BeforeUpdate(), OnModelAttached()

Reimplemented from imod::CSingleModelObserverBase.

◆ AttachCurrent()

void iqt2d::CSelectableSceneExtenderComp::AttachCurrent ( )

protected

◆ DetachCurrent()

void iqt2d::CSelectableSceneExtenderComp::DetachCurrent ( )

protected

◆ OnModelAttached()

virtual bool iqt2d::CSelectableSceneExtenderComp::OnModelAttached	(	imod::IModel *	modelPtr,
		istd::IChangeable::ChangeSet &	changeMask
	)

overridevirtual

Callback invoked when an observable model is about to be attached to this observer.

This method is called by the model when attempting to establish an observer relationship. The implementation should:

Validate that the model is of an acceptable type
Set the changeMask to specify which changes to monitor
Return true to accept the attachment, or false to reject it

Parameters

modelPtr	Pointer to the model object being attached. Never nullptr.
changeMask	Output parameter where the observer specifies which change types it wants to be notified about. Set the appropriate change flags using changeMask.Set(changeId). An empty mask means the observer wants all changes.

Returns: true if the model is accepted and attachment succeeds, false to reject the attachment (e.g., if the model is of incompatible type).

Note: After successful attachment, the observer should initialize its state based on the current model data.; The changeMask allows filtering notifications for better performance. Only changes matching the mask will trigger AfterUpdate() calls.

virtual bool OnModelAttached(IModel* modelPtr,
                            istd::IChangeable::ChangeSet& changeMask)
{
       // Type check
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return false;

       // Set up change filtering
       changeMask.Set(CMyModel::CF_DATA_CHANGED);
       changeMask.Set(CMyModel::CF_STATUS_CHANGED);
       // Don't set CF_INTERNAL_CHANGED - we don't care about those

       // Initialize view from current model state
       UpdateViewFromModel(model);
       return true;
}

See also: OnModelDetached(), IsModelAttached(), AfterUpdate()

Reimplemented from imod::TSingleModelObserverBase< iprm::ISelectionParam >.

◆ OnModelDetached()

virtual bool iqt2d::CSelectableSceneExtenderComp::OnModelDetached ( imod::IModel * modelPtr )

overridevirtual

Callback invoked when an observable model is about to be detached from this observer.

This method is called when the observer-model relationship is being terminated, either explicitly or because the model is being destroyed. The implementation should clean up any state or resources related to this model.

Parameters

modelPtr Pointer to the model object being detached

Returns: true if the detachment was handled successfully, false otherwise

Note: After this call, the observer should not access the model pointer anymore.; This method may be called even if OnModelAttached() previously returned false.; Clean up any cached data or references to this model.

virtual bool OnModelDetached(IModel* modelPtr)
{
       if (m_currentModel == modelPtr) {
              // Clear any cached data
              m_cachedData.clear();
              m_currentModel = nullptr;

              // Update UI to show no model is attached
              ClearDisplay();
              return true;
       }
       return false;
}

See also: OnModelAttached(), IsModelAttached()

Reimplemented from imod::TSingleModelObserverBase< iprm::ISelectionParam >.

◆ RemoveItemsFromScene()

virtual void iqt2d::CSelectableSceneExtenderComp::RemoveItemsFromScene ( iqt2d::IViewProvider * providerPtr )

overridevirtual

Called when items should be removed from specified scene.

Implements iqt2d::IViewExtender.

The documentation for this class was generated from the following file:

Acf/Include/iqt2d/CSelectableSceneExtenderComp.h
