idoc::CSerializedUndoManagerComp Class Reference

Implements multi-level UNDO mechanism based on storing complete object state at each step using serialization. More...

#include <CSerializedUndoManagerComp.h>

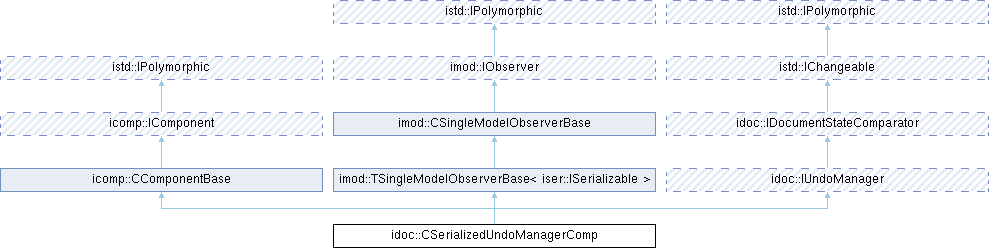

Inheritance diagram for idoc::CSerializedUndoManagerComp:

Classes
struct	UndoStepInfo

Public Types
typedef icomp::CComponentBase	BaseClass
typedef imod::TSingleModelObserverBase< iser::ISerializable >	BaseClass2
Public Types inherited from imod::TSingleModelObserverBase< iser::ISerializable >
typedef CSingleModelObserverBase	BaseClass
typedef iser::ISerializable	ModelType
Public Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType
Public Types inherited from idoc::IDocumentStateComparator
enum	DocumentChangeFlag { DCF_UNKNOWN , DCF_EQUAL , DCF_DIFFERENT }
	Flag indicating the relationship between current and stored document state. More...
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CSerializedUndoManagerComp ()
virtual int	GetAvailableUndoSteps () const override
	Get number of available UNDO levels.
virtual int	GetAvailableRedoSteps () const override
	Get number of available REDO levels.
virtual QString	GetUndoLevelDescription (int stepIndex) const override
	Get description of single UNDO level.
virtual QString	GetRedoLevelDescription (int stepIndex) const override
	Get description of single REDO level.
virtual void	ResetUndo () override
	Reset all UNDO and REDO steps.
virtual bool	DoUndo (int steps=1) override
	Process UNDO steps.
virtual bool	DoRedo (int steps=1) override
	Process REDO steps.
virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.
virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.
Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.
virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.
virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.
virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.
virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Public Member Functions inherited from imod::TSingleModelObserverBase< iser::ISerializable >
	TSingleModelObserverBase ()
iser::ISerializable *	GetObservedObject () const
	Get instance of observed object.
iser::ISerializable *	GetObjectPtr () const
	Get instance of observed object.
bool	AttachOrSetObject (iser::ISerializable *objectPtr)
	Attach to model of object or set object pointer, if no connection is possible.
Public Member Functions inherited from imod::CSingleModelObserverBase
	CSingleModelObserverBase ()
virtual	~CSingleModelObserverBase ()
imod::IModel *	GetObservedModel () const
	Get access to observed model.
imod::IModel *	GetModelPtr () const
	Get access to observed model.
void	EnsureModelDetached ()
	Make sure this observer is detached.
void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.
virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Protected Types
typedef istd::TDelPtr< iser::CMemoryWriteArchive >	UndoArchivePtr
typedef QList< UndoStepInfo >	UndoList

Protected Member Functions
bool	DoListShift (int steps, UndoList &fromList, UndoList &toList)
virtual iser::ISerializable *	CastFromModel (imod::IModel *modelPtr) const override
virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.
virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.
virtual bool	HasStoredDocumentState () const override
	Check if there is stored document state available.
virtual bool	StoreDocumentState () override
	Store state of the document.
virtual bool	RestoreDocumentState () override
	Restore last stored document state.
virtual DocumentChangeFlag	GetDocumentChangeFlag () const override
	Check if document state is the same as stored state.
virtual void	OnComponentDestroyed () override
Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.
virtual void	OnComponentCreated ()
virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.
Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.
virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet)
	Called on update of observed model.
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)
static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())
Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Implements multi-level UNDO mechanism based on storing complete object state at each step using serialization.

This component provides a complete undo/redo implementation by serializing the entire document state before each change. It maintains separate undo and redo stacks and automatically manages memory usage by limiting the buffer size.

The undo manager observes the document model and automatically captures state snapshots when changes occur. It integrates with the ACF model/observer pattern to track when undo/redo availability changes.

Component Attributes

• MaxBufferSize - Maximum memory size for undo buffer in megabytes (default: 100 MB)

Registered Interfaces

• idoc::IUndoManager - Provides undo/redo operations
• idoc::IDocumentStateComparator - Allows state comparison
• imod::IObserver - Observes document changes

Configuration Example

CSerializedUndoManagerComp {
       MaxBufferSize = 50  // Limit undo buffer to 50 MB
}

Usage with Document Template

CSingleDocumentTemplateComp {
       DocumentTypeId = "TextDocument"
       DocumentFactory = CTextDocumentComp
       UndoManager = CSerializedUndoManagerComp {
              MaxBufferSize = 100
       }
}

How It Works

The undo manager:

1. Attaches to a serializable document as an observer
2. Before each document change, serializes current state to memory
3. Stores serialized state in undo stack with a description
4. On undo, deserializes previous state from stack
5. Manages memory by removing oldest undo steps when buffer is full

Usage Example

// Get undo manager for document
idoc::IUndoManager* undoMgr = GetUndoManager();

// Make changes to document
document->SetText("New text");

// Undo manager automatically captured state before change
if (undoMgr->GetAvailableUndoSteps() > 0) {
       QString desc = undoMgr->GetUndoLevelDescription(0);
       qDebug() << "Can undo:" << desc;
       undoMgr->DoUndo();
}

// After undo, redo becomes available
if (undoMgr->GetAvailableRedoSteps() > 0) {
       undoMgr->DoRedo();
}

// Clear all undo history
undoMgr->ResetUndo();

// Check if document has unsaved changes
idoc::IDocumentStateComparator::DocumentChangeFlag flag =
       undoMgr->GetDocumentChangeFlag();
if (flag == idoc::IDocumentStateComparator::DCF_DIFFERENT) {
       // Document has been modified
}

Note

The document must implement iser::ISerializable for this undo manager to work.

Memory usage is automatically managed based on MaxBufferSize setting.

Each undo step stores the complete document state, so large documents may use significant memory.

See also

IUndoManager, IDocumentStateComparator

Definition at line 104 of file CSerializedUndoManagerComp.h.

Member Typedef Documentation

BaseClass

typedef icomp::CComponentBase idoc::CSerializedUndoManagerComp::BaseClass

Definition at line 110 of file CSerializedUndoManagerComp.h.

BaseClass2

typedef imod::TSingleModelObserverBase<iser::ISerializable> idoc::CSerializedUndoManagerComp::BaseClass2

Definition at line 111 of file CSerializedUndoManagerComp.h.

UndoArchivePtr

typedef istd::TDelPtr<iser::CMemoryWriteArchive> idoc::CSerializedUndoManagerComp::UndoArchivePtr

protected

Definition at line 136 of file CSerializedUndoManagerComp.h.

UndoList

typedef QList<UndoStepInfo> idoc::CSerializedUndoManagerComp::UndoList

protected

Definition at line 142 of file CSerializedUndoManagerComp.h.

Constructor & Destructor Documentation

CSerializedUndoManagerComp()

idoc::CSerializedUndoManagerComp::CSerializedUndoManagerComp

(

)

Member Function Documentation

AfterUpdate()

virtual void idoc::CSerializedUndoManagerComp::AfterUpdate ( imod::IModel *  modelPtr, const istd::IChangeable::ChangeSet &  changeSet  )

overrideprotectedvirtual

Callback invoked after an update of the observer's content occurs.

This is the primary notification method where observers react to model changes. It's called after the model has finished updating its state. The implementation should examine the changeSet to determine what changed and update accordingly.

Parameters

modelPtr	Pointer to the model that has changed
changeSet	Contains information about what changed in the model. Use changeSet.Contains(changeId) to check for specific changes. The changeSet respects the mask specified in OnModelAttached().

Note

This is typically where you update your GUI, recalculate derived values, or trigger other dependent operations.

Keep this method fast - it's called frequently and may block the UI thread.

Use the changeSet to perform incremental updates rather than refreshing everything.

virtual void AfterUpdate(IModel* modelPtr,
                        const istd::IChangeable::ChangeSet& changeSet)
{
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return;

       // Selective update based on what changed
       if (changeSet.Contains(CMyModel::CF_NAME_CHANGED)) {
              m_nameLabel->setText(model->GetName());
       }
       if (changeSet.Contains(CMyModel::CF_VALUE_CHANGED)) {
              m_valueSpinBox->setValue(model->GetValue());
              RecalculateDependentValues();
       }

       // Re-enable signals if blocked in BeforeUpdate
       if (m_widget) {
              m_widget->blockSignals(false);
       }
}

See also

BeforeUpdate(), OnModelAttached()

Reimplemented from imod::CSingleModelObserverBase.

BeforeUpdate()

virtual void idoc::CSerializedUndoManagerComp::BeforeUpdate ( imod::IModel *  modelPtr )

overrideprotectedvirtual

Callback invoked before an update of the observer's content occurs.

This method is called at the start of a model update cycle, before any data actually changes. It allows the observer to prepare for the update, such as saving current state for comparison or disabling UI updates temporarily.

Parameters

modelPtr

Pointer to the model that is about to change

Warning

In some error cases, this method may be called without a subsequent AfterUpdate() call. Don't rely on AfterUpdate() always being called.

Note

This method is optional to implement - if you don't need preparation logic, just provide an empty implementation.

virtual void BeforeUpdate(IModel* modelPtr)
{
       // Example: Block signals to prevent multiple GUI updates
       if (m_widget) {
              m_widget->blockSignals(true);
       }

       // Example: Save state for delta comparison
       m_previousValue = m_currentValue;
}

See also

AfterUpdate()

Reimplemented from imod::CSingleModelObserverBase.

CastFromModel()

virtual iser::ISerializable * idoc::CSerializedUndoManagerComp::CastFromModel ( imod::IModel *  modelPtr ) const

overrideprotectedvirtual

Reimplemented from imod::TSingleModelObserverBase< iser::ISerializable >.

DoListShift()

bool idoc::CSerializedUndoManagerComp::DoListShift ( int  steps, UndoList &  fromList, UndoList &  toList  )

protected

DoRedo()

virtual bool idoc::CSerializedUndoManagerComp::DoRedo ( int  steps = 1 )

overridevirtual

Process REDO steps.

Parameters

steps

Number of redo levels to execute (default is 1).

Returns

True if redo was successful, false otherwise.

Implements idoc::IUndoManager.

DoUndo()

virtual bool idoc::CSerializedUndoManagerComp::DoUndo ( int  steps = 1 )

overridevirtual

Process UNDO steps.

Parameters

steps

Number of undo levels to execute (default is 1).

Returns

True if undo was successful, false otherwise.

Implements idoc::IUndoManager.

GetAvailableRedoSteps()

virtual int idoc::CSerializedUndoManagerComp::GetAvailableRedoSteps ( ) const

overridevirtual

Get number of available REDO levels.

Returns

Number of REDO levels, or 0 if there is no REDO available.

REDO levels are created when undo operations are performed.

Implements idoc::IUndoManager.

GetAvailableUndoSteps()

virtual int idoc::CSerializedUndoManagerComp::GetAvailableUndoSteps ( ) const

overridevirtual

Get number of available UNDO levels.

Returns

Number of UNDO levels, or 0 if there is no UNDO available.

Each level represents a separate change that can be undone.

Implements idoc::IUndoManager.

GetDocumentChangeFlag()

virtual DocumentChangeFlag idoc::CSerializedUndoManagerComp::GetDocumentChangeFlag ( ) const

overrideprotectedvirtual

Check if document state is the same as stored state.

Returns

Flag indicating whether current state matches stored state.

Implements idoc::IDocumentStateComparator.

GetRedoLevelDescription()

virtual QString idoc::CSerializedUndoManagerComp::GetRedoLevelDescription ( int  stepIndex ) const

overridevirtual

Get description of single REDO level.

Parameters

stepIndex

Index of the redo step (0 = most recent).

Returns

Human-readable description of what will be redone.

Implements idoc::IUndoManager.

GetUndoLevelDescription()

virtual QString idoc::CSerializedUndoManagerComp::GetUndoLevelDescription ( int  stepIndex ) const

overridevirtual

Get description of single UNDO level.

Parameters

stepIndex

Index of the undo step (0 = most recent).

Returns

Human-readable description of what will be undone.

Implements idoc::IUndoManager.

HasStoredDocumentState()

virtual bool idoc::CSerializedUndoManagerComp::HasStoredDocumentState ( ) const

overrideprotectedvirtual

Check if there is stored document state available.

Returns

True if a document state has been stored and is available for comparison.

Implements idoc::IDocumentStateComparator.

OnComponentDestroyed()

virtual void idoc::CSerializedUndoManagerComp::OnComponentDestroyed ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

OnModelAttached()

virtual bool idoc::CSerializedUndoManagerComp::OnModelAttached ( imod::IModel *  modelPtr, istd::IChangeable::ChangeSet &  changeMask  )

overridevirtual

Callback invoked when an observable model is about to be attached to this observer.

This method is called by the model when attempting to establish an observer relationship. The implementation should:

1. Validate that the model is of an acceptable type
2. Set the changeMask to specify which changes to monitor
3. Return true to accept the attachment, or false to reject it

Parameters

modelPtr	Pointer to the model object being attached. Never nullptr.
changeMask	Output parameter where the observer specifies which change types it wants to be notified about. Set the appropriate change flags using changeMask.Set(changeId). An empty mask means the observer wants all changes.

Returns

true if the model is accepted and attachment succeeds, false to reject the attachment (e.g., if the model is of incompatible type).

Note

After successful attachment, the observer should initialize its state based on the current model data.

The changeMask allows filtering notifications for better performance. Only changes matching the mask will trigger AfterUpdate() calls.

virtual bool OnModelAttached(IModel* modelPtr,
                            istd::IChangeable::ChangeSet& changeMask)
{
       // Type check
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return false;

       // Set up change filtering
       changeMask.Set(CMyModel::CF_DATA_CHANGED);
       changeMask.Set(CMyModel::CF_STATUS_CHANGED);
       // Don't set CF_INTERNAL_CHANGED - we don't care about those

       // Initialize view from current model state
       UpdateViewFromModel(model);
       return true;
}

See also

OnModelDetached(), IsModelAttached(), AfterUpdate()

Reimplemented from imod::TSingleModelObserverBase< iser::ISerializable >.

OnModelDetached()

virtual bool idoc::CSerializedUndoManagerComp::OnModelDetached ( imod::IModel *  modelPtr )

overridevirtual

Callback invoked when an observable model is about to be detached from this observer.

This method is called when the observer-model relationship is being terminated, either explicitly or because the model is being destroyed. The implementation should clean up any state or resources related to this model.

Parameters

modelPtr

Pointer to the model object being detached

Returns

true if the detachment was handled successfully, false otherwise

Note

After this call, the observer should not access the model pointer anymore.

This method may be called even if OnModelAttached() previously returned false.

Clean up any cached data or references to this model.

virtual bool OnModelDetached(IModel* modelPtr)
{
       if (m_currentModel == modelPtr) {
              // Clear any cached data
              m_cachedData.clear();
              m_currentModel = nullptr;

              // Update UI to show no model is attached
              ClearDisplay();
              return true;
       }
       return false;
}

See also

OnModelAttached(), IsModelAttached()

Reimplemented from imod::TSingleModelObserverBase< iser::ISerializable >.

ResetUndo()

virtual void idoc::CSerializedUndoManagerComp::ResetUndo ( )

overridevirtual

Reset all UNDO and REDO steps.

This clears the entire undo/redo history. Use with caution.

Implements idoc::IUndoManager.

RestoreDocumentState()

virtual bool idoc::CSerializedUndoManagerComp::RestoreDocumentState ( )

overrideprotectedvirtual

Restore last stored document state.

Returns

True if state was successfully restored, false otherwise.

This reverts the document to the last stored state, effectively undoing all changes made since the state was stored.

Implements idoc::IDocumentStateComparator.

StoreDocumentState()

virtual bool idoc::CSerializedUndoManagerComp::StoreDocumentState ( )

overrideprotectedvirtual

Store state of the document.

Returns

True if state was successfully stored, false otherwise.

This creates a snapshot of the current document state that can be used for comparison or restoration later.

Implements idoc::IDocumentStateComparator.

---

The documentation for this class was generated from the following file:

• Acf/Include/idoc/CSerializedUndoManagerComp.h
