ilog::TLoggerCompWrap< Base > Class Template Reference

Template wrapper adding comprehensive logging functionality to components. More...

#include <TLoggerCompWrap.h>

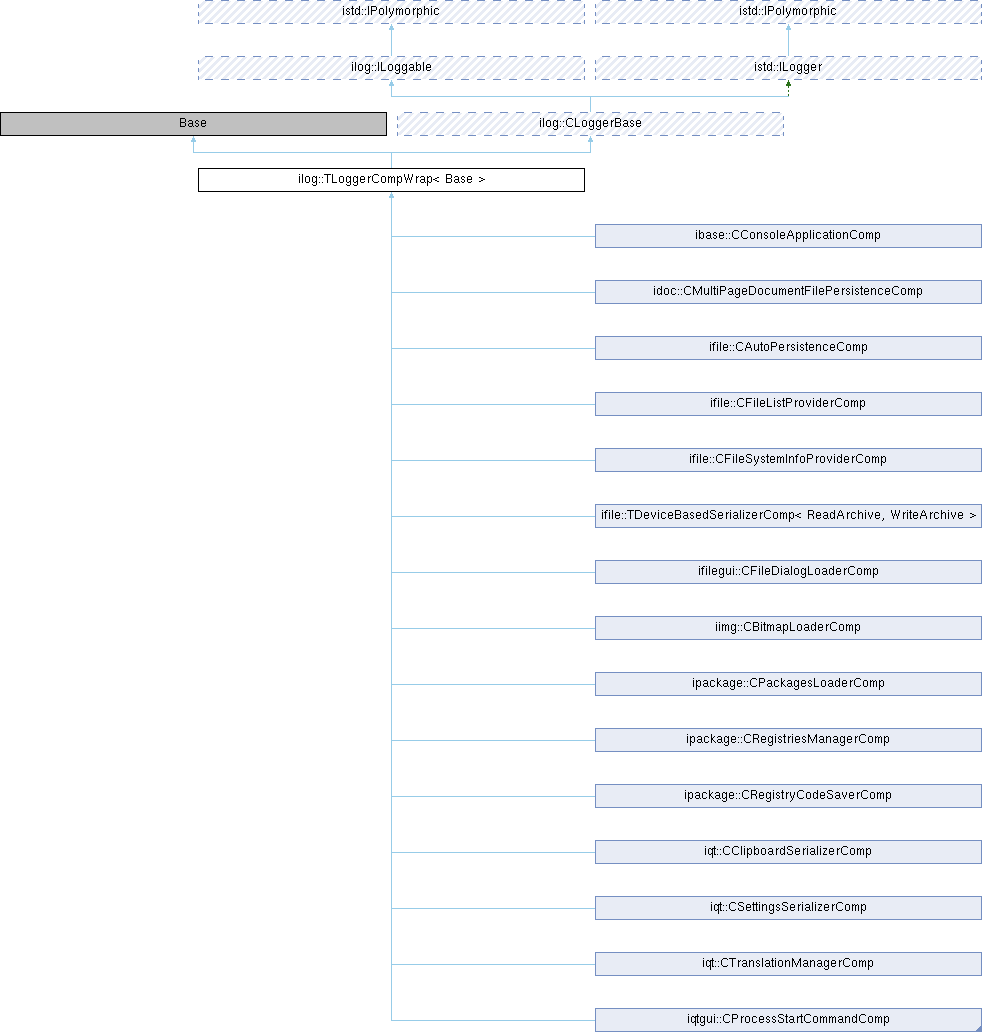

Inheritance diagram for ilog::TLoggerCompWrap< Base >:

Public Types
typedef Base	BaseClass
	Base class typedef for component functionality.
typedef ilog::CLoggerBase	BaseClass2
	Base class typedef for logger functionality.

Protected Member Functions
bool	IsVerboseEnabled (int tracingLevel=0) const
	Check if verbose messages are enabled for a given tracing level.
void	SendVerboseMessage (const QString &message, const QString &messageSource=QString(), int tracingLevel=0) const
	Send a verbose message if enabled.
virtual void	DecorateMessage (istd::IInformationProvider::InformationCategory category, int id, int flags, QString &message, QString &messageSource) const override
	Decorate message before sending.
virtual void	OnComponentCreated () override
	Called when component is created.
virtual void	OnComponentDestroyed () override
	Called when component is destroyed.
Protected Member Functions inherited from ilog::CLoggerBase
bool	SendInfoMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send info message to log.
bool	SendWarningMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send warning message to log.
bool	SendErrorMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send error message to log.
bool	SendCriticalMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send critical message to log.
bool	SendInfoMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once info message to log.
bool	SendWarningMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once warning message to log.
bool	SendErrorMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once error message to log.
bool	SendCriticalMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once critical message to log.
bool	SendUserMessage (const istd::IInformationProvider *messagePtr) const
	Send message with user object.
bool	AllowMessageOnceAgain (int id)
	Reset message lock.
virtual bool	IsLogConsumed (const istd::IInformationProvider::InformationCategory *categoryPtr=NULL, const int *flagsPtr=NULL) const override
	Check if any log message is consumed.
virtual bool	SendLogMessage (istd::IInformationProvider::InformationCategory category, int id, const QString &message, const QString &messageSource, int flags=0) const override
	Send any message to log.

Additional Inherited Members
Public Member Functions inherited from ilog::CLoggerBase
	CLoggerBase ()
	Default constructor.
virtual void	SetLogPtr (ilog::IMessageConsumer *logPtr) override
	Attach a message consumer for logging.
virtual ilog::IMessageConsumer *	GetLogPtr () const override
	Get the currently attached message consumer.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Protected Attributes inherited from ilog::CLoggerBase
QSet< int >	m_onceMessageIds

Detailed Description

template<class Base>
class ilog::TLoggerCompWrap< Base >

Template wrapper adding comprehensive logging functionality to components.

TLoggerCompWrap combines any component base class with CLoggerBase to provide full logging capabilities. It automatically integrates with the ACF component system, managing log consumer connections, verbose message support, tracing configuration, and message source decoration.

This is one of the most commonly used templates in the ilog library, providing the standard way to add logging to ACF components.

Template Parameters

Base	Base component class to extend with logging (typically icomp::CComponentBase or a derived class)

Features

• Automatic log consumer connection via "Log" reference
• Verbose message support with configurable enable/disable
• Tracing level integration for granular verbose control
• Automatic component ID decoration of message sources
• All CLoggerBase convenience methods (SendInfoMessage, SendErrorMessage, etc.)
• "Send once" message variants to prevent log spam
• Customizable message decoration

Component References

• Log: Message consumer to receive log messages (IMessageConsumer)
• TracingConfiguration: Optional tracing level control (ITracingConfiguration)

Component Attributes

• EnableVerbose: Enable/disable verbose messages (default: false)
• ShowComponentId: Include component ID in message source (default: true)

Usage Example

// Define component with logging
class MyComponent : public ilog::TLoggerCompWrap<icomp::CComponentBase>
{
public:
    typedef ilog::TLoggerCompWrap<icomp::CComponentBase> BaseClass;

    I_BEGIN_COMPONENT(MyComponent);
        // ... component definition ...
    I_END_COMPONENT;

    void ProcessData() {
        // Standard logging
        SendInfoMessage(1001, "Processing started", "ProcessData");

        try {
            // ... processing ...
            SendInfoMessage(1002, "Processing completed", "ProcessData");
        }
        catch (const std::exception& e) {
            SendErrorMessage(1003,
                QString("Processing failed: %1").arg(e.what()),
                "ProcessData");
        }
    }

    void DetailedOperation() {
        // Verbose message (only if enabled)
        SendVerboseMessage("Starting detailed operation", "DetailedOperation");

        // Tracing level 1 (only if tracing >= 1)
        if (IsVerboseEnabled(1)) {
            SendVerboseMessage("Step 1 complete", "DetailedOperation", 1);
        }

        // Tracing level 2 (only if tracing >= 2)
        if (IsVerboseEnabled(2)) {
            SendVerboseMessage("Very detailed info", "DetailedOperation", 2);
        }
    }
};

Component Configuration

<Component Id="MyComp" Class="MyComponent">
    <Reference Id="Log" Value="MainLog"/>
    <Reference Id="TracingConfiguration" Value="GlobalTracing"/>
    <Attribute Id="EnableVerbose" Value="true"/>
    <Attribute Id="ShowComponentId" Value="true"/>
</Component>

Message Source Decoration

When ShowComponentId is enabled, messages are automatically prefixed with the component ID:

// Without ShowComponentId:
"Processing started - ProcessData"

// With ShowComponentId:
"Processing started - MyComp (ProcessData)"

Type Aliases

For convenience, a typedef is provided for the common case:

typedef ilog::TLoggerCompWrap<icomp::CComponentBase> CLoggerComponentBase;

// Usage:
class MyComponent : public ilog::CLoggerComponentBase
{
    // ... component implementation ...
};

See also

ilog::CLoggerBase, ilog::ITracingConfiguration, ilog::CLoggerComponentBase

Definition at line 128 of file TLoggerCompWrap.h.

Member Typedef Documentation

BaseClass

template<class Base >

typedef Base ilog::TLoggerCompWrap< Base >::BaseClass

Base class typedef for component functionality.

Definition at line 134 of file TLoggerCompWrap.h.

BaseClass2

template<class Base >

typedef ilog::CLoggerBase ilog::TLoggerCompWrap< Base >::BaseClass2

Base class typedef for logger functionality.

Definition at line 137 of file TLoggerCompWrap.h.

Member Function Documentation

DecorateMessage()

template<class Base >

void ilog::TLoggerCompWrap< Base >::DecorateMessage ( istd::IInformationProvider::InformationCategory  category, int  id, int  flags, QString &  message, QString &  messageSource  ) const

overrideprotectedvirtual

Decorate message before sending.

Adds component ID to message source if ShowComponentId is enabled. Called automatically before messages are sent.

Override to add custom decoration:

virtual void DecorateMessage(
            istd::IInformationProvider::InformationCategory category,
            int id,
            int flags,
            QString& message,
            QString& messageSource) const override
{
    BaseClass::DecorateMessage(category, id, flags, message, messageSource);
    // Add custom decoration
    message = QString("[%1] %2").arg(GetCustomPrefix()).arg(message);
}

Parameters

category	Message category
id	Message ID
flags	Message flags
message	Message text (can be modified)
messageSource	Message source (can be modified)

Reimplemented from ilog::CLoggerBase.

Definition at line 304 of file TLoggerCompWrap.h.

References icomp::IComponentContext::GetContextId(), and NULL.

Referenced by ifile::TDeviceBasedSerializerComp< ReadArchive, WriteArchive >::ReadArchiveEx::SendLogMessage(), and ifile::TDeviceBasedSerializerComp< ReadArchive, WriteArchive >::WriteArchiveEx::SendLogMessage().

IsVerboseEnabled()

template<class Base >

bool ilog::TLoggerCompWrap< Base >::IsVerboseEnabled ( int  tracingLevel = 0 ) const

protected

Check if verbose messages are enabled for a given tracing level.

Determines whether verbose messages at the specified tracing level should be output. Checks both the EnableVerbose attribute and the tracing configuration (if present).

Parameters

tracingLevel

Tracing level to check (0=always if enabled, higher=more selective)

Returns

true if verbose messages at this level are enabled

Example

if (IsVerboseEnabled(1)) {
    SendVerboseMessage("Detailed diagnostic", QString(), 1);
}

See also

SendVerboseMessage()

Definition at line 276 of file TLoggerCompWrap.h.

References istd::IInformationProvider::IC_NONE.

OnComponentCreated()

template<class Base >

void ilog::TLoggerCompWrap< Base >::OnComponentCreated ( )

overrideprotectedvirtual

Called when component is created.

Automatically connects the log consumer from the "Log" reference.

Note

Override to add initialization, but always call base class:

virtual void OnComponentCreated() override {
    // Custom initialization
    BaseClass::OnComponentCreated();
}

Reimplemented in idoc::CMultiPageDocumentFilePersistenceComp, ifile::CAutoPersistenceComp, ifile::CFileListProviderComp, ifile::CFileSerializerCompBase, ifile::CFileSystemInfoProviderComp, ifile::CGeneratedFileNameParamComp, ifilegui::CExternalOpenDocumentCommandCompBase, ifilegui::CFileDialogLoaderComp, ipackage::CPackagesLoaderComp, ipackage::CRegistriesManagerComp, iqt::CTranslationManagerComp, iqtdoc::CExternalOpenDocumentCommandComp, and iqtgui::CProcessStartCommandComp.

Definition at line 330 of file TLoggerCompWrap.h.

OnComponentDestroyed()

template<class Base >

void ilog::TLoggerCompWrap< Base >::OnComponentDestroyed ( )

overrideprotectedvirtual

Called when component is destroyed.

Automatically disconnects the log consumer for cleanup.

Note

Override to add cleanup, but always call base class:

virtual void OnComponentDestroyed() override {
    // Custom cleanup
    BaseClass::OnComponentDestroyed();
}

Reimplemented in ibase::CConsoleApplicationComp, ifile::CAutoPersistenceComp, ifile::CFileListProviderComp, ifile::CFileSystemInfoProviderComp, ifile::CGeneratedFileNameParamComp, iqt::CTranslationManagerComp, and iqtdoc::CExternalOpenDocumentCommandComp.

Definition at line 341 of file TLoggerCompWrap.h.

References NULL.

SendVerboseMessage()

template<class Base >

void ilog::TLoggerCompWrap< Base >::SendVerboseMessage ( const QString &  message, const QString &  messageSource = QString(), int  tracingLevel = 0  ) const

protected

Send a verbose message if enabled.

Convenience method for sending verbose/diagnostic messages. The message is only sent if IsVerboseEnabled(tracingLevel) returns true.

Verbose messages use category IC_NONE and are typically used for diagnostic output that's not always needed.

Parameters

message	Message text
messageSource	Optional message source (default: empty)
tracingLevel	Tracing level (0=always if enabled, higher=more selective)

Example

// Basic verbose message
SendVerboseMessage("Operation started");

// With source
SendVerboseMessage("Processing item 5", "ProcessItems");

// With tracing level
SendVerboseMessage("Very detailed info", "Details", 2);

See also

IsVerboseEnabled()

Definition at line 293 of file TLoggerCompWrap.h.

References istd::IInformationProvider::IC_NONE.

---

The documentation for this class was generated from the following file:

• Acf/Include/ilog/TLoggerCompWrap.h
