ifilegui::CExternalOpenDocumentCommandCompBase Class Reference

#include <CExternalOpenDocumentCommandCompBase.h>

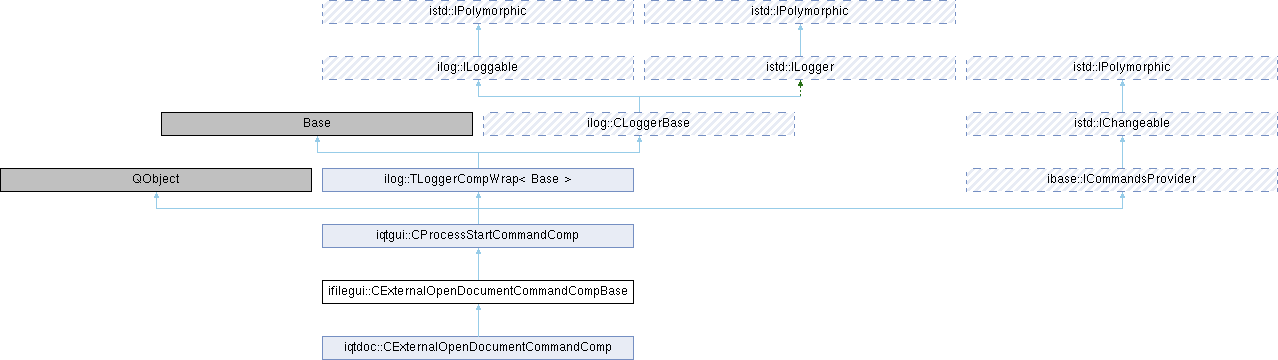

Inheritance diagram for ifilegui::CExternalOpenDocumentCommandCompBase:

Public Types
typedef iqtgui::CProcessStartCommandComp	BaseClass
Public Types inherited from iqtgui::CProcessStartCommandComp
enum	GroupId { GI_START_PROCESS_COMMAND = 0x800 }
typedef ilog::CLoggerComponentBase	BaseClass
Public Types inherited from ilog::TLoggerCompWrap< Base >
typedef Base	BaseClass
	Base class typedef for component functionality.
typedef ilog::CLoggerBase	BaseClass2
	Base class typedef for logger functionality.
Public Types inherited from ibase::ICommandsProvider
enum	ChangeFlags { CF_COMMANDS = 0x62b7e8 }
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Protected Member Functions
virtual const istd::IChangeable *	GetDocumentPtr () const =0
virtual bool	StartProcess (const QStringList &arguments) override
virtual void	OnComponentCreated () override
	Called when component is created.
Protected Member Functions inherited from iqtgui::CProcessStartCommandComp
virtual void	CreateMenu ()
virtual QStringList	GetProcessArguments () const
Protected Member Functions inherited from ilog::TLoggerCompWrap< Base >
bool	IsVerboseEnabled (int tracingLevel=0) const
	Check if verbose messages are enabled for a given tracing level.
void	SendVerboseMessage (const QString &message, const QString &messageSource=QString(), int tracingLevel=0) const
	Send a verbose message if enabled.
virtual void	DecorateMessage (istd::IInformationProvider::InformationCategory category, int id, int flags, QString &message, QString &messageSource) const override
	Decorate message before sending.
virtual void	OnComponentDestroyed () override
	Called when component is destroyed.
Protected Member Functions inherited from ilog::CLoggerBase
bool	SendInfoMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send info message to log.
bool	SendWarningMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send warning message to log.
bool	SendErrorMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send error message to log.
bool	SendCriticalMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send critical message to log.
bool	SendInfoMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once info message to log.
bool	SendWarningMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once warning message to log.
bool	SendErrorMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once error message to log.
bool	SendCriticalMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once critical message to log.
bool	SendUserMessage (const istd::IInformationProvider *messagePtr) const
	Send message with user object.
bool	AllowMessageOnceAgain (int id)
	Reset message lock.
virtual bool	IsLogConsumed (const istd::IInformationProvider::InformationCategory *categoryPtr=NULL, const int *flagsPtr=NULL) const override
	Check if any log message is consumed.
virtual bool	SendLogMessage (istd::IInformationProvider::InformationCategory category, int id, const QString &message, const QString &messageSource, int flags=0) const override
	Send any message to log.
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Additional Inherited Members
Public Member Functions inherited from iqtgui::CProcessStartCommandComp
	CProcessStartCommandComp ()
virtual const ibase::IHierarchicalCommand *	GetCommands () const override
	Get list of menu commands.
Public Member Functions inherited from ilog::CLoggerBase
	CLoggerBase ()
	Default constructor.
virtual void	SetLogPtr (ilog::IMessageConsumer *logPtr) override
	Attach a message consumer for logging.
virtual ilog::IMessageConsumer *	GetLogPtr () const override
	Get the currently attached message consumer.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.
Protected Attributes inherited from iqtgui::CProcessStartCommandComp
iqtgui::CHierarchicalCommand	m_rootCommands
iqtgui::CHierarchicalCommand	m_startProcessCommand
Protected Attributes inherited from ilog::CLoggerBase
QSet< int >	m_onceMessageIds

Detailed Description

Definition at line 15 of file CExternalOpenDocumentCommandCompBase.h.

Member Typedef Documentation

BaseClass

typedef iqtgui::CProcessStartCommandComp ifilegui::CExternalOpenDocumentCommandCompBase::BaseClass

Definition at line 18 of file CExternalOpenDocumentCommandCompBase.h.

Member Function Documentation

GetDocumentPtr()

virtual const istd::IChangeable * ifilegui::CExternalOpenDocumentCommandCompBase::GetDocumentPtr ( ) const

protectedpure virtual

Implemented in iqtdoc::CExternalOpenDocumentCommandComp.

OnComponentCreated()

virtual void ifilegui::CExternalOpenDocumentCommandCompBase::OnComponentCreated ( )

overrideprotectedvirtual

Called when component is created.

Automatically connects the log consumer from the "Log" reference.

Note

Override to add initialization, but always call base class:

virtual void OnComponentCreated() override {
    // Custom initialization
    BaseClass::OnComponentCreated();
}

Reimplemented from iqtgui::CProcessStartCommandComp.

Reimplemented in iqtdoc::CExternalOpenDocumentCommandComp.

StartProcess()

virtual bool ifilegui::CExternalOpenDocumentCommandCompBase::StartProcess ( const QStringList &  arguments )

overrideprotectedvirtual

Reimplemented from iqtgui::CProcessStartCommandComp.

---

The documentation for this class was generated from the following file:

• Acf/Include/ifilegui/CExternalOpenDocumentCommandCompBase.h
