ifile::CAutoPersistenceComp Class Reference

The component for automatic object persistence. More...

#include <CAutoPersistenceComp.h>

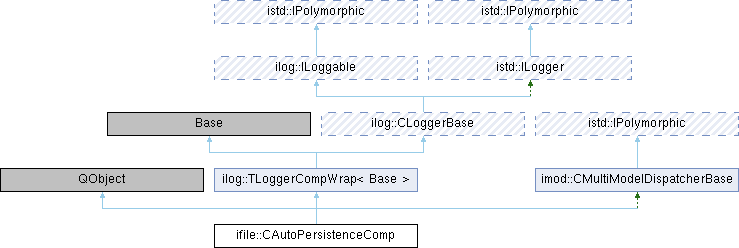

Inheritance diagram for ifile::CAutoPersistenceComp:

Public Types
enum	ModelIds { MI_OBJECT , MI_FILEPATH , MI_RUNTIME_STATUS }
typedef ilog::CLoggerComponentBase	BaseClass
typedef imod::CMultiModelDispatcherBase	BaseClass2
Public Types inherited from ilog::TLoggerCompWrap< Base >
typedef Base	BaseClass
	Base class typedef for component functionality.
typedef ilog::CLoggerBase	BaseClass2
	Base class typedef for logger functionality.

Public Member Functions
	CAutoPersistenceComp ()
	Default constructor.
Public Member Functions inherited from ilog::CLoggerBase
	CLoggerBase ()
	Default constructor.
virtual void	SetLogPtr (ilog::IMessageConsumer *logPtr) override
	Attach a message consumer for logging.
virtual ilog::IMessageConsumer *	GetLogPtr () const override
	Get the currently attached message consumer.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
void	SaveObjectSnapshot ()
	Store object copy in a separate thread.
virtual bool	LoadObject (const QString &filePath)
	Load working object data from some file.
virtual bool	StoreObject (const istd::IChangeable &object)
	Store some object data to working file.
virtual void	OnComponentCreated () override
	Called when component is created.
virtual void	OnComponentDestroyed () override
	Called when component is destroyed.
virtual void	OnModelChanged (int modelId, const istd::IChangeable::ChangeSet &changeSet) override
	Called when some model observed by dispatcher will be changed.
Protected Member Functions inherited from ilog::TLoggerCompWrap< Base >
bool	IsVerboseEnabled (int tracingLevel=0) const
	Check if verbose messages are enabled for a given tracing level.
void	SendVerboseMessage (const QString &message, const QString &messageSource=QString(), int tracingLevel=0) const
	Send a verbose message if enabled.
virtual void	DecorateMessage (istd::IInformationProvider::InformationCategory category, int id, int flags, QString &message, QString &messageSource) const override
	Decorate message before sending.
Protected Member Functions inherited from ilog::CLoggerBase
bool	SendInfoMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send info message to log.
bool	SendWarningMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send warning message to log.
bool	SendErrorMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send error message to log.
bool	SendCriticalMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send critical message to log.
bool	SendInfoMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once info message to log.
bool	SendWarningMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once warning message to log.
bool	SendErrorMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once error message to log.
bool	SendCriticalMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once critical message to log.
bool	SendUserMessage (const istd::IInformationProvider *messagePtr) const
	Send message with user object.
bool	AllowMessageOnceAgain (int id)
	Reset message lock.
virtual bool	IsLogConsumed (const istd::IInformationProvider::InformationCategory *categoryPtr=NULL, const int *flagsPtr=NULL) const override
	Check if any log message is consumed.
virtual bool	SendLogMessage (istd::IInformationProvider::InformationCategory category, int id, const QString &message, const QString &messageSource, int flags=0) const override
	Send any message to log.
bool	RegisterModel (IModel *modelPtr, int modelId=0, const istd::IChangeable::ChangeSet &relevantFlags=istd::IChangeable::GetAllChanges())
	Register the data model to be observed.
void	UnregisterModel (int modelId=0)
	Unregister the data model object.
void	UnregisterAllModels ()
	Unregister all observed data objects.
template<class Object >
Object *	GetObjectAt (int modelId) const
	Get concrete object instance of the obsered model.

Additional Inherited Members
Protected Attributes inherited from ilog::CLoggerBase
QSet< int >	m_onceMessageIds

Detailed Description

The component for automatic object persistence.

With the help of this component data objects can be backed up at specific time points and restored. The data object that should be restored or backed up, will be connected via component reference. The backup or restoring of data is done according to the component configuration, that is given by the component's attributes. Enable RestoreOnBegin attribute if you want to restore the object from the file during component initialization. Enable StoreOnEnd attribute if you want to save the object to the file during component de-initialization. Enable StoreOnChange attribute if you want to save the object to the file each time if the object data was changed. Also you can specify some time interval for permanently data storing. If this parameter is set, then the object will be stored to the file in the given time interval, but only if the object data was changed.

Note

If the time interval for the object storing is set, the StoreOnChange attribute will be ignored.

Please note, that this component doesn't provide any public interfaces. The data object will be attached to the internal observer during the initialization phase of the component. To enforce the instantiation of this component, you should activate 'Automatically create instance' flag in the Compositor.

Definition at line 44 of file CAutoPersistenceComp.h.

Member Typedef Documentation

BaseClass

typedef ilog::CLoggerComponentBase ifile::CAutoPersistenceComp::BaseClass

Definition at line 52 of file CAutoPersistenceComp.h.

BaseClass2

typedef imod::CMultiModelDispatcherBase ifile::CAutoPersistenceComp::BaseClass2

Definition at line 53 of file CAutoPersistenceComp.h.

Member Enumeration Documentation

ModelIds

enum ifile::CAutoPersistenceComp::ModelIds

Enumerator
MI_OBJECT	Object was changed.
MI_FILEPATH	File path was changed.
MI_RUNTIME_STATUS	Runtime status was changed.

Definition at line 55 of file CAutoPersistenceComp.h.

Constructor & Destructor Documentation

CAutoPersistenceComp()

ifile::CAutoPersistenceComp::CAutoPersistenceComp

(

)

Default constructor.

Member Function Documentation

LoadObject()

virtual bool ifile::CAutoPersistenceComp::LoadObject ( const QString &  filePath )

protectedvirtual

Load working object data from some file.

OnComponentCreated()

virtual void ifile::CAutoPersistenceComp::OnComponentCreated ( )

overrideprotectedvirtual

Called when component is created.

Automatically connects the log consumer from the "Log" reference.

Note

Override to add initialization, but always call base class:

virtual void OnComponentCreated() override {
    // Custom initialization
    BaseClass::OnComponentCreated();
}

Reimplemented from ilog::TLoggerCompWrap< Base >.

OnComponentDestroyed()

virtual void ifile::CAutoPersistenceComp::OnComponentDestroyed ( )

overrideprotectedvirtual

Called when component is destroyed.

Automatically disconnects the log consumer for cleanup.

Note

Override to add cleanup, but always call base class:

virtual void OnComponentDestroyed() override {
    // Custom cleanup
    BaseClass::OnComponentDestroyed();
}

Reimplemented from ilog::TLoggerCompWrap< Base >.

OnModelChanged()

virtual void ifile::CAutoPersistenceComp::OnModelChanged ( int  modelId, const istd::IChangeable::ChangeSet &  changeSet  )

overrideprotectedvirtual

Called when some model observed by dispatcher will be changed.

Implements imod::CMultiModelDispatcherBase.

SaveObjectSnapshot()

void ifile::CAutoPersistenceComp::SaveObjectSnapshot ( )

protected

Store object copy in a separate thread.

StoreObject()

virtual bool ifile::CAutoPersistenceComp::StoreObject ( const istd::IChangeable &  object )

protectedvirtual

Store some object data to working file.

---

The documentation for this class was generated from the following file:

• Acf/Include/ifile/CAutoPersistenceComp.h
