File based persistence of the multi-paged bitmap document. More...

#include <CMultiPageDocumentFilePersistenceComp.h>

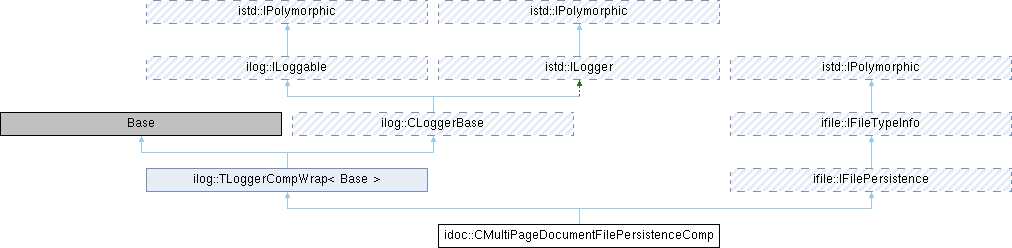

Inheritance diagram for idoc::CMultiPageDocumentFilePersistenceComp:

Public Types
enum	OperationMode { OM_FLAT , OM_FOLDER , OM_COMPRESSED_FOLDER }

typedef ilog::CLoggerComponentBase	BaseClass

Public Types inherited from ilog::TLoggerCompWrap< Base >
typedef Base	BaseClass
	Base class typedef for component functionality.

typedef ilog::CLoggerBase	BaseClass2
	Base class typedef for logger functionality.

Public Types inherited from ifile::IFilePersistence
enum	OperationState { OS_OK , OS_CANCELED , OS_FAILED }
	Result of operation. More...

enum	ErrorType { ET_NO_WRITE_PERMISSIONS , ET_NO_READ_PERMISSIONS , ET_FILE_NOT_EXIST }
	Possible file I/O errors. More...

enum	MessageId { MI_BAD_OBJECT_TYPE = 0xabf0 , MI_CANNOT_LOAD , MI_CANNOT_SAVE , MI_BAD_EXTENSION , MI_FILE_NOT_EXIST , MI_UNSUPPORTED_VERSION }
	List of possible message IDs used in context of this interface. More...

Public Types inherited from ifile::IFileTypeInfo
enum	QueryFlags { QF_LOAD = 1 << 0 , QF_SAVE = 1 << 1 , QF_FILE = 1 << 2 , QF_DIRECTORY = 1 << 3 , QF_ANONYMOUS = 1 << 4 }
	Describe detailed options of query. More...

Public Member Functions
virtual bool	IsOperationSupported (const istd::IChangeable dataObjectPtr, const QString filePathPtr=NULL, int flags=-1, bool beQuiet=true) const override
	Returns `true` if object `dataObject` can be loaded/saved.

virtual ifile::IFilePersistence::OperationState	LoadFromFile (istd::IChangeable &data, const QString &filePath=QString(), ibase::IProgressManager *progressManagerPtr=NULL) const override
	This function loads data `data` from file `filePath`.

virtual ifile::IFilePersistence::OperationState	SaveToFile (const istd::IChangeable &data, const QString &filePath=QString(), ibase::IProgressManager *progressManagerPtr=NULL) const override
	This function saves data `data` to file `filePath`.

virtual bool	GetFileExtensions (QStringList &result, const istd::IChangeable *dataObjectPtr=NULL, int flags=-1, bool doAppend=false) const override
	Get file extensions supported by this loader.

virtual QString	GetTypeDescription (const QString *extensionPtr=NULL) const override
	Get description of object type associated with single extension.

Public Member Functions inherited from ilog::CLoggerBase
	CLoggerBase ()
	Default constructor.

virtual void	SetLogPtr (ilog::IMessageConsumer *logPtr) override
	Attach a message consumer for logging.

virtual ilog::IMessageConsumer *	GetLogPtr () const override
	Get the currently attached message consumer.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnComponentCreated () override
	Called when component is created.

virtual bool	SerializeDocumentMetaInfo (const idoc::IMultiPageDocument &document, iser::IArchive &archive) const

virtual bool	SerializePageMetaInfo (idoc::IMultiPageDocument &document, int pageIndex, iser::IArchive &archive) const

Protected Member Functions inherited from ilog::TLoggerCompWrap< Base >
bool	IsVerboseEnabled (int tracingLevel=0) const
	Check if verbose messages are enabled for a given tracing level.

void	SendVerboseMessage (const QString &message, const QString &messageSource=QString(), int tracingLevel=0) const
	Send a verbose message if enabled.

virtual void	DecorateMessage (istd::IInformationProvider::InformationCategory category, int id, int flags, QString &message, QString &messageSource) const override
	Decorate message before sending.

virtual void	OnComponentDestroyed () override
	Called when component is destroyed.

Protected Member Functions inherited from ilog::CLoggerBase
bool	SendInfoMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send info message to log.

bool	SendWarningMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send warning message to log.

bool	SendErrorMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send error message to log.

bool	SendCriticalMessage (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send critical message to log.

bool	SendInfoMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once info message to log.

bool	SendWarningMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once warning message to log.

bool	SendErrorMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once error message to log.

bool	SendCriticalMessageOnce (int id, const QString &message, const QString &messageSource=QString(), int flags=0) const
	Send once critical message to log.

bool	SendUserMessage (const istd::IInformationProvider *messagePtr) const
	Send message with user object.

bool	AllowMessageOnceAgain (int id)
	Reset message lock.

virtual bool	IsLogConsumed (const istd::IInformationProvider::InformationCategory categoryPtr=NULL, const int flagsPtr=NULL) const override
	Check if any log message is consumed.

virtual bool	SendLogMessage (istd::IInformationProvider::InformationCategory category, int id, const QString &message, const QString &messageSource, int flags=0) const override
	Send any message to log.

Additional Inherited Members
Protected Attributes inherited from ilog::CLoggerBase
QSet< int >	m_onceMessageIds

Detailed Description

File based persistence of the multi-paged bitmap document.

Document persistence is realized as a list of document page files (for each document page) and meta info description file. There are three operating modes for this component (controlled by component attribute 'OpeationMode'):

Document pages and meta info are saved in the target directory with following naming convention: <DocumentFileName>_[PageIndex].<DocumentExtension> for bitmap pages and <DocumentFileName>.bdm for the document's meta info.
All files (document pages and meta info) are saved in the document's own directory with the same name as a document file name: <DocumentFileName>.bid
The same as 2. but the document's directory will be zipped.

Definition at line 24 of file CMultiPageDocumentFilePersistenceComp.h.

Member Typedef Documentation

◆ BaseClass

typedef ilog::CLoggerComponentBase idoc::CMultiPageDocumentFilePersistenceComp::BaseClass

Definition at line 29 of file CMultiPageDocumentFilePersistenceComp.h.

Member Enumeration Documentation

◆ OperationMode

enum idoc::CMultiPageDocumentFilePersistenceComp::OperationMode

Enumerator
OM_FLAT
OM_FOLDER
OM_COMPRESSED_FOLDER

Definition at line 31 of file CMultiPageDocumentFilePersistenceComp.h.

Member Function Documentation

◆ GetFileExtensions()

virtual bool idoc::CMultiPageDocumentFilePersistenceComp::GetFileExtensions	(	QStringList &	result,
		const istd::IChangeable *	dataObjectPtr = `NULL`,
		int	flags = `-1`,
		bool	doAppend = `false`
	)		const

overridevirtual

Get file extensions supported by this loader.

Parameters

result	list of extensions, e.g. {"txt", "doc"}.
dataObjectPtr	optional pointer to data object for which all possible extensions are requested. It can be NULL if any object is meant.
flags	set of flags

See also: QueryFlags.

Parameters

doAppend if true, list of extensions should be appended to existing list.

Implements ifile::IFileTypeInfo.

◆ GetTypeDescription()

virtual QString idoc::CMultiPageDocumentFilePersistenceComp::GetTypeDescription ( const QString * extensionPtr = NULL ) const

overridevirtual

Get description of object type associated with single extension.

Implements ifile::IFileTypeInfo.

◆ IsOperationSupported()

virtual bool idoc::CMultiPageDocumentFilePersistenceComp::IsOperationSupported	(	const istd::IChangeable *	dataObjectPtr,
		const QString *	filePathPtr = `NULL`,
		int	flags = `-1`,
		bool	beQuiet = `true`
	)		const

overridevirtual

Returns true if object dataObject can be loaded/saved.

Parameters

dataObjectPtr	optional pointer to data object should be loaded/stored. It can be NULL if any object is meant.
filePathPtr	optional pointer to file should be loaded/stored. It can be NULL if any file is meant. If it points at empty string, anonymous loading is mean.
flags	combination of flags defined in `QueryFlags` and `ifile::IFileTypeInfo::QueryFlags`.
beQuiet	if true, no user message output is allowed.

Implements ifile::IFilePersistence.

◆ LoadFromFile()

virtual ifile::IFilePersistence::OperationState idoc::CMultiPageDocumentFilePersistenceComp::LoadFromFile	(	istd::IChangeable &	data,
		const QString &	filePath = `QString()`,
		ibase::IProgressManager *	progressManagerPtr = `NULL`
	)		const

overridevirtual

This function loads data data from file filePath.

Returns: File loading state.

See also: OperationState

Implements ifile::IFilePersistence.

◆ OnComponentCreated()

virtual void idoc::CMultiPageDocumentFilePersistenceComp::OnComponentCreated ( )

overrideprotectedvirtual

Called when component is created.

Automatically connects the log consumer from the "Log" reference.

Note: Override to add initialization, but always call base class:
virtual void OnComponentCreated() override {

// Custom initialization

BaseClass::OnComponentCreated();

}

idoc::CMultiPageDocumentFilePersistenceComp::OnComponentCreated
virtual void OnComponentCreated() override
Called when component is created.

ilog::TLoggerCompWrap::OnComponentCreated
virtual void OnComponentCreated() override
Called when component is created.
Definition TLoggerCompWrap.h:330

Reimplemented from ilog::TLoggerCompWrap< Base >.

◆ SaveToFile()

virtual ifile::IFilePersistence::OperationState idoc::CMultiPageDocumentFilePersistenceComp::SaveToFile	(	const istd::IChangeable &	data,
		const QString &	filePath = `QString()`,
		ibase::IProgressManager *	progressManagerPtr = `NULL`
	)		const

overridevirtual

This function saves data data to file filePath.

Returns: File saving state.

See also: OperationState

Implements ifile::IFilePersistence.

◆ SerializeDocumentMetaInfo()

virtual bool idoc::CMultiPageDocumentFilePersistenceComp::SerializeDocumentMetaInfo	(	const idoc::IMultiPageDocument &	document,
		iser::IArchive &	archive
	)		const

protectedvirtual

◆ SerializePageMetaInfo()

virtual bool idoc::CMultiPageDocumentFilePersistenceComp::SerializePageMetaInfo	(	idoc::IMultiPageDocument &	document,
		int	pageIndex,
		iser::IArchive &	archive
	)		const

protectedvirtual

The documentation for this class was generated from the following file:

Acf/Include/idoc/CMultiPageDocumentFilePersistenceComp.h
