iprm::CParamsSetDelegatorComp Class Reference

Delegator of the parameter set interface. More...

#include <CParamsSetDelegatorComp.h>

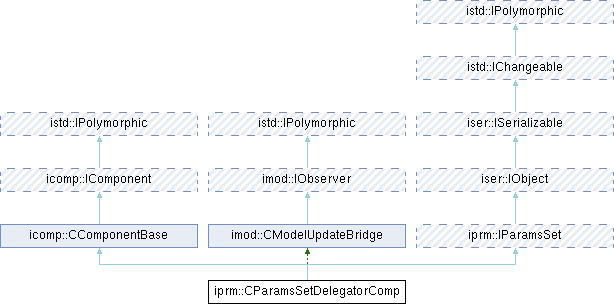

Inheritance diagram for iprm::CParamsSetDelegatorComp:

Public Types
typedef icomp::CComponentBase	BaseClass
typedef imod::CModelUpdateBridge	BaseClass2
Public Types inherited from iprm::IParamsSet
typedef QSet< QByteArray >	Ids
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CParamsSetDelegatorComp ()
virtual Ids	GetParamIds (bool editableOnly=false) const override
	Get list of used parameter IDs in the parameter set.
virtual const iser::ISerializable *	GetParameter (const QByteArray &id) const override
	Get any parameter (read-only access).
virtual iser::ISerializable *	GetEditableParameter (const QByteArray &id) override
	Get access to editable parameter (read-write access).
virtual const IParamsInfoProvider *	GetParamsInfoProvider () const override
	Get parameter information provider.
virtual QByteArray	GetFactoryId () const override
virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.
virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.
virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.
virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.
virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Protected Member Functions
virtual void	OnComponentCreated () override
virtual void	OnComponentDestroyed () override
Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.
virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.
Protected Member Functions inherited from imod::CModelUpdateBridge
	CModelUpdateBridge (istd::IChangeable *changeablePtr, int updateFlags=UF_DELEGATED)
virtual	~CModelUpdateBridge ()
imod::IModel *	GetObservedModel (int modelIndex) const
	Get access to connected model with the index index.
int	GetModelCount () const
	Gets the number of connected models.
void	EnsureModelsDetached ()
	Remove all observed models from this bridge.
virtual bool	IsModelAttached (const imod::IModel *modelPtr) const override
	Checks if the specified model is currently attached to this observer.
virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.
virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.
virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.
virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.
Protected Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.
Protected Types inherited from imod::CModelUpdateBridge
enum	UpdateFlags { UF_DELEGATED = 0x1 , UF_SOURCE = 0x2 }
	Flags to control the change set using for the change notification of the target object. More...
Protected Types inherited from iprm::IParamsSet
typedef QSet< QByteArray >	Ids
Protected Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)
static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())
Static Protected Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Detailed Description

Delegator of the parameter set interface.

Definition at line 18 of file CParamsSetDelegatorComp.h.

Member Typedef Documentation

BaseClass

typedef icomp::CComponentBase iprm::CParamsSetDelegatorComp::BaseClass

Definition at line 24 of file CParamsSetDelegatorComp.h.

BaseClass2

typedef imod::CModelUpdateBridge iprm::CParamsSetDelegatorComp::BaseClass2

Definition at line 25 of file CParamsSetDelegatorComp.h.

Constructor & Destructor Documentation

CParamsSetDelegatorComp()

iprm::CParamsSetDelegatorComp::CParamsSetDelegatorComp

(

)

Member Function Documentation

CopyFrom()

virtual bool iprm::CParamsSetDelegatorComp::CopyFrom ( const IChangeable &  object, CompatibilityMode  mode = CM_WITHOUT_REFS  )

overridevirtual

GetEditableParameter()

virtual iser::ISerializable * iprm::CParamsSetDelegatorComp::GetEditableParameter ( const QByteArray &  id )

overridevirtual

Get access to editable parameter (read-write access).

Retrieves a parameter by its ID for modification. This method returns NULL if the parameter does not exist or is not editable.

Parameters

id	ID of parameter. This is an application-specific identifier that uniquely identifies the parameter within this set.

Returns

Pointer to editable parameter instance (as iser::ISerializable*) or NULL if no editable parameter exists with the given ID.

Note

Returns NULL for read-only (calculated) parameters even if they exist.

Use dynamic_cast to determine the actual parameter type before modifying.

The returned pointer is owned by the parameter set. Do not delete it.

iser::ISerializable* param = paramsSet->GetEditableParameter("threshold");
if (param)
{
    // Try casting to expected type
    iprm::ITextParam* textParam = dynamic_cast<iprm::ITextParam*>(param);
    if (textParam)
    {
        textParam->SetText("10.5");
    }
}
else
{
    // Parameter doesn't exist or is read-only
}

See also

GetParameter

Implements iprm::IParamsSet.

GetFactoryId()

virtual QByteArray iprm::CParamsSetDelegatorComp::GetFactoryId ( ) const

overridevirtual

Reimplemented from iser::IObject.

GetParameter()

virtual const iser::ISerializable * iprm::CParamsSetDelegatorComp::GetParameter ( const QByteArray &  id ) const

overridevirtual

Get any parameter (read-only access).

Retrieves a parameter by its ID for read-only access. This method returns both editable and non-editable parameters.

Parameters

id	ID of parameter. This is an application-specific identifier that uniquely identifies the parameter within this set.

Returns

Pointer to parameter instance (as iser::ISerializable*) or NULL if no parameter exists with the given ID.

Note

Use dynamic_cast to determine the actual parameter type (ITextParam, ISelectionParam, etc.).

The returned pointer is owned by the parameter set. Do not delete it.

const iser::ISerializable* param = paramsSet->GetParameter("myParam");
if (param)
{
    // Try casting to expected type
    const iprm::ITextParam* textParam = dynamic_cast<const iprm::ITextParam*>(param);
    if (textParam)
    {
        QString value = textParam->GetText();
    }
}

See also

GetEditableParameter

Implements iprm::IParamsSet.

GetParamIds()

virtual Ids iprm::CParamsSetDelegatorComp::GetParamIds ( bool  editableOnly = false ) const

overridevirtual

Get list of used parameter IDs in the parameter set.

This method returns the IDs of all parameters contained in this set. Optionally, it can return only editable parameter IDs.

Parameters

editableOnly

If true, returns only IDs of editable parameters. If false (default), returns all parameter IDs.

Returns

Set of parameter IDs (QByteArray identifiers).

// Get all parameter IDs
iprm::IParamsSet::Ids allIds = paramsSet->GetParamIds();
qDebug() << "Total parameters:" << allIds.size();

// Get only editable parameter IDs
iprm::IParamsSet::Ids editableIds = paramsSet->GetParamIds(true);
qDebug() << "Editable parameters:" << editableIds.size();

Implements iprm::IParamsSet.

GetParamsInfoProvider()

virtual const IParamsInfoProvider * iprm::CParamsSetDelegatorComp::GetParamsInfoProvider ( ) const

overridevirtual

Get parameter information provider.

Retrieves the parameter information provider that can be used to obtain metadata (names and descriptions) for parameters in this set.

Returns

Pointer to IParamsInfoProvider instance, or nullptr if parameter information is not available for this parameter set.

Note

Not all parameter sets provide parameter information. Some may return nullptr if they don't support this feature.

const iprm::IParamsInfoProvider* infoProvider = paramsSet->GetParamsInfoProvider();
if (infoProvider != nullptr)
{
    std::unique_ptr<iprm::IParamsInfoProvider::ParamInfo> info =
        infoProvider->GetParamInfo("threshold");
    if (info != nullptr)
    {
        qDebug() << "Parameter:" << info->name << "-" << info->description;
    }
}

See also

IParamsInfoProvider

Implements iprm::IParamsSet.

OnComponentCreated()

virtual void iprm::CParamsSetDelegatorComp::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

OnComponentDestroyed()

virtual void iprm::CParamsSetDelegatorComp::OnComponentDestroyed ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

Serialize()

virtual bool iprm::CParamsSetDelegatorComp::Serialize ( iser::IArchive &  archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also

iser::IArchive

Implements iser::ISerializable.

---

The documentation for this class was generated from the following file:

• Acf/Include/iprm/CParamsSetDelegatorComp.h
