ilog::TExtMessage< Element > Class Template Reference

Template for creating extended messages with custom embedded data. More...

#include <TExtMessage.h>

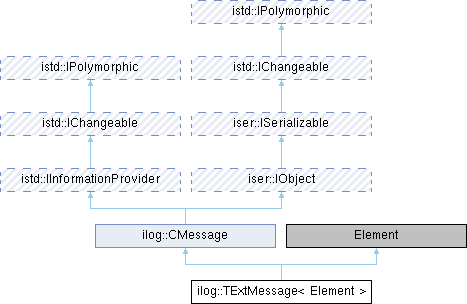

Inheritance diagram for ilog::TExtMessage< Element >:

Public Types
typedef CMessage	BaseClass
	Base message class typedef.
typedef Element	BaseClass2
	Base element class typedef.
Public Types inherited from istd::IInformationProvider
enum	InformationCategory {   IC_NONE = 0 , IC_INFO , IC_WARNING , IC_ERROR ,   IC_CRITICAL }
	Category of information. More...
enum	InformationTypeFlags { ITF_DEBUG = 0x1 , ITF_SYSTEM = 0x2 , ITF_USER = 0x4 }
	Additionally information flags. More...
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	TExtMessage ()
	Default constructor.
	TExtMessage (istd::IInformationProvider::InformationCategory category, int id, const QString &text, const QString &source, int flags=0, const QDateTime *timeStampPtr=NULL)
	Construct message with all standard properties.
virtual QByteArray	GetFactoryId () const override
	Get the factory identifier for serialization.
virtual bool	Serialize (iser::IArchive &archive) override
	Serialize or deserialize the message and element data.
virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_STRICT) override
	Copy message and element data from another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Create a deep copy of this extended message.
Public Member Functions inherited from ilog::CMessage
	CMessage ()
	Default constructor.
	CMessage (istd::IInformationProvider::InformationCategory category, int id, const QString &text, const QString &source, int flags=0, const QDateTime *timeStampPtr=NULL)
	Construct a message with all properties.
void	SetMessageValues (istd::IInformationProvider::InformationCategory category, int id, const QString &text, const QString &source, int flags=0, const QDateTime *timeStampPtr=NULL)
	Set all message properties at once.
virtual void	SetCategory (istd::IInformationProvider::InformationCategory category)
	Set the message category (severity level).
virtual void	SetText (const QString &text)
	Set the message text.
virtual void	SetSource (const QString &source)
	Set the message source.
virtual QDateTime	GetInformationTimeStamp () const override
	Get the message timestamp.
virtual InformationCategory	GetInformationCategory () const override
	Get the message category (severity level).
virtual int	GetInformationId () const override
	Get the numeric message identifier.
virtual QString	GetInformationDescription () const override
	Get the human-readable message text.
virtual QString	GetInformationSource () const override
	Get the message source identifier.
virtual int	GetInformationFlags () const override
	Get application-defined flags.
Public Member Functions inherited from istd::IInformationProvider
	I_DECLARE_ENUM (InformationCategory, IC_NONE, IC_INFO, IC_WARNING, IC_ERROR, IC_CRITICAL)
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Static Public Member Functions
static QByteArray	GetTypeName ()
	Get the extended message type identifier.
Static Public Member Functions inherited from ilog::CMessage
static QByteArray	GetMessageTypeId ()
	Get the message type identifier for serialization.
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Additional Inherited Members
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.
Protected Attributes inherited from ilog::CMessage
istd::IInformationProvider::InformationCategory	m_category
	Message category (severity level)
int	m_id
	Numeric message identifier.
QString	m_text
	Human-readable message text.
QString	m_source
	Message source identifier.
int	m_flags
	Application-defined flags.
QDateTime	m_timeStamp
	Message creation timestamp.

Detailed Description

template<class Element>
class ilog::TExtMessage< Element >

Template for creating extended messages with custom embedded data.

TExtMessage combines CMessage with a user-defined Element type to create specialized message types that carry both standard message properties and custom structured data in a single object.

This is an alternative to CExtMessage's attached objects approach. Instead of attaching separate objects, the custom data is embedded directly in the message type through multiple inheritance.

The Element type must implement iser::ISerializable and istd::IChangeable for proper serialization and cloning support.

Template Parameters

Element

User-defined class to embed in the message. Must implement iser::ISerializable and istd::IChangeable interfaces.

Advantages over CExtMessage

• Type-safe access to custom data (no casting needed)
• More efficient (no indirection through attached object list)
• Simpler usage for single custom data type
• Direct member access to Element's properties

Usage Example

// Define custom data structure
struct DiagnosticData : public iser::ISerializable, public istd::IChangeable
{
    double cpuUsage;
    qint64 memoryUsed;
    QString componentName;

    virtual bool Serialize(iser::IArchive& archive) override {
        return archive.Process(cpuUsage, "cpu") &&
               archive.Process(memoryUsed, "memory") &&
               archive.Process(componentName, "component");
    }

    virtual bool CopyFrom(const istd::IChangeable& obj, CompatibilityMode mode) {
        const DiagnosticData* other = dynamic_cast<const DiagnosticData*>(&obj);
        if (!other) return false;
        cpuUsage = other->cpuUsage;
        memoryUsed = other->memoryUsed;
        componentName = other->componentName;
        return true;
    }
};

// Create message type
typedef ilog::TExtMessage<DiagnosticData> DiagnosticMessage;

// Register for serialization
I_REGISTER_MESSAGE_TYPE(DiagnosticMessage, "com.myapp.DiagnosticMessage");

// Use the message
istd::TSharedInterfacePtr<DiagnosticMessage> msg(
    new DiagnosticMessage(
        istd::IInformationProvider::IC_INFO,
        1001,
        "System diagnostics",
        "Monitor"
    )
);

// Set custom data directly
msg->cpuUsage = 65.5;
msg->memoryUsed = 1024*1024*800; // 800 MB
msg->componentName = "MainProcessor";

// Send to logger
logger->AddMessage(msg);

See also

ilog::CExtMessage, ilog::CMessage, ilog::TExtMessageModel

Definition at line 94 of file TExtMessage.h.

Member Typedef Documentation

BaseClass

template<class Element >

typedef CMessage ilog::TExtMessage< Element >::BaseClass

Base message class typedef.

Definition at line 100 of file TExtMessage.h.

BaseClass2

template<class Element >

typedef Element ilog::TExtMessage< Element >::BaseClass2

Base element class typedef.

Definition at line 103 of file TExtMessage.h.

Constructor & Destructor Documentation

TExtMessage() [1/2]

template<class Element >

TExtMessage::TExtMessage

(

)

Default constructor.

Initializes both the message and element parts with default values.

Definition at line 213 of file TExtMessage.h.

TExtMessage() [2/2]

template<class Element >

TExtMessage::TExtMessage	(	istd::IInformationProvider::InformationCategory	category,
		int	id,
		const QString &	text,
		const QString &	source,
		int	flags = 0,
		const QDateTime *	timeStampPtr = NULL
	)

Construct message with all standard properties.

Creates a message with the specified properties. The Element part is default-constructed and can be set afterwards.

Parameters

category	Message severity level
id	Numeric message identifier
text	Human-readable message description
source	Message origin
flags	Optional application-defined flags (default: 0)
timeStampPtr	Optional pointer to timestamp, or NULL for current time

Example

TExtMessage<DiagnosticData> msg(
    istd::IInformationProvider::IC_INFO,
    2001,
    "Performance metrics",
    "Monitor"
);
msg.cpuUsage = 45.2;
msg.memoryUsed = 512*1024*1024;

Definition at line 221 of file TExtMessage.h.

Member Function Documentation

CloneMe()

template<class Element >

istd::IChangeable * TExtMessage::CloneMe ( CompatibilityMode  mode = CM_WITHOUT_REFS ) const

overridevirtual

Create a deep copy of this extended message.

Creates a new message with both message and element data copied.

Parameters

mode	Compatibility mode for cloning

Returns

New extended message with copied data, or NULL on error

Note

Caller takes ownership of returned pointer

Reimplemented from ilog::CMessage.

Definition at line 279 of file TExtMessage.h.

References NULL, and istd::TDelPtr< Type, Accessor >::PopPtr().

CopyFrom()

template<class Element >

bool TExtMessage::CopyFrom ( const istd::IChangeable &  object, CompatibilityMode  mode = CM_STRICT  )

overridevirtual

Copy message and element data from another object.

Copies both message properties and element data from a compatible object.

Parameters

object	Source object to copy from
mode	Compatibility mode for copying

Returns

true if copy succeeded, false if incompatible

Reimplemented from ilog::CMessage.

Definition at line 270 of file TExtMessage.h.

GetFactoryId()

template<class Element >

QByteArray TExtMessage::GetFactoryId ( ) const

overridevirtual

Get the factory identifier for serialization.

Returns

Type identifier combining message and element types

See also

GetTypeName()

Reimplemented from ilog::CMessage.

Definition at line 237 of file TExtMessage.h.

GetTypeName()

template<class Element >

QByteArray TExtMessage::GetTypeName ( )

static

Get the extended message type identifier.

Returns a unique type name combining the template parameter's type.

Returns

Type identifier string

Definition at line 293 of file TExtMessage.h.

Serialize()

template<class Element >

bool TExtMessage::Serialize ( iser::IArchive &  archive )

overridevirtual

Serialize or deserialize the message and element data.

Stores/loads both the base message properties and the Element data to/from the archive. The Element part is serialized in a tagged section.

Parameters

archive

Archive for reading or writing

Returns

true if serialization succeeded, false on error

Note

Handles version compatibility for old ACF formats (version < 4279)

See also

iser::IArchive

Reimplemented from ilog::CMessage.

Definition at line 246 of file TExtMessage.h.

References iser::IVersionInfo::AcfVersionId, iser::IArchive::BeginTag(), iser::IArchive::EndTag(), iser::IArchive::GetVersionInfo(), iser::IVersionInfo::GetVersionNumber(), and iser::CArchiveTag::TT_GROUP.

---

The documentation for this class was generated from the following file:

• Acf/Include/ilog/TExtMessage.h
