ilog::CExtMessage Class Reference

Extended message supporting attached list of serializable objects. More...

#include <CExtMessage.h>

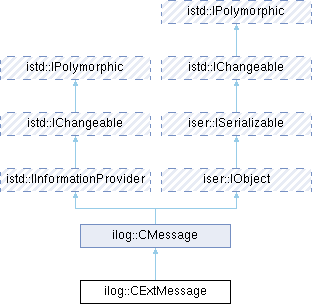

Inheritance diagram for ilog::CExtMessage:

Classes
struct	AttachedObject
	Structure holding an attached object and its description. More...

Public Types
typedef CMessage	BaseClass
Public Types inherited from istd::IInformationProvider
enum	InformationCategory {   IC_NONE = 0 , IC_INFO , IC_WARNING , IC_ERROR ,   IC_CRITICAL }
	Category of information. More...
enum	InformationTypeFlags { ITF_DEBUG = 0x1 , ITF_SYSTEM = 0x2 , ITF_USER = 0x4 }
	Additionally information flags. More...
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CExtMessage (const iser::IObjectFactory *factoryPtr=NULL)
	Default constructor.
	CExtMessage (istd::IInformationProvider::InformationCategory category, int id, const QString &text, const QString &source, int flags=0, const QDateTime *timeStampPtr=NULL, const iser::IObjectFactory *factoryPtr=NULL)
	Construct extended message with all properties.
const iser::IObjectFactory *	GetObjectFactory () const
	Get the object factory used for deserialization.
void	SetObjectFactory (const iser::IObjectFactory *factoryPtr)
	Set the object factory for deserialization.
void	ResetAttachedObjects ()
	Remove all attached objects from the message.
int	GetAttachedObjectsCount () const
	Get the number of attached objects.
const iser::IObject *	GetAttachedObject (int index) const
	Get a specific attached object by index.
const QString &	GetAttachedObjectDescription (int index) const
	Get the description of an attached object.
void	InsertAttachedObject (iser::IObject *objectPtr, const QString &description="")
	Add an object to this message.
virtual QByteArray	GetFactoryId () const override
	Get the factory identifier for serialization.
virtual bool	Serialize (iser::IArchive &archive) override
	Serialize or deserialize the message and attached objects.
virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_STRICT) override
	Copy message and attached objects from another message.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Create a deep copy of this extended message.
Public Member Functions inherited from ilog::CMessage
	CMessage ()
	Default constructor.
	CMessage (istd::IInformationProvider::InformationCategory category, int id, const QString &text, const QString &source, int flags=0, const QDateTime *timeStampPtr=NULL)
	Construct a message with all properties.
void	SetMessageValues (istd::IInformationProvider::InformationCategory category, int id, const QString &text, const QString &source, int flags=0, const QDateTime *timeStampPtr=NULL)
	Set all message properties at once.
virtual void	SetCategory (istd::IInformationProvider::InformationCategory category)
	Set the message category (severity level).
virtual void	SetText (const QString &text)
	Set the message text.
virtual void	SetSource (const QString &source)
	Set the message source.
virtual QDateTime	GetInformationTimeStamp () const override
	Get the message timestamp.
virtual InformationCategory	GetInformationCategory () const override
	Get the message category (severity level).
virtual int	GetInformationId () const override
	Get the numeric message identifier.
virtual QString	GetInformationDescription () const override
	Get the human-readable message text.
virtual QString	GetInformationSource () const override
	Get the message source identifier.
virtual int	GetInformationFlags () const override
	Get application-defined flags.
Public Member Functions inherited from istd::IInformationProvider
	I_DECLARE_ENUM (InformationCategory, IC_NONE, IC_INFO, IC_WARNING, IC_ERROR, IC_CRITICAL)
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Static Public Member Functions
static QByteArray	GetTypeName ()
	Get the extended message type identifier.
Static Public Member Functions inherited from ilog::CMessage
static QByteArray	GetMessageTypeId ()
	Get the message type identifier for serialization.
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Attributes
const iser::IObjectFactory *	m_factoryPtr
	Object factory for deserializing attached objects.
QList< AttachedObject >	m_attachedObjects
	List of attached objects with descriptions.
Protected Attributes inherited from ilog::CMessage
istd::IInformationProvider::InformationCategory	m_category
	Message category (severity level)
int	m_id
	Numeric message identifier.
QString	m_text
	Human-readable message text.
QString	m_source
	Message source identifier.
int	m_flags
	Application-defined flags.
QDateTime	m_timeStamp
	Message creation timestamp.

Additional Inherited Members
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Extended message supporting attached list of serializable objects.

CExtMessage extends CMessage to allow attachment of custom objects that provide additional context or data related to the message. Each attached object can have an associated description.

This is particularly useful for error messages where you want to include the problematic data, validation results, or other context objects for detailed analysis or debugging.

The class uses an object factory for deserialization, allowing attached objects to be properly reconstructed when loading from archives.

Attached Objects

Attached objects must implement iser::IObject interface for serialization. The message takes ownership of attached objects and manages their lifetime.

Thread Safety

Like CMessage, CExtMessage objects should be treated as immutable after creation and attachment of objects. Modifications are not thread-safe.

Usage Example

// Create extended message
istd::TSharedInterfacePtr<ilog::CExtMessage> msg(
    new ilog::CExtMessage(
        istd::IInformationProvider::IC_ERROR,
        3001,
        "Data validation failed",
        "Validator",
        0,
        nullptr,
        myObjectFactory
    )
);

// Attach invalid data object
istd::TSharedInterfacePtr<MyDataObject> dataObj(new MyDataObject);
dataObj->SetValue(invalidValue);
msg->InsertAttachedObject(dataObj.PopRootPtr(), "Invalid data sample");

// Attach validation context
istd::TSharedInterfacePtr<ValidationContext> context(new ValidationContext);
msg->InsertAttachedObject(context.PopRootPtr(), "Validation context");

// Send to logger
logger->AddMessage(msg);

// Later, retrieve attached objects
int count = msg->GetAttachedObjectsCount();
for (int i = 0; i < count; ++i) {
    const iser::IObject* obj = msg->GetAttachedObject(i);
    const QString& desc = msg->GetAttachedObjectDescription(i);
    // Analyze object...
}

See also

ilog::CMessage, ilog::TExtMessage, iser::IObject, iser::IObjectFactory

Definition at line 82 of file CExtMessage.h.

Member Typedef Documentation

BaseClass

typedef CMessage ilog::CExtMessage::BaseClass

Definition at line 85 of file CExtMessage.h.

Constructor & Destructor Documentation

CExtMessage() [1/2]

ilog::CExtMessage::CExtMessage ( const iser::IObjectFactory *  factoryPtr = NULL )

explicit

Default constructor.

Creates an empty extended message with no object factory.

Parameters

factoryPtr

Optional object factory for deserialization of attached objects

CExtMessage() [2/2]

ilog::CExtMessage::CExtMessage	(	istd::IInformationProvider::InformationCategory	category,
		int	id,
		const QString &	text,
		const QString &	source,
		int	flags = 0,
		const QDateTime *	timeStampPtr = NULL,
		const iser::IObjectFactory *	factoryPtr = NULL
	)

Construct extended message with all properties.

Parameters

category	Message severity level
id	Numeric message identifier
text	Human-readable message description
source	Message origin
flags	Optional application-defined flags (default: 0)
timeStampPtr	Optional pointer to timestamp, or NULL for current time
factoryPtr	Optional object factory for deserializing attached objects

Example

ilog::CExtMessage msg(
    istd::IInformationProvider::IC_ERROR,
    5001,
    "Processing failed",
    "Processor",
    0,
    nullptr,
    GetObjectFactory()
);

Member Function Documentation

CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > ilog::CExtMessage::CloneMe ( CompatibilityMode  mode = CM_WITHOUT_REFS ) const

overridevirtual

Create a deep copy of this extended message.

Creates a new message with all properties and attached objects copied.

Parameters

mode	Compatibility mode for cloning

Returns

New extended message with copied data, or NULL on error

Note

Caller takes ownership of returned pointer

Reimplemented from ilog::CMessage.

CopyFrom()

virtual bool ilog::CExtMessage::CopyFrom ( const istd::IChangeable &  object, CompatibilityMode  mode = CM_STRICT  )

overridevirtual

Copy message and attached objects from another message.

Parameters

object	Source object to copy from
mode	Compatibility mode for copying

Returns

true if copy succeeded, false if incompatible

Reimplemented from ilog::CMessage.

GetAttachedObject()

const iser::IObject * ilog::CExtMessage::GetAttachedObject

(

int

index

)

const

Get a specific attached object by index.

Parameters

index

Zero-based index of object to retrieve

Returns

Pointer to the attached object, or NULL if index invalid

Note

The returned pointer is owned by the message. Don't delete it.

Example

const iser::IObject* obj = msg->GetAttachedObject(0);
if (obj) {
    // Try to cast to expected type
    const MyDataObject* dataObj =
        dynamic_cast<const MyDataObject*>(obj);
    if (dataObj) {
        // Use dataObj
    }
}

See also

GetAttachedObjectsCount(), GetAttachedObjectDescription()

GetAttachedObjectDescription()

const QString & ilog::CExtMessage::GetAttachedObjectDescription

(

int

index

)

const

Get the description of an attached object.

Parameters

index

Zero-based index of object

Returns

Description string provided when object was attached

Example

QString desc = msg->GetAttachedObjectDescription(0);
qDebug() << "Object 0:" << desc;

See also

GetAttachedObject(), InsertAttachedObject()

GetAttachedObjectsCount()

int ilog::CExtMessage::GetAttachedObjectsCount

(

)

const

Get the number of attached objects.

Returns

Count of objects currently attached to this message

Example

int count = msg->GetAttachedObjectsCount();
for (int i = 0; i < count; ++i) {
    // Process object i
}

See also

GetAttachedObject()

GetFactoryId()

virtual QByteArray ilog::CExtMessage::GetFactoryId ( ) const

overridevirtual

Get the factory identifier for serialization.

Returns

Type identifier for object factory

See also

GetTypeName()

Reimplemented from ilog::CMessage.

GetObjectFactory()

const iser::IObjectFactory * ilog::CExtMessage::GetObjectFactory

(

)

const

Get the object factory used for deserialization.

Returns

Pointer to object factory, or NULL if none set

GetTypeName()

static QByteArray ilog::CExtMessage::GetTypeName ( )

static

Get the extended message type identifier.

Returns

Type identifier string

InsertAttachedObject()

void ilog::CExtMessage::InsertAttachedObject	(	iser::IObject *	objectPtr,
		const QString &	description = ""
	)

Add an object to this message.

Attaches a serializable object to the message with an optional description. The message takes ownership of the object and will delete it when the message is destroyed.

Parameters

objectPtr	Pointer to object to attach. Message takes ownership. Must implement iser::IObject interface.
description	Optional human-readable description of the object

Note

After calling this method, don't delete or modify objectPtr. The message owns it now.

Example

// Create object to attach
MyDataObject* dataObj = new MyDataObject;
dataObj->Initialize();

// Attach to message (message takes ownership)
msg->InsertAttachedObject(dataObj, "Problematic data");

// Don't use dataObj after this point

See also

GetAttachedObject(), ResetAttachedObjects()

ResetAttachedObjects()

void ilog::CExtMessage::ResetAttachedObjects

(

)

Remove all attached objects from the message.

Clears the attached objects list, releasing all owned objects.

Example

msg->ResetAttachedObjects();
// msg now has no attached objects

Serialize()

virtual bool ilog::CExtMessage::Serialize ( iser::IArchive &  archive )

overridevirtual

Serialize or deserialize the message and attached objects.

Stores/loads all message properties plus all attached objects to/from the archive. Uses the object factory to recreate attached objects during deserialization.

Parameters

archive

Archive for reading or writing

Returns

true if serialization succeeded, false on error

See also

iser::IArchive, GetObjectFactory()

Reimplemented from ilog::CMessage.

SetObjectFactory()

void ilog::CExtMessage::SetObjectFactory

(

const iser::IObjectFactory *

factoryPtr

)

Set the object factory for deserialization.

Parameters

factoryPtr

Object factory to use when deserializing attached objects

Member Data Documentation

m_attachedObjects

QList<AttachedObject> ilog::CExtMessage::m_attachedObjects

protected

List of attached objects with descriptions.

Definition at line 317 of file CExtMessage.h.

m_factoryPtr

const iser::IObjectFactory* ilog::CExtMessage::m_factoryPtr

protected

Object factory for deserializing attached objects.

Definition at line 314 of file CExtMessage.h.

---

The documentation for this class was generated from the following file:

• Acf/Include/ilog/CExtMessage.h
