ilog::CTracingConfigurationComp Class Reference

Component for configuring tracing verbosity levels. More...

#include <CTracingConfigurationComp.h>

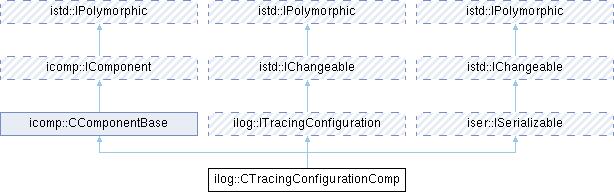

Inheritance diagram for ilog::CTracingConfigurationComp:

Public Types
typedef icomp::CComponentBase	BaseClass
	Base class typedef.
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CTracingConfigurationComp ()
virtual int	GetTracingLevel () const override
	Get the current tracing level.
virtual void	SetTracingLevel (int tracingLevel) override
	Set the tracing level.
virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.
Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.
virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.
virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.
virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.
virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.
Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Protected Member Functions
virtual void	OnComponentCreated () override
Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.
virtual void	OnComponentDestroyed ()
virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)
static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Component for configuring tracing verbosity levels.

CTracingConfigurationComp provides a component-based implementation of ITracingConfiguration, allowing runtime control of verbose logging output. It integrates with the component system for serialization and configuration.

This component is typically referenced by TLoggerCompWrap-based components through their "TracingConfiguration" reference, allowing centralized control of verbosity across multiple components.

Features

• Runtime tracing level control (-1=off, 0=all, N=selective)
• Serialization support for persistent configuration
• Change notification when tracing level changes
• Default level configuration via component attribute

Configuration

Component attributes:

• DefaulTracingtLevel: Initial tracing level (default: -1 = disabled)
  • -1: Tracing disabled
  • 0: Enable all verbose messages
  • 1+: Enable messages with level <= value

Component interfaces:

• Implements ITracingConfiguration for level access
• Implements ISerializable for persistence

Usage Example

// Create tracing configuration
istd::TSharedInterfacePtr<ilog::CTracingConfigurationComp> tracing(
    new ilog::CTracingConfigurationComp);

// Configure default level (or via .acc: DefaulTracingtLevel: 1)
tracing->SetTracingLevel(1); // Enable levels 0 and 1

// Components reference this for tracing control
// In .acc for components:
//   <Reference Id="TracingConfiguration" Value="GlobalTracing"/>

// Runtime control
tracing->SetTracingLevel(0);  // Enable all tracing
tracing->SetTracingLevel(-1); // Disable all tracing

Component Configuration

<Component Id="GlobalTracing" Class="ilog::CTracingConfigurationComp">
    <Attribute Id="DefaulTracingtLevel" Value="1"/>
</Component>

<Component Id="MyComponent" Class="MyComponentClass">
    <Reference Id="TracingConfiguration" Value="GlobalTracing"/>
</Component>

Integration with TLoggerCompWrap

Components using TLoggerCompWrap automatically use the tracing configuration:

class MyComp : public ilog::CLoggerComponentBase
{
public:
    void Process() {
        // Only logged if tracing level >= 0
        SendVerboseMessage("Processing started", QString(), 0);

        // Only logged if tracing level >= 1
        if (IsVerboseEnabled(1)) {
            SendVerboseMessage("Detailed step", QString(), 1);
        }
    }
};

See also

ilog::ITracingConfiguration, ilog::TLoggerCompWrap

Definition at line 94 of file CTracingConfigurationComp.h.

Member Typedef Documentation

BaseClass

typedef icomp::CComponentBase ilog::CTracingConfigurationComp::BaseClass

Base class typedef.

Definition at line 101 of file CTracingConfigurationComp.h.

Constructor & Destructor Documentation

CTracingConfigurationComp()

ilog::CTracingConfigurationComp::CTracingConfigurationComp

(

)

Member Function Documentation

GetTracingLevel()

virtual int ilog::CTracingConfigurationComp::GetTracingLevel ( ) const

overridevirtual

Get the current tracing level.

Returns the currently configured tracing verbosity level.

Returns

Current tracing level:

• -1 = tracing disabled
• 0 = trace all verbose messages
• N = trace messages with level <= N

Example

int level = tracing->GetTracingLevel();
if (level >= 0) {
    qDebug() << "Tracing enabled at level" << level;
}
else {
    qDebug() << "Tracing disabled";
}

See also

SetTracingLevel()

Implements ilog::ITracingConfiguration.

OnComponentCreated()

virtual void ilog::CTracingConfigurationComp::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

Serialize()

virtual bool ilog::CTracingConfigurationComp::Serialize ( iser::IArchive &  archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also

iser::IArchive

Implements iser::ISerializable.

SetTracingLevel()

virtual void ilog::CTracingConfigurationComp::SetTracingLevel ( int  tracingLevel )

overridevirtual

Set the tracing level.

Changes the current tracing verbosity level. This affects which verbose messages will be output by components using TLoggerCompWrap.

Observers are notified of the change through the IChangeable interface.

Parameters

tracingLevel

New tracing level: -1 = disable tracing (default) 0 = enable all verbose messages N = enable messages with level <= N

Example

// Disable all tracing
tracing->SetTracingLevel(-1);

// Enable all tracing (maximum verbosity)
tracing->SetTracingLevel(0);

// Enable selective tracing (levels 0 and 1)
tracing->SetTracingLevel(1);

See also

GetTracingLevel()

Implements ilog::ITracingConfiguration.

---

The documentation for this class was generated from the following file:

• Acf/Include/ilog/CTracingConfigurationComp.h
