Interface for RGB color objects with specification support. More...

#include <IRgbColor.h>

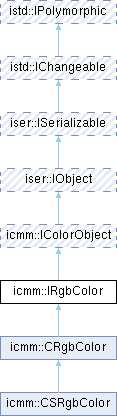

Inheritance diagram for icmm::IRgbColor:

Public Member Functions
virtual const icmm::CRgb &	GetRgb () const =0

virtual IColorSpecification::ConstColorSpecPtr	GetSpecification () const =0

Public Member Functions inherited from icmm::IColorObject
virtual icmm::CVarColor	GetColor () const =0
	Gets the generic color value representation.

virtual ConstColorModelPtr	GetColorModel () const =0
	Gets the associated color model.

virtual std::unique_ptr< IColorObject >	CloneIntoUniquePtr () const =0
	Creates an independent copy of the color object.

Public Member Functions inherited from iser::IObject
virtual QByteArray	GetFactoryId () const

Public Member Functions inherited from iser::ISerializable
virtual bool	Serialize (IArchive &archive)=0
	Load or store state of this object as a archive stream.

virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Interface for RGB color objects with specification support.

Purpose

IRgbColor extends IColorObject to provide specific support for RGB colors. It guarantees access to RGB component values and optionally provides color specification information (white point, primaries, gamma) for device-independent color management.

Usage Examples

// Example 1: Accessing RGB values from color object
void ProcessRgbColorObject(const icmm::IRgbColor* rgbColor)
{
       // Get RGB values
       const icmm::CRgb& rgb = rgbColor->GetRgb();

       double red = rgb.GetRed();
       double green = rgb.GetGreen();
       double blue = rgb.GetBlue();

       qDebug() << "RGB:" << red << green << blue;
}

// Example 2: Checking color specification
void CheckColorSpecification(const icmm::IRgbColor* rgbColor)
{
       // Get specification if available
       IColorSpecification::ConstColorSpecPtr spec =
              rgbColor->GetSpecification();

       if (spec) {
              // Has specification (e.g., sRGB, Adobe RGB)
              // Can use for accurate color management
       } else {
              // No specification - generic RGB
       }
}

// Example 3: Polymorphic RGB handling
void ConvertToGrayscale(icmm::IRgbColor* rgbColor)
{
       const icmm::CRgb& rgb = rgbColor->GetRgb();

       // Perceptual grayscale conversion
       double gray = 0.2126 * rgb.GetRed() +
                    0.7152 * rgb.GetGreen() +
                    0.0722 * rgb.GetBlue();

       // Could update color if interface allowed
       qDebug() << "Grayscale value:" << gray;
}

// Example 4: Type-safe color operations
bool IsRgbColorBright(const icmm::IColorObject* colorObj)
{
       // Try to cast to RGB color
       const icmm::IRgbColor* rgbColor =
              dynamic_cast<const icmm::IRgbColor*>(colorObj);

       if (rgbColor) {
              const icmm::CRgb& rgb = rgbColor->GetRgb();
              double brightness = (rgb.GetRed() + rgb.GetGreen() + rgb.GetBlue()) / 3.0;
              return brightness > 0.5;
       }

       return false;  // Not an RGB color
}

Color Specifications

IRgbColor can provide optional color specification information:

sRGB: Standard RGB with specific primaries and gamma 2.2
Adobe RGB: Wider gamut for professional photography
ProPhoto RGB: Very wide gamut for high-end workflows
Custom profiles: ICC profile-based specifications

See also: icmm::IColorObject, icmm::CRgb, icmm::CRgbColor, icmm::CSRgbColor, icmm::IColorSpecification

Definition at line 97 of file IRgbColor.h.

Member Function Documentation

◆ GetRgb()

virtual const icmm::CRgb & icmm::IRgbColor::GetRgb ( ) const

pure virtual

Implemented in icmm::CRgbColor.

◆ GetSpecification()

virtual IColorSpecification::ConstColorSpecPtr icmm::IRgbColor::GetSpecification ( ) const
