ACF: imod::IModelEditor Class Reference

ACF $AcfVersion:0$

Common interface for an model editor. More...

#include <IModelEditor.h>

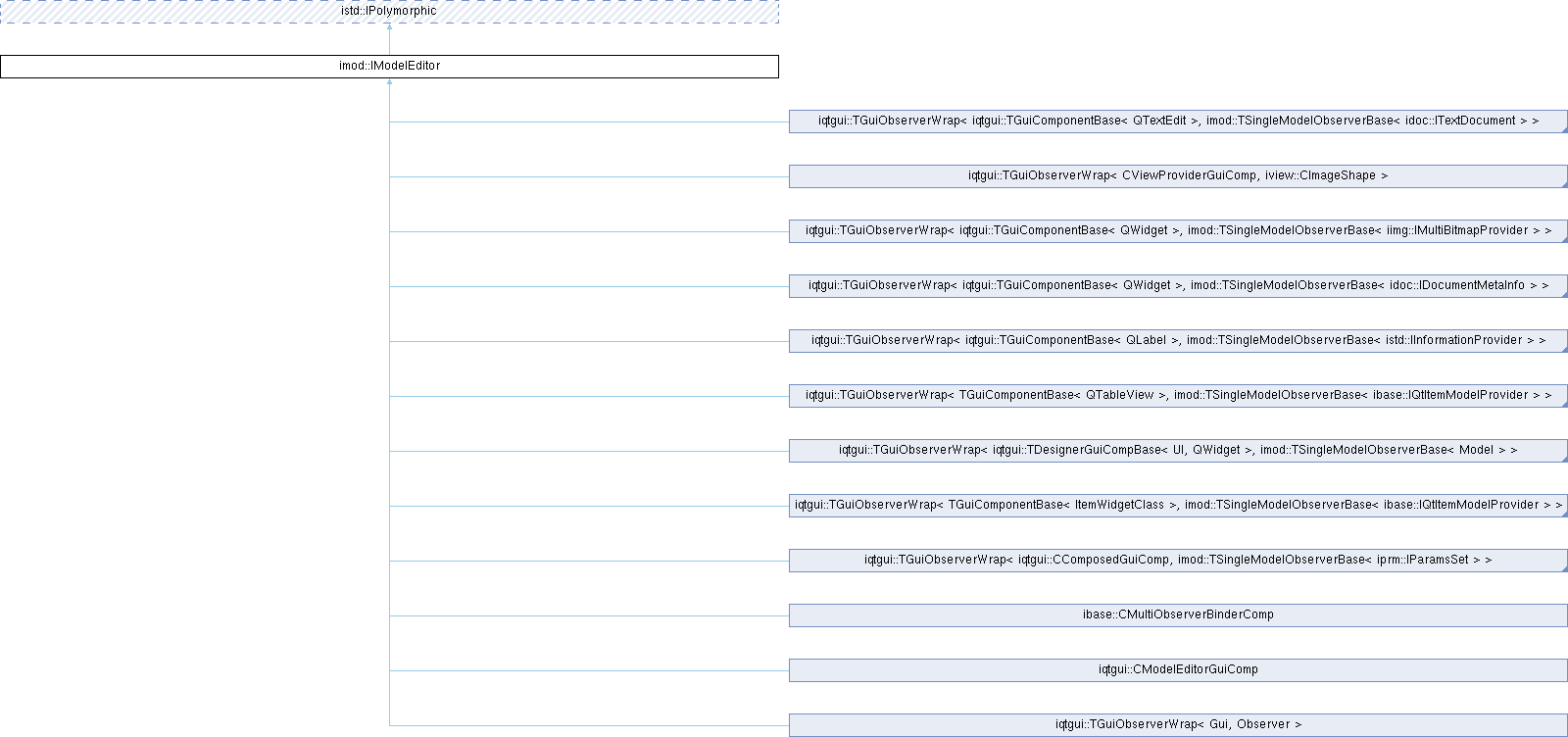

Inheritance diagram for imod::IModelEditor:

Public Types
enum	ChangeFlags { CF_INIT_EDITOR = 0x3720694 }
	Data model change notification flags. More...

Public Member Functions
virtual void	UpdateEditor (const istd::IChangeable::ChangeSet &changeSet)=0
	Updates editor with model data.

virtual void	UpdateModelFromEditor () const =0
	Updates model from editor.

virtual bool	IsReadOnly () const =0
	Returns `true` if the model data can be changed.

virtual void	SetReadOnly (bool state)=0
	Set flag that the model data can be changed.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Common interface for an model editor.

Definition at line 20 of file IModelEditor.h.

Member Enumeration Documentation

◆ ChangeFlags

enum imod::IModelEditor::ChangeFlags

Data model change notification flags.

Enumerator
CF_INIT_EDITOR	Called at begin of editor initialization.

Definition at line 26 of file IModelEditor.h.

Member Function Documentation

◆ IsReadOnly()

virtual bool imod::IModelEditor::IsReadOnly ( ) const

pure virtual

Returns true if the model data can be changed.

Implemented in ibase::CMultiObserverBinderComp, iqtgui::CModelEditorGuiComp, iqtgui::TGuiObserverWrap< Gui, Observer >, iqtgui::TGuiObserverWrap< CViewProviderGuiComp, iview::CImageShape >, iqtgui::TGuiObserverWrap< iqtgui::CComposedGuiComp, imod::TSingleModelObserverBase< iprm::IParamsSet > >, iqtgui::TGuiObserverWrap< iqtgui::TDesignerGuiCompBase< UI, QWidget >, imod::TSingleModelObserverBase< Model > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QLabel >, imod::TSingleModelObserverBase< istd::IInformationProvider > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QTextEdit >, imod::TSingleModelObserverBase< idoc::ITextDocument > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QWidget >, imod::TSingleModelObserverBase< idoc::IDocumentMetaInfo > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QWidget >, imod::TSingleModelObserverBase< iimg::IMultiBitmapProvider > >, iqtgui::TGuiObserverWrap< TGuiComponentBase< ItemWidgetClass >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > >, and iqtgui::TGuiObserverWrap< TGuiComponentBase< QTableView >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > >.

◆ SetReadOnly()

virtual void imod::IModelEditor::SetReadOnly ( bool state )

pure virtual

Set flag that the model data can be changed.

Returns: true, if this feature is supported.

Implemented in ibase::CMultiObserverBinderComp, iqtgui::CModelEditorGuiComp, iqtgui::TGuiObserverWrap< Gui, Observer >, iqtgui::TGuiObserverWrap< CViewProviderGuiComp, iview::CImageShape >, iqtgui::TGuiObserverWrap< iqtgui::CComposedGuiComp, imod::TSingleModelObserverBase< iprm::IParamsSet > >, iqtgui::TGuiObserverWrap< iqtgui::TDesignerGuiCompBase< UI, QWidget >, imod::TSingleModelObserverBase< Model > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QLabel >, imod::TSingleModelObserverBase< istd::IInformationProvider > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QTextEdit >, imod::TSingleModelObserverBase< idoc::ITextDocument > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QWidget >, imod::TSingleModelObserverBase< idoc::IDocumentMetaInfo > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QWidget >, imod::TSingleModelObserverBase< iimg::IMultiBitmapProvider > >, iqtgui::TGuiObserverWrap< TGuiComponentBase< ItemWidgetClass >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > >, iqtgui::TGuiObserverWrap< TGuiComponentBase< QTableView >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > >, and iqtprm::CExtComposedParamsSetGuiComp.

◆ UpdateEditor()

virtual void imod::IModelEditor::UpdateEditor ( const istd::IChangeable::ChangeSet & changeSet )

pure virtual

Updates editor with model data.

This method will be called only if GUI is connected.

Parameters

changeSet the same as changeSet in istd::IChangeable.

Implemented in ibase::CMultiObserverBinderComp, iqtgui::CModelEditorGuiComp, iqtgui::TGuiObserverWrap< Gui, Observer >, iqtgui::TGuiObserverWrap< CViewProviderGuiComp, iview::CImageShape >, iqtgui::TGuiObserverWrap< iqtgui::CComposedGuiComp, imod::TSingleModelObserverBase< iprm::IParamsSet > >, iqtgui::TGuiObserverWrap< iqtgui::TDesignerGuiCompBase< UI, QWidget >, imod::TSingleModelObserverBase< Model > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QLabel >, imod::TSingleModelObserverBase< istd::IInformationProvider > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QTextEdit >, imod::TSingleModelObserverBase< idoc::ITextDocument > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QWidget >, imod::TSingleModelObserverBase< idoc::IDocumentMetaInfo > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QWidget >, imod::TSingleModelObserverBase< iimg::IMultiBitmapProvider > >, iqtgui::TGuiObserverWrap< TGuiComponentBase< ItemWidgetClass >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > >, iqtgui::TGuiObserverWrap< TGuiComponentBase< QTableView >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > >, and iqtprm::CExtComposedParamsSetGuiComp.

◆ UpdateModelFromEditor()

virtual void imod::IModelEditor::UpdateModelFromEditor ( ) const

pure virtual

Updates model from editor.

This method will be called only if GUI is connected and model is attached.

Implemented in ibase::CMultiObserverBinderComp, iqtgui::CModelEditorGuiComp, iqtgui::TGuiObserverWrap< Gui, Observer >, iqtgui::TGuiObserverWrap< CViewProviderGuiComp, iview::CImageShape >, iqtgui::TGuiObserverWrap< iqtgui::CComposedGuiComp, imod::TSingleModelObserverBase< iprm::IParamsSet > >, iqtgui::TGuiObserverWrap< iqtgui::TDesignerGuiCompBase< UI, QWidget >, imod::TSingleModelObserverBase< Model > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QLabel >, imod::TSingleModelObserverBase< istd::IInformationProvider > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QTextEdit >, imod::TSingleModelObserverBase< idoc::ITextDocument > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QWidget >, imod::TSingleModelObserverBase< idoc::IDocumentMetaInfo > >, iqtgui::TGuiObserverWrap< iqtgui::TGuiComponentBase< QWidget >, imod::TSingleModelObserverBase< iimg::IMultiBitmapProvider > >, iqtgui::TGuiObserverWrap< TGuiComponentBase< ItemWidgetClass >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > >, and iqtgui::TGuiObserverWrap< TGuiComponentBase< QTableView >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > >.

The documentation for this class was generated from the following file:

Acf/Include/imod/IModelEditor.h
