iqtprm::CVariableParamGuiComp Class Reference

#include <CVariableParamGuiComp.h>

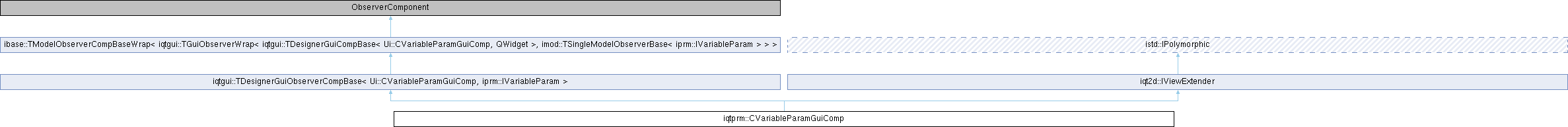

Inheritance diagram for iqtprm::CVariableParamGuiComp:

Public Types
typedef iqtgui::TDesignerGuiObserverCompBase< Ui::CVariableParamGuiComp, iprm::IVariableParam >	BaseClass
Public Types inherited from ibase::TModelObserverCompBaseWrap< ObserverComponent >
typedef ObserverComponent	BaseClass
Public Types inherited from iqt2d::IViewExtender
enum	SceneFlags { SF_BACKGROUND = 1 , SF_DIRECT = 2 }
	Standard flags for items . More...

Public Member Functions
	CVariableParamGuiComp ()
virtual bool	OnModelDetached (imod::IModel *modelPtr) override
virtual void	AddItemsToScene (iqt2d::IViewProvider *providerPtr, int flags) override
	Called when items should be added to specified scene.
virtual void	RemoveItemsFromScene (iqt2d::IViewProvider *providerPtr) override
	Called when items should be removed from specified scene.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Slots
void	on_TypeSelectorCB_currentIndexChanged (int index)

Protected Member Functions
void	AttachCurrentType ()
void	DetachCurrentType ()
virtual void	UpdateGui (const istd::IChangeable::ChangeSet &changeSet) override
virtual void	OnGuiCreated () override
virtual void	OnGuiDestroyed () override
Protected Member Functions inherited from ibase::TModelObserverCompBaseWrap< ObserverComponent >
virtual void	OnComponentCreated () override
virtual void	OnComponentDestroyed () override

Detailed Description

Definition at line 24 of file CVariableParamGuiComp.h.

Member Typedef Documentation

BaseClass

typedef iqtgui::TDesignerGuiObserverCompBase<Ui::CVariableParamGuiComp, iprm::IVariableParam> iqtprm::CVariableParamGuiComp::BaseClass

Definition at line 31 of file CVariableParamGuiComp.h.

Constructor & Destructor Documentation

CVariableParamGuiComp()

iqtprm::CVariableParamGuiComp::CVariableParamGuiComp

(

)

Member Function Documentation

AddItemsToScene()

virtual void iqtprm::CVariableParamGuiComp::AddItemsToScene ( iqt2d::IViewProvider *  providerPtr, int  flags  )

overridevirtual

Called when items should be added to specified scene.

Implements iqt2d::IViewExtender.

AttachCurrentType()

void iqtprm::CVariableParamGuiComp::AttachCurrentType ( )

protected

DetachCurrentType()

void iqtprm::CVariableParamGuiComp::DetachCurrentType ( )

protected

on_TypeSelectorCB_currentIndexChanged

void iqtprm::CVariableParamGuiComp::on_TypeSelectorCB_currentIndexChanged ( int  index )

protectedslot

OnGuiCreated()

virtual void iqtprm::CVariableParamGuiComp::OnGuiCreated ( )

overrideprotectedvirtual

OnGuiDestroyed()

virtual void iqtprm::CVariableParamGuiComp::OnGuiDestroyed ( )

overrideprotectedvirtual

OnModelDetached()

virtual bool iqtprm::CVariableParamGuiComp::OnModelDetached ( imod::IModel *  modelPtr )

overridevirtual

RemoveItemsFromScene()

virtual void iqtprm::CVariableParamGuiComp::RemoveItemsFromScene ( iqt2d::IViewProvider *  providerPtr )

overridevirtual

Called when items should be removed from specified scene.

Implements iqt2d::IViewExtender.

UpdateGui()

virtual void iqtprm::CVariableParamGuiComp::UpdateGui ( const istd::IChangeable::ChangeSet &  changeSet )

overrideprotectedvirtual

---

The documentation for this class was generated from the following file:

• Acf/Include/iqtprm/CVariableParamGuiComp.h
