iloggui::CTextLogGuiComp Class Reference

Text-based log viewer with rich formatting. More...

#include <CTextLogGuiComp.h>

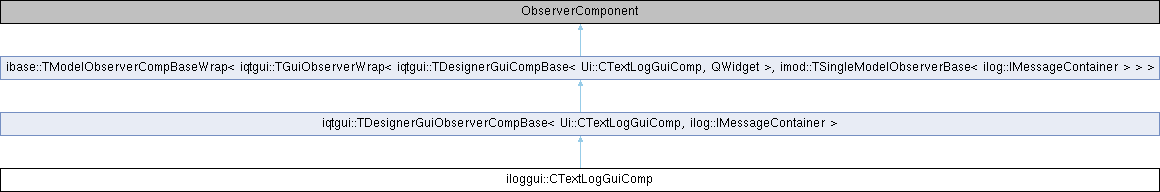

Inheritance diagram for iloggui::CTextLogGuiComp:

Public Types
typedef iqtgui::TDesignerGuiObserverCompBase< Ui::CTextLogGuiComp, ilog::IMessageContainer >	BaseClass
Public Types inherited from ibase::TModelObserverCompBaseWrap< ObserverComponent >
typedef ObserverComponent	BaseClass

Protected Member Functions
virtual void	UpdateGui (const istd::IChangeable::ChangeSet &changeSet) override
virtual void	OnGuiCreated () override
virtual void	OnGuiRetranslate () override
Protected Member Functions inherited from ibase::TModelObserverCompBaseWrap< ObserverComponent >
virtual void	OnComponentCreated () override
virtual void	OnComponentDestroyed () override

Detailed Description

Text-based log viewer with rich formatting.

CTextLogGuiComp provides a read-only, rich-text display of log messages using QTextEdit. It observes a message container and updates its display automatically when messages are added.

The component displays messages in a formatted table with icons, timestamps, sources, and message text. It provides filtering controls for severity, source, and message content.

This component is simpler than CLogGuiComp and is best suited for read-only log displays where advanced features like export and commands aren't needed.

For detailed documentation including configuration and usage examples, see the iloggui library documentation.

Quick Example

// Create log container
istd::TSharedInterfacePtr<ilog::CLogComp> logContainer(
    new ilog::CLogComp);

// Create text log viewer
istd::TSharedInterfacePtr<iloggui::CTextLogGuiComp> textLog(
    new iloggui::CTextLogGuiComp);

// Configure to observe container
// In .acc: Model -> logContainer

// Get widget for display
QWidget* widget = textLog->GetWidget();
layout->addWidget(widget);

// Messages added to logContainer appear automatically

See also

iloggui - Logging GUI Components, ilog::IMessageContainer, iqtgui::TDesignerGuiObserverCompBase

Definition at line 60 of file CTextLogGuiComp.h.

Member Typedef Documentation

BaseClass

typedef iqtgui::TDesignerGuiObserverCompBase< Ui::CTextLogGuiComp, ilog::IMessageContainer> iloggui::CTextLogGuiComp::BaseClass

Definition at line 68 of file CTextLogGuiComp.h.

Member Function Documentation

OnGuiCreated()

virtual void iloggui::CTextLogGuiComp::OnGuiCreated ( )

overrideprotectedvirtual

OnGuiRetranslate()

virtual void iloggui::CTextLogGuiComp::OnGuiRetranslate ( )

overrideprotectedvirtual

UpdateGui()

virtual void iloggui::CTextLogGuiComp::UpdateGui ( const istd::IChangeable::ChangeSet &  changeSet )

overrideprotectedvirtual

---

The documentation for this class was generated from the following file:

• Acf/Include/iloggui/CTextLogGuiComp.h
