Simple implementation of archive reading from XML file. More...

#include <CSimpleXmlFileReadArchive.h>

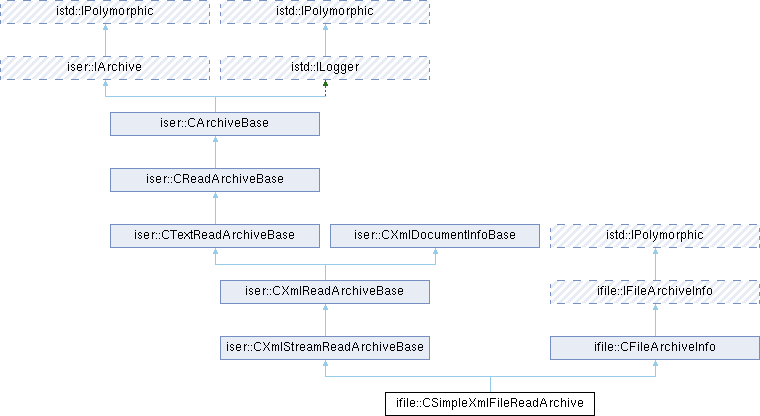

Inheritance diagram for ifile::CSimpleXmlFileReadArchive:

Public Types
typedef iser::CXmlStreamReadArchiveBase	BaseClass

typedef CFileArchiveInfo	BaseClass2

Public Types inherited from iser::CXmlStreamReadArchiveBase
typedef CXmlReadArchiveBase	BaseClass

Public Types inherited from iser::CXmlReadArchiveBase
typedef CTextReadArchiveBase	BaseClass

Public Types inherited from iser::CTextReadArchiveBase
typedef CReadArchiveBase	BaseClass

Public Types inherited from iser::IArchive
enum	MessageId { MI_TAG_ERROR = 0x3f320a0 , MI_TAG_SKIPPED }

Public Member Functions
	CSimpleXmlFileReadArchive (const QString &filePath, bool serializeHeader=true, const iser::CArchiveTag &rootTag=s_acfRootTag)

virtual	~CSimpleXmlFileReadArchive ()

Public Member Functions inherited from iser::CXmlStreamReadArchiveBase
int	GetLastReadLine () const

Public Member Functions inherited from iser::CXmlReadArchiveBase
virtual bool	IsTagSkippingSupported () const override
	Checks if skipping to the end of a tag on EndTag() is supported.

virtual bool	BeginTag (const CArchiveTag &tag) override
	Begins a tagged section in the archive.

virtual bool	BeginMultiTag (const CArchiveTag &tag, const CArchiveTag &subTag, int &count) override
	Begins a tagged section containing multiple elements of the same type.

virtual bool	EndTag (const CArchiveTag &tag) override
	Ends a tagged section in the archive.

virtual bool	Process (QByteArray &value) override
	Process primitive type.

virtual bool	Process (QString &value) override
	Process primitive type.

virtual bool	Process (bool &value) override
	Processes (reads or writes) a boolean value.

virtual bool	Process (char &value) override
	Process primitive type.

virtual bool	Process (quint8 &value) override
	Process primitive type.

virtual bool	Process (qint8 &value) override
	Process primitive type.

virtual bool	Process (quint16 &value) override
	Process primitive type.

virtual bool	Process (qint16 &value) override
	Process primitive type.

virtual bool	Process (quint32 &value) override
	Process primitive type.

virtual bool	Process (qint32 &value) override
	Process primitive type.

virtual bool	Process (quint64 &value) override
	Process primitive type.

virtual bool	Process (qint64 &value) override
	Process primitive type.

virtual bool	Process (float &value) override
	Process primitive type.

virtual bool	Process (double &value) override
	Process primitive type.

virtual bool	Process (QByteArray &value) override
	Process primitive type.

Public Member Functions inherited from iser::CTextReadArchiveBase
virtual bool	ProcessData (void *dataPtr, int size) override
	Process binary data block.

Public Member Functions inherited from iser::CReadArchiveBase
virtual bool	IsStoring () const override
	Checks if this archive is in storing (writing) or loading (reading) mode.

virtual const IVersionInfo &	GetVersionInfo () const override
	Gets version information for the archived stream.

virtual bool	ProcessBits (void *dataPtr, int bitsCount, int bytesCount) override
	Process binary data block.

Public Member Functions inherited from iser::IArchive
template<typename Primitive >
bool	TagAndProcess (const CArchiveTag &tag, Primitive &value)

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iser::CXmlDocumentInfoBase
	CXmlDocumentInfoBase ()

bool	IsCommentEnabled () const
	Check if comments in XML document are enabled.

void	SetCommentEnabled (bool state=true)
	Allows comments in XML document.

Public Member Functions inherited from ifile::CFileArchiveInfo
	CFileArchiveInfo (const QString &filePath)

virtual const QString &	GetCurrentFilePath () const override

Protected Member Functions
virtual void	DecorateMessage (istd::IInformationProvider::InformationCategory category, int id, int flags, QString &message, QString &messageSource) const override
	Decorate message parts before outputting.

Protected Member Functions inherited from iser::CXmlStreamReadArchiveBase
	CXmlStreamReadArchiveBase (const CArchiveTag &rootTag=s_acfRootTag)

virtual bool	ReadToDelimeter (const QByteArray &delimeters, QByteArray &result, bool skipDelimeter=true, char *foundDelimeterPtr=NULL) override
	Read input stream till one of specified delimeters is found.

Protected Member Functions inherited from iser::CXmlReadArchiveBase
	CXmlReadArchiveBase (const CArchiveTag &rootTag)

bool	InternEndTag (const CArchiveTag &tag, bool &wasTagSkipped)
	Extended implementation of EndTag() with additional flag signalizing that tag is skipped.

virtual bool	ReadXmlHeader ()

virtual bool	ReadXmlFooter ()

virtual bool	ReadTextNode (QByteArray &text) override
	Read single unformatted text node.

Protected Member Functions inherited from iser::CReadArchiveBase
bool	SerializeAcfHeader ()
	Serialize standard header.

Protected Member Functions inherited from iser::CArchiveBase
	CArchiveBase ()

virtual bool	IsLogConsumed (const IInformationProvider::InformationCategory categoryPtr=NULL, const int flagsPtr=NULL) const
	Check if any log message is consumed.

virtual bool	SendLogMessage (IInformationProvider::InformationCategory category, int id, const QString &message, const QString &messageSource, int flags=0) const
	Send any message to log.

Additional Inherited Members
Static Public Member Functions inherited from iser::CArchiveBase
static const CArchiveTag &	GetAcfRootTag ()

Static Public Member Functions inherited from iser::CXmlDocumentInfoBase
static void	EncodeXml (const QByteArray &text, QByteArray &xmlText)

static void	DecodeXml (const QByteArray &xmlText, QByteArray &text)

static void	EncodeXml (const QString &text, QByteArray &xmlText)

static void	DecodeXml (const QByteArray &xmlText, QString &text)

static const QString &	GetElementSeparator ()

Protected Attributes inherited from iser::CXmlStreamReadArchiveBase
QTextStream	m_stream

Protected Attributes inherited from ifile::CFileArchiveInfo
QString	m_filePath

Static Protected Attributes inherited from iser::CArchiveBase
static CArchiveTag	s_acfRootTag

Detailed Description

Simple implementation of archive reading from XML file.

This implementation doesn't use any external parser. It uses only single pass and is very fast, but it doesn't support of tags skipping and it needs counter attribute indicating number of subtags for each mutli tag node. XML file in this format can be created using ifile::CSimpleXmlFileWriteArchive.

Definition at line 26 of file CSimpleXmlFileReadArchive.h.

Member Typedef Documentation

◆ BaseClass

typedef iser::CXmlStreamReadArchiveBase ifile::CSimpleXmlFileReadArchive::BaseClass

Definition at line 31 of file CSimpleXmlFileReadArchive.h.

◆ BaseClass2

typedef CFileArchiveInfo ifile::CSimpleXmlFileReadArchive::BaseClass2

Definition at line 32 of file CSimpleXmlFileReadArchive.h.

Constructor & Destructor Documentation

◆ CSimpleXmlFileReadArchive()

ifile::CSimpleXmlFileReadArchive::CSimpleXmlFileReadArchive	(	const QString &	filePath,
		bool	serializeHeader = `true`,
		const iser::CArchiveTag &	rootTag = `s_acfRootTag`
	)

explicit

◆ ~CSimpleXmlFileReadArchive()

virtual ifile::CSimpleXmlFileReadArchive::~CSimpleXmlFileReadArchive ( )

virtual

Member Function Documentation

◆ DecorateMessage()

virtual void ifile::CSimpleXmlFileReadArchive::DecorateMessage	(	istd::IInformationProvider::InformationCategory	category,
		int	id,
		int	flags,
		QString &	message,
		QString &	messageSource
	)		const

overrideprotectedvirtual

Decorate message parts before outputting.

Reimplemented from iser::CXmlStreamReadArchiveBase.

The documentation for this class was generated from the following file:

Acf/Include/ifile/CSimpleXmlFileReadArchive.h
