ifile::IDeviceBasedPersistence Class Reference

Interface providing reading and writing data objects via I/O-devices. More...

#include <IDeviceBasedPersistence.h>

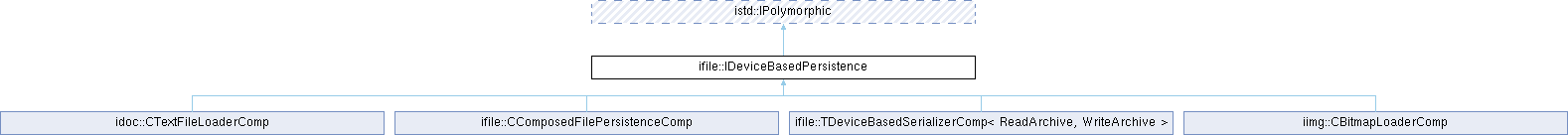

Inheritance diagram for ifile::IDeviceBasedPersistence:

Public Types
enum	OperationState { Successful , Canceled , Failed }
	Result of device-related operation. More...
enum	DeviceOperation { ReadOperation = 1 , WriteOperation = 2 }
enum	ErrorType {   NoWritePermissions , NoReadPermissions , NoDeviceAccess , ReadOperationFailed ,   WriteOperationFailed , UnsupportedArchiveVersion }
	Possible operation errors. More...

Public Member Functions
virtual bool	IsDeviceOperationSupported (const istd::IChangeable &dataObject, const QIODevice &device, int deviceOperation) const =0
	Returns true if object dataObject can be processed via defined I/O-device.
virtual OperationState	ReadFromDevice (istd::IChangeable &data, QIODevice &device, ibase::IProgressManager *progressManagerPtr=nullptr) const =0
	This function loads data data from the given I/O-device device.
virtual OperationState	WriteToDevice (const istd::IChangeable &data, QIODevice &device, ibase::IProgressManager *progressManagerPtr=nullptr) const =0
	This function writes data data to the given I/O-device device.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Interface providing reading and writing data objects via I/O-devices.

Definition at line 32 of file IDeviceBasedPersistence.h.

Member Enumeration Documentation

DeviceOperation

enum ifile::IDeviceBasedPersistence::DeviceOperation

Enumerator
ReadOperation
WriteOperation

Definition at line 56 of file IDeviceBasedPersistence.h.

ErrorType

enum ifile::IDeviceBasedPersistence::ErrorType

Possible operation errors.

Enumerator
NoWritePermissions	No write access granted.
NoReadPermissions	No read access granted.
NoDeviceAccess	Device could not be opened.
ReadOperationFailed	Reading the data was failed.
WriteOperationFailed	Writing the data was failed.
UnsupportedArchiveVersion	The archive has a wrong/unsupported version.

Definition at line 65 of file IDeviceBasedPersistence.h.

OperationState

enum ifile::IDeviceBasedPersistence::OperationState

Result of device-related operation.

Enumerator
Successful	Operation was successful.
Canceled	Operation was aborted by user.
Failed	Operation failed.

Definition at line 38 of file IDeviceBasedPersistence.h.

Member Function Documentation

IsDeviceOperationSupported()

virtual bool ifile::IDeviceBasedPersistence::IsDeviceOperationSupported ( const istd::IChangeable &  dataObject, const QIODevice &  device, int  deviceOperation  ) const

pure virtual

Returns true if object dataObject can be processed via defined I/O-device.

Parameters

dataObject

data object should be red/written.

Implemented in idoc::CTextFileLoaderComp, ifile::CComposedFilePersistenceComp, ifile::TDeviceBasedSerializerComp< ReadArchive, WriteArchive >, and iimg::CBitmapLoaderComp.

ReadFromDevice()

virtual OperationState ifile::IDeviceBasedPersistence::ReadFromDevice ( istd::IChangeable &  data, QIODevice &  device, ibase::IProgressManager *  progressManagerPtr = nullptr  ) const

pure virtual

This function loads data data from the given I/O-device device.

Returns

State of the reading operation.

See also

OperationState

Implemented in idoc::CTextFileLoaderComp, ifile::CComposedFilePersistenceComp, ifile::TDeviceBasedSerializerComp< ReadArchive, WriteArchive >, and iimg::CBitmapLoaderComp.

WriteToDevice()

virtual OperationState ifile::IDeviceBasedPersistence::WriteToDevice ( const istd::IChangeable &  data, QIODevice &  device, ibase::IProgressManager *  progressManagerPtr = nullptr  ) const

pure virtual

This function writes data data to the given I/O-device device.

Returns

State of the writing operation.

See also

OperationState

Implemented in idoc::CTextFileLoaderComp, ifile::CComposedFilePersistenceComp, ifile::TDeviceBasedSerializerComp< ReadArchive, WriteArchive >, and iimg::CBitmapLoaderComp.

---

The documentation for this class was generated from the following file:

• Acf/Include/ifile/IDeviceBasedPersistence.h
