idoc::CSelectedDocModelBinderComp Class Reference

Conditional model-observer binder depending on actual selection. More...

#include <CSelectedDocModelBinderComp.h>

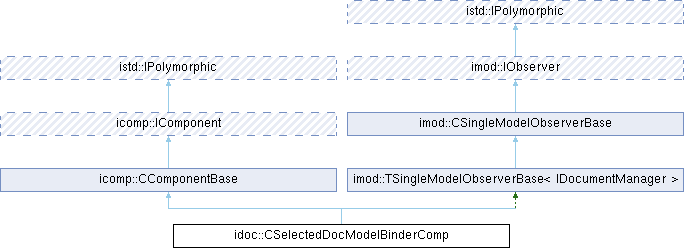

Inheritance diagram for idoc::CSelectedDocModelBinderComp:

Public Types
typedef icomp::CComponentBase	BaseClass
typedef imod::TSingleModelObserverBase< IDocumentManager >	BaseClass2

Public Member Functions
	CSelectedDocModelBinderComp ()
Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.
virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.
virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.
virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.
virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
void	TryConnectObservers ()
void	TryDisconnectObservers ()
virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.
virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.
virtual void	OnComponentCreated () override
virtual void	OnComponentDestroyed () override
Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.
virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.
Protected Member Functions inherited from imod::TSingleModelObserverBase< IDocumentManager >
virtual IDocumentManager *	CastFromModel (imod::IModel *modelPtr) const
	TSingleModelObserverBase ()
IDocumentManager *	GetObservedObject () const
	Get instance of observed object.
IDocumentManager *	GetObjectPtr () const
	Get instance of observed object.
bool	AttachOrSetObject (IDocumentManager *objectPtr)
	Attach to model of object or set object pointer, if no connection is possible.
virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.
virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.
Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.
virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet)
	Called on update of observed model.
	CSingleModelObserverBase ()
virtual	~CSingleModelObserverBase ()
imod::IModel *	GetObservedModel () const
	Get access to observed model.
imod::IModel *	GetModelPtr () const
	Get access to observed model.
void	EnsureModelDetached ()
	Make sure this observer is detached.
void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.
virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

Additional Inherited Members
Protected Types inherited from imod::TSingleModelObserverBase< IDocumentManager >
typedef CSingleModelObserverBase	BaseClass
typedef IDocumentManager	ModelType
Protected Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)
static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())
Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Conditional model-observer binder depending on actual selection.

This component allows to work-around of problems with observing of selected document or view. It connects model with observer only if some document (or view) is currently selected. Please note, that there is no assumption that connected model must be the same as observed model.

Definition at line 24 of file CSelectedDocModelBinderComp.h.

Member Typedef Documentation

BaseClass

typedef icomp::CComponentBase idoc::CSelectedDocModelBinderComp::BaseClass

Definition at line 29 of file CSelectedDocModelBinderComp.h.

BaseClass2

typedef imod::TSingleModelObserverBase<IDocumentManager> idoc::CSelectedDocModelBinderComp::BaseClass2

Definition at line 30 of file CSelectedDocModelBinderComp.h.

Constructor & Destructor Documentation

CSelectedDocModelBinderComp()

idoc::CSelectedDocModelBinderComp::CSelectedDocModelBinderComp

(

)

Member Function Documentation

AfterUpdate()

virtual void idoc::CSelectedDocModelBinderComp::AfterUpdate ( imod::IModel *  modelPtr, const istd::IChangeable::ChangeSet &  changeSet  )

overrideprotectedvirtual

Callback invoked after an update of the observer's content occurs.

This is the primary notification method where observers react to model changes. It's called after the model has finished updating its state. The implementation should examine the changeSet to determine what changed and update accordingly.

Parameters

modelPtr	Pointer to the model that has changed
changeSet	Contains information about what changed in the model. Use changeSet.Contains(changeId) to check for specific changes. The changeSet respects the mask specified in OnModelAttached().

Note

This is typically where you update your GUI, recalculate derived values, or trigger other dependent operations.

Keep this method fast - it's called frequently and may block the UI thread.

Use the changeSet to perform incremental updates rather than refreshing everything.

virtual void AfterUpdate(IModel* modelPtr,
                        const istd::IChangeable::ChangeSet& changeSet)
{
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return;

       // Selective update based on what changed
       if (changeSet.Contains(CMyModel::CF_NAME_CHANGED)) {
              m_nameLabel->setText(model->GetName());
       }
       if (changeSet.Contains(CMyModel::CF_VALUE_CHANGED)) {
              m_valueSpinBox->setValue(model->GetValue());
              RecalculateDependentValues();
       }

       // Re-enable signals if blocked in BeforeUpdate
       if (m_widget) {
              m_widget->blockSignals(false);
       }
}

See also

BeforeUpdate(), OnModelAttached()

Reimplemented from imod::CSingleModelObserverBase.

BeforeUpdate()

virtual void idoc::CSelectedDocModelBinderComp::BeforeUpdate ( imod::IModel *  modelPtr )

overrideprotectedvirtual

Callback invoked before an update of the observer's content occurs.

This method is called at the start of a model update cycle, before any data actually changes. It allows the observer to prepare for the update, such as saving current state for comparison or disabling UI updates temporarily.

Parameters

modelPtr

Pointer to the model that is about to change

Warning

In some error cases, this method may be called without a subsequent AfterUpdate() call. Don't rely on AfterUpdate() always being called.

Note

This method is optional to implement - if you don't need preparation logic, just provide an empty implementation.

virtual void BeforeUpdate(IModel* modelPtr)
{
       // Example: Block signals to prevent multiple GUI updates
       if (m_widget) {
              m_widget->blockSignals(true);
       }

       // Example: Save state for delta comparison
       m_previousValue = m_currentValue;
}

See also

AfterUpdate()

Reimplemented from imod::CSingleModelObserverBase.

OnComponentCreated()

virtual void idoc::CSelectedDocModelBinderComp::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

OnComponentDestroyed()

virtual void idoc::CSelectedDocModelBinderComp::OnComponentDestroyed ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

TryConnectObservers()

void idoc::CSelectedDocModelBinderComp::TryConnectObservers ( )

protected

TryDisconnectObservers()

void idoc::CSelectedDocModelBinderComp::TryDisconnectObservers ( )

protected

---

The documentation for this class was generated from the following file:

• Acf/Include/idoc/CSelectedDocModelBinderComp.h
