#include <CSpectralColorSpecificationBase.h>

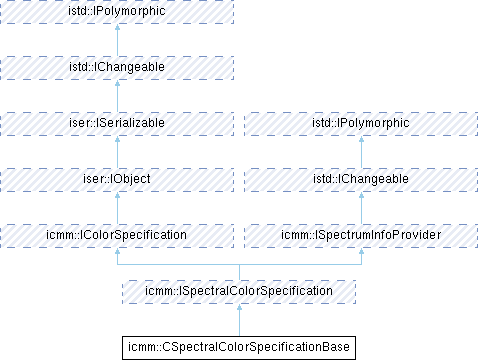

Inheritance diagram for icmm::CSpectralColorSpecificationBase:

Public Member Functions
	CSpectralColorSpecificationBase (const CSpectralColorSpecificationBase &spec)

virtual const ISpectrumInfo *	GetSpectrumInfo () const override

virtual SpectrumType	GetSpectrumType () const override

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	IsEqual (const istd::IChangeable &other) const override
	Compare this object with another object.

Public Member Functions inherited from icmm::ISpectralColorSpecification
	I_DECLARE_ENUM (SpectrumType, Reflective, Emissive, Transmissive, TotalTransmissive)

Public Member Functions inherited from icmm::IColorSpecification
	I_DECLARE_ENUM (SpecType, Tristimulus, Spectral)

Public Member Functions inherited from iser::IObject
virtual QByteArray	GetFactoryId () const

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
	CSpectralColorSpecificationBase (const ISpectrumInfo &spectrumInfo)

	CSpectralColorSpecificationBase (istd::CIntRange range, int step)

Protected Member Functions inherited from icmm::ISpectralColorSpecification
virtual SpecType	GetSpecificationType () const final
	Gets the logical type of the specification.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes
SpectrumType	m_spectrumType

CSpectrumInfo	m_info

Additional Inherited Members
Public Types inherited from icmm::ISpectralColorSpecification
enum	SpectrumType { Reflective = 1 , Emissive , Transmissive , TotalTransmissive }

typedef std::shared_ptr< const ISpectralColorSpecification >	ConstSpectralColorSpecPtr

typedef std::shared_ptr< ISpectralColorSpecification >	SpectralColorSpecPtr

Public Types inherited from icmm::IColorSpecification
enum	SpecType { Tristimulus , Spectral }

typedef std::shared_ptr< const IColorSpecification >	ConstColorSpecPtr

typedef std::shared_ptr< IColorSpecification >	ColorSpecPtr

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Detailed Description

Definition at line 14 of file CSpectralColorSpecificationBase.h.

Constructor & Destructor Documentation

◆ CSpectralColorSpecificationBase() [1/3]

icmm::CSpectralColorSpecificationBase::CSpectralColorSpecificationBase ( const CSpectralColorSpecificationBase & spec )

◆ CSpectralColorSpecificationBase() [2/3]

icmm::CSpectralColorSpecificationBase::CSpectralColorSpecificationBase ( const ISpectrumInfo & spectrumInfo )

protected

◆ CSpectralColorSpecificationBase() [3/3]

icmm::CSpectralColorSpecificationBase::CSpectralColorSpecificationBase	(	istd::CIntRange	range,
		int	step
	)

protected

Member Function Documentation

◆ CopyFrom()

virtual bool icmm::CSpectralColorSpecificationBase::CopyFrom	(	const istd::IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Copy this object from another one.

Default implementation in istd::IChangeable does nothing.

Reimplemented from istd::IChangeable.

◆ GetSpectrumInfo()

virtual const ISpectrumInfo * icmm::CSpectralColorSpecificationBase::GetSpectrumInfo ( ) const

overridevirtual

Implements icmm::ISpectrumInfoProvider.

◆ GetSpectrumType()

virtual SpectrumType icmm::CSpectralColorSpecificationBase::GetSpectrumType ( ) const

overridevirtual

Implements icmm::ISpectralColorSpecification.

◆ GetSupportedOperations()

virtual int icmm::CSpectralColorSpecificationBase::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from istd::IChangeable.

◆ IsEqual()

virtual bool icmm::CSpectralColorSpecificationBase::IsEqual ( const istd::IChangeable & object ) const

overridevirtual

Compare this object with another object.

Parameters

object Object to be compared

Returns: true if the objects are identical and false otherwise.

Reimplemented from istd::IChangeable.

◆ Serialize()

virtual bool icmm::CSpectralColorSpecificationBase::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

Member Data Documentation

◆ m_info

CSpectrumInfo icmm::CSpectralColorSpecificationBase::m_info

protected

Definition at line 37 of file CSpectralColorSpecificationBase.h.

◆ m_spectrumType

SpectrumType icmm::CSpectralColorSpecificationBase::m_spectrumType

protected

Definition at line 36 of file CSpectralColorSpecificationBase.h.

The documentation for this class was generated from the following file:

Acf/Include/icmm/CSpectralColorSpecificationBase.h
