#include <CIlluminant.h>

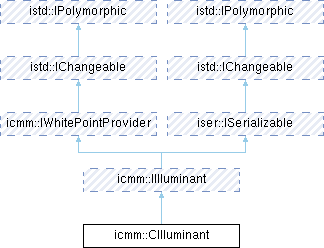

Inheritance diagram for icmm::CIlluminant:

Public Member Functions
	CIlluminant (StandardIlluminant illuminantType=StandardIlluminant::D50)
	Construct an illuminant based on a standard type.

	CIlluminant (const QString &illuminantName, const icmm::CVarColor &whitePoint)
	Construct a custom Illuminant.

	CIlluminant (const CIlluminant &other)
	Copy constructor.

virtual icmm::CVarColor	GetWhitePoint () const override
	Gets the white point as a color value.

virtual void	SetWhitePoint (const icmm::CVarColor &whitePoint) override
	Sets the white point for this illuminant.

virtual QString	GetIlluminantName () const override
	Gets the human-readable name of this illuminant.

virtual void	SetIlluminantName (const QString &illuminantName) override
	Sets the human-readable name for this illuminant.

virtual StandardIlluminant	GetIlluminantType () const override
	Gets the standard illuminant type.

virtual void	SetIlluminantType (const StandardIlluminant &illuminantType) override
	Sets the standard illuminant type.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	IsEqual (const istd::IChangeable &other) const override
	Compare this object with another object.

virtual istd::IChangeableUniquePtr	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

Public Member Functions inherited from istd::IChangeable
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Protected Member Functions
void	InitFromStandardIlluminant (StandardIlluminant illuminantType)

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Additional Inherited Members
Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Detailed Description

Definition at line 13 of file CIlluminant.h.

Constructor & Destructor Documentation

◆ CIlluminant() [1/3]

icmm::CIlluminant::CIlluminant ( StandardIlluminant illuminantType = StandardIlluminant::D50 )

Construct an illuminant based on a standard type.

◆ CIlluminant() [2/3]

icmm::CIlluminant::CIlluminant	(	const QString &	illuminantName,
		const icmm::CVarColor &	whitePoint
	)

Construct a custom Illuminant.

◆ CIlluminant() [3/3]

icmm::CIlluminant::CIlluminant ( const CIlluminant & other )

Copy constructor.

Member Function Documentation

◆ CloneMe()

virtual istd::IChangeableUniquePtr icmm::CIlluminant::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from istd::IChangeable.

◆ CopyFrom()

virtual bool icmm::CIlluminant::CopyFrom	(	const istd::IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Copy this object from another one.

Default implementation in istd::IChangeable does nothing.

Reimplemented from istd::IChangeable.

◆ GetIlluminantName()

virtual QString icmm::CIlluminant::GetIlluminantName ( ) const

overridevirtual

Gets the human-readable name of this illuminant.

Returns: QString containing illuminant name (e.g., "D65", "D50", "A")

See also: SetIlluminantName()

Implements icmm::IIlluminant.

◆ GetIlluminantType()

virtual StandardIlluminant icmm::CIlluminant::GetIlluminantType ( ) const

overridevirtual

Gets the standard illuminant type.

Returns: StandardIlluminant enum value (SI_D65, SI_D50, SI_A, etc.)

See also: SetIlluminantType(), StandardIlluminant

Implements icmm::IIlluminant.

◆ GetSupportedOperations()

virtual int icmm::CIlluminant::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from istd::IChangeable.

◆ GetWhitePoint()

virtual icmm::CVarColor icmm::CIlluminant::GetWhitePoint ( ) const

overridevirtual

Gets the white point as a color value.

Returns the white point typically as XYZ tristimulus values in a CVarColor. The white point defines what color should be considered as "white" or "neutral" in the color space.

Returns: CVarColor containing the white point, typically XYZ coordinates

Note: White point is usually normalized so Y component = 1.0; Common white points: D65 (X=0.95047, Y=1.0, Z=1.08883)

See also: IIlluminant::GetWhitePoint()

Implements icmm::IWhitePointProvider.

◆ InitFromStandardIlluminant()

void icmm::CIlluminant::InitFromStandardIlluminant ( StandardIlluminant illuminantType )

protected

◆ IsEqual()

virtual bool icmm::CIlluminant::IsEqual ( const istd::IChangeable & object ) const

overridevirtual

Compare this object with another object.

Parameters

object Object to be compared

Returns: true if the objects are identical and false otherwise.

Reimplemented from istd::IChangeable.

◆ Serialize()

virtual bool icmm::CIlluminant::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

◆ SetIlluminantName()

virtual void icmm::CIlluminant::SetIlluminantName ( const QString & illuminantName )

overridevirtual

Sets the human-readable name for this illuminant.

Parameters

illuminantName QString with illuminant name

See also: GetIlluminantName()

Implements icmm::IIlluminant.

◆ SetIlluminantType()

virtual void icmm::CIlluminant::SetIlluminantType ( const StandardIlluminant & illuminantType )

overridevirtual

Sets the standard illuminant type.

Parameters

illuminantType StandardIlluminant enum value

See also: GetIlluminantType(), StandardIlluminant

Implements icmm::IIlluminant.

◆ SetWhitePoint()

virtual void icmm::CIlluminant::SetWhitePoint ( const icmm::CVarColor & whitePoint )

overridevirtual

Sets the white point for this illuminant.

The white point is typically expressed as XYZ tristimulus values with Y component normalized to 1.0.

Parameters

whitePoint CVarColor containing XYZ coordinates of white point

See also: GetWhitePoint(), IWhitePointProvider

Implements icmm::IIlluminant.

The documentation for this class was generated from the following file:

Acf/Include/icmm/CIlluminant.h
