Implementation of ibase::IObjectQueue including some smart optimizations. More...

#include <CObjectQueueComp.h>

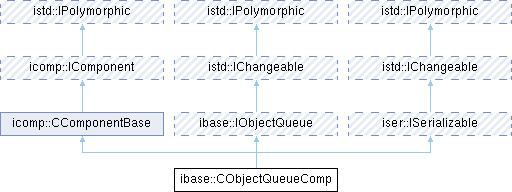

Inheritance diagram for ibase::CObjectQueueComp:

Public Types
typedef icomp::CComponentBase	BaseClass

Public Types inherited from ibase::IObjectQueue
typedef QVector< istd::IChangeable * >	ObjectList

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual int	GetObjectsCount (const QByteArray *typeIdPtr=NULL) const override
	Get number of objects in this queue.

virtual void	ClearQueue () override
	Remove all objects from queue.

virtual istd::IChangeable *	CreateFrontObject (int offsetPos=0, const QByteArray *typeIdPtr=NULL) override
	Create object at the front of this queue.

virtual istd::IChangeable *	CreateBackObject (int offsetPos=0, const QByteArray *typeIdPtr=NULL) override
	Create object at the end of this queue.

virtual void	RemoveFrontObject (int offsetPos=0, const QByteArray *typeIdPtr=NULL) override
	Remove object at the front of this queue.

virtual void	RemoveBackObject (int offsetPos=0, const QByteArray *typeIdPtr=NULL) override
	Remove object at the end of this queue.

virtual istd::IChangeable *	GetFrontObject (int offsetPos=0, const QByteArray *typeIdPtr=NULL) const override
	Get object at the front of queue.

virtual istd::IChangeable *	GetBackObject (int offsetPos=0, const QByteArray *typeIdPtr=NULL) const override
	Get object at the end of queue.

virtual void	SelectObjects (ObjectList &result, bool doAppend=false, int offsetPos=0, const QByteArray *typeIdPtr=NULL) const override
	Find set of objects.

virtual istd::IChangeable *	PopFrontObject (int offsetPos=0, const QByteArray *typeIdPtr=NULL) override
	Get object at the front of queue and remove it from queue.

virtual istd::IChangeable *	PopBackObject (int offsetPos=0, const QByteArray *typeIdPtr=NULL) override
	Get object at the end of queue and remove it from queue.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Protected Member Functions
istd::IChangeable *	CreateObject ()

void	TryReductReserve ()

virtual void	OnComponentDestroyed () override

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentCreated ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Implementation of ibase::IObjectQueue including some smart optimizations.

Definition at line 21 of file CObjectQueueComp.h.

Member Typedef Documentation

◆ BaseClass

typedef icomp::CComponentBase ibase::CObjectQueueComp::BaseClass

Definition at line 27 of file CObjectQueueComp.h.

Member Function Documentation

◆ ClearQueue()

virtual void ibase::CObjectQueueComp::ClearQueue ( )

overridevirtual

Remove all objects from queue.

Implements ibase::IObjectQueue.

◆ CreateBackObject()

virtual istd::IChangeable * ibase::CObjectQueueComp::CreateBackObject	(	int	offsetPos = `0`,
		const QByteArray *	typeIdPtr = `NULL`
	)

overridevirtual

Create object at the end of this queue.

This object belongs to queue, and will be by the queue removed from memory.

Parameters

offsetPos	position from the end, where the object should be placed.
typeIdPtr	optional object ID, if many of object types are supported.

Implements ibase::IObjectQueue.

◆ CreateFrontObject()

virtual istd::IChangeable * ibase::CObjectQueueComp::CreateFrontObject	(	int	offsetPos = `0`,
		const QByteArray *	typeIdPtr = `NULL`
	)

overridevirtual

Create object at the front of this queue.

This object belongs to queue, and will be by the queue removed from memory.

Parameters

offsetPos	position from the front, where the object should be placed.
typeIdPtr	optional object ID, if many of object types are supported.

Implements ibase::IObjectQueue.

◆ CreateObject()

istd::IChangeable * ibase::CObjectQueueComp::CreateObject ( )

protected

◆ GetBackObject()

virtual istd::IChangeable * ibase::CObjectQueueComp::GetBackObject	(	int	offsetPos = `0`,
		const QByteArray *	typeIdPtr = `NULL`
	)		const

overridevirtual

Get object at the end of queue.

Parameters

offsetPos	position from the end.
typeIdPtr	optional object ID, if many of object types are supported.

Implements ibase::IObjectQueue.

◆ GetFrontObject()

virtual istd::IChangeable * ibase::CObjectQueueComp::GetFrontObject	(	int	offsetPos = `0`,
		const QByteArray *	typeIdPtr = `NULL`
	)		const

overridevirtual

Get object at the front of queue.

Parameters

offsetPos	position from the front.
typeIdPtr	optional object ID, if many of object types are supported.

Implements ibase::IObjectQueue.

◆ GetObjectsCount()

virtual int ibase::CObjectQueueComp::GetObjectsCount ( const QByteArray * typeIdPtr = NULL ) const

overridevirtual

Get number of objects in this queue.

Parameters

typeIdPtr optional object ID, if many of object types are supported.

Implements ibase::IObjectQueue.

◆ OnComponentDestroyed()

virtual void ibase::CObjectQueueComp::OnComponentDestroyed ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

◆ PopBackObject()

virtual istd::IChangeable * ibase::CObjectQueueComp::PopBackObject	(	int	offsetPos = `0`,
		const QByteArray *	typeIdPtr = `NULL`
	)

overridevirtual

Get object at the end of queue and remove it from queue.

It means, this object will be overtaken by caller.

Parameters

offsetPos	position from the end.
typeIdPtr	optional object ID, if many of object types are supported.

Implements ibase::IObjectQueue.

◆ PopFrontObject()

virtual istd::IChangeable * ibase::CObjectQueueComp::PopFrontObject	(	int	offsetPos = `0`,
		const QByteArray *	typeIdPtr = `NULL`
	)

overridevirtual

Get object at the front of queue and remove it from queue.

It means, this object will be overtaken by caller.

Parameters

offsetPos	position from the front.
typeIdPtr	optional object ID, if many of object types are supported.

Implements ibase::IObjectQueue.

◆ RemoveBackObject()

virtual void ibase::CObjectQueueComp::RemoveBackObject	(	int	offsetPos = `0`,
		const QByteArray *	typeIdPtr = `NULL`
	)

overridevirtual

Remove object at the end of this queue.

The object must not be physically removed from memory at this moment.

Parameters

offsetPos	position from the end.
typeIdPtr	optional object ID, if many of object types are supported.

Implements ibase::IObjectQueue.

◆ RemoveFrontObject()

virtual void ibase::CObjectQueueComp::RemoveFrontObject	(	int	offsetPos = `0`,
		const QByteArray *	typeIdPtr = `NULL`
	)

overridevirtual

Remove object at the front of this queue.

The object must not be physically removed from memory at this moment.

Parameters

offsetPos	position from the front.
typeIdPtr	optional object ID, if many of object types are supported.

Implements ibase::IObjectQueue.

◆ SelectObjects()

virtual void ibase::CObjectQueueComp::SelectObjects	(	ObjectList &	result,
		bool	doAppend = `false`,
		int	offsetPos = `0`,
		const QByteArray *	typeIdPtr = `NULL`
	)		const

overridevirtual

Find set of objects.

Implements ibase::IObjectQueue.

◆ Serialize()

virtual bool ibase::CObjectQueueComp::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

◆ TryReductReserve()

void ibase::CObjectQueueComp::TryReductReserve ( )

protected

The documentation for this class was generated from the following file:

Acf/Include/ibase/CObjectQueueComp.h
