ACF $AcfVersion:0$
Classes | Public Types | Public Member Functions | Static Public Member Functions | Protected Attributes | List of all members
iattr::TMultiAttribute< Value > Class Template Reference

Template implementation of multiple component attribute. More...

#include <TMultiAttribute.h>

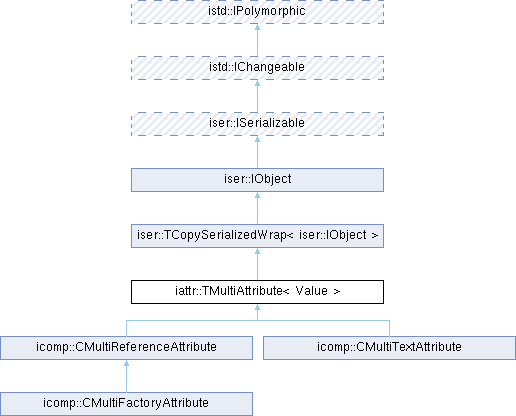

Inheritance diagram for iattr::TMultiAttribute< Value >:
iser::TCopySerializedWrap< iser::IObject > iser::IObject iser::ISerializable istd::IChangeable istd::IPolymorphic icomp::CMultiReferenceAttribute icomp::CMultiTextAttribute icomp::CMultiFactoryAttribute

Classes

struct  Wrap


Public Types

enum  DefaultAttributeFlags { DAF_OBLIGATORY = IAttributeMetaInfo::AF_OBLIGATORY | IAttributeMetaInfo::AF_NULLABLE | IAttributeMetaInfo::AF_MULTIPLE | IAttributeMetaInfo::AF_VALUE , DAF_OPTIONAL = IAttributeMetaInfo::AF_NULLABLE | IAttributeMetaInfo::AF_MULTIPLE | IAttributeMetaInfo::AF_VALUE }

typedef Value ValueType

typedef iser::TCopySerializedWrap< iser::IObject > BaseClass

- Public Types inherited from iser::TCopySerializedWrap< iser::IObject >
typedef iser::IObject BaseClass

- Public Types inherited from istd::IChangeable
enum  ChangeFlags {
  CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,
  CF_DELEGATED , CF_NO_UNDO
}
 Data model change notification flags. More...

enum  SupportedOperations {
  SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,
  SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4
}
 Flags for supported operations. More...

enum  CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
 Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant > ChangeInfoMap


Public Member Functions

 TMultiAttribute ()

 TMultiAttribute (const TMultiAttribute &attribute)

 TMultiAttribute (int elementsCount, Value *valuesPtr)
 Constructor.

virtual int GetValuesCount () const

virtual const Value & GetValueAt (int index) const

virtual void SetValueAt (int index, const Value &value)

virtual void InsertValue (const Value &value)

virtual void Reset ()

virtual int FindValue (const Value &value) const

virtual QByteArray GetFactoryId () const override

virtual bool Serialize (iser::IArchive &archive) override
 Load or store state of this object as a archive stream.

QByteArray GetTypeName ()

QByteArray GetTypeName ()

QByteArray GetTypeName ()

QByteArray GetTypeName ()

QByteArray GetTypeName ()

- Public Member Functions inherited from iser::TCopySerializedWrap< iser::IObject >
virtual int GetSupportedOperations () const override

virtual bool CopyFrom (const istd::IChangeable &object, istd::IChangeable::CompatibilityMode mode=istd::IChangeable::CM_WITHOUT_REFS) override

virtual bool IsEqual (const istd::IChangeable &object) const override

- Public Member Functions inherited from iser::ISerializable
virtual quint32 GetMinimalVersion (int versionId) const
 Get minimal needed version to correct storing of this data.

- Public Member Functions inherited from istd::IChangeable
virtual istd::TUniqueInterfacePtr< istd::IChangeable > CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
 Make a copy of this object.

virtual bool ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
 Reset data to its default state.

virtual void BeginChanges (const ChangeSet &changeSet)
 Starts the change transaction.

virtual void EndChanges (const ChangeSet &changeSet)
 Ends the change transaction.

virtual void BeginChangeGroup (const ChangeSet &changeSet)
 Starts group of changes.

virtual void EndChangeGroup (const ChangeSet &changeSet)
 Ends group of changes.

- Public Member Functions inherited from istd::IPolymorphic
virtual ~IPolymorphic ()


Static Public Member Functions

static QByteArray GetTypeName ()

- Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet & GetNoChanges ()
 Get empty set of changes.

static const ChangeSet & GetAnyChange ()
 Get anonymous change set.

static const ChangeSet & GetAllChanges ()
 Get anonymous change set.

static const ChangeSet & GetDelegatedChanges ()
 Get delegated change set.


Protected Attributes

QVector< Wrap > m_values


Additional Inherited Members

- Protected Member Functions inherited from istd::IChangeable
virtual void OnBeginChanges ()
 Callback function for begin change event.

virtual void OnEndChanges (const ChangeSet &changeSet)
 Callback function for end change event.


Detailed Description

template<typename Value>
class iattr::TMultiAttribute< Value >

Template implementation of multiple component attribute.

Definition at line 28 of file TMultiAttribute.h.

Member Typedef Documentation

◆ BaseClass

template<typename Value >
typedef iser::TCopySerializedWrap<iser::IObject> iattr::TMultiAttribute< Value >::BaseClass

Definition at line 32 of file TMultiAttribute.h.

◆ ValueType

template<typename Value >
typedef Value iattr::TMultiAttribute< Value >::ValueType

Definition at line 31 of file TMultiAttribute.h.

Member Enumeration Documentation

◆ DefaultAttributeFlags

template<typename Value >
enum iattr::TMultiAttribute::DefaultAttributeFlags
Enumerator
DAF_OBLIGATORY
DAF_OPTIONAL

Definition at line 34 of file TMultiAttribute.h.

Constructor & Destructor Documentation

◆ TMultiAttribute() [1/3]

template<typename Value >
iattr::TMultiAttribute< Value >::TMultiAttribute ( )

Definition at line 84 of file TMultiAttribute.h.

◆ TMultiAttribute() [2/3]

template<typename Value >
iattr::TMultiAttribute< Value >::TMultiAttribute ( const TMultiAttribute< Value > &  attribute)

Definition at line 91 of file TMultiAttribute.h.

◆ TMultiAttribute() [3/3]

template<typename Value >
iattr::TMultiAttribute< Value >::TMultiAttribute ( int  elementsCount,
Value *  valuesPtr
)

Constructor.

Parameters
elementsCountnumber of elements stored at valuesPtr.
valuesPtrpointer to array of elements.

Definition at line 99 of file TMultiAttribute.h.

References iattr::TMultiAttribute< Value >::m_values, and iattr::TMultiAttribute< Value >::Wrap::value.

Member Function Documentation

◆ FindValue()

template<typename Value >
int iattr::TMultiAttribute< Value >::FindValue ( const Value &  value) const
virtual

Definition at line 154 of file TMultiAttribute.h.

References iattr::TMultiAttribute< Value >::Wrap::value.

◆ GetFactoryId()

template<typename Value >
QByteArray iattr::TMultiAttribute< Value >::GetFactoryId ( ) const
overridevirtual

Reimplemented from iser::IObject.

Reimplemented in icomp::CMultiFactoryAttribute, icomp::CMultiReferenceAttribute, and icomp::CMultiTextAttribute.

Definition at line 166 of file TMultiAttribute.h.

◆ GetTypeName() [1/6]

template<typename Value >
QByteArray iattr::TMultiAttribute< Value >::GetTypeName ( )
static

Definition at line 217 of file TMultiAttribute.h.

◆ GetTypeName() [2/6]

QByteArray iattr::TMultiAttribute< int >::GetTypeName ( )
inline

Definition at line 228 of file TMultiAttribute.h.

◆ GetTypeName() [3/6]

QByteArray iattr::TMultiAttribute< double >::GetTypeName ( )
inline

Definition at line 235 of file TMultiAttribute.h.

◆ GetTypeName() [4/6]

QByteArray iattr::TMultiAttribute< bool >::GetTypeName ( )
inline

Definition at line 242 of file TMultiAttribute.h.

◆ GetTypeName() [5/6]

QByteArray iattr::TMultiAttribute< QString >::GetTypeName ( )
inline

Definition at line 249 of file TMultiAttribute.h.

◆ GetTypeName() [6/6]

QByteArray iattr::TMultiAttribute< QByteArray >::GetTypeName ( )
inline

Definition at line 256 of file TMultiAttribute.h.

◆ GetValueAt()

template<typename Value >
const Value & iattr::TMultiAttribute< Value >::GetValueAt ( int  index) const
virtual

Definition at line 118 of file TMultiAttribute.h.

◆ GetValuesCount()

template<typename Value >
int iattr::TMultiAttribute< Value >::GetValuesCount ( ) const
virtual

Definition at line 111 of file TMultiAttribute.h.

◆ InsertValue()

template<typename Value >
void iattr::TMultiAttribute< Value >::InsertValue ( const Value &  value)
virtual

Definition at line 138 of file TMultiAttribute.h.

References iattr::TMultiAttribute< Value >::Wrap::value.

Referenced by icomp::CSimComponentContextBase::InsertMultiAttr().

◆ Reset()

template<typename Value >
void iattr::TMultiAttribute< Value >::Reset ( )
virtual

Definition at line 147 of file TMultiAttribute.h.

◆ Serialize()

template<typename Value >
bool iattr::TMultiAttribute< Value >::Serialize ( iser::IArchive &  archive)
overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also
iser::IArchive

Implements iser::ISerializable.

Definition at line 175 of file TMultiAttribute.h.

References iser::IArchive::BeginMultiTag(), iser::IArchive::BeginTag(), iser::IArchive::EndTag(), iser::IArchive::IsStoring(), NULL, iser::IArchive::Process(), iser::CArchiveTag::TT_LEAF, and iser::CArchiveTag::TT_MULTIPLE.

◆ SetValueAt()

template<typename Value >
void iattr::TMultiAttribute< Value >::SetValueAt ( int  index,
const Value &  value
)
virtual

Definition at line 128 of file TMultiAttribute.h.

Member Data Documentation

◆ m_values

template<typename Value >
QVector<Wrap> iattr::TMultiAttribute< Value >::m_values
protected

Definition at line 77 of file TMultiAttribute.h.

Referenced by iattr::TMultiAttribute< Value >::TMultiAttribute().

The documentation for this class was generated from the following file:
