Common interface for controlling devices. More...

#include <IDeviceController.h>

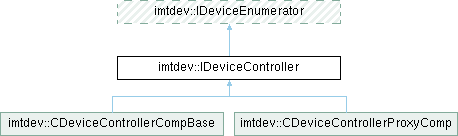

Inheritance diagram for imtdev::IDeviceController:

Public Member Functions
virtual const QByteArrayList &	GetSupportedDeviceTypeIds () const =0
	Get IDs of device types supported by the controller.

virtual const IDeviceSpecification *	GetDeviceStaticInfo (const QByteArray &deviceTypeId) const =0
	Get device static info for the given device type ID.

virtual const imtbase::ICollectionInfo &	GetDeviceInstanceList () const =0
	Get the list of available device instances.

virtual bool	SetDeviceInstanceName (const QByteArray &deviceId, const QString &name)=0
	Set custom name for a device instance.

virtual bool	SetDeviceInstanceDescription (const QByteArray &deviceId, const QString &description)=0
	Set custom description for a device instance.

virtual DeviceInstancePtr	GetDeviceInstance (const QByteArray &deviceId) const =0
	Get device instance info for the given device ID.

virtual const IDeviceStateProvider &	GetDeviceStateProvider () const =0
	Get provider of current device states.

virtual DeviceAccessorPtr	OpenDevice (const QByteArray &deviceId, const iprm::IParamsSet *paramsPtr)=0
	Open a device and start its processing loop.

virtual bool	CloseDevice (const QByteArray &deviceId)=0
	Close a device and stop its processing loop.

Public Member Functions inherited from imtdev::IDeviceEnumerator
virtual StartResult	StartEnumeration (IResultHandler *resultHandlerPtr)=0
	Start device enumeration process.

virtual void	CancelEnumeration ()=0
	Cancel device enumeration process.

Additional Inherited Members
Public Types inherited from imtdev::IDeviceEnumerator
enum	StartResult { SR_OK , SR_PREVIOUS_ENUMERATION_NOT_FINISHED , SR_FAILED }
	Start enumeration result codes. More...

Detailed Description

Common interface for controlling devices.

IDeviceController is the central control hub for device management in the imtdev library. It provides comprehensive device lifecycle management including enumeration, opening/closing, state tracking, and access to device information.

The controller acts as a facade that coordinates multiple subsystems:

Device enumeration and discovery (via IDeviceEnumerator)
Device state tracking (via IDeviceStateProvider)
Device access and command execution (via IDeviceAccessor)
Static device type information
Instance-specific device information

Device Lifecycle:

Devices managed by the controller go through several states:

DS_NONE: Device is not available
DS_CLOSED: Device is available but not actively processing
DS_OPENED: Device is active and can execute commands

Usage Pattern:: // Obtain device controller reference (via component system)

IDeviceController* pController = // get from component system

// Enumerate available devices

pController->EnumerateDevices();

// Get list of discovered devices

const ICollectionInfo& devices = pController->GetDeviceInstanceList();

// Get device instance information

QByteArray deviceId = // get device ID from list

DeviceInstancePtr pInstance = pController->GetDeviceInstance(deviceId);

// Open device for command execution

DeviceAccessorPtr pAccessor = pController->OpenDevice(deviceId, nullptr);

if (pAccessor)

{

// Execute commands on the device

pAccessor->ExecuteCommand(commandId, params);

// Close device when done

pController->CloseDevice(deviceId);

}

imtdev::IDeviceController
Common interface for controlling devices.
Definition IDeviceController.h:84

imtdev::IDeviceController::GetDeviceInstanceList
virtual const imtbase::ICollectionInfo & GetDeviceInstanceList() const =0
Get the list of available device instances.

imtdev::IDeviceController::GetDeviceInstance
virtual DeviceInstancePtr GetDeviceInstance(const QByteArray &deviceId) const =0
Get device instance info for the given device ID.

imtdev::IDeviceController::CloseDevice
virtual bool CloseDevice(const QByteArray &deviceId)=0
Close a device and stop its processing loop.

imtdev::IDeviceController::OpenDevice
virtual DeviceAccessorPtr OpenDevice(const QByteArray &deviceId, const iprm::IParamsSet *paramsPtr)=0
Open a device and start its processing loop.

Thread Safety:: Implementations should provide thread-safe access to device lists and opened devices. The base implementation (CDeviceControllerCompBase) uses mutex protection for this purpose.

See also: IDeviceEnumerator; IDeviceAccessor; IDeviceStateProvider; IDeviceInstance; CDeviceControllerCompBase

Definition at line 83 of file IDeviceController.h.

Member Function Documentation

◆ CloseDevice()

virtual bool imtdev::IDeviceController::CloseDevice ( const QByteArray & deviceId )

pure virtual

Close a device and stop its processing loop.

Transitions a device from DS_OPENED to DS_CLOSED state, releasing resources and stopping any active processing.

Parameters

deviceId Unique identifier of the device to close

Returns: true if device was closed successfully, false otherwise

See also: OpenDevice()

Note: The device must be in DS_OPENED state for this operation to succeed

◆ GetDeviceInstance()

virtual DeviceInstancePtr imtdev::IDeviceController::GetDeviceInstance ( const QByteArray & deviceId ) const

pure virtual

Get device instance info for the given device ID.

Retrieves runtime information about a specific device instance, including identifiers, version information, and attributes.

Note: For some devices, instance information can only be obtained when the device is open (in DS_OPENED state).

Parameters

deviceId Unique identifier of the device

Returns: Shared pointer to device instance, or nullptr if not found

See also: IDeviceInstance; OpenDevice()

◆ GetDeviceInstanceList()

virtual const imtbase::ICollectionInfo & imtdev::IDeviceController::GetDeviceInstanceList ( ) const

pure virtual

Get the list of available device instances.

Returns a collection containing information about all devices that have been discovered through enumeration. The collection supports iteration and provides change notifications when devices are added or removed.

Returns: Reference to collection info containing device instances

See also: EnumerateDevices(); imtbase::ICollectionInfo

◆ GetDeviceStateProvider()

virtual const IDeviceStateProvider & imtdev::IDeviceController::GetDeviceStateProvider ( ) const

pure virtual

Get provider of current device states.

Returns the state provider that tracks the current state (DS_NONE, DS_CLOSED, DS_OPENED) of all devices managed by this controller.

Returns: Reference to device state provider

See also: IDeviceStateProvider

◆ GetDeviceStaticInfo()

virtual const IDeviceSpecification * imtdev::IDeviceController::GetDeviceStaticInfo ( const QByteArray & deviceTypeId ) const

pure virtual

Get device static info for the given device type ID.

Retrieves the device specification that describes static properties, capabilities, and supported commands for a specific device type.

Parameters

deviceTypeId Unique identifier of the device type

Returns: Pointer to device specification, or nullptr if device type is not supported

See also: IDeviceSpecification; GetSupportedDeviceTypeIds()

◆ GetSupportedDeviceTypeIds()

virtual const QByteArrayList & imtdev::IDeviceController::GetSupportedDeviceTypeIds ( ) const

pure virtual

Get IDs of device types supported by the controller.

Returns a list of device type identifiers that this controller can manage. Each device type has associated static information (IDeviceSpecification) that describes its capabilities.

Returns: Reference to list of supported device type IDs

See also: GetDeviceStaticInfo()

◆ OpenDevice()

virtual DeviceAccessorPtr imtdev::IDeviceController::OpenDevice	(	const QByteArray &	deviceId,
		const iprm::IParamsSet *	paramsPtr
	)

pure virtual

Open a device and start its processing loop.

Transitions a device from DS_CLOSED to DS_OPENED state, making it ready for command execution. Returns a device accessor that can be used to interact with the device.

Parameters

deviceId	Unique identifier of the device to open
paramsPtr	Optional parameters for device initialization (can be nullptr)

Returns: Device accessor for command execution, or nullptr if open failed

See also: CloseDevice(); IDeviceAccessor

Note: The device must be in DS_CLOSED state for this operation to succeed

◆ SetDeviceInstanceDescription()

virtual bool imtdev::IDeviceController::SetDeviceInstanceDescription	(	const QByteArray &	deviceId,
		const QString &	description
	)

pure virtual

Set custom description for a device instance.

Allows overriding the default device description with custom text. This description provides additional context about the device.

Parameters

deviceId	Unique identifier of the device
description	Custom description to assign to the device

Returns: true if description was set successfully, false otherwise

See also: SetDeviceInstanceName()

◆ SetDeviceInstanceName()

virtual bool imtdev::IDeviceController::SetDeviceInstanceName	(	const QByteArray &	deviceId,
		const QString &	name
	)

pure virtual

Set custom name for a device instance.

Allows overriding the default device name with a user-friendly name. This name is typically displayed in user interfaces.

Parameters

deviceId	Unique identifier of the device
name	Custom name to assign to the device

Returns: true if name was set successfully, false otherwise

See also: SetDeviceInstanceDescription()
