imtdev::IDeviceInstance

Interface for describing runtime information about a device instance. More...

#include <IDeviceInstance.h>

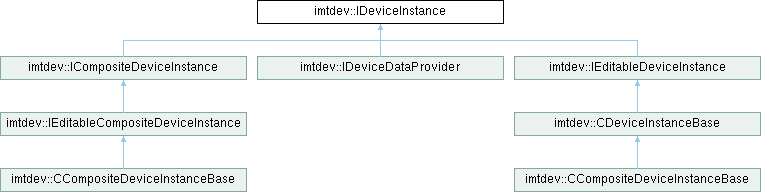

Inheritance diagram for imtdev::IDeviceInstance:

Public Types
enum	IdentifierTypes { IT_SERIAL }
	Types of device identifiers. More...
enum	VersionIds {   VI_FIRMWARE_VERSION_MAJOR = iser::IVersionInfo::UserVersionId , VI_FIRMWARE_VERSION_MINOR , VI_FIRMWARE_VERSION_PATCH , VI_HARDWARE_VERSION_MAJOR ,   VI_HARDWARE_VERSION_MINOR , VI_HARDWARE_VERSION_PATCH }
	Version information identifiers. More...

Public Member Functions
virtual const IDeviceSpecification &	GetDeviceSpecification () const =0
	Get device static info associated with device instance.
virtual QByteArray	GetIdentifier (int identifierType) const =0
	Get the device identifier of the given type.
virtual const iser::IVersionInfo &	GetVersion () const =0
	Get device instance version information.
virtual const iattr::IAttributesProvider *	GetAttributes () const =0
	Get device instance attributes provider.

Detailed Description

Interface for describing runtime information about a device instance.

IDeviceInstance represents a specific instance of a device at runtime. It provides access to instance-specific information including unique identifiers (such as serial numbers), version information (firmware, hardware), and dynamic attributes.

This interface extends istd::IChangeable to support change notifications when device instance properties are modified.

Key Concepts:

• Device Instance: A runtime object representing a connected or manageable device
• Identifiers: Unique identifiers like serial numbers that distinguish device instances
• Version Information: Firmware and hardware version tracking for compatibility checks
• Attributes: Dynamic properties specific to this device instance

Usage Example:

DeviceInstancePtr pInstance = pController->GetDeviceInstance(deviceId);

// Get device type information
const IDeviceSpecification& spec = pInstance->GetDeviceSpecification();

// Get serial number
QByteArray serialNumber = pInstance->GetIdentifier(IDeviceInstance::IT_SERIAL);

// Check firmware version
const iser::IVersionInfo& version = pInstance->GetVersion();
int fwMajor = version.GetVersion(IDeviceInstance::VI_FIRMWARE_VERSION_MAJOR);

// Access device-specific attributes
const iattr::IAttributesProvider* attrs = pInstance->GetAttributes();

See also

IDeviceSpecification

IEditableDeviceInstance

ICompositeDeviceInstance

Definition at line 59 of file IDeviceInstance.h.

Member Enumeration Documentation

IdentifierTypes

enum imtdev::IDeviceInstance::IdentifierTypes

Types of device identifiers.

Enumeration of different identifier types that can be used to uniquely identify device instances.

Enumerator
IT_SERIAL	Serial number identifier.

Definition at line 68 of file IDeviceInstance.h.

VersionIds

enum imtdev::IDeviceInstance::VersionIds

Version information identifiers.

Enumeration of version components that can be queried from device instances. Extends iser::IVersionInfo::UserVersionId to add device-specific version types.

Enumerator
VI_FIRMWARE_VERSION_MAJOR	Major firmware version number.
VI_FIRMWARE_VERSION_MINOR	Minor firmware version number.
VI_FIRMWARE_VERSION_PATCH	Patch firmware version number.
VI_HARDWARE_VERSION_MAJOR	Major hardware version number.
VI_HARDWARE_VERSION_MINOR	Minor hardware version number.
VI_HARDWARE_VERSION_PATCH	Patch hardware version number.

Definition at line 80 of file IDeviceInstance.h.

Member Function Documentation

GetAttributes()

virtual const iattr::IAttributesProvider * imtdev::IDeviceInstance::GetAttributes ( ) const

pure virtual

Get device instance attributes provider.

Returns the attributes provider that manages dynamic, instance-specific properties for this device. May return nullptr if no attributes are available.

Returns

Pointer to attributes provider, or nullptr if not available

See also

iattr::IAttributesProvider

Implemented in imtdev::CDeviceInstanceBase.

GetDeviceSpecification()

virtual const IDeviceSpecification & imtdev::IDeviceInstance::GetDeviceSpecification ( ) const

pure virtual

Get device static info associated with device instance.

Returns the device specification that describes the static properties and capabilities of this device type.

Returns

Reference to the device specification object

See also

IDeviceSpecification

GetIdentifier()

virtual QByteArray imtdev::IDeviceInstance::GetIdentifier ( int  identifierType ) const

pure virtual

Get the device identifier of the given type.

Retrieves a device identifier such as serial number that uniquely identifies this device instance.

Parameters

identifierType

Type of identifier to retrieve (e.g., IT_SERIAL)

Returns

Device identifier as a byte array

See also

IdentifierTypes

Implemented in imtdev::CDeviceInstanceBase.

GetVersion()

virtual const iser::IVersionInfo & imtdev::IDeviceInstance::GetVersion ( ) const

pure virtual

Get device instance version information.

Returns version information containing firmware and hardware version numbers for this specific device instance.

Returns

Reference to version information object

See also

iser::IVersionInfo

VersionIds

Implemented in imtdev::CDeviceInstanceBase.
