imtdev::CDeviceControllerProxyComp

Proxy controller component aggregating multiple device controllers. More...

#include <CDeviceControllerProxyComp.h>

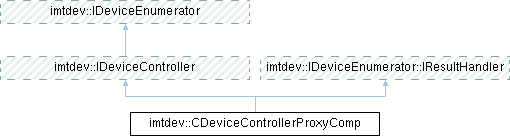

Inheritance diagram for imtdev::CDeviceControllerProxyComp:

Additional Inherited Members
Public Types inherited from imtdev::IDeviceEnumerator
enum	StartResult { SR_OK , SR_PREVIOUS_ENUMERATION_NOT_FINISHED , SR_FAILED }
	Start enumeration result codes. More...
Public Types inherited from imtdev::IDeviceEnumerator::IResultHandler
enum	EnumerationResult { ER_OK , ER_CANCELED , ER_FAILED }
	Enumeration result codes. More...

Detailed Description

Proxy controller component aggregating multiple device controllers.

CDeviceControllerProxyComp implements the Proxy Pattern to aggregate multiple IDeviceController instances into a unified interface. It provides seamless access to devices from different controllers through a single entry point.

This component is essential for systems with multiple device types managed by different controllers, enabling:

• Unified device enumeration across all controllers
• Automatic routing of operations to appropriate controller
• Aggregated device type and instance lists
• Centralized state tracking
• Automatic periodic enumeration

Key Features:

• Multi-Controller Aggregation: Manages multiple IDeviceController instances
• Automatic Enumeration: Configurable periodic enumeration (default: 5 seconds)
• Smart Routing: Routes device operations to correct underlying controller
• Unified Device List: Combines devices from all controllers
• State Aggregation: Unified state provider across all controllers
• Change Tracking: Multi-model dispatcher for tracking all controller changes

Component Structure:

The component exposes multiple sub-elements:

• DeviceTypeList: Collection of all supported device types from all controllers
• DeviceList: Aggregated list of devices from all controllers (ICollectionInfo)
• DeviceStateProvider: Unified state provider (IDeviceStateProvider)
• OverriddenDeviceInfo: Collection of custom names/descriptions

Configuration:

• DeviceControllers: Multi-reference to IDeviceController instances to aggregate
• EnableEnumerationControl: Enable automatic enumeration (default: false)
• EnumerationInterval: Time between enumeration cycles in seconds (default: 5, 0 = continuous)

Enumeration Control:

When enabled, the proxy automatically:

1. Enumerates all controllers periodically
2. Updates aggregated device lists
3. Handles enumeration failures gracefully
4. Respects the configured interval

Usage Pattern:

// Obtain proxy controller instance (created via component system)
CDeviceControllerProxyComp* pProxy = // get from component system

// Obtain controller references (configured via component system)
IDeviceController* pController1 = // USB device controller reference
IDeviceController* pController2 = // Network device controller reference
pProxy->AddDeviceController(pController1);
pProxy->AddDeviceController(pController2);

// Enable automatic enumeration every 5 seconds
pProxy->SetEnumerationControl(true);
pProxy->SetEnumerationInterval(5);

// Use as unified controller
const ICollectionInfo& allDevices = pProxy->GetDeviceInstanceList();
DeviceAccessorPtr pAccessor = pProxy->OpenDevice(deviceId, nullptr);

Thread Safety:

• Inherits thread safety from CMultiModelDispatcherBase
• Uses Qt timer for periodic enumeration (thread-safe signal/slot)
• Controller operations are delegated with proper synchronization

See also

IDeviceController

CDeviceControllerCompBase

imod::CMultiModelDispatcherBase

Definition at line 100 of file CDeviceControllerProxyComp.h.
