imtdev::CCompositeDeviceInstanceBase

Base implementation class for composite device instances. More...

#include <CCompositeDeviceInstanceBase.h>

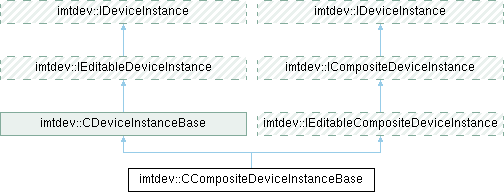

Inheritance diagram for imtdev::CCompositeDeviceInstanceBase:

Public Types
typedef CDeviceInstanceBase	BaseClass
	Base class type alias.
Public Types inherited from imtdev::IDeviceInstance
enum	IdentifierTypes { IT_SERIAL }
	Types of device identifiers. More...
enum	VersionIds {   VI_FIRMWARE_VERSION_MAJOR = iser::IVersionInfo::UserVersionId , VI_FIRMWARE_VERSION_MINOR , VI_FIRMWARE_VERSION_PATCH , VI_HARDWARE_VERSION_MAJOR ,   VI_HARDWARE_VERSION_MINOR , VI_HARDWARE_VERSION_PATCH }
	Version information identifiers. More...

Public Member Functions
	CCompositeDeviceInstanceBase ()
	Constructor.
	~CCompositeDeviceInstanceBase ()
	Destructor.
virtual QByteArray	AddSubDevice (const QByteArray &deviceTypeId, const QString &name, const QString &description=QString(), const istd::IChangeable *defaultValuePtr=nullptr, const QByteArray &proposedId=QByteArray()) override
	Add new sub-device.
virtual bool	RemoveSubDevice (const QByteArray &id) override
	Remove sub-device.
virtual const ICompositeDeviceSpecification *	GetCompositeDeviceSpecification () const override
	Get composite device specification.
virtual QSet< QByteArray >	GetSupportedSubDeviceTypeIds () const override
	Get supported sub-device type IDs.
virtual const imtbase::ICollectionInfo &	GetSubDeviceList () const override
	Get sub-device list.
virtual const IDeviceInstance *	GetSubDeviceInstance (const QByteArray &subDeviceId) const override
	Get specific sub-device instance.
virtual int	GetSupportedOperations () const override
	Get supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy from another composite device.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset composite device data.
Public Member Functions inherited from imtdev::CDeviceInstanceBase
	CDeviceInstanceBase ()
	Constructor.
	~CDeviceInstanceBase ()
	Destructor.
virtual bool	SetIdentifier (IdentifierTypes idType, const QByteArray &id) override
	Set device identifier.
virtual bool	SetVersion (int versionId, quint32 version, const QString &description) override
	Set version information component.
virtual iattr::IAttributesManager *	GetAttributesManager () override
	Get attributes manager for modification.
virtual QByteArray	GetIdentifier (int idType) const override
	Get device identifier.
virtual const iser::IVersionInfo &	GetVersion () const override
	Get version information.
virtual const iattr::IAttributesProvider *	GetAttributes () const override
	Get attributes provider (read-only)
Public Member Functions inherited from imtdev::IDeviceInstance
virtual const IDeviceSpecification &	GetDeviceSpecification () const =0
	Get device static info associated with device instance.

Protected Member Functions
virtual IDeviceInstance *	CreateDeviceInstance (const QByteArray &deviceTypeId) const
	Create device instance (factory method)
Protected Member Functions inherited from imtdev::CDeviceInstanceBase
virtual bool	EnsureAttributesCreated () const
	Ensure attributes provider is created.

Additional Inherited Members
Protected Attributes inherited from imtdev::CDeviceInstanceBase
imod::CModelUpdateBridge	m_updateBridge
	Bridge for change notifications (mutable for change tracking in const methods)
std::unique_ptr< iattr::IAttributesProvider >	m_attributesPtr
	Lazy-created attributes (mutable to allow creation in const GetAttributes())

Detailed Description

Base implementation class for composite device instances.

CCompositeDeviceInstanceBase extends CDeviceInstanceBase to support hierarchical device structures with sub-devices. It provides complete implementation of IEditableCompositeDeviceInstance, enabling dynamic creation and management of device trees.

This class implements the Composite Pattern, allowing devices to contain other devices in a parent-child relationship. Sub-devices can themselves be composite, enabling multi-level hierarchies.

Key Features:

• Sub-Device Management: Add and remove sub-devices dynamically
• Factory Pattern: Virtual CreateDeviceInstance() for custom sub-device creation
• Collection Support: ICollectionInfo interface for sub-device list access
• Change Tracking: Automatic notifications when sub-devices are added/removed
• Serialization: Copy and reset operations including sub-device tree

Design:

The class uses:

• QMap for sub-device storage (indexed by device ID)
• TModelWrap for collection info (automatic change tracking)
• Virtual factory method for extensible device instance creation
• Nested SubDeviceCollectionInfo for ICollectionInfo implementation

Usage Example:

// Create composite device instance
CCompositeDeviceInstanceBase compositeDevice;

// Set parent device information
compositeDevice.SetIdentifier(IDeviceInstance::IT_SERIAL, "COMPOSITE_001");
compositeDevice.SetVersion(IDeviceInstance::VI_FIRMWARE_VERSION_MAJOR, 1, "v1");

// Add sub-devices
QByteArray cameraId = compositeDevice.AddSubDevice(
       "StandardCamera",           // Device type ID
       "Camera 1",                 // Name
       "Front-facing camera"       // Description
);

QByteArray sensorId = compositeDevice.AddSubDevice(
       "TemperatureSensor",
       "Temp Sensor",
       "Environmental sensor"
);

// Access sub-device list
const imtbase::ICollectionInfo& subDevices = compositeDevice.GetSubDeviceList();
int count = subDevices.GetElementsCount();

// Get specific sub-device
const IDeviceInstance* pCamera = compositeDevice.GetSubDeviceInstance(cameraId);
if (pCamera)
{
       // Work with sub-device
       const IDeviceSpecification& spec = pCamera->GetDeviceSpecification();
}

// Remove sub-device
compositeDevice.RemoveSubDevice(sensorId);

// Copy entire device tree
CCompositeDeviceInstanceBase clonedDevice;
clonedDevice.CopyFrom(compositeDevice);

Extension:

Derived classes should override CreateDeviceInstance() to provide custom sub-device instance creation based on device type ID. The base implementation returns nullptr.

Thread Safety:

Operations that modify the sub-device structure trigger change notifications. Ensure proper synchronization if accessing from multiple threads.

See also

CDeviceInstanceBase

IEditableCompositeDeviceInstance

ICompositeDeviceInstance

Definition at line 102 of file CCompositeDeviceInstanceBase.h.

Constructor & Destructor Documentation

CCompositeDeviceInstanceBase()

imtdev::CCompositeDeviceInstanceBase::CCompositeDeviceInstanceBase

(

)

Constructor.

Initializes the composite device instance with empty sub-device list. Inherits base device instance initialization from CDeviceInstanceBase.

~CCompositeDeviceInstanceBase()

imtdev::CCompositeDeviceInstanceBase::~CCompositeDeviceInstanceBase

(

)

Destructor.

Cleans up all sub-devices and releases resources.

Member Function Documentation

AddSubDevice()

virtual QByteArray imtdev::CCompositeDeviceInstanceBase::AddSubDevice ( const QByteArray &  deviceTypeId, const QString &  name, const QString &  description = QString(), const istd::IChangeable *  defaultValuePtr = nullptr, const QByteArray &  proposedId = QByteArray()  )

overridevirtual

Add new sub-device.

Creates and adds a new sub-device instance with the specified type and properties. The device type must be supported by the composite device specification. Calls virtual CreateDeviceInstance() to create the instance, then stores it.

Parameters

deviceTypeId	Type identifier of the sub-device to create
name	Human-readable name for the sub-device
description	Optional description
defaultValuePtr	Optional default configuration (unused in base implementation)
proposedId	Optional proposed ID; if empty, auto-generated

Returns

Unique identifier of the newly created sub-device, or empty on failure

Implements imtdev::IEditableCompositeDeviceInstance.

CopyFrom()

virtual bool imtdev::CCompositeDeviceInstanceBase::CopyFrom ( const IChangeable &  object, CompatibilityMode  mode = CM_WITHOUT_REFS  )

overridevirtual

Copy from another composite device.

Copies all data including sub-devices from another composite device instance. Performs deep copy of the entire device tree.

Parameters

object	Source object to copy from
mode	Compatibility mode for copying

Returns

true if copy succeeded

Reimplemented from imtdev::CDeviceInstanceBase.

CreateDeviceInstance()

virtual IDeviceInstance * imtdev::CCompositeDeviceInstanceBase::CreateDeviceInstance ( const QByteArray &  deviceTypeId ) const

protectedvirtual

Create device instance (factory method)

Virtual factory method for creating sub-device instances based on device type ID. Derived classes must override this to provide actual device instance creation.

Parameters

deviceTypeId

Type identifier of the device to create

Returns

Pointer to newly created device instance, or nullptr if type not supported

Note

Base implementation returns nullptr

GetCompositeDeviceSpecification()

virtual const ICompositeDeviceSpecification * imtdev::CCompositeDeviceInstanceBase::GetCompositeDeviceSpecification ( ) const

overridevirtual

Get composite device specification.

Base implementation returns nullptr. Derived classes should override to provide actual composite device specification.

Returns

Pointer to composite specification, or nullptr in base implementation

Implements imtdev::ICompositeDeviceInstance.

GetSubDeviceInstance()

virtual const IDeviceInstance * imtdev::CCompositeDeviceInstanceBase::GetSubDeviceInstance ( const QByteArray &  subDeviceId ) const

overridevirtual

Get specific sub-device instance.

Retrieves the device instance for a sub-device with the given ID.

Parameters

subDeviceId

Unique identifier of the sub-device

Returns

Pointer to sub-device instance, or nullptr if not found

Implements imtdev::ICompositeDeviceInstance.

GetSubDeviceList()

virtual const imtbase::ICollectionInfo & imtdev::CCompositeDeviceInstanceBase::GetSubDeviceList ( ) const

overridevirtual

Get sub-device list.

Returns the collection containing all sub-devices in this composite.

Returns

Reference to sub-device collection info

Implements imtdev::ICompositeDeviceInstance.

GetSupportedOperations()

virtual int imtdev::CCompositeDeviceInstanceBase::GetSupportedOperations ( ) const

overridevirtual

Get supported operations.

Returns flags indicating supported operations (copy, reset, etc.). Includes base class operations plus composite-specific operations.

Returns

Operation flags

Reimplemented from imtdev::CDeviceInstanceBase.

GetSupportedSubDeviceTypeIds()

virtual QSet< QByteArray > imtdev::CCompositeDeviceInstanceBase::GetSupportedSubDeviceTypeIds ( ) const

overridevirtual

Get supported sub-device type IDs.

Returns the set of device type IDs that can be added as sub-devices. Base implementation queries the composite device specification.

Returns

Set of supported type IDs

Implements imtdev::ICompositeDeviceInstance.

RemoveSubDevice()

virtual bool imtdev::CCompositeDeviceInstanceBase::RemoveSubDevice ( const QByteArray &  id )

overridevirtual

Remove sub-device.

Removes an existing sub-device from the composite. Triggers change notification.

Parameters

id	Unique identifier of the sub-device to remove

Returns

true if sub-device was removed successfully, false if not found

Implements imtdev::IEditableCompositeDeviceInstance.

ResetData()

virtual bool imtdev::CCompositeDeviceInstanceBase::ResetData ( CompatibilityMode  mode = CM_WITHOUT_REFS )

overridevirtual

Reset composite device data.

Clears all data including removing all sub-devices.

Parameters

mode	Compatibility mode for reset

Returns

true if reset succeeded

Reimplemented from imtdev::CDeviceInstanceBase.
