imt3d::IPointsBasedObject

#include <IPointsBasedObject.h>

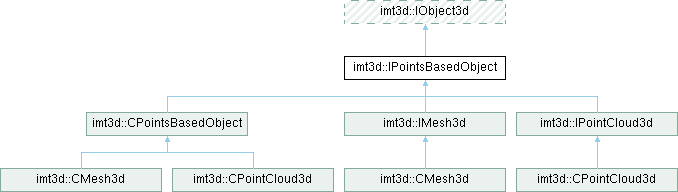

Inheritance diagram for imt3d::IPointsBasedObject:

Public Member Functions
virtual PointFormat	GetPointFormat () const =0
virtual int	GetPointsCount () const =0
virtual void *	GetPointData (int pointIndex)=0
virtual const void *	GetPointData (int pointIndex) const =0
virtual void *	GetData ()=0
virtual const void *	GetData () const =0
virtual int	GetPointBytesSize () const =0
Public Member Functions inherited from imt3d::IObject3d
virtual bool	IsEmpty () const =0
virtual i3d::CVector3d	GetCenter () const =0
virtual void	MoveCenterTo (const i3d::CVector3d &position)=0
virtual CCuboid	GetBoundingCuboid () const =0

Detailed Description

Common interface describing object of 3d points with specified format

Definition at line 29 of file IPointsBasedObject.h.

Member Function Documentation

GetData() [1/2]

virtual const void * imt3d::IPointsBasedObject::GetData ( ) const

pure virtual

Return const pointer to the internal data buffer.

GetData() [2/2]

virtual void * imt3d::IPointsBasedObject::GetData ( )

pure virtual

Return pointer to the internal data buffer.

GetPointBytesSize()

virtual int imt3d::IPointsBasedObject::GetPointBytesSize ( ) const

pure virtual

Return bytes count of one point

GetPointData() [1/2]

virtual const void * imt3d::IPointsBasedObject::GetPointData ( int  pointIndex ) const

pure virtual

Get read-only access to the point data buffer.

GetPointData() [2/2]

virtual void * imt3d::IPointsBasedObject::GetPointData ( int  pointIndex )

pure virtual

Get full access to the point data buffer.

GetPointFormat()

virtual PointFormat imt3d::IPointsBasedObject::GetPointFormat ( ) const

pure virtual

Get point format.

GetPointsCount()

virtual int imt3d::IPointsBasedObject::GetPointsCount ( ) const

pure virtual

Get number of points in the point cloud.
